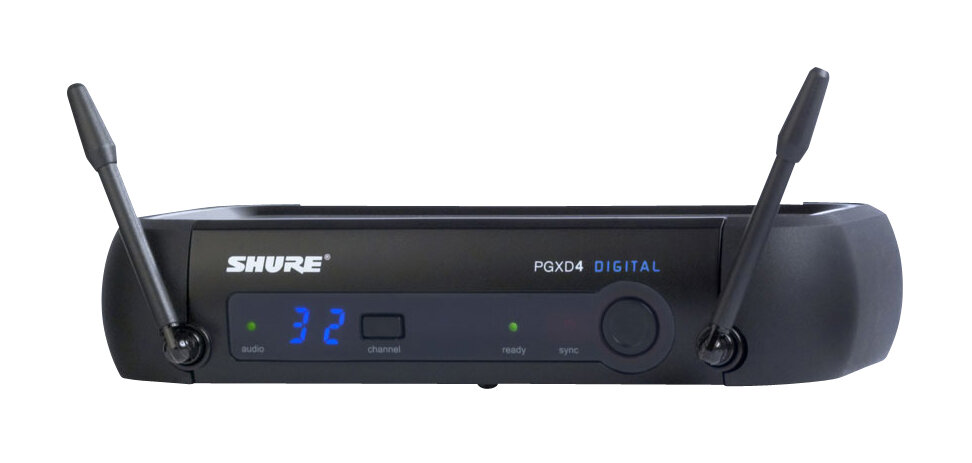

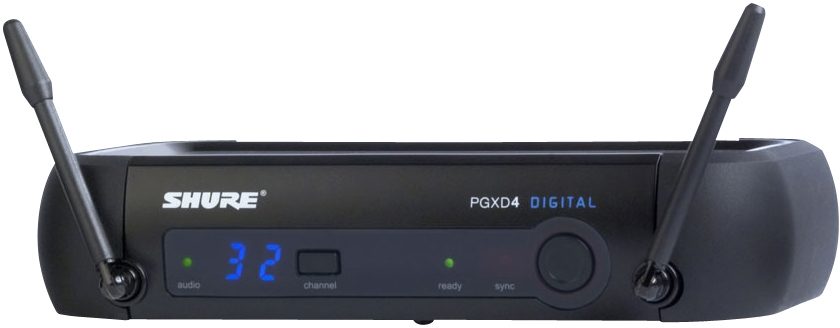

Shure PGXD4 Digital Diversity Wireless Receiver

- Housing: ABS
- Audio Output Level (ref. +/- 38 kHz deviation, 1 kHz tone):
- - XLR connector (into 3000 ohm load): -2.5 dBV
- - 1/4 inch connector (into 10000 ohm load): +10 dBV
- Impedance:
- - XLR: 50 ohms
- - 1/4 inch: 50 ohms
- Sensitivity: -102 dBm at 10-5 BER
- Image Rejection: > 70 dB, typical
- Audio Outputs:
- - Balanced XLR
- - 1/4 inch TRS
- Audio LED Indicators:
- - Red: 2 dB below clip
- - Amber: 12 dB below clip
- - Green: 50 dB below clip
- Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply
- Dimensions (HxWxD): 1.6 x 7.125 x 4.1 inches (40 x 181 x 104 mm)
- Weight: 289 g (10.2 oz.)
Dimensions and Weight in Packaging
Band X8 (902 - 928 MHz)
Shipping Weight: 3.75 lbs
Shipping Dimensions: 18 x 13 x 4 in
Manufacturer Part Number (MPN): PGXD4
If you have additional warranty questions, please contact the manufacturer at 800-25-SHURE
