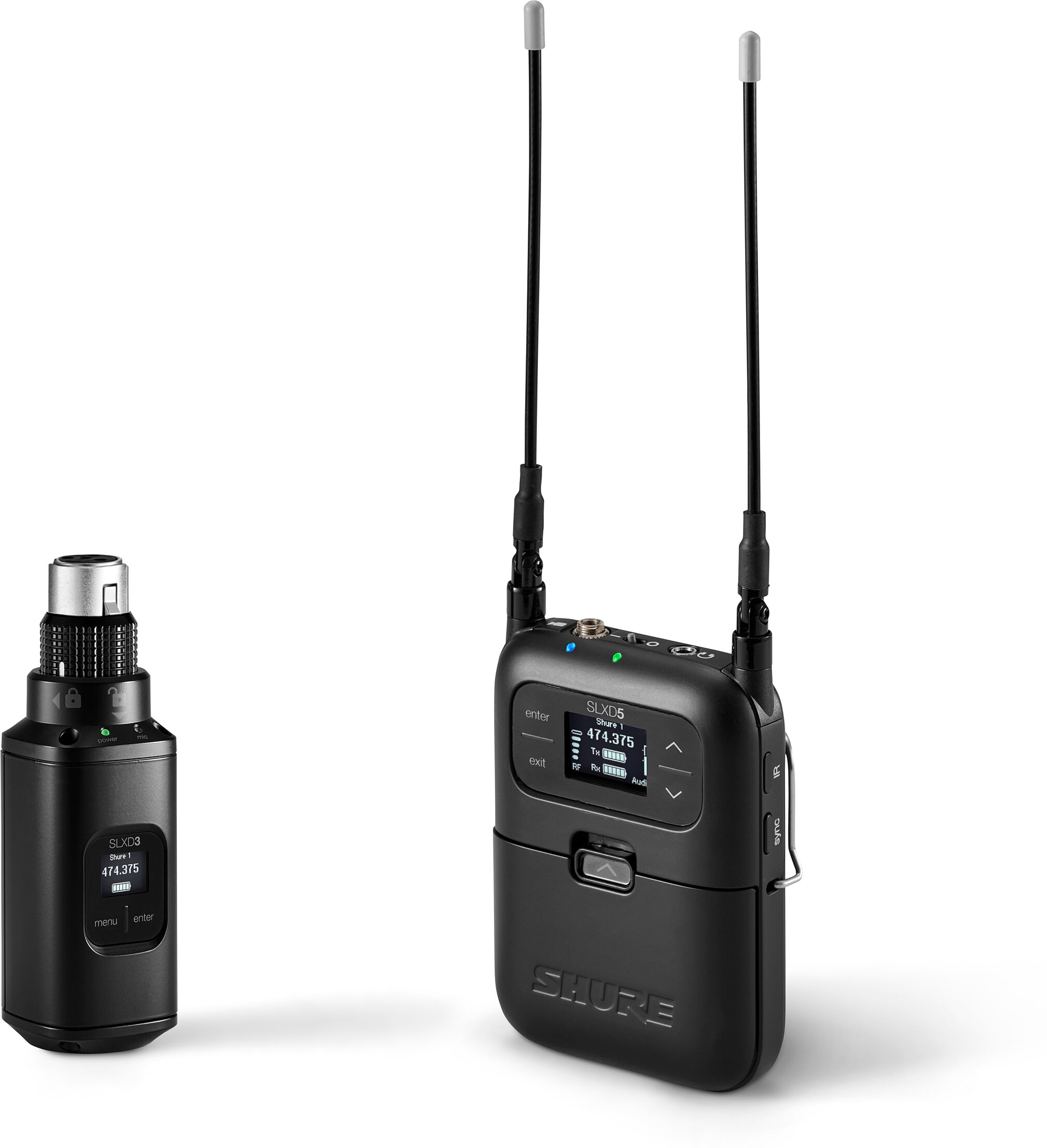

Shure SLXD35 Digital Wireless Plug-On Microphone System

Wireless audio for video made easy! Just plug Shure's SLXD3 transmitter onto your XLR mic and mount the SLXD5 battery-powered receiver on your camera.

Overview

Featuring the SLXD3 Plug-On wireless transmitter, SLXD35 provides transparent digital audio and rock-solid RF stability for videography, ENG and broadcast applications.

Shure's SLXD3 Plug-On Digital Wireless Transmitter converts any XLR source, including dynamic and condenser microphones, for use as an SLX-D wireless transmitter. Featuring a patented locking ring for a secure, wobble-free connection, the SLXD3 sends 24-bit digital audio from any XLR source to an SLXD4 or SLXD5 Digital Wireless receiver via rock-solid RF connection.

Use IR Sync to pair transmitters easily and quickly with your choice of SLX-D wireless receiver. A full suite of optional rechargeability accessories enables wireless excellence, wherever required, and the bright OLED screen displays battery life in hours and minutes when used with the optional SB903 Rechargeable Lithium-Ion batteries. Includes SLXD3 plug-on transmitter, a pair of AA alkaline batteries, zippered carrying pouch and a leather protective sleeve with an integrated belt clip.

SLXD3 Features:

- Convert any XLR source for use within SLX-D wireless systems
- Provides +12-48 VDC phantom power for use with condenser microphones
- Patented locking mechanism for secure, wobble-free connection
- Transparent 24-bit digital audio
- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 118 dB dynamic range
- Digital predictive switching diversity
- Switchable 1/10/30 mW power levels (region- and band-dependent)
- 44 MHz tuning… read more bandwidth (region dependent)
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- Easy pairing of transmitters and receivers over scan and IR sync
- Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
- Rugged metal construction

The SLXD5 Single-Channel Portable Digital Wireless Receiver packs the rich features of an SLXD Digital Wireless Receiver into a slim, portable package. Featuring pristine 24-bit digital audio clarity, efficient long range UHF transmission and easy-to-use setup features, the SLXD5 is at home on top of your camera or in an audio bag. Scan and deploy frequencies to a compatible SLXD wireless transmitter with IR sync, or coordinate and monitor large channel configurations with many sources using Multi-Mic Mode. A full suite of optional rechargeability accessories enables wireless excellence, wherever required, and the bright OLED screen displays battery life in hours and minutes when used with the optional SB903 Rechargeable Lithium-Ion batteries. Includes SLXD5 Portable Receiver, a pair of AA alkaline batteries, a non conductive cold shoe mount adapter and a zippered carrying pouch.

SLXD5 Features:

- Powerful, portable digital wireless receiver for on-camera cold shoe mounting and audio bag use
- Transparent 24-bit digital audio
- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 118 dB dynamic range
- Dual 1/8" outputs including a headphone monitor out and switchable line/mic output
- Use Multi-Mic Mode to scan and sync over IR multiple clean frequencies, and monitor multiple sources from a single receiver with user-configurable front-panel controls
- Bright OLED display screen for key system function readouts and remaining battery life
- Digital predictive switching diversity
- 44 MHz tuning bandwidth (region dependent)
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- Rugged metal construction

In The Box:
- Two (2) Zippered Carrying Pouches
- Leather Protective Sleeve with Integrated Belt Clip
- 2 AA Alkaline Batteries for SLXD3
- WA311 Non-Conductive Cold Shoe Mount Adapter
- 1/8"-to-1/8" audio cable
- 1/8"-to-XLR (Male) audio cable
- 4 AA Alkaline Batteries

Specs

- SLXD3 Specifications:
- Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
- Dimensions (Dia. x L): 4.9 x 1.6 x 1.6 in / (126 x 41 x 41 mm)
- Weight: 7.0 oz. (200 g)
- Housing: Aluminum, Zinc Alloy, PC/ABS
- AUDIO INPUT:
- Configuration: XLR
- Maximum Input Level: 1 kHz @ 1% THD
- Pad: -12 dB: 20.5 dBV, 0 dB: 8.5 dBV
- Boost: +12 dB: -3.5 dBV
Note: Dependent on Microphone Type
- Phantom Power: +48 V (7 mA maximum), +12 V (15 mA maximum)
- RF OUTPUT:
- Antenna Type: Dipole
- Occupied Bandwidth: <200 kHz
- Modulation Type: Shure Propietary Digital
- Power: 1 mW/10 mW/30 mW
Varies by region. See Frequency Range and Output Power Table.
- Specific Absorption Rate (SAR): <0.17 W/kg

- SLXD5 Specifications:
- Dimensions (H x W x D): 4.21 x 2.68 x 1.0 in / (107 x 68 x 25.3 mm)
- Weight: 1.8 lb (182 g)
- Housing: Aluminum
- Power Requirements Battery: Rechargeable Li-Ion or 1.5 V AA batteries
- Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C
- RF INPUT:
- Spurious Rejection: >75 dB
- Typical:
- Impedance: 50 O
- Phantom Power:
- Protection: Yes
- Antenna Type: 1/4 Wave Whip
- AUDIO OUTPUT:
- Audio Frequency Response: 20 Hz - 20 kHz (+1, -3 dB)
- Connector Type: 1/8" (3.5 mm), \0xD72
- Configuration:
- Balanced (Mono): Tip=audio +, Ring=audio -, Sleeve=ground
- Dual Mono: Tip = left, Ring = Right, Sleeve = Ground
- Impedance:
- (Camera):
- Balanced (Mono) Line: 450 O
- Balanced (Mono) Mic: 240 O
- Dual Mono Line: 400 O
- Dual Mono Mic: 200 O
- Full Scale Output Camera (Balanced Line): 15 dBV
- Headphone: 13 mW @ 64 O Load

Dimensions and Weight in Packaging
G58: Shipping Weight: 2.35 lbs; Shipping Dimensions: 16 x 8 x 3 in; Manufacturer Part Number (MPN): SLXD35-G58
H55: Shipping Weight: 2.45 lbs; Shipping Dimensions: 16 x 8 x 3 in; Manufacturer Part Number (MPN): SLXD35-H55
J52: Shipping Weight: 2.5 lbs; Shipping Dimensions: 16 x 8 x 3 in; Manufacturer Part Number (MPN): SLXD35-J52

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
