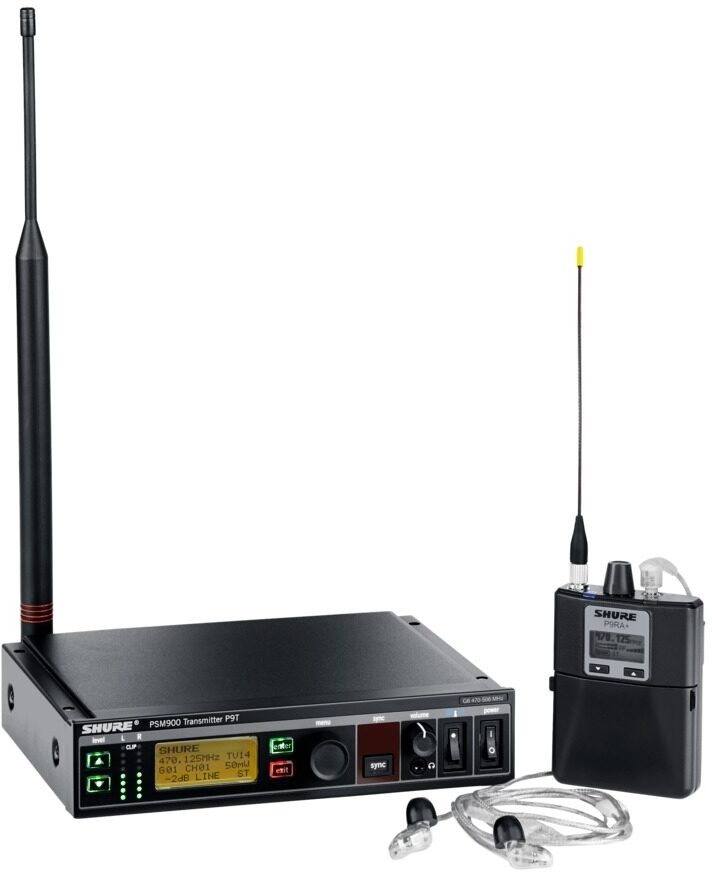

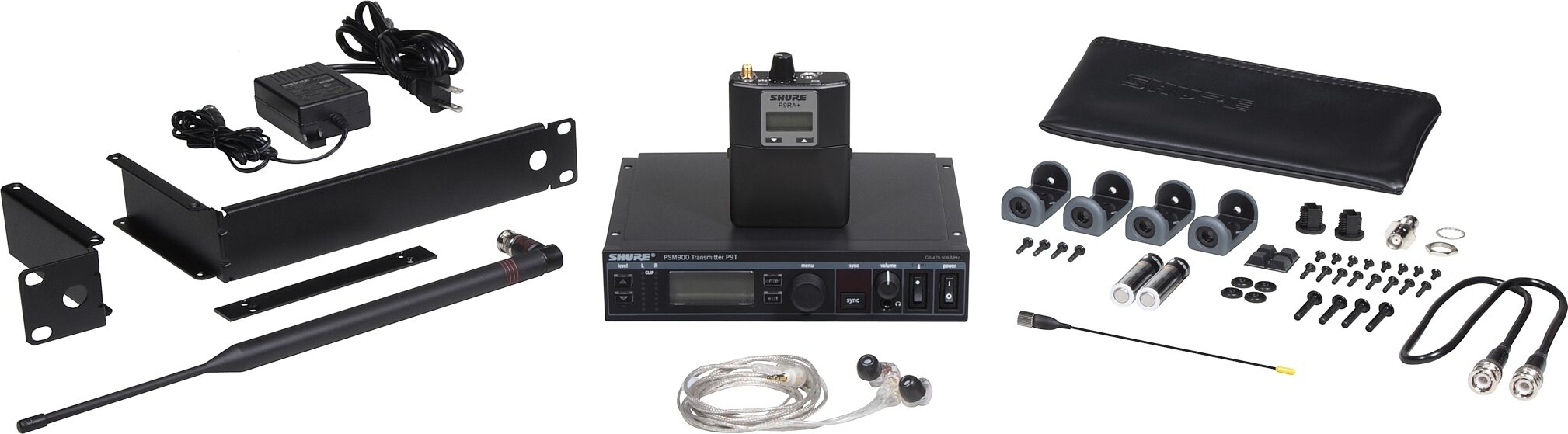

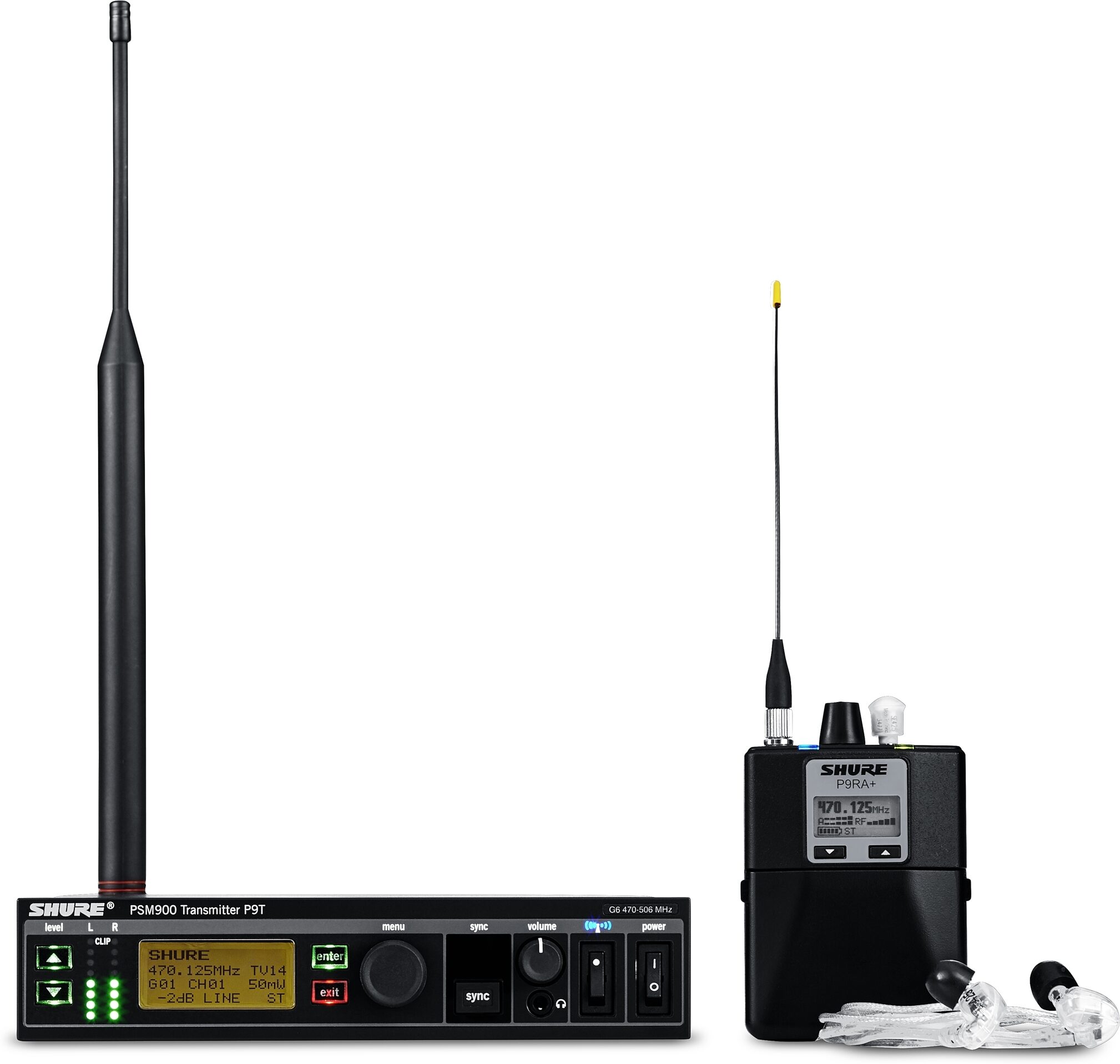

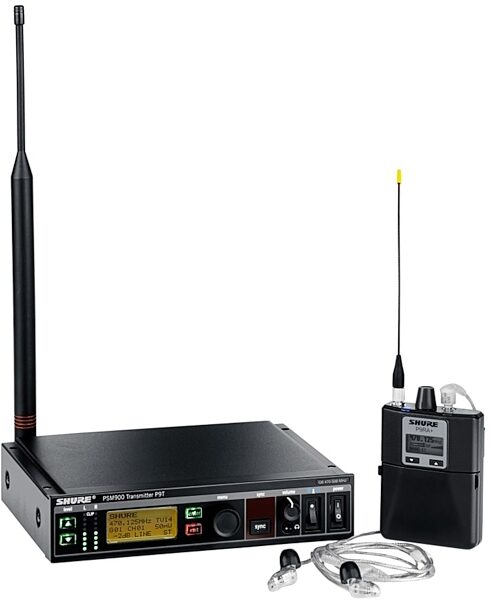

Shure PSM900 Personal Monitor System with SE425 In-Ear Headphones

When you're on stage, the last thing you want are unreliable monitors. This Shure wireless in-ear system offers ultra-clear sound in almost any venue.
Shure's PSM 900 Wireless Personal Monitor System is an industry standard for a reason. With patented Audio Reference Companding, exceptional transmitter linearity, and patented CueMode functionality, PSM 900 meets the needs of professional audio applications of all kinds, providing excellent audio quality and reliable RF performance. With 20 compatible frequencies per band and a 36 MHz to 40 MHz tuning bandwidth, the PSM 900 system has the horsepower to handle demanding environments, including professional IEM and IFB applications.

Unparalleled Audio Quality:
- Bodypack receivers with advanced digital signal processing technology deliver more headroom, improved stereo separation, and higher audio fidelity
- Patented Audio Reference Companding offers natural and transparent sound

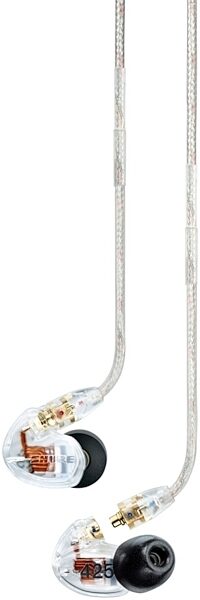

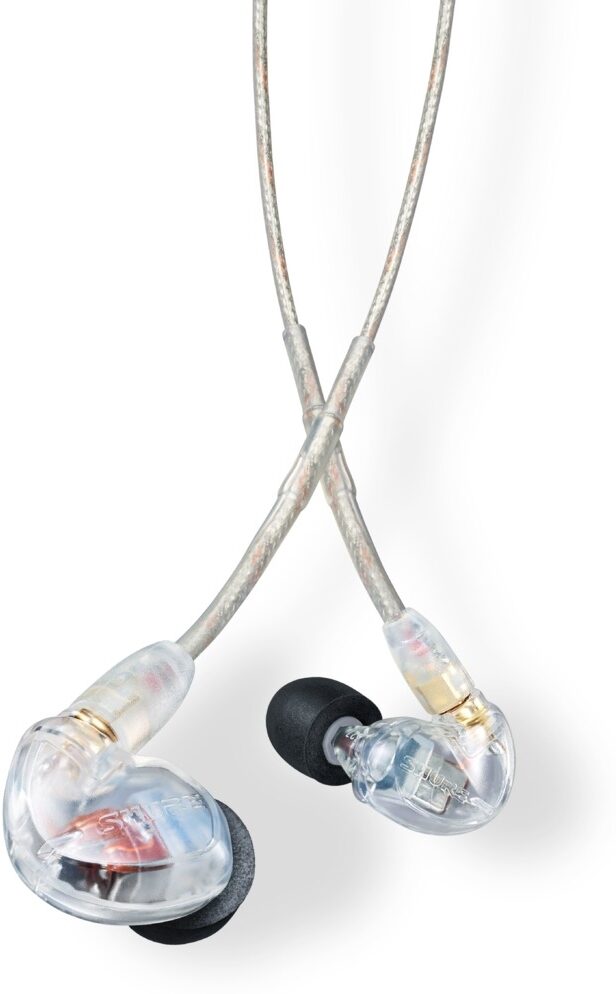

- Available with Shure SE425 Sound Isolating earphones featuring dual high-definition MicroDrivers for accurate and balanced audio response

Robust RF Performance:

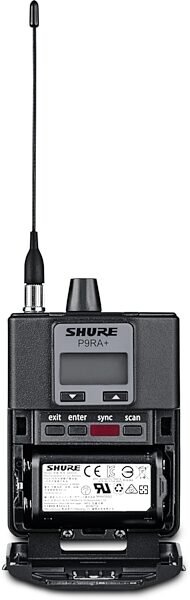

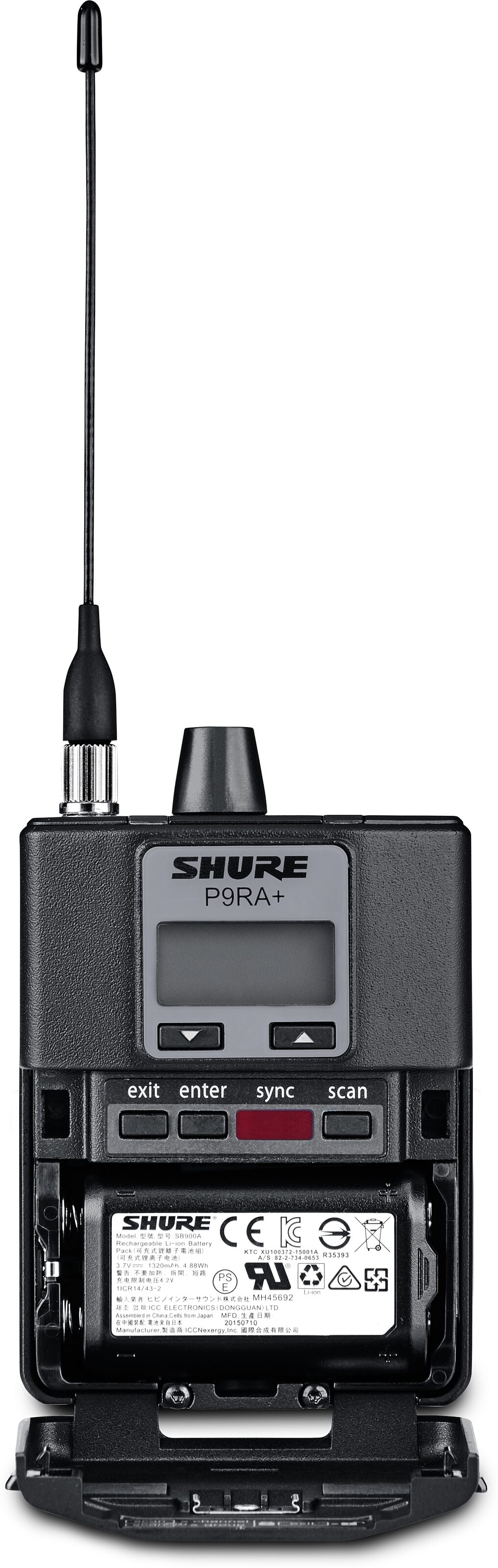

- P9RA+ bodypack receivers offer enhanced signal reception and range
- Precision front-end RF filtering significantly reduces RF interference for a cleaner, stronger RF signal, fewer dropouts, and fewer audible artifacts
- Exceptional transmitter linearity vastly reduces frequency intermodulation and allows up to 20 compatible channels per frequency range
- Automatic RF gain control prevents signal distortion due to RF overload before it can affect performance

Category-Leading Setup and read more Operation Features:
- CueMode allows monitoring of different stage mixes and storing of up to 20 separate channels on one bodypack for quick and easy reference
- Front panel RF mute switch enables or disables RF transmission during setup
- Scan and Sync scans the RF environment with the bodypack and assigns an identified group and channel to your system over wireless IR link
- MixMode technology combines two separate audio channels for simultaneous listening in both ears, or can transmit two independent IFB program feeds
- Four-band parametric EQ gives you the choice to adjust frequencies for a fully customized sound
- Input EQ Presets gives you the option to further tailor your sound, including the option to make the P9RA+ sound like the P9RA with a designated "Match" setting

Advanced Rechargeability Options:
- The SB900A lithium-ion rechargeable battery provides extended usage times and precise tracking of remaining life and charge cycle details
- The SCB800-US eight-bay charger brings up to eight SB900 batteries to full charge within two hours and has charge status LEDs for each battery
- The SBC200 dual-docking charger works with SB900A, P9RA+, P10R+, QLXD Digital Wireless Systems, and ULX-D Digital Wireless Systems, available with and without power supply
- The SBC220 networked dual-docking charger works with SB900A, PSM 900 (P9RA+ only), PSM 1000 (P10R+ only), QLX-D Digital Wireless Systems, ULX-D
Digital Wireless Systems, and Axient Digital (AD1 and AD2 only), available with and without power supply. When the SBC220 is connected to a network, battery information for each transmitter can be viewed remotely.
read less
- RF Carrier Range: 470952 MHz (varies by region)
- Compatible Frequencies:
- Per band: 20
- Tuning Bandwidth: 3640 MHz (Note; varies by region)
- Operating Range, environment dependent: 90 m (300 ft)
- Stereo Separation: 60 dB
- Audio Frequency Response: 35 Hz 15 kHz (1 dB)
- Signal-To-Noise Ratio: A-Weighted, 90 dB (typical)
- Total Harmonic Distortion: (ref. 34 kHz deviation @1 kHz) <0.8% (typical)

- Companding: Patented Shure Audio Reference Companding
- Spurious Rejection: (ref. 12dB SINAD) >80 dB (typical)

- Frequency Stability: 2.5 ppm
- MPX Pilot Tone: 19 kHz (0.3 kHz)
- Modulation: FM*, MPX Stereo, *ref. 34 kHz deviation @1 kHz
- Operating Temperature: -18C to +57C

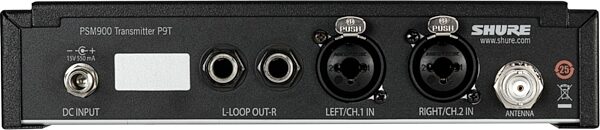

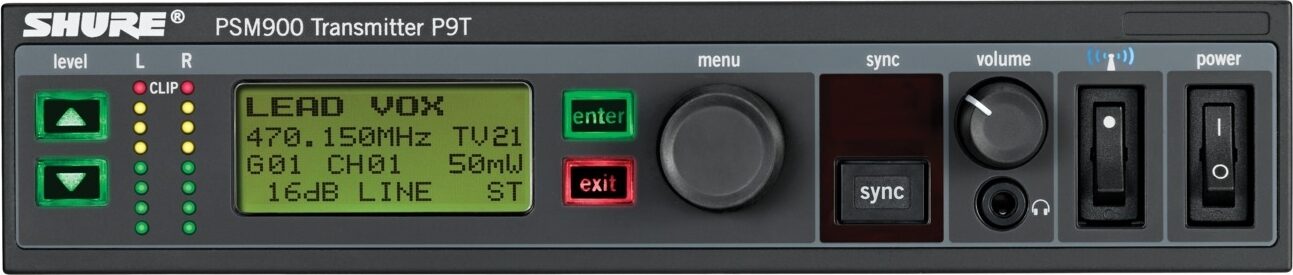

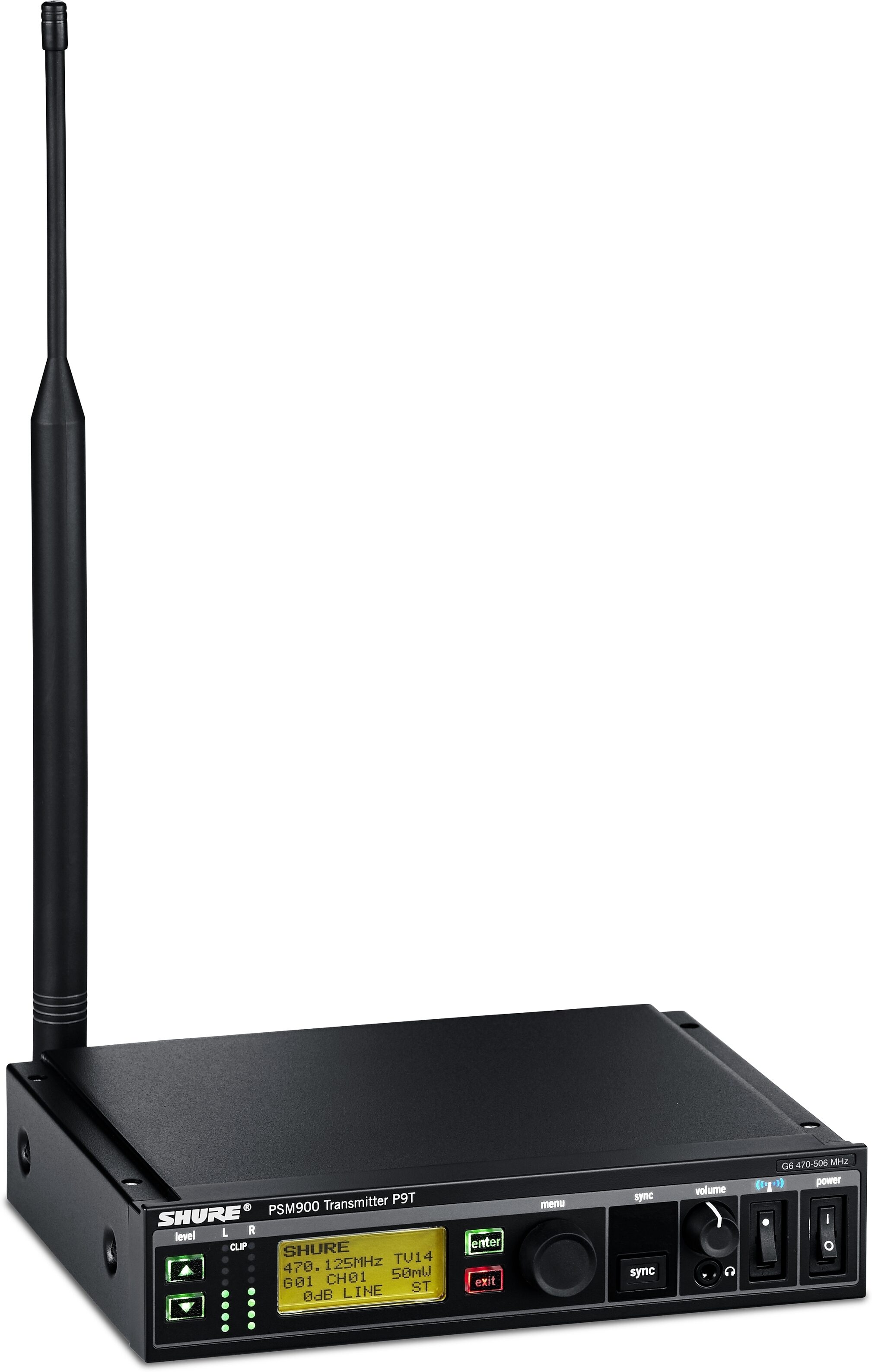

P9T Specifications:
- RF Output Power: selectable 10, 50, 100 mW (+20 dBm)
- RF Output Impedance: 50 O (typical)
- Net Weight: 850 g
- Dimensions: 42 x 197 x 177 mm, H x W x D
- Power Requirement: 15V DC, 415 mA, typical

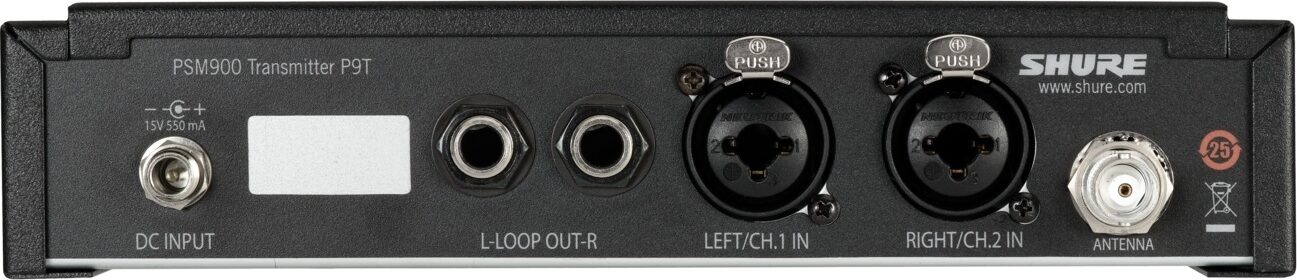

- Audio Input/ Connector Type: Combination XLR and 6.35 mm (1/4") TRS

- Polarity:
- XLR: Non-inverting (pin 2 positive with respect to pin 3)
- 6.35 mm (1/4") TRS: Tip positive with respect to ring
- Configuration: Electronically balanced

- Impedance: 70.2 kO (actual)
- Nominal Input Level: switchable; +4 dBu, 10 dBV

- Maximum Input Level:
- +4 dBu +29.2 dBu
- -10 dBV +12.2 dBu

- Pin Assignments:
- XLR 1=ground, 2=hot, 3=cold
- 6.35 mm (1/4") TRS Tip=hot, Ring=cold, Sleeve=ground
- Phantom Power Protection: Up to 60 V DC

- Audio Output:
- Connector Type: 6.35 mm (1/4") TRS
- Configuration: Electronically balanced
- Impedance: Connected directly to inputs

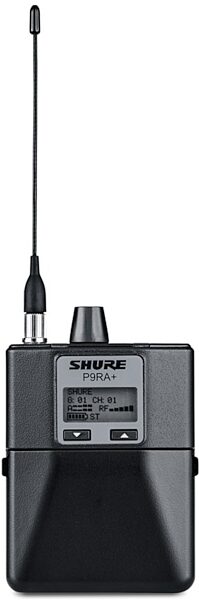

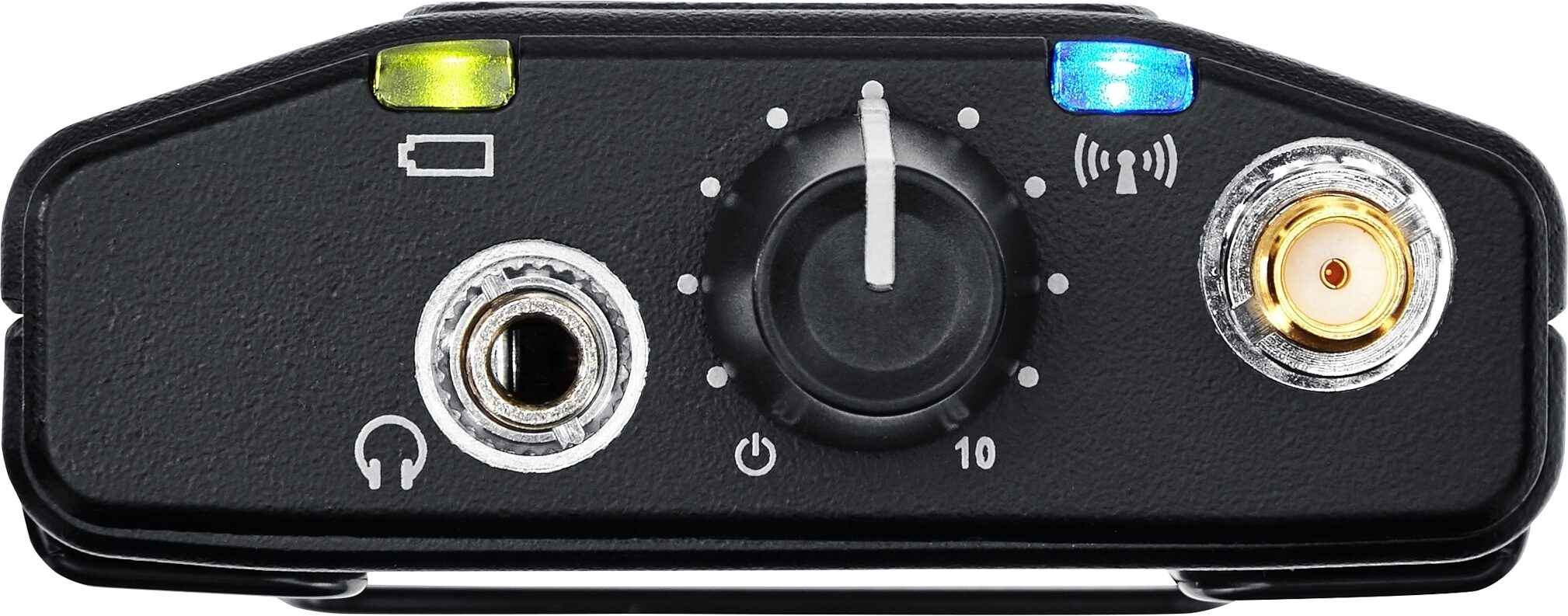

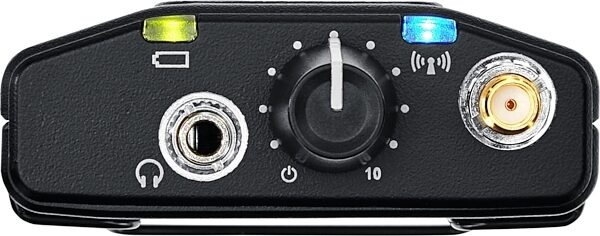

P9RA+ Specifications:

- Front-End RF Filtering: 3 dB at 30.5 MHz from the center frequency of each band
- Active RF Gain Control: 31 dB
Adjusts RF sensitivity to provide more RF dynamic range

- RF Sensitivity at 20 dB SINAD: 2.2 V
- Image Rejection: >90 dB
- Adjacent Channel Rejection: >70 dB
- Latency: 0.37ms
- Squelch Threshold: 22 dB SINAD (3 dB)default setting
- Intermodulation Attenuation: >70 dB
- Blocking: >80 dB
- Audio Output Power: 1kHz @ 1% distortion, peak power, @16O 100 mW (per output)
- 4-band Parametric EQ: 9.5 O

- High Boost:
Low Shelf - Selectable Gain: 2 dB, 4 dB, 6 dB @ 100 Hz
Low Mid Selectable Gain: 2 dB, 4 dB, 6 dB at 160 Hz, 250 Hz, 400 Hz, 500 Hz, 630 Hz Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
High Mid - Selectable Gain: 2 dB, 4 dB, 6 dB at 1 kHz, 1.6 kHz, 2.5 kHz, 4 kHz, 6.3 kHz Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
High Shelf - Selectable Gain: 2 dB, 4 dB, 6 dB @ 10 kHz
- Volume Limiter Selectable: OFF (0 dB)to -48 dB in 3 dB steps
- Volume Lock Selectable: 0 dB to -70 dB

Limits volume adjustment knob. Selected value analogous to volume knob increment.

- Net Weight: 154 g (Without Battery)
- Dimensions: 83 x 65 x 22 mm H x W x D
- Battery Life: 46 hours (continuous use) AA batteries
Also compatible with the Shure SB900A Rechargeable Lithium-Ion Battery (optional, not included)
Dimensions and Weight in Packaging
Band G6
Shipping Weight: 7 lbs
Shipping Dimensions: 18 x 15 x 4 in
Manufacturer Part Number (MPN): SHU P9TRAP425CLG6
Band G7
Shipping Weight: 7 lbs
Shipping Dimensions: 19 x 15 x 4 in
Manufacturer Part Number (MPN): SHU P9TRAP425CLG7
If you have additional warranty questions, please contact the manufacturer at (800) 516-2525
