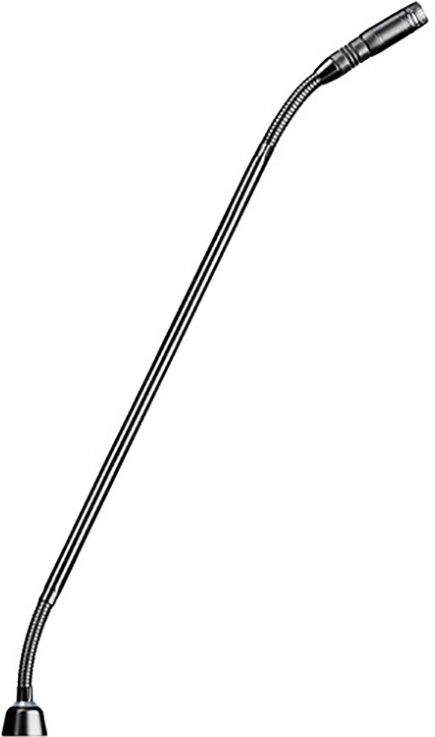

Shure Microflex MX415LPDF/S 15-Inch Supercardioid Dualflex Gooseneck Microphone

zZounds Gear Experts Say...

Compatible with Shure bases such as the ULXD8, this supercardioid mic has a 15" rigid gooseneck with flexible sections and a bi-color LED status indicator.

Overview

The MX415 surface mount version is a gooseneck microphone with a bi-color LED status display. It has a 15" gooseneck and is suitable for boardrooms and other sites where aesthetics are important.

Features:

- Gooseneck length: 15 inch/38.1 cm
- Low profile, aesthetic design
- Wide dynamic range and smooth frequency response
- RF filtering with CommShield technology
- Status indicator: Bi-Color LED at gooseneck bottom
- Capsule: Supercardioid

Preamplifier Options:
- MX400DP Desktop Base
- MX890 Wireless Desktop Base
- MX400SMP Surface Mount Preamp
- MXW8 Wireless Desktop Base
- ULXD8 Wireless Desktop Base

Specs

-Type: Condenser (electret bias)
-Frequency Response: 50-17000 Hz
-Output Impedance: EIA Rated at 150Ohm (170Ohm actual)
-Output Configuration: Active Balanced
-Sensitivity (at 1 kHz , open circuit voltage):
- Supercardioid: -34 dBV/Pa (21 mV)
- 1 Pascal=94 dB SPL
-Maximum SPL (1 kHz at 1% THD, 1 kW load):
- Supercardioid: 120 dB
-Equivalent Output Noise (A-weighted):
- Supercardioid: 27 dB SPL
-Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz):
- Supercardioid: 68 dB
-Dynamic Range (1 kOhm load at 1 kHz): 93 dB
-Common Mode Rejection (10 Hz to 100 kHz): 45 dB minimum
-Preamplifier Output Clipping Level (1% THD): -8 dBV (0.4 V)
-Weight:
- MX400SMP (w/ Kit): 0.125 kg (0.275 lbs)
-Logic Connections LED IN: Active low (=1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.
-LOGIC OUT: Active low (=1.0V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 50V (up to 50V through 3kOhm).
-Mute Switch Attenuation: -50 dB minimum
-Cable MX400DP: 6.1 m (20 ft) attached cable with shielded audio pair terminated at a 3-pin male XLR and three unterminated conductors for logic control
-Environmental Conditions Operating Temperature: -18-57 *C (0-135 *F)
-Storage Temperature: -29-74 *C (-20-165 *F)
-Relative Humidity: 0-95%
-Power Requirements: 48-52 Vdc phantom, 8.0 mA

Dimensions and Weight in Packaging
Base Item: Shipping Weight: 1.06 lbs; Shipping Dimensions: 24 x 5 x 3 in; Manufacturer Part Number (MPN): MX415LPDF/S
