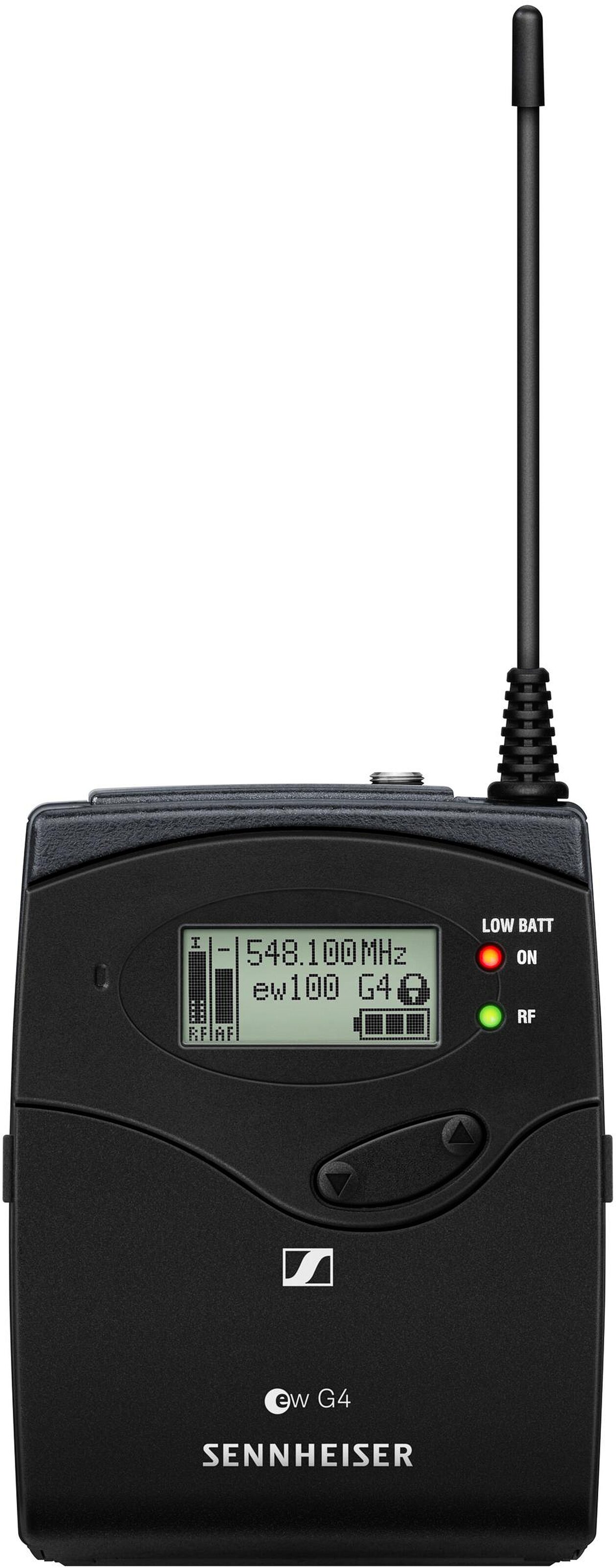

Sennheiser EK 100 G4 Wireless Camera Receiver
No longer available at zZounds



zZounds Gear Experts Say...
With eight hours of battery operation and a 330-foot range, the Sennheiser EK100 G4 wireless camera receiver ensures you capture the moment, every time.
Overview -
Sennheiser's EK 100 G4 is a powerful camera receiver with a lightweight aluminum housing and for Evolution Wireless G4 100P Series systems. For documentary, mobile journalism and audio for video applications.
- Excellent sound and construction quality
- Easy to use and fast setup time
- Powerful and reliable wireless transmission
- Range: up to 100 meters/330 feet
- Up to 8 hours of operation time
- Includes: (1) 1/8" output cable, (1) XLR unbalanced output cable and (1) camera mount
Features:
- Powerful camera receiver, easily mounted on any kind of camera- Excellent sound and construction quality
- Easy to use and fast setup time
- Powerful and reliable wireless transmission
- Range: up to 100 meters/330 feet
- Up to 8 hours of operation time
- Includes: (1) 1/8" output cable, (1) XLR unbalanced output cable and (1) camera mount
Specs +
- Dimensions: Approx. 82 x 64 x 24 mm
- Compander: Sennheiser HDX
- THD, Total Harmonic Distortion: 0.9 %
- Weight: (incl. batteries) approx. 160 g
- Audio Output (3.5 mm jack socket): +12 dBu (mono, unbalanced)
- Signal-to-Noise Ratio: 110 dBA
- Switching Bandwidth: up to 42 MHz
- Peak Deviation: 48 kHz
- Nominal Deviation: 24 kHz
- Operating Time: Typically 8 h
- Modulation: Wideband FM
- Power Supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current Consumption:
- At Nominal Voltage: typ. 180 mA
- With Receiver Switched Off: 25 A
- Adjacent Channel Rejection: 65 dB
- Intermodulation Attenuation: 65 dB
- Powering: 3 V battery / 2.4 V rechargeable battery
- Receiving Frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
- RF Sensitivity: < 1.6 V for 52 dBA eff S/N
- Squelch: low: 5 dBV, middle: 15 dBV, high: 25 dBV
- Temperature Range: -10 C to +55 C
- Receiver Principle: Adaptive diversity
- Blocking: 70 dB
- Compander: Sennheiser HDX
- THD, Total Harmonic Distortion: 0.9 %
- Weight: (incl. batteries) approx. 160 g
- Audio Output (3.5 mm jack socket): +12 dBu (mono, unbalanced)
- Signal-to-Noise Ratio: 110 dBA
- Switching Bandwidth: up to 42 MHz
- Peak Deviation: 48 kHz
- Nominal Deviation: 24 kHz
- Operating Time: Typically 8 h
- Modulation: Wideband FM
- Power Supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current Consumption:
- At Nominal Voltage: typ. 180 mA
- With Receiver Switched Off: 25 A
- Adjacent Channel Rejection: 65 dB
- Intermodulation Attenuation: 65 dB
- Powering: 3 V battery / 2.4 V rechargeable battery
- Receiving Frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
- RF Sensitivity: < 1.6 V for 52 dBA eff S/N
- Squelch: low: 5 dBV, middle: 15 dBV, high: 25 dBV
- Temperature Range: -10 C to +55 C
- Receiver Principle: Adaptive diversity
- Blocking: 70 dB
