Sensaphonics dB Check Pro Headphone SPL Analyzer

zZounds Gear Experts Say...
Don't risk running your IEMs or headphones too hot! Plug them into the dB Check Pro analyzer to find out how long you can safely listen at a given volume.

How loud are you listening? Like a speedometer for your ears, the Sensaphonics dB Check Pro shows real-time and average levels for IEMs or headphones, even with both earpieces inserted. This ingenious device encourages smart listening by showing actual levels and safe listening time. Works with over 170 models from 15 brands!

The dB Check Pro sound level analyzer is an in-line measurement device for in-ear monitors and headphones. It uses patented technology (U.S. Patent #8,218,784) to analyze and display the real-time and average dBA-SPL levels, along with safe listening times, with both earpieces in place. IEM users in particular will benefit from having this key, real-time information when setting their listening levels on stage, in rehearsal, or in the studio.


See how the dB Check Pro works in this video from Sensaphonics:


Features:

- Measures A-weighted volume level (dBA-SPL) of IEMs and headphones in real time, with both earpieces in place

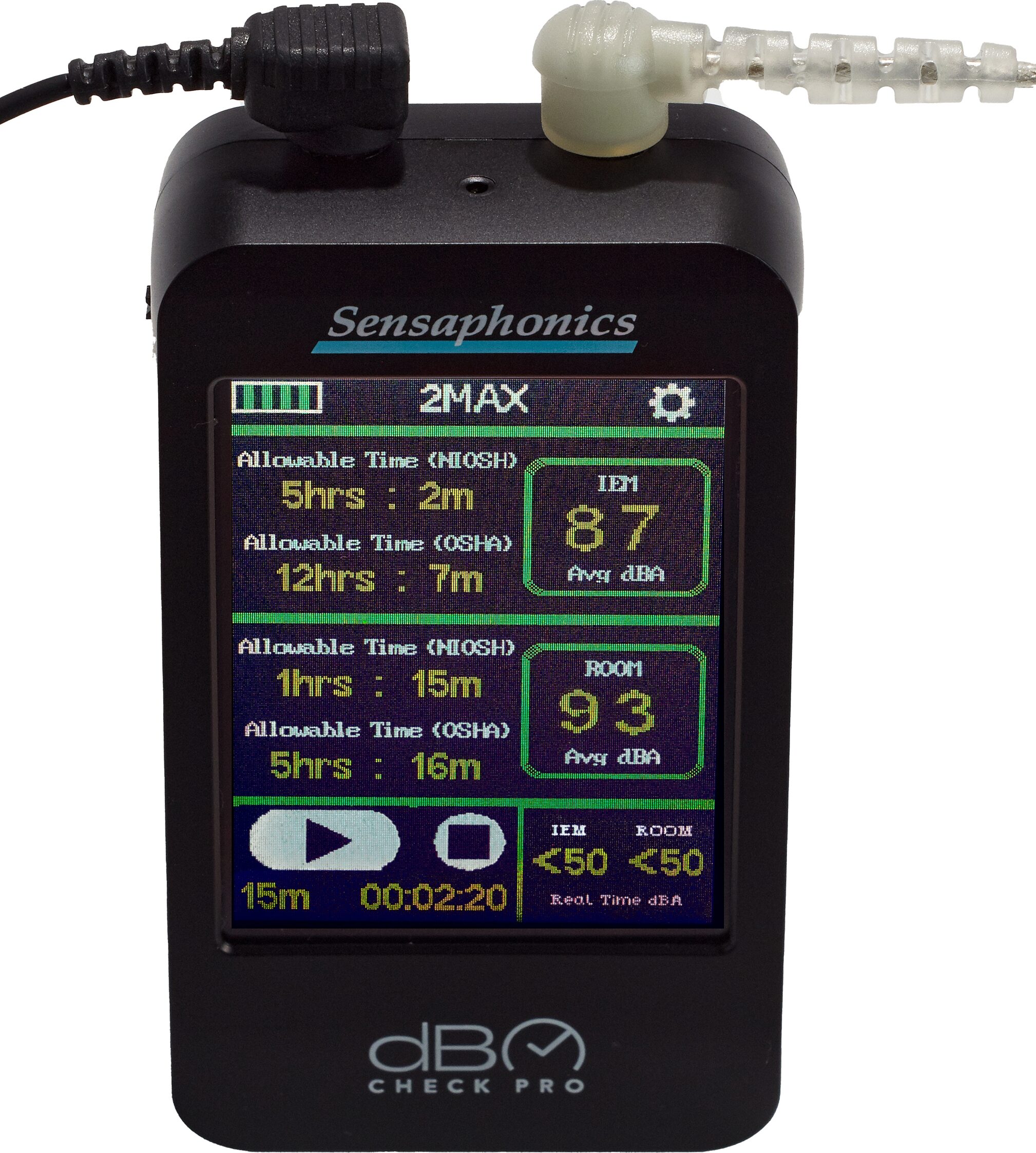

- Displays both average and simultaneous (1-sec. avg.) levels
- Displays Allowable Time (daily safe exposure) under both NIOSH and OSHA guidelines
- Pressure-sensitive screen for easy, intuitive setup and operation
- Timer enables averaging for 1, 15, or 60 minutes, or Continuous
- Integrated microphone for measuring ambient room levels
- View options: IEM/headphones, Room ambience, or Both
- Works with over 170 models from 15 brands
- 11 hours of power from its USB-C rechargeable Li-lon battery
- Charging cable also enables read more future firmware updates
- Has no effect on sound quality or level; passes audio with Power off

Programmed for use with over 140 earphones from 12 major manufacturers, this patented device is the long-awaited answer to this question from IEM users: How loud are you listening?

Inserted in-line between the in-ears and sound source, dB Check Pro automatically displays the key "how loud, for how long" information, including safe exposure time under both NIOSH and OSHA guidelines. It also includes an integral microphone to show ambient room levels as well. In short, dB Check Pro is designed to help musicians and sound engineers make smart, informed choices on their hearing health.
read less

Frequency response: A-weighted, for measurement only
Dynamic range, IEMs: 50 to ~130BA-SPL (dependent on IEM model selected)
Dynamic range, ambient microphone: 50 to ~130 dBA-SPL
Battery: Li-Ion, USB-C rechargeable
Battery life: 11 hours per full charge, minimum 500 charge cycles
Weight: 94 grams (3.3 ounces)
Size (HxWxD): 85.5mm x 49.3mm x 24.4mm; full depth is 32mm including battery clip

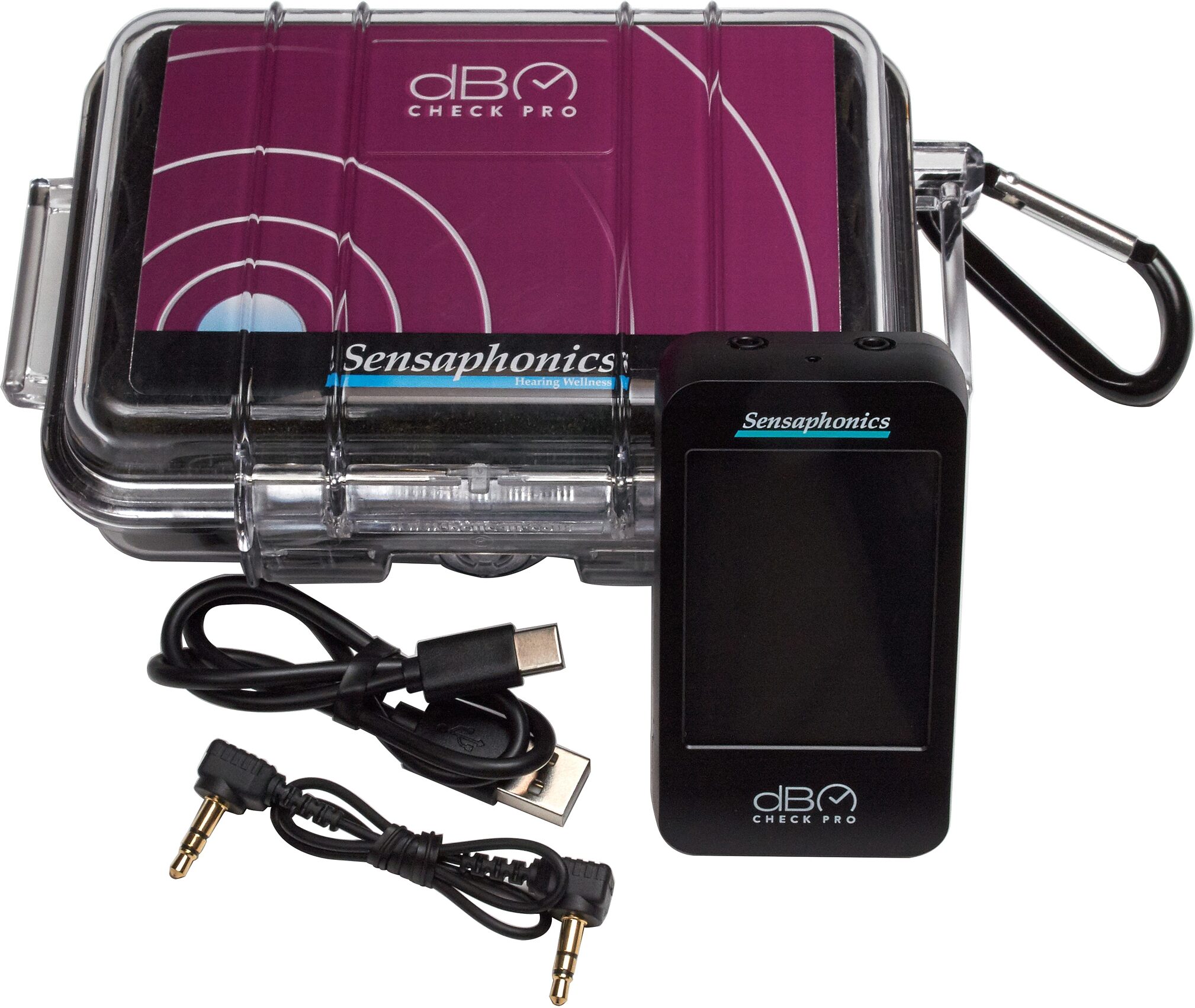

Included accessories: Hard-shell Pelican case with Quick Start guide; USB-C charging cable and audio jumper cable.

Dimensions and Weight in Packaging

Base Item

  • Shipping Weight: 1.1 lbs
  • Shipping Dimensions: 8 x 6 x 4 in
  • Manufacturer Part Number (MPN): DB-CHK-660

For support or warranty questions, please contact the manufacturer:
Phone: 877-847-1714
Email: soundguy@sensaphonics.com
Web: https://www.sensaphonics.com/pages/contact

New

$299.00
  • 8 payments of
    $37.38/mo
FREE -Day Shipping!
Get it for
Get it (or get it with an order of ), if you order within
Shipping to
Will the dB Check Pro Work with My Headphones or IEMs?
  • The dB Check Pro is programmed with the technical specifications of over 190 popular pro IEMs and headphones from 16 brands. Find out if yours is included: dB Check Pro Compatibility List »
