Roland MV-1 Verselab Music Production Workstation

Beat-making redefined! The Roland MV-1 Verselab groovebox offers a fluid workflow with a mic input, and plug-and-play access to thousands of ZEN-Core sounds.

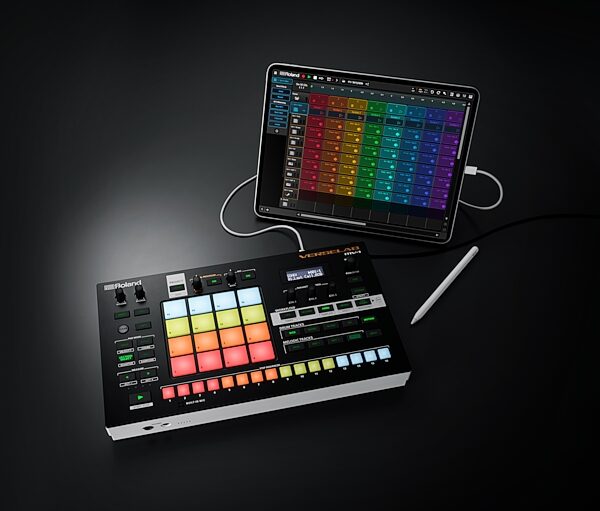

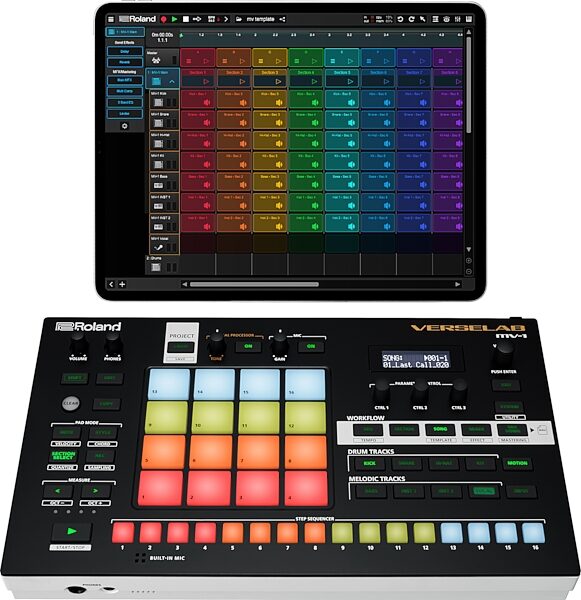

When inspiration strikes, Roland's MV-1 VERSELAB helps you capture, refine, and finish your ideas. The fluid, hands-on workflow simplifies music making with modern vocal recording, pattern generators, thousands of ZEN-Core sounds, mastering effects, and more. Plug-and-play integration with Roland's Zenbeats app expands your production capabilities using your computer or mobile device.

- MV-1 : VERSELAB - PRODUCT SPECS
- Sound Generator: ZEN-Core (Tone, Drum Kit)
- Track Type: Tone, Drum Kit, Looper (Audio Loop)

- Maximum Polyphony:
- ZEN-Core: 128 voices (varies according to the sound generator load)
- Looper: 8 (varies according to the available number of Looper track)
- Vocal Take: 16 (varies according to the vocal take size)

- Tracks: 7 tracks and 1 vocal track

- Sections: 16 sections
- Vocal Take: 16 takes

- Tones:
- Preset Tone: 3,000 or greater
- Preset Drum Kit: 80 or greater
- User Sample (as a Tone or Drum Kit): available by importing from SD card
- Looper Sample (as a clip of Looper track): available by importing from SD card, recording via EXT IN/Tracks
* Available total time for User Sample and Vocal take: 12 minutes in mono, 6 minutes in stereo (44.1 kHz)
* Available format of User Sample: WAV 32--96 kHz/16-bit, 24-bit (mono, stereo)
* Available total time for Looper Sample: Approx. 60 sec (44.1 kHz)
* Available format of Looper Sample: WAV 44.1 kHz/16-bit, 24-bit, 32-bit, 32-bit float (mono, stereo)

- Effects:
- Track Multi-Effects: 90 types
- Track EQ
- Chorus/Delay: 9 types
- Reverb: 7 types
- Master Effects: 90 types
- Master Compressor
- Master EQ

- Step Sequencer: Maximum Step: 128 steps
* Available on a Tone or Drum Kit Track

- Looper: Time Stretch, Pitch Shift
* Available on a Looper Track

- Display: 16 characters, 2 lines LCD (with backlit)

- External Storage: SD card (SDHC supported) for saving Project Data and Audio Data

- Connectors:
- PHONES jacks: Stereo 1/4-inch phone type, Stereo miniature phone type
- MIX OUT (L/MONO, R) jacks: 1/4-inch phone type
- EXT IN (L/MONO/MIC, R) jacks: 1/4-inch phone type
- MIC IN: XLR type (phantom power: +48 V, 10 mA Max.)
- MIDI (IN, OUT1) connectors
- USB port: USB B type (Audio, MIDI)
- DC IN jack

- Power Supply:
- AC adaptor
- Obtained via USB port (USB bus power)

- Current Draw:
- 2,000 mA (AC adaptor)
- 500 mA (USB bus power)

- Dimensions:
- 354 (W) x 208 (D) x 60 (H) mm
- 13-15/16 (W) x 8-3/16 (D) x 2-3/8 (H) inches

- Weights (excluding AC adaptor): 1.165 kg / 2 lbs 10 oz

- Accessories:
- Leaflet "Read Me First"
- AC adaptor
- SD card (installed in the product when shipped from the factory)
- SD card protector
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 6.5 lbs
Shipping Dimensions: 21 x 11 x 5 in
Manufacturer Part Number (MPN): ROL MV1
