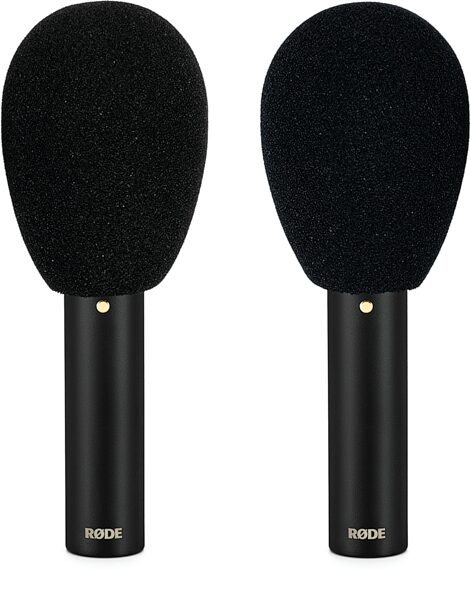

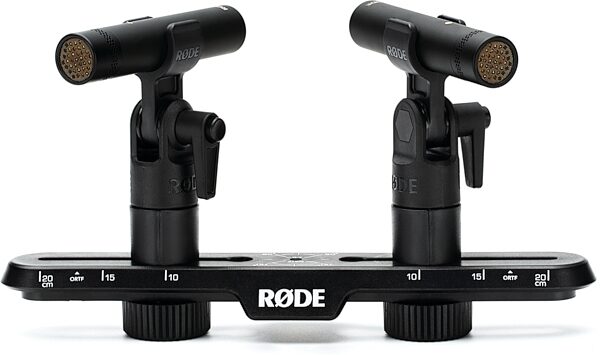

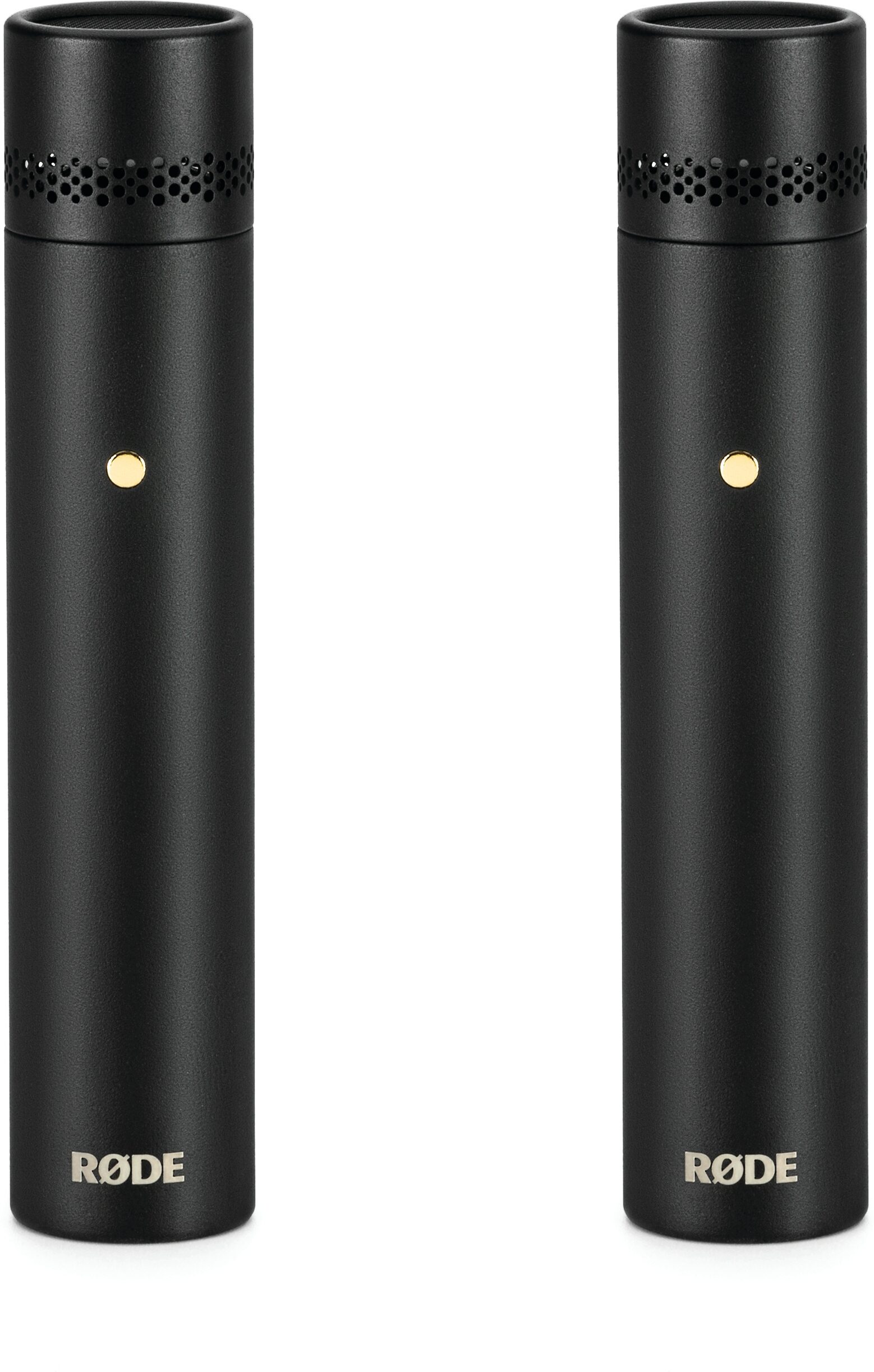

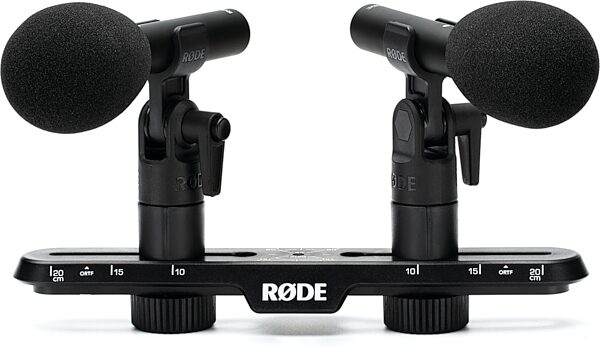

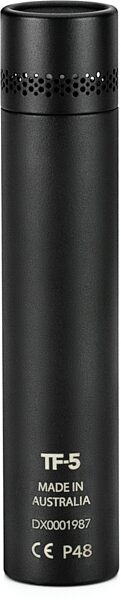

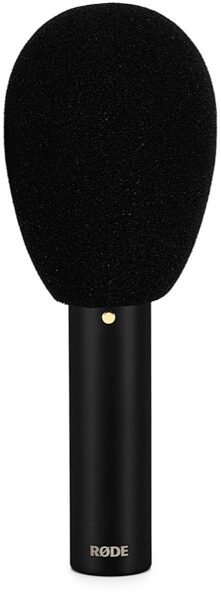

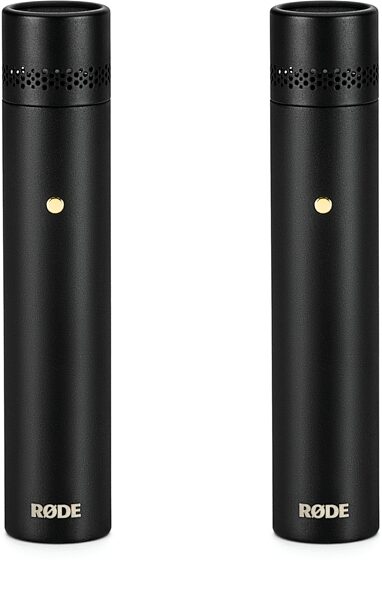

Rode TF-5MP Matched Pair Small Diaphram Condenser Microphones

- Acoustic Principle: Externally biased condenser
- Active Electronics: JFET impedance converter with bipolar output buffer
- Polar Pattern: Cardioid
- Frequency Range: 20Hz - 20kHz
- Frequency Response: 30 Hz - 20 kHz ±3dB // 20 Hz - 20 kHz ±4dB
- Output Impedance: 63 Ohms
- Signal to noise Ratio: 80 dB
- Equivalent Noise: 14 dB SPL (A-weighted, as per IEC651)
- Input SPL @ 1% THD: 120 dB SPL (1kHz @ 1% THD, 600 Ohm load)
- Sensitivity: -29 dB re.1 Volt/Pascal or better (35 mV @ 94dB SPL @ 1kHz)
- Dynamic Range: 112.6 dB (1kHz @ Max SPL)
- Power Requirements: 7mA @ 48V phantom power
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 3 lbs
Shipping Dimensions: 13 x 6 x 4 in
Manufacturer Part Number (MPN): TF-5 MP
