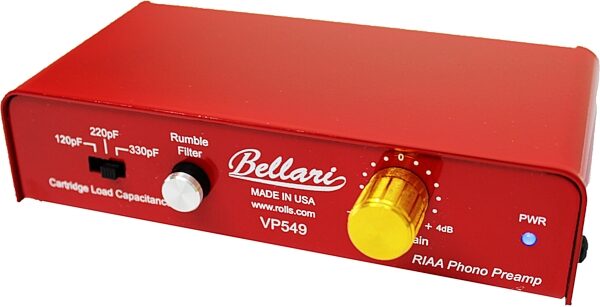

Rolls Bellari VP549 Phono Preamplifier



Hear all the details in your records with the VP549, a simple-yet-powerful preamp from Rolls Bellari that keeps your audio in phase for clear, focused sound.
Overview
The Bellari VP549 is a phonograph preamplifier with RIAA EQ. RIAA equalization is a specification for the recording and playback of phonograph records, established by the Recording Industry Association of America (RIAA).
The Bellari VP549 has excellent true sound resolution, no frequencies are omitted. Its tone center is right in the middle of the music. It performs very well on the extremes and never loses its solid performance when the music gets loud. It never gives you the impression that it has artificially fluffed up the bass or over emphasized the treble. It is well balanced and bold, yet has a very surprising attack that will take your rig to the next level.
- Rumble Filter
- Control to attenuate level
- Power supply
- The ability to attenuate output level of the cartridge is a big deal if you need to adjust it and do not have the option to do so.
- No surface mount (SMT) parts are ever used at Bellari. We use all thru hole components.
- The VP549 was designed with true phase integrity. The audio signal is not out of phase in our circuit, this is a bigger deal than you might think.
The power supply of the VP549 is in a different league. The VP549 around the power supply in an effort to make it as quiet as possible. You simply will not need to upgrade the power supply of the… read more VP549 -- Bellari already did that for you.
All Bellari products are hand built in Salt Lake City, Utah by people who care about high quality music.
read less
The Bellari VP549 has excellent true sound resolution, no frequencies are omitted. Its tone center is right in the middle of the music. It performs very well on the extremes and never loses its solid performance when the music gets loud. It never gives you the impression that it has artificially fluffed up the bass or over emphasized the treble. It is well balanced and bold, yet has a very surprising attack that will take your rig to the next level.
Includes:
- Three selectable cartridge load capacitance options- Rumble Filter
- Control to attenuate level
- Power supply
Features:
- Selective Cartridge loading is a feature rarely seen on affordable phono preamps, and it makes a difference.- The ability to attenuate output level of the cartridge is a big deal if you need to adjust it and do not have the option to do so.
- No surface mount (SMT) parts are ever used at Bellari. We use all thru hole components.
- The VP549 was designed with true phase integrity. The audio signal is not out of phase in our circuit, this is a bigger deal than you might think.
The power supply of the VP549 is in a different league. The VP549 around the power supply in an effort to make it as quiet as possible. You simply will not need to upgrade the power supply of the… read more VP549 -- Bellari already did that for you.
All Bellari products are hand built in Salt Lake City, Utah by people who care about high quality music.
Specs
- I/ O Connectors: RCA, 1/8" TRS Stereo
- Gain: 41.51 dB gain @ 1kHz at the "0" setting 31.64 dB of gain at the "-10" setting 45.66 dB of gain at the "+4" setting
- Input Impedance: 47k ohms
- Output Impedance: 32 ohms Headphone, 470 ohms RCA
- Frequency Response: 3Hz to 36kHz
- Equalization: RIAA +/- 1 dB, 14Hz to 23kHz
- Rumble Filter: 20Hz
- THD: .02% @ 1KHz
- S/N Ratio: >94 dB unweighted
- PWR: 15 VDC
- Size: 5.5"w x 3.5"d x 1.25"h
- Gain: 41.51 dB gain @ 1kHz at the "0" setting 31.64 dB of gain at the "-10" setting 45.66 dB of gain at the "+4" setting
- Input Impedance: 47k ohms
- Output Impedance: 32 ohms Headphone, 470 ohms RCA
- Frequency Response: 3Hz to 36kHz
- Equalization: RIAA +/- 1 dB, 14Hz to 23kHz
- Rumble Filter: 20Hz
- THD: .02% @ 1KHz
- S/N Ratio: >94 dB unweighted
- PWR: 15 VDC
- Size: 5.5"w x 3.5"d x 1.25"h
- Dimensions and Weight in Packaging
- Blemished
- Shipping Weight: 1.5 lbs
- Shipping Dimensions: 10 x 8 x 4 in
- Manufacturer Part Number (MPN): VP549
