RCF NXL 14-A + SUB 15-AX Powered Loudspeaker System

zZounds Gear Experts Say...

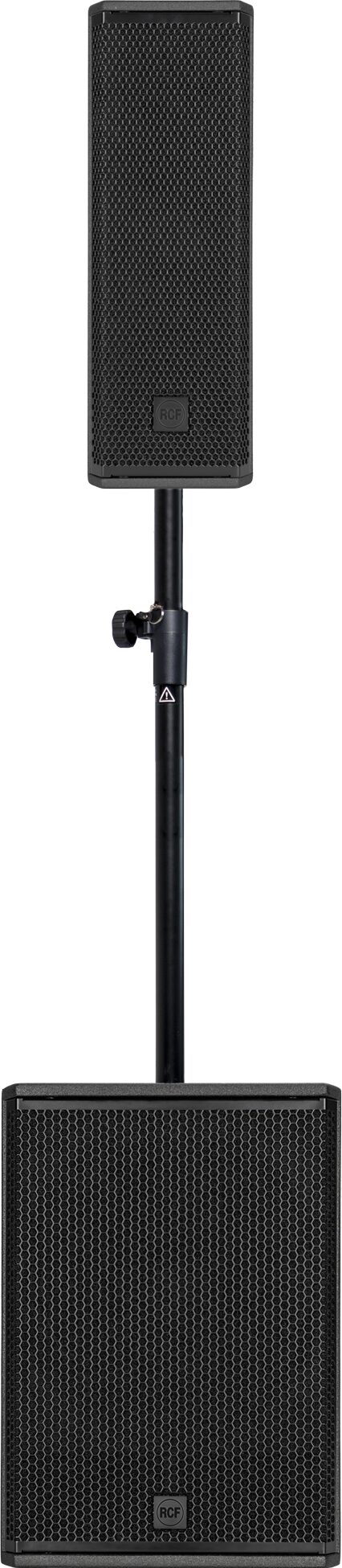

This bundle combines RCF's NXL 14-A and SUB 15-AX in a 3-way PA that's sleeker than most sub + top rigs, and more powerful than typical all-in-one systems.

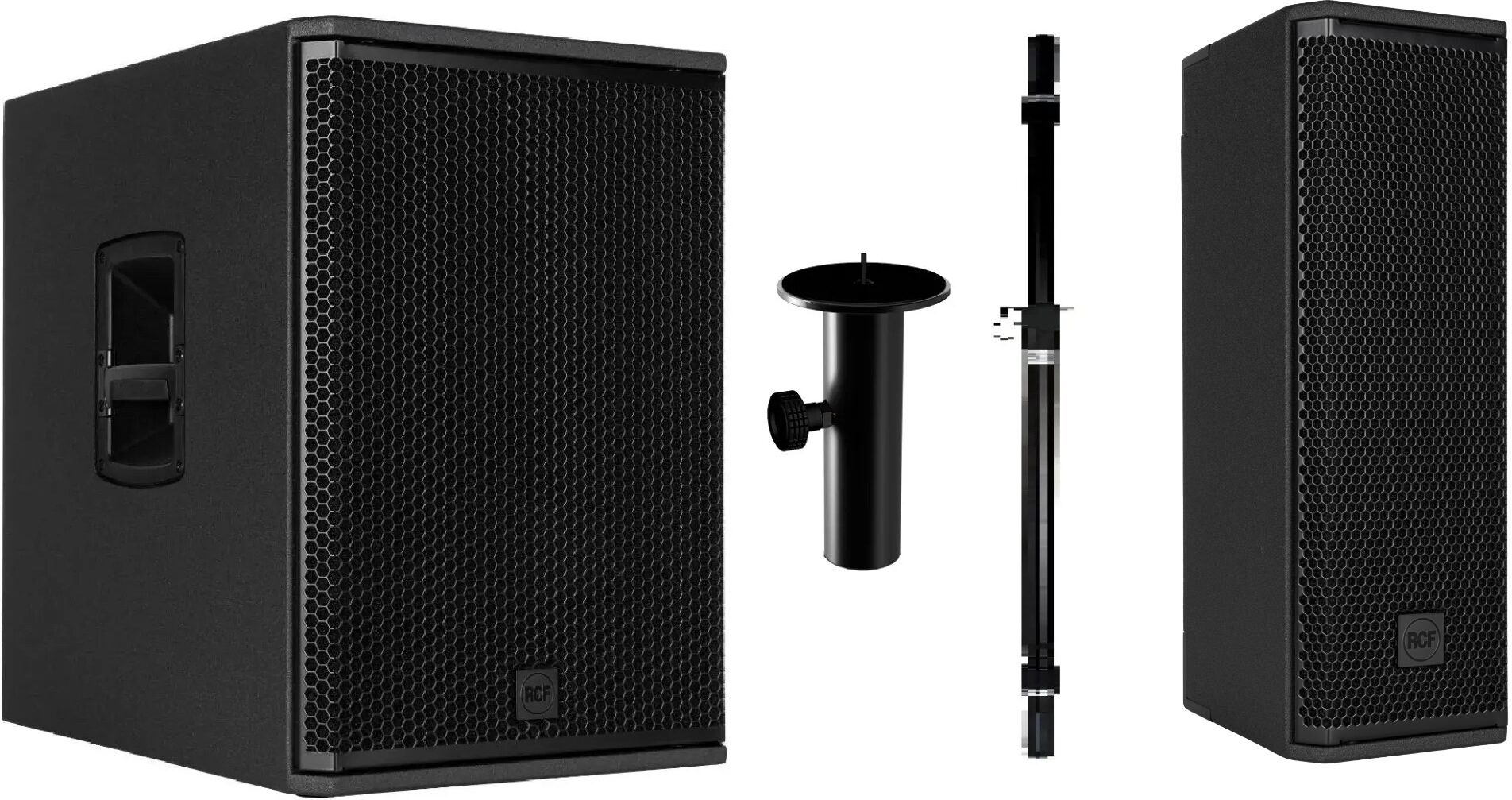

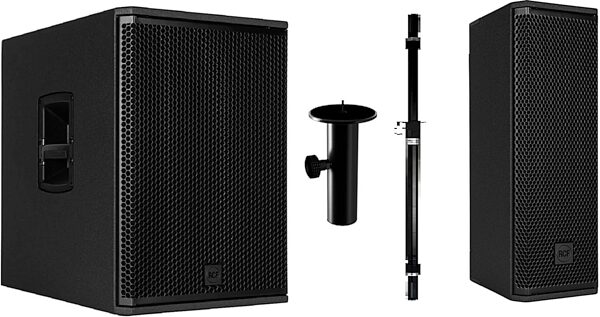

RCF delivers pro-grade performance and build quality to tackle any live sound application! The compact powered NXL 14-A paired with the impressive 15-inch SUB 15-AX subwoofer makes this package ideal for musicians, DJs and anyone looking for clarity and low-end punch. Included is RCF's NXL 14-A powered speaker, SUB 15-AX 15-inch powered sub, stand mount adapter, and 35mm sub pole. This bundle is an excellent choice for those looking for a compact system for live applications.

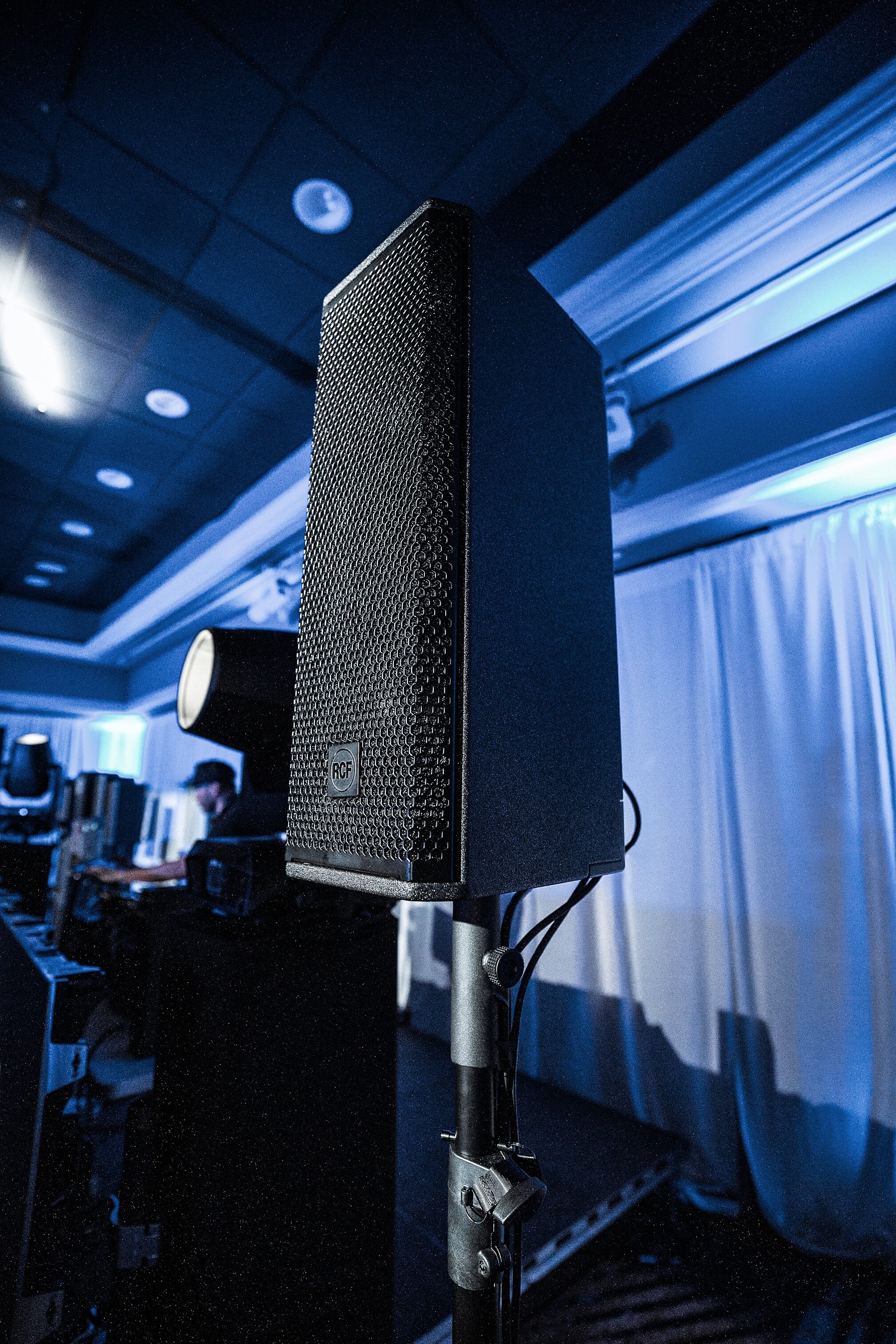

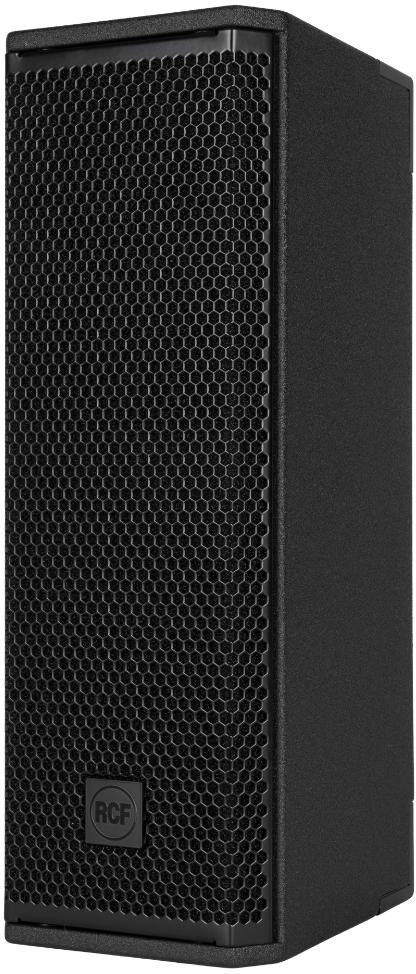

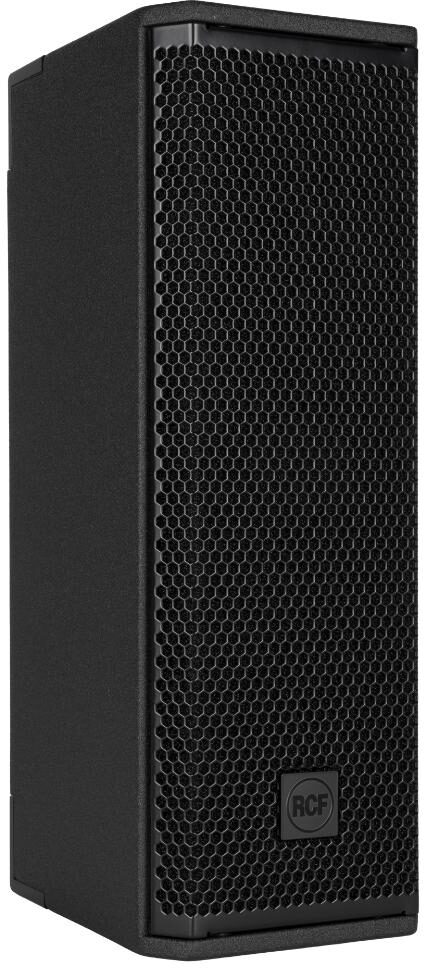

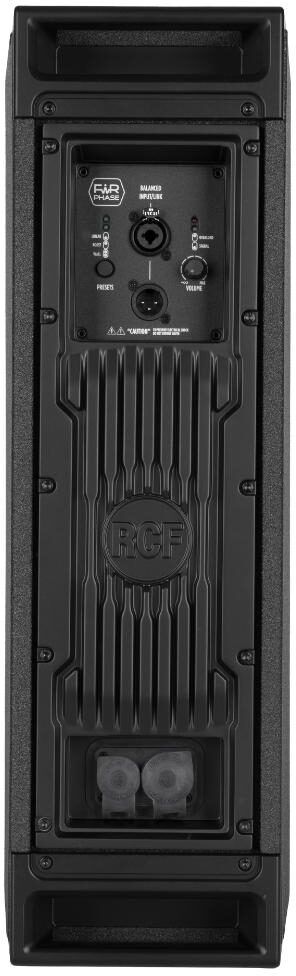

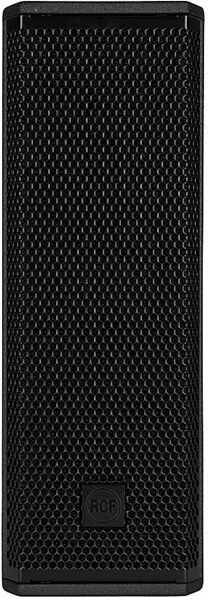

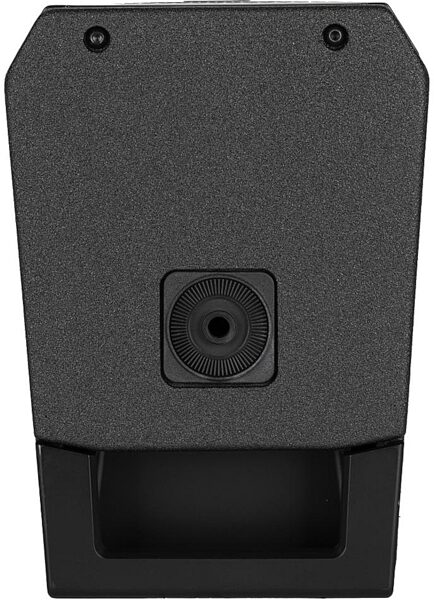

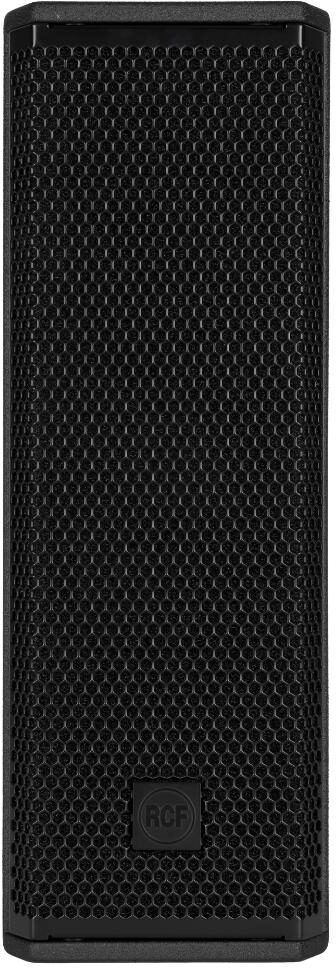

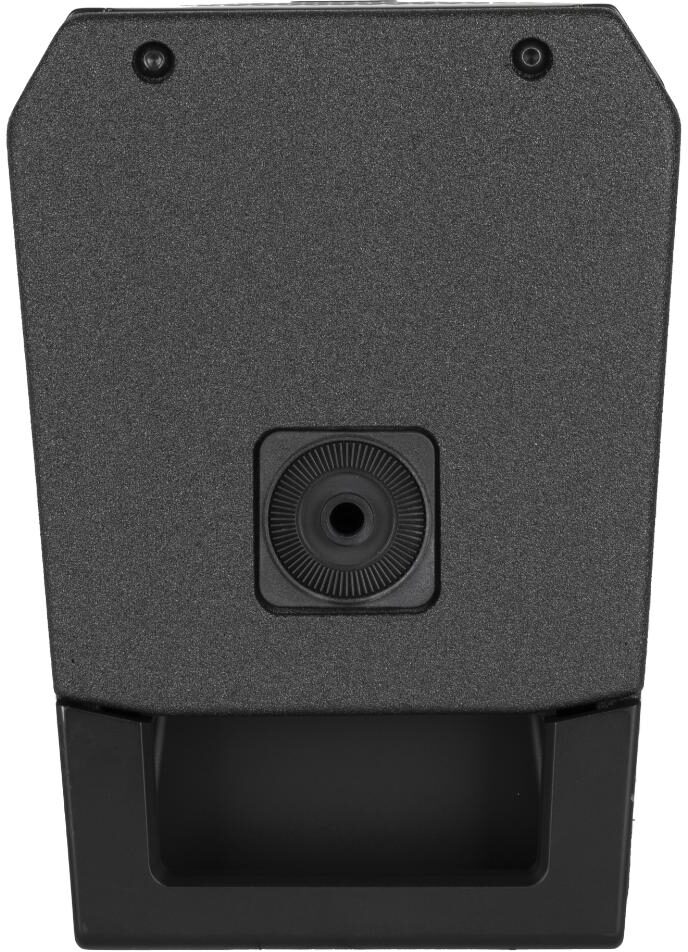

RCF NXL 14-A Compact Active Speaker

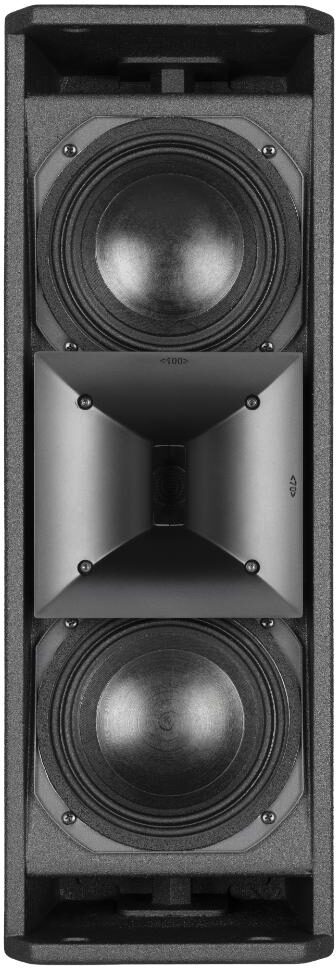

RCF's NXL 14-A is the most compact active speaker in the professional NXL series. It features two 6" woofers in a symmetrical configuration and the 1.75" Precision Transducers PKX driver loaded on a rotatable TRW waveguide, all powered by a 2,100W two-channel amplifier. The NXL 14-A is designed to deliver definition, power, and portability in any live application. Perfect for vocal reproduction, ideal in compact live systems paired with SUB Series subwoofers, in immersive setups, or as a fill speaker.

RCF NXL 14-A Features:

- 128 dB max SPL
- 2100W Class-D Bi-Amplification
- 70-20000 Hz linear frequency range
- 1.75" Driver
- 2 x 6" High Power Neodymium Woofers
- Rotatable 100* x 70* TRW Waveguide
- FiRPHASE and Bass Motion Control

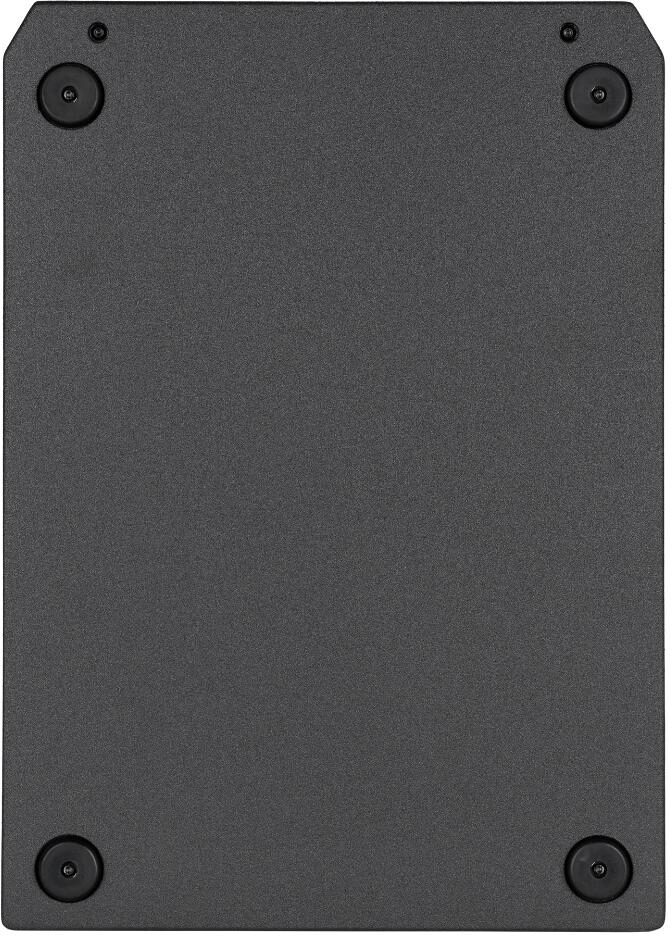

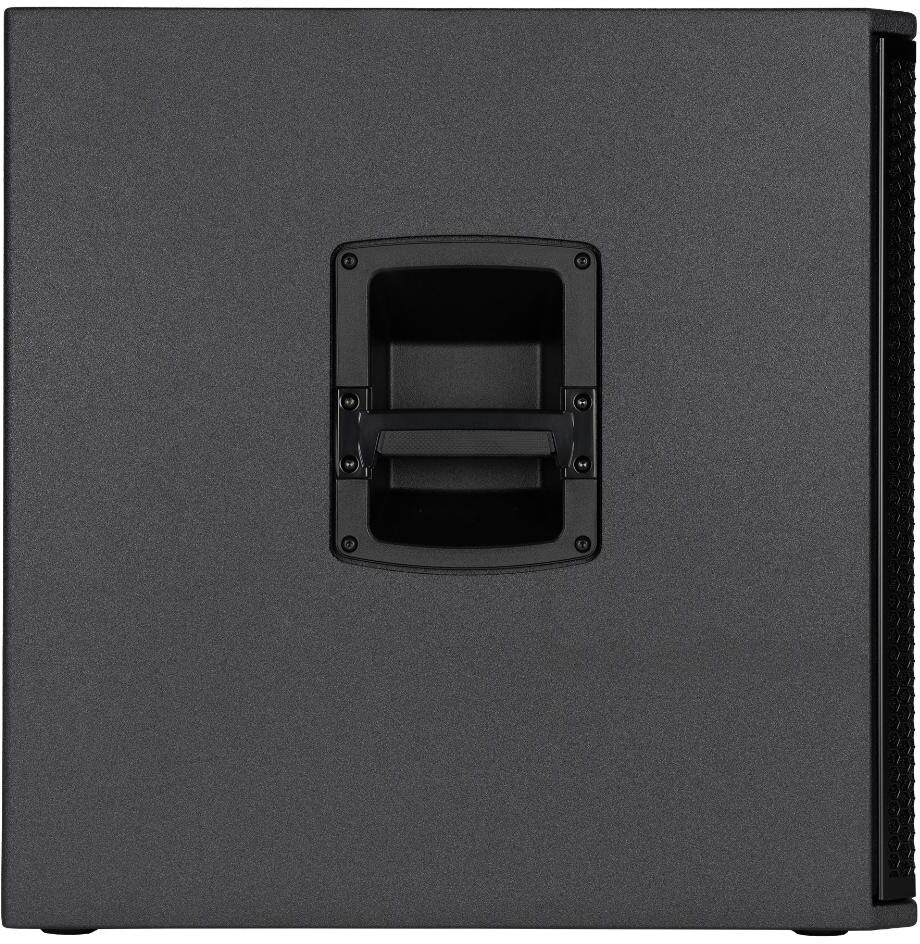

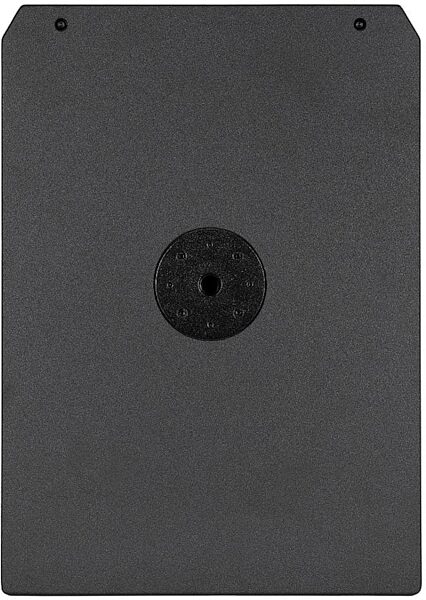

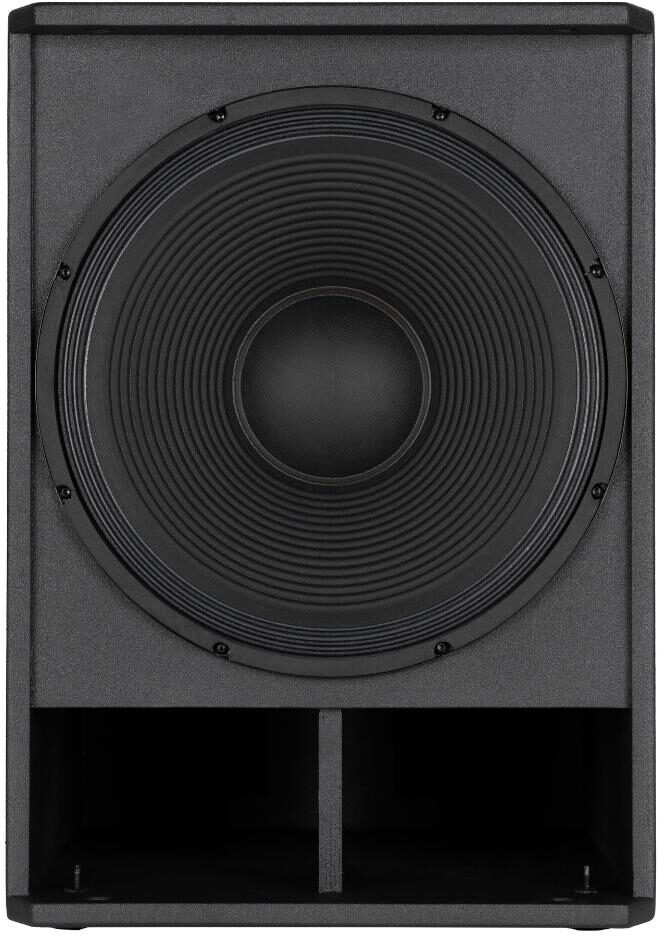

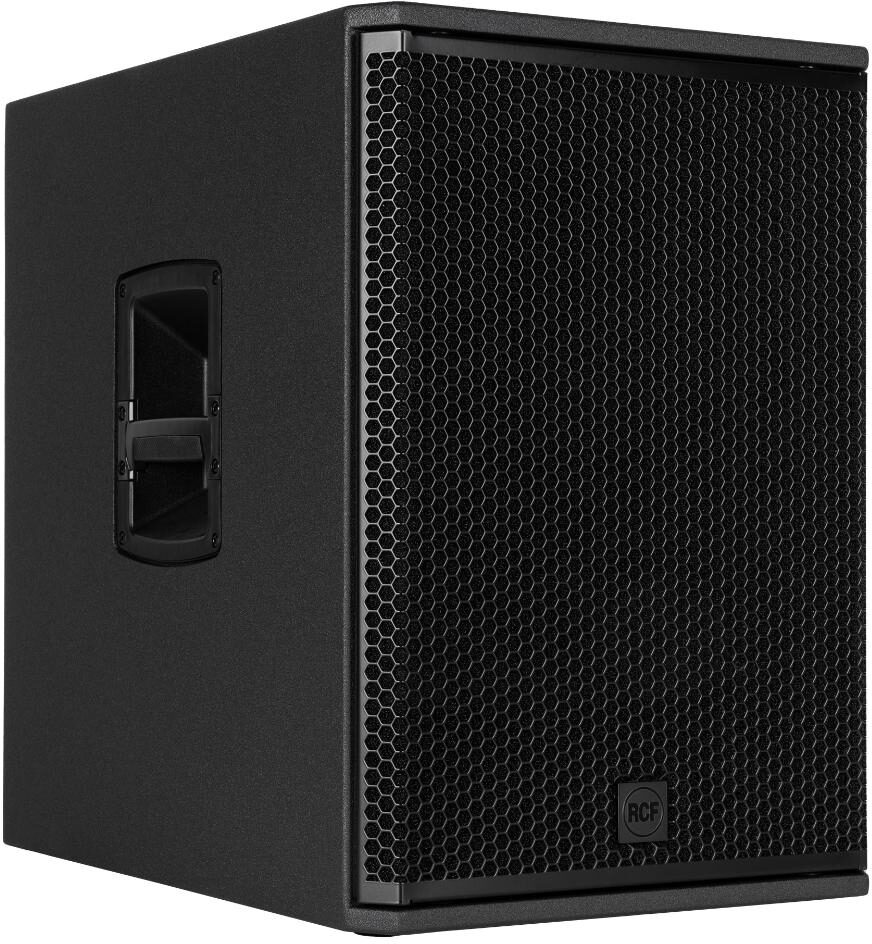

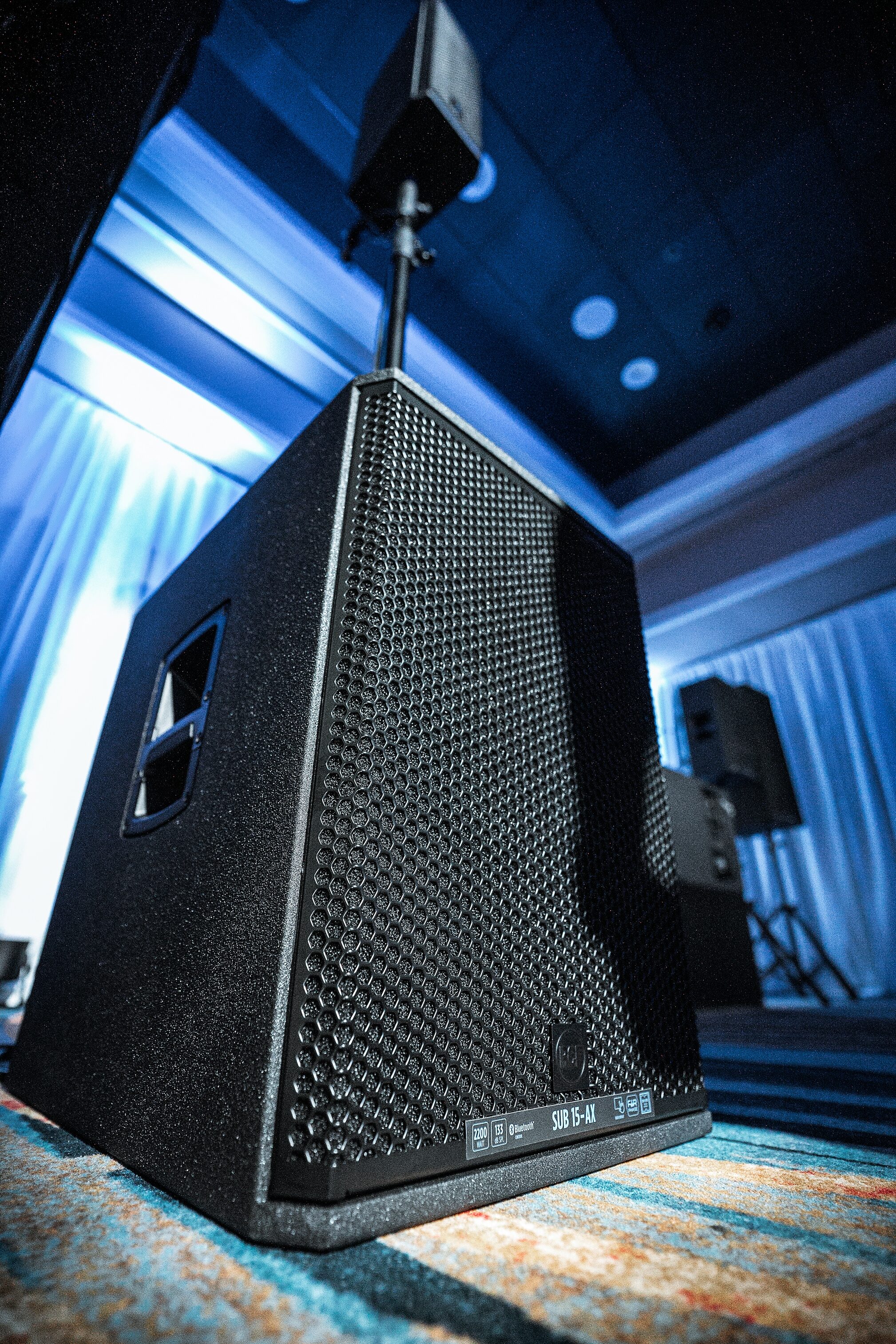

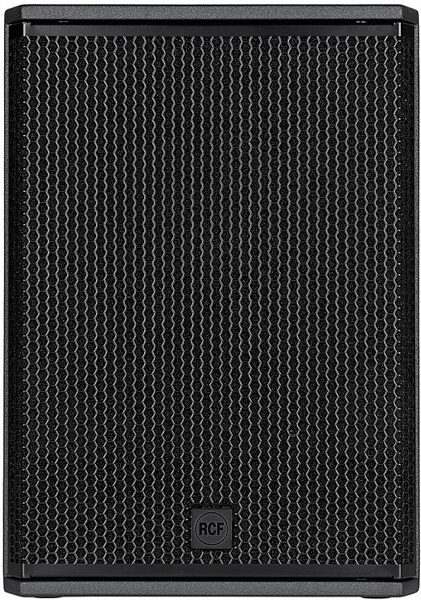

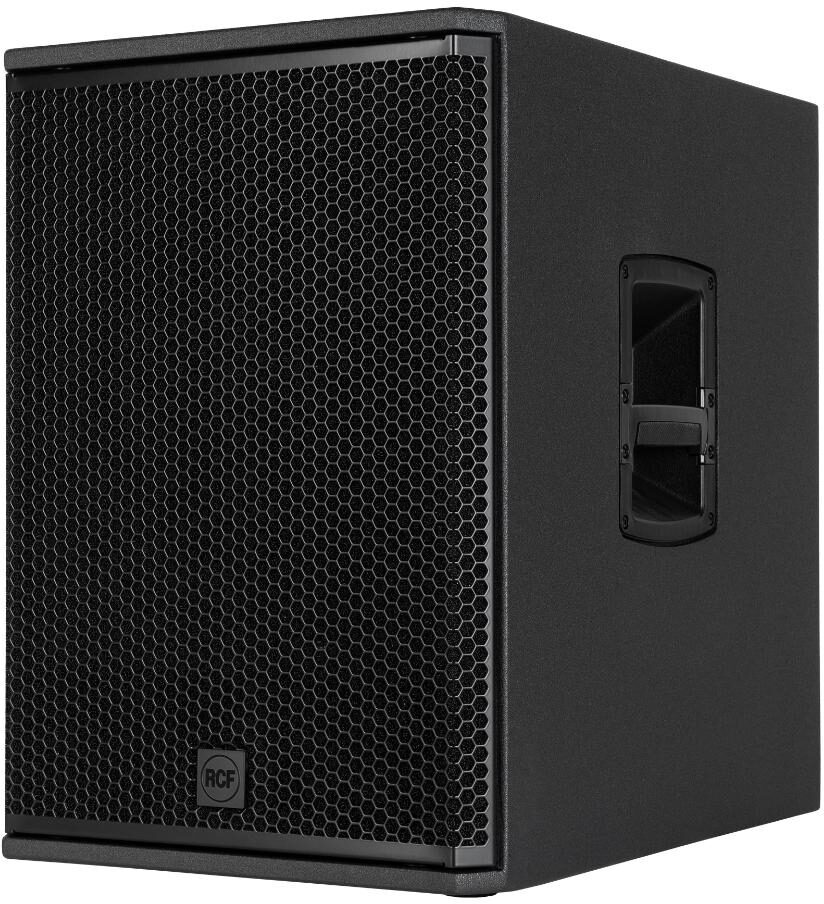

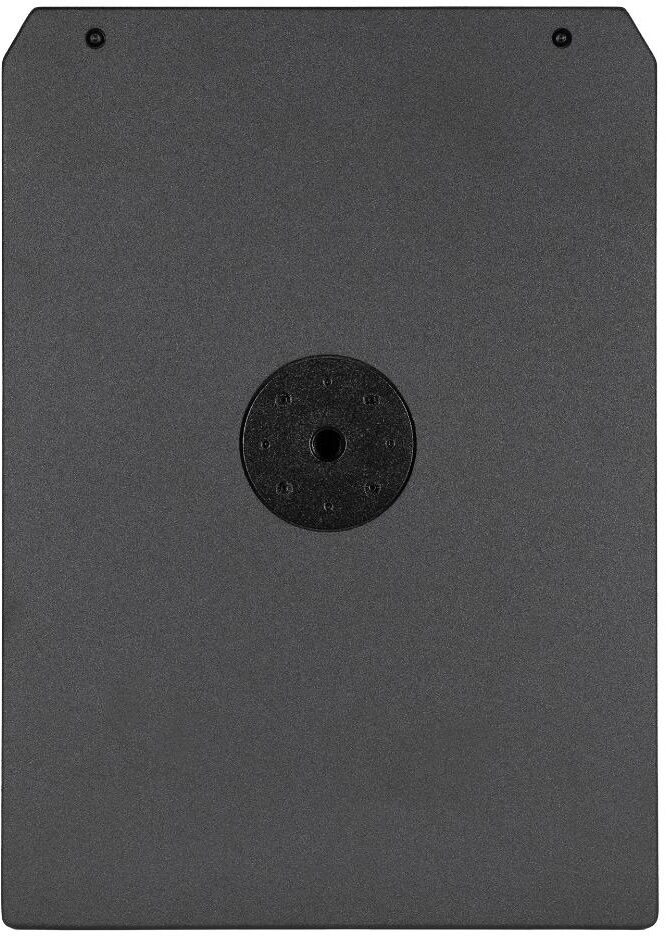

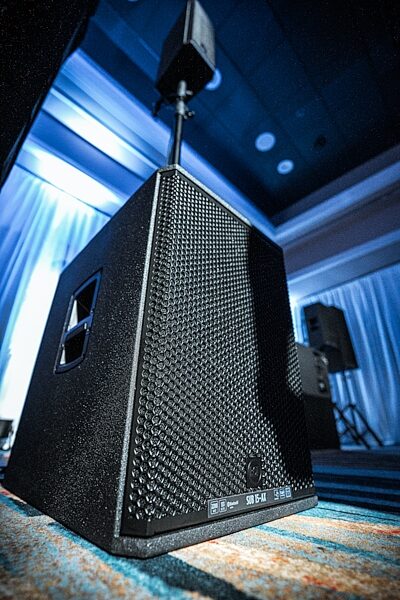

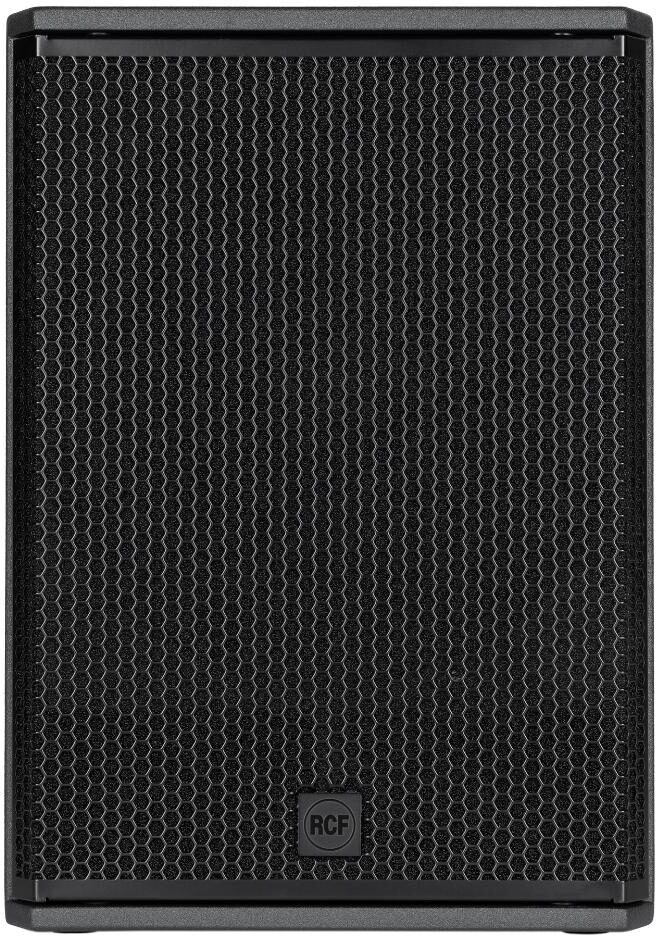

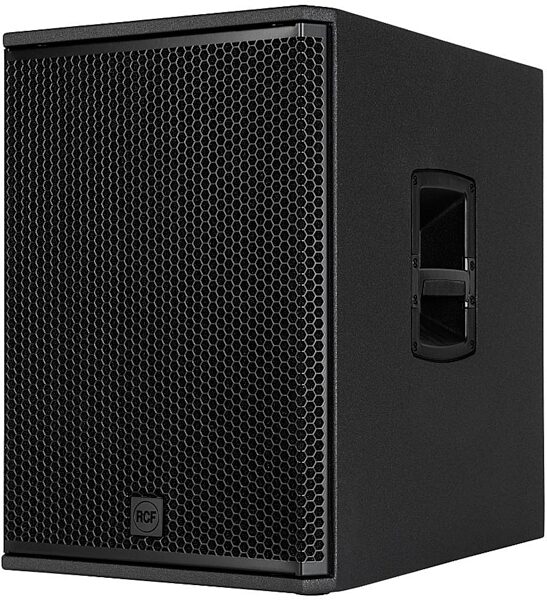

RCF SUB 15-AX Powered Subwoofer

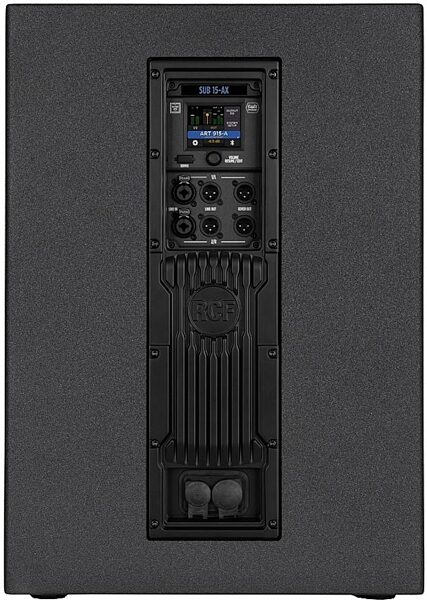

The SUB 15-AX is a portable 15" high-power active subwoofer for live sound applications with fully featured processing, a color touch panel, and remote control via Bluetooth(R). The combination read more of a transducer with a powerful Class-D amplifier delivers sound pressure levels up to 133 dB with exceptional clarity and headroom. SUB AX subwoofers are designed specifically for small to mid-sized venues and ideal for portable applications. SUB 15-AX is the ideal complement for 10" or 12" woofer-size loudspeakers; it centralizes speaker management inside the subwoofer, providing dual crossovers, 8-band EQs, routing, delays, cardioid configurations, and recallable crossover presets. The polyurea-coated all-wood cabinet features a sealed Powercon True1 Top connector.

RCF SUB 15-AX Features:

- 2200 Watt Class-D Amplifier
- 133 dB MAX SPL

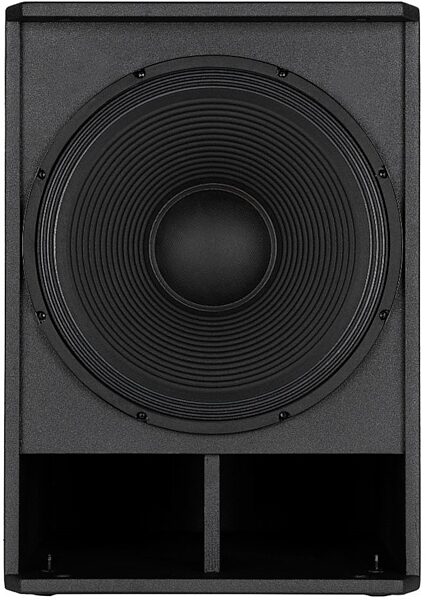

- 15" Woofer, bass reflex housing
- Digital Crossover w/ Presets
- Multi-ply hardwood polyurea-coated
- LiveRemote App

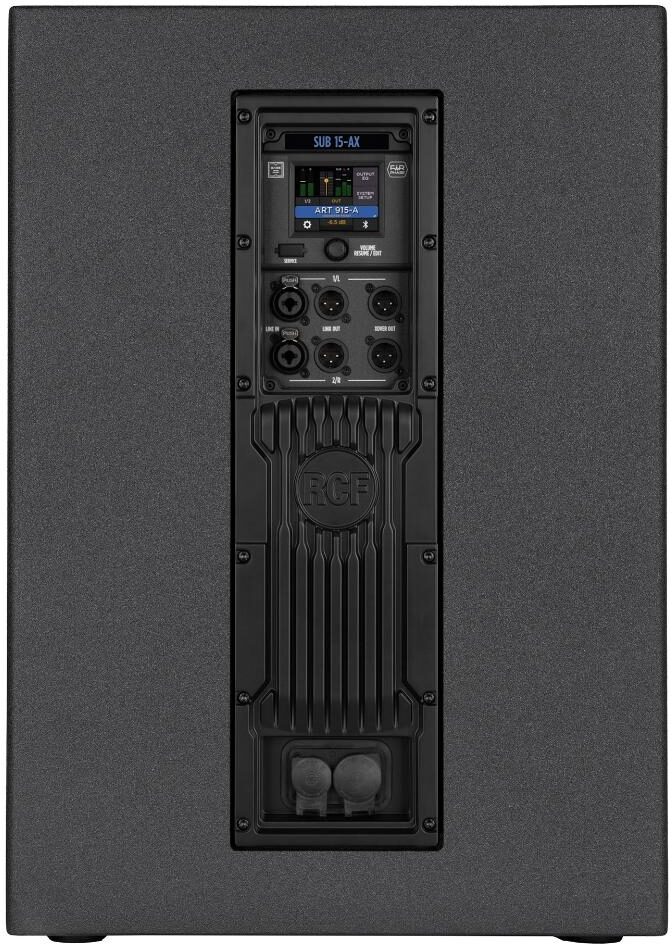

- Dual XLR/TRS combo Input + Link, Dual XLR Xover Out
- Bass Motion Control excursion management
- Powercon True1 Top Sealed AC Connector
- Weight: 21.8 kg / 48.06 lbs


See how to optimize your system with crossover presets on RCF's SUB 15-AX and SUB 18-AX:
read less

Dimensions and Weight in Packaging
Black
Shipping Weight: 122.97 lbs

For support or warranty questions, please contact the manufacturer:
Phone: 732-902-6100
Email: service@rcf.it or TechSupport@rcf.it

Black

RCF SUB 15-AX Active Subwoofer Speaker
1 RCF SUB 15-AX Active Subwoofer Speaker
($2,199.00 each)
$2,199.00
RCF NXL 14-A Compact Active 2-Way Point Source Speaker (2100 Watts) -  Black
1 RCF NXL 14-A Compact Active 2-Way Point Source Speaker (2100 Watts) - Black
($1,599.00 each)
$1,599.00

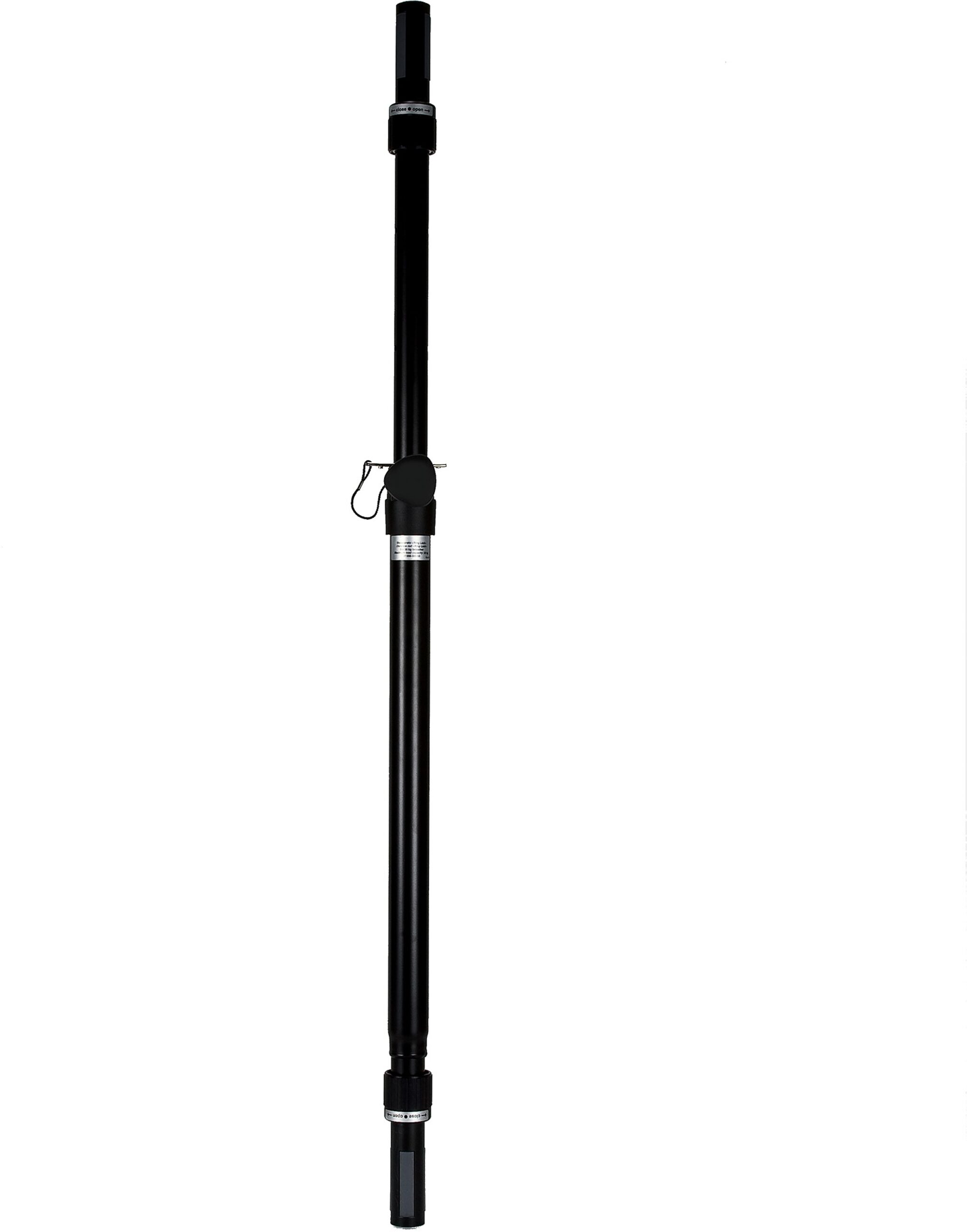

RCF AC-PRO-PM 35mm Subwoofer Pole-Mount
1 RCF AC-PRO-PM 35mm Subwoofer Pole-Mount
($179.00 each)
$179.00

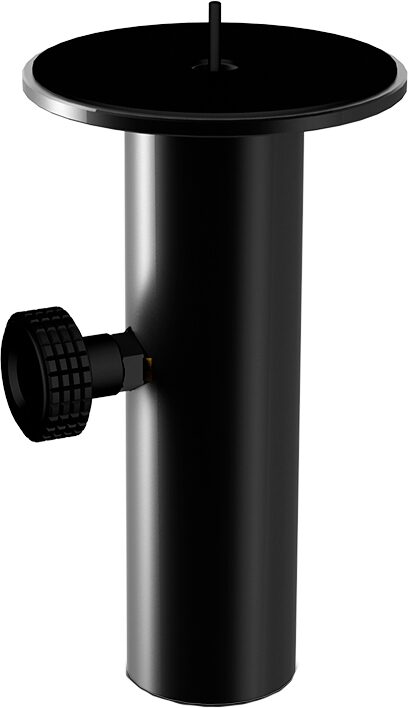

RCF Pole Mount Kit/Stand Adapter for NXL 14-A -  Black, PMK60678
1 RCF Pole Mount Kit/Stand Adapter for NXL 14-A - Black, PMK60678
($149.00 each)
$149.00
Price Separately:
Savings:
$4,126.00
$100.00
$4,026.00
