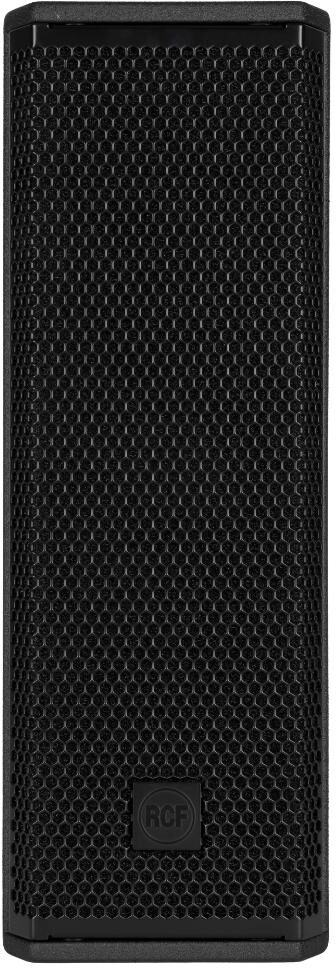

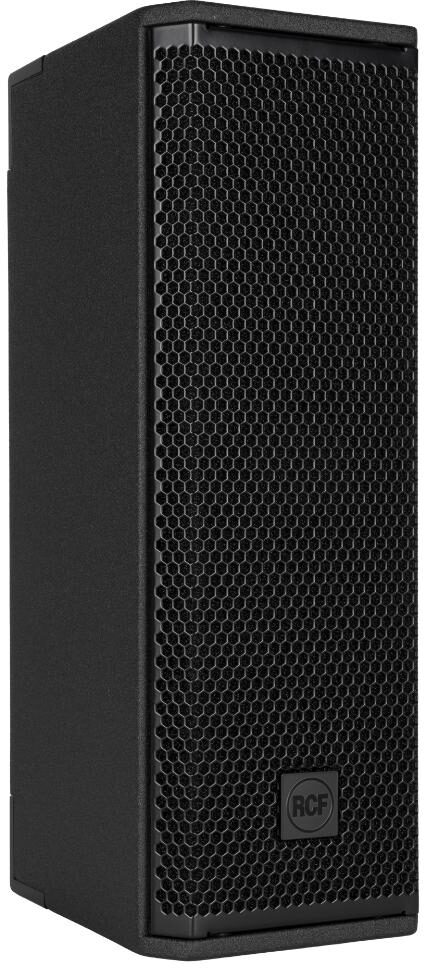

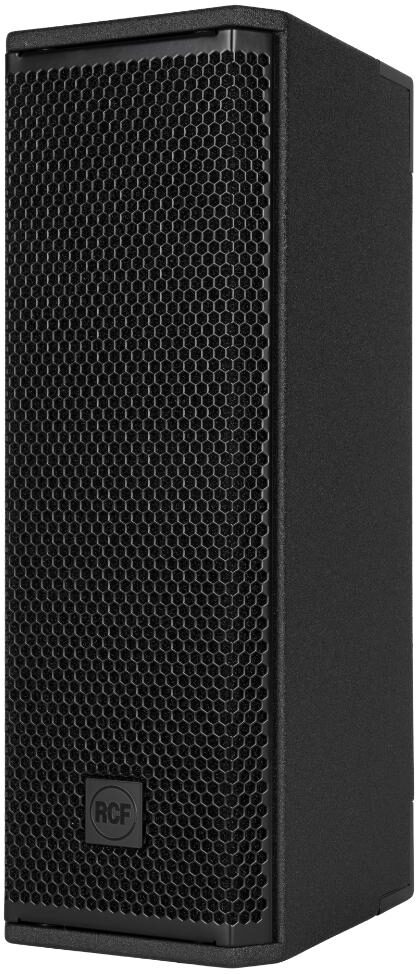

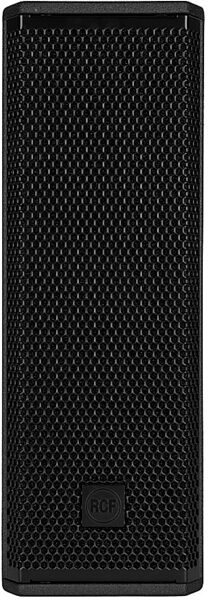

RCF NXL 14-A Compact Active 2-Way Point Source Speaker (2100 Watts)

zZounds Gear Experts Say...
With two 6" woofers and a rotatable horn, this uber-narrow speaker puts out enormous sound: 128 dB max SPL and 2100 peak watts, in a silent, fan-less design.

NXL 14-A is the most compact active speaker in the professional NXL series. It features two 6" woofers in a symmetrical configuration and the 1.75" Precision Transducers PKX driver loaded on a rotatable TRW waveguide, all powered by a 2,100W two-channel amplifier. The NXL 14-A is designed to deliver definition, power, and portability in any live application. Perfect for vocal reproduction, ideal in compact live systems paired with SUB Series subwoofers, in immersive setups, or as a fill speaker.

Features:

- 128 dB max SPL
- 2100W Class-D Bi-Amplification
- 70-20000 Hz linear frequency range
- 1.75" Driver
- 2 x 6" High Power Neodymium Woofers
- Rotatable 100-degree x 70-degree TRW Waveguide
- FiRPHASE and Bass Motion Control

Small Framework, Massive Sound

As the most compact active speaker in the professional NXL series, the NXL 14-A point source speaker is engineered for clarity, power, and versatility in any live setting or installation. Ideal for vocal reproduction, it excels in compact live systems paired with SUB Series subwoofers, immersive setups, or as a reliable fill speaker. The NXL 14-A delivers professional audio performance where it matters most. Flexibility, power, and compactness make the NXL 14-A ideal for installed and portable professional applications where size and weight are critical factors.

Power that moves

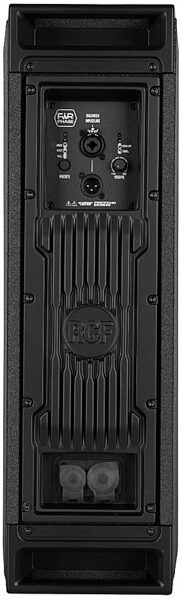

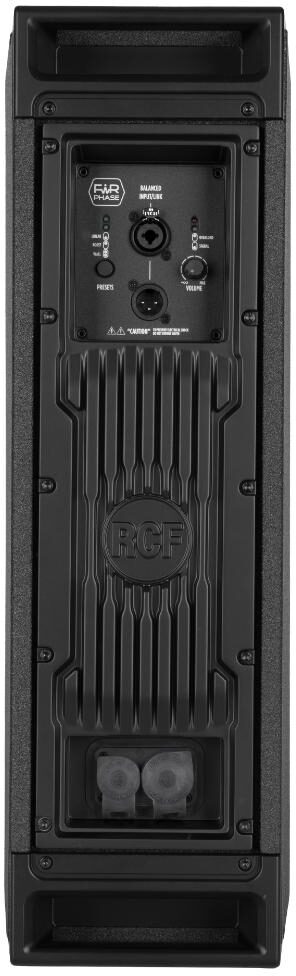

With 2,100W of power, the NXL MK2 2-channel Class-D amplifier is 50% more powerful than previous models. NXL manages extreme sound read more pressure levels with an ultra-fast attack, realistic transient response, and very low power loss. NXL modules are energy efficient, so there's no need for a cooling fan. The amplifier is attached to a solid aluminum heat exchanger at the rear of the enclosure, which has no moving parts. The input circuit features a new low-distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All NXL amplifiers are designed according to EN62368-1 for maximum safety and house a Switch Mode Power Supply section with minimum weight.

Superior Directivity

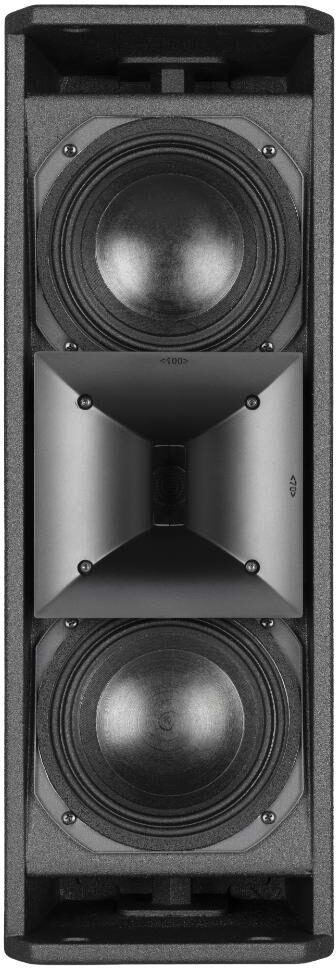

Symmetrically aligned transducers ensure coherent wavefront projection and smooth response, providing consistent directional control in both horizontal and vertical orientation. The rotatable 100- x 70- waveguide produces precise, constant coverage. This special configuration allows for excellent control of directional characteristics, significantly increasing intelligibility in difficult acoustic environments.

Rig it anywhere

With multiple rigging accessories and the unobtrusive form factor of the cabinet, NXL 14-A is suitable for a wide range of configurations including hanging, pole-, truss-, wall- or ceiling-mounting -- at any angle in horizontal or vertical orientation. The rotatable waveguide (and rotatable logo) allows for perfect dispersion control at any position.

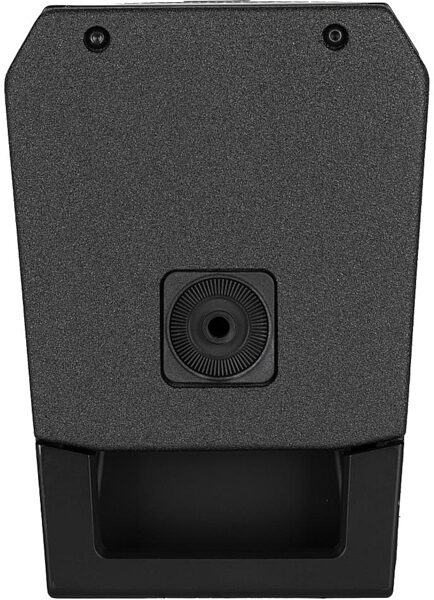

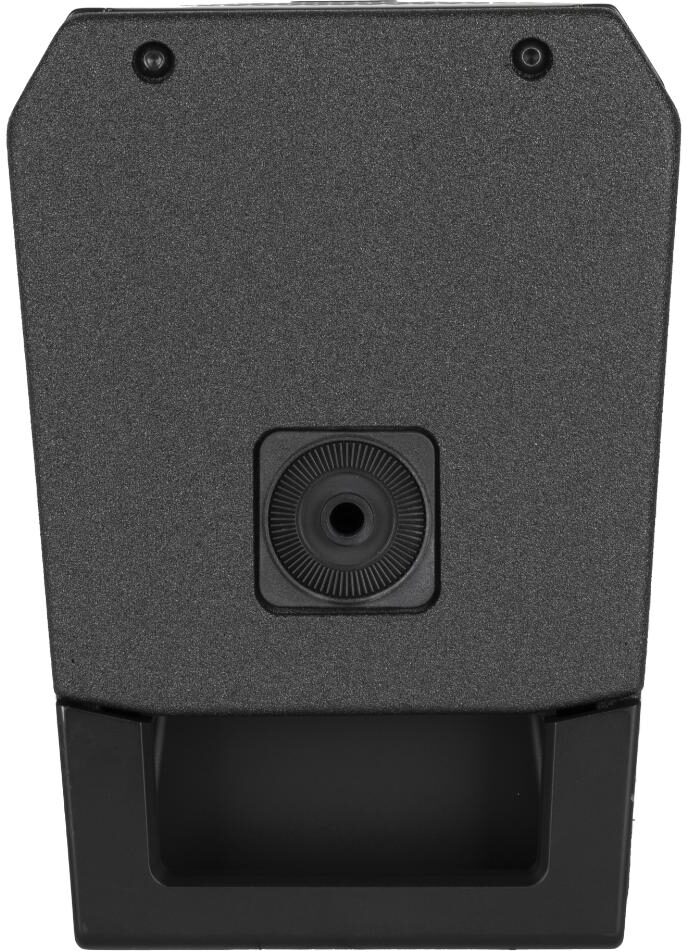

Rigging the speaker is quick and straightforward. The convenient Quick Fit socket at the top and bottom of the enclosure allows for rapid attachment to accessories. No matter the setup, you'll always find a spot for the NXL 14-A. Note: Pole-mounting requires Pole Mount Kit/Stand Adapter for NXL 14-A.
read less

Quick Fit socket at top and bottom of enclosure. Pole-mounting requires Pole Mount Kit/Stand Adapter for NXL 14-A.

Acoustics
Frequency Response: 70 Hz - 20000 Hz
Max SPL @ 1m: 128 dB
Horizontal coverage angle: 100-
Vertical coverage angle: 70-

Transducers
Compression Driver: 1 x 1.0" neo, 1.75" voice coil
Woofer: 2 x 6.0" neo, 2.0" voice coil

Input/Output section
Input signal: bal/unbal
Input connectors: Combo XLR/Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu

Processor section
Crossover Frequencies: 1200
Protections: Excurs.
Limiter: Fast Limiter
Controls: Linear/Boost/Stage Presets, Volume.

Power section
Total Power: 2100 W Peak
High frequencies: 700 W Peak
Low frequencies: 1400 W Peak
Cooling: Convection
Connections: Powercon TRUE1 TOP IN/OUT

Physical specifications
Safety agency: CE compliant
Cabinet/Case Material: Plywood
Hardware:
- 2X M10 TOP AND BOTTOM
- 2X PIN D.10
Handles: 2 TOP AND BOTTOM
Grille: Steel
Color: Black - RAL 9005, White - RAL 9003
Height: 567 mm / 22.32 inches
Width: 197 mm / 7.76 inches
Depth: 270 mm / 10.63 inches
Weight: 12.8 kg / 28.22 lbs
Dimensions and Weight in Packaging
Black
Shipping Weight: 32.19 lbs
Shipping Dimensions: 24 x 12 x 9 in
Manufacturer Part Number (MPN): NXL14-A
White
Shipping Weight: 32.19 lbs
Shipping Dimensions: 24 x 12 x 9 in
Manufacturer Part Number (MPN): NXL14-A-W
