Pro Co SMC StageMASTER Audio Snake

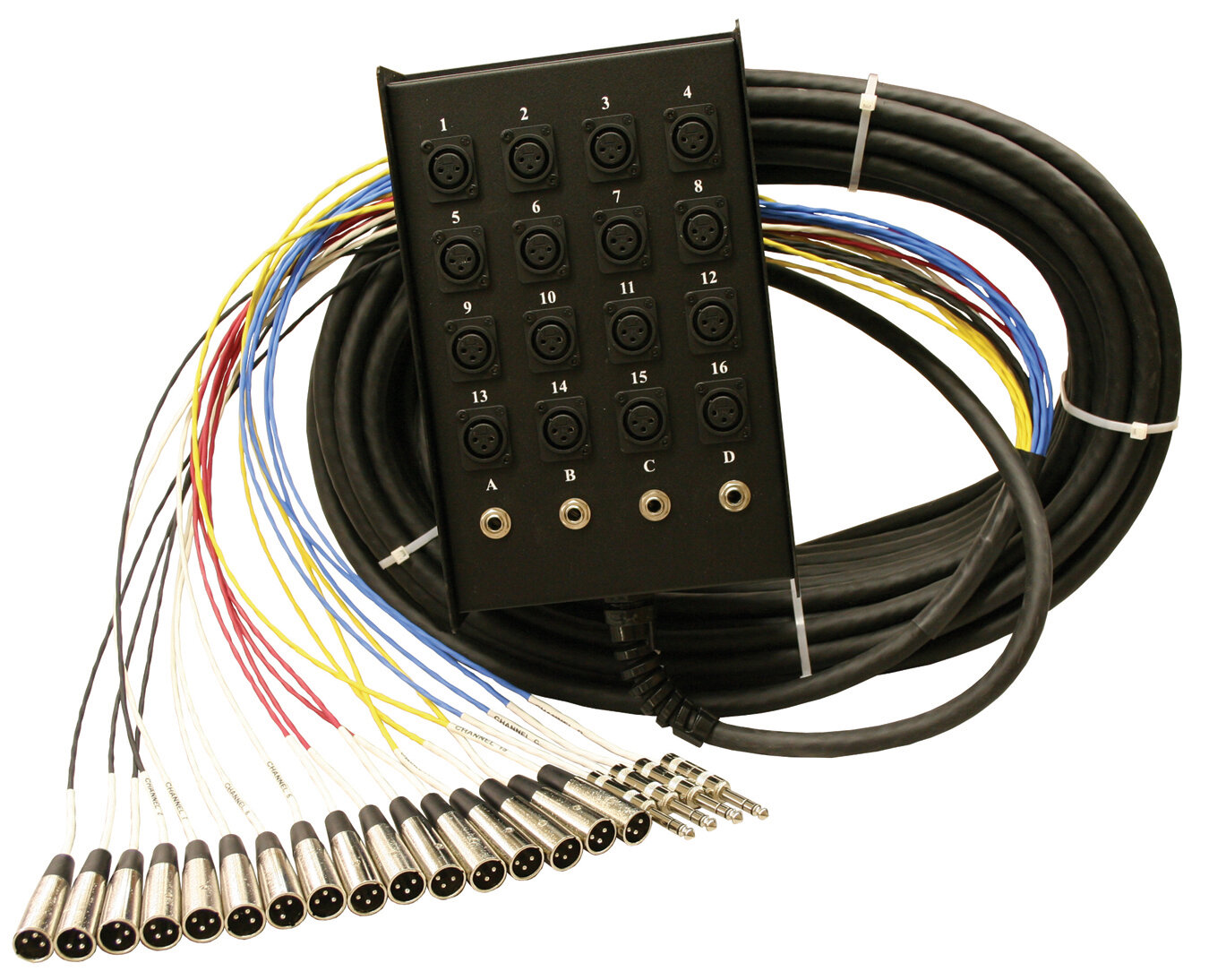

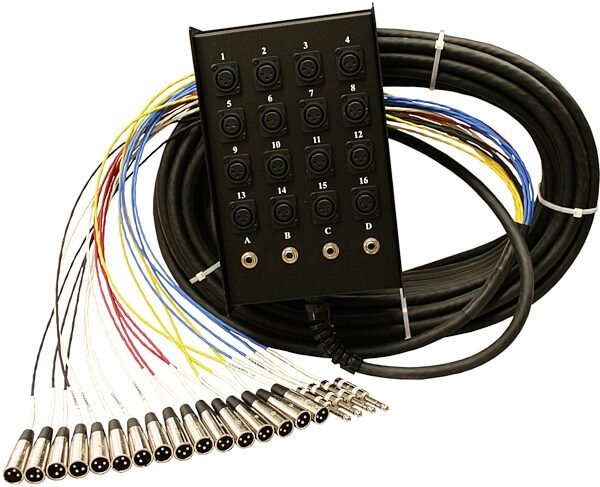

Pro Co SMC StageMASTER Audio Snake, 50 foot, SMN0804-FBQ50, 8 In x 4 Out, 16 In x 4 Out

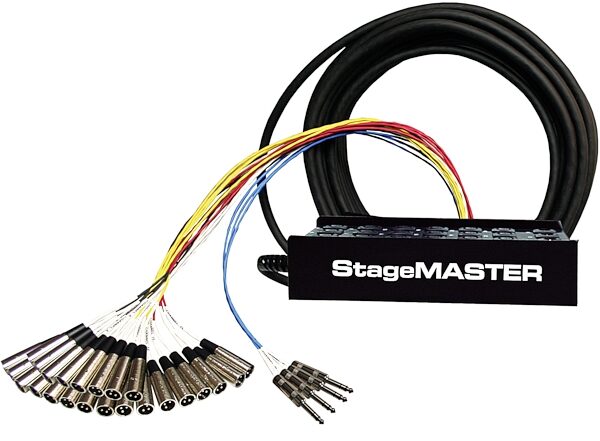

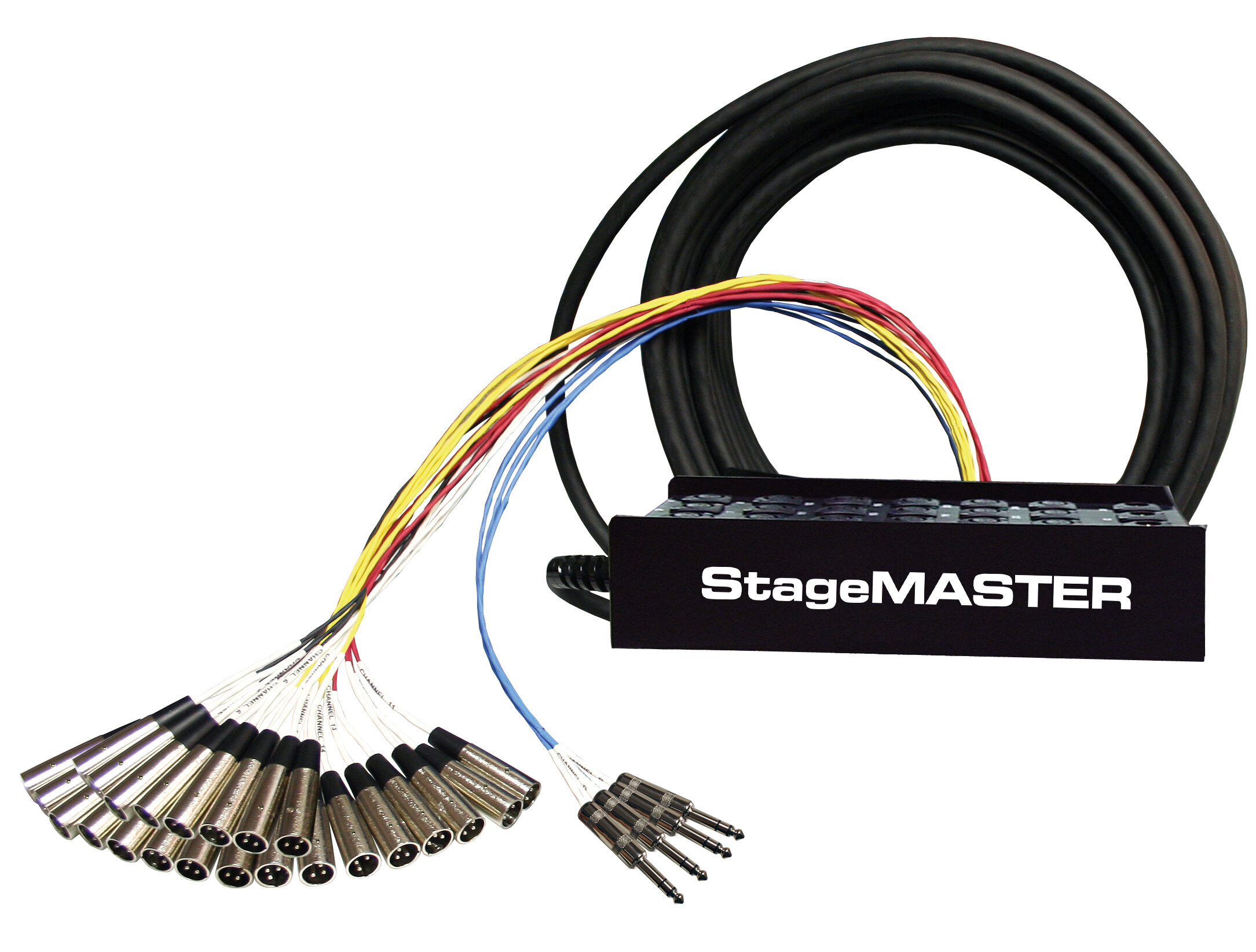

Pro Co SMC StageMASTER Audio Snake, 50 foot, SMN0804-FBQ50, 8 In x 4 Out, 24 In x 4 Out

zZounds Gear Experts Say...

Wrangle that awful tangled mess of cords you call a stage by employing the organizing prowess of the Pro Co SMC StageMASTER Audio Snake.

Overview

Keep your performance space or studio from looking like an unsightly pile of cable spaghetti with the Pro Co SMC StageMASTER audio snake. Available with different cable lengths and with varying channel counts, this durable stagebox is the ideal organization solution for fixed installations, houses of worship, schools, bands and orchestras, and more.

Rugged, No-Nonsense Construction

The StageMASTER audio snake is the epitome of heavy-duty gear. Constructed of a steel connector panel chassis and a tough steel U-channel enclosure, the stagebox provides excellent shielding and protection of connectors. For easy setup and coiling, each StageMASTER audio snake features an extremely flexible cable.

Keeping things simple and practical, the StageMASTER audio snake is coated with a durable black powder-coat finish. White silkscreened channel identification numbers provide sharp contrast against the unit's black exterior, making it easy to read in most lighting conditions.

As Many or As Few Mics and Returns As You Need

As for connections, microphone inputs are rugged Neutrik D-Series nylon XLR (microphone) panel connectors, and the returns are durable metal 1/4-inch TRS panel jacks. The stagebox is wired with SN Series multipair audio cable to a cable fanout with RHC male XLR connectors and RHC 1/4-inch TRS jacks. The cable is attached to the stagebox with a strong nylon strain relief, and for long flex-life and easy channel identification, the individual channels of the fanout… read more are protected with color-coded irradiated polyolefin shrink-tubing.

Features:

- Rugged steel U-channel stagebox provides optimal shielding and connector protection
- Stagebox is wired with SN series multipair (2 x 24 AWG) audio cable to a fan out
- Color-coded fanout provides easy channel identification
- Individually shielded pairs with 100 percent coverage foil shield and drain wire
- Neutrik D-Series nylon XLR panel-mount connectors are rugged and durable
- Durable PVC outer jacket keeps cables safe no matter how much you step on them
- RHC metal-shell cable connectors for high-use durability
- Highly flexible cable is easy to coil
- Includes limited 1-year warranty

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

Stagebox Specifications:
- Microphone Inputs: Neutrik D-Series Nylon XLR Female Panel-mount
- Returns Out: Neutrik Metal 1/4" T/R/S Panel-mount
- Connector Frame: 18-Gauge Steel
- Feet: Non-skid Rubber (4)
- Finish: Black Powder Coat
- Channel Marking: 0.25 in. White (Semigloss Epoxy) Characters
- Strain Relief: Nylon

Fan End Specifications:
Connectors:
- Microphone Output: RHC XLR Male Cable-mount
- Returns Input T/R/S Model: RHC 1/4" TRS Cable-mount
- Channel Insulation: .010" (.254mm) Polyethylene
- Channel Marking: Numbered Color-Coded Polyolefin Heat Shrink Tubing

Multipair Audio Cable:
- Wire: SN Series- 24GA
- Conductor Gauge: 24 AWG (.20mm2)
- Stranding no. strands x AWG: 7 x 32 (7 x .254mm2)
- Insulation: .010 in. (.254mm)
- Insulation Material: Polypropylene
- Insulation Diameter: 0.44 in. (11.2 mm)
- Drain Wire Gauge: 24 AWG (.20mm2)
- Drain Wire Stranding: 7 x 32 (7 x .254mm2)
- Shield Material: Aluminum/Polyester Tape Wrap
- Shield Coverage: 100% coverage

Capacitance:
- between paired conductors: 25 pF/ft. (82 pF/m)
- between one of paired conductors and remaining conductor tied to shield):45 pF/ft. (148 pF/m)

Calculated Impedance: 60 ohms/kft (196.8 ohms/km)
Nominal Conductor Resistance @ 20 degrees C: 25.4 ohms/kft (83.3 ohms/km)

Dimensions and Weight in Packaging

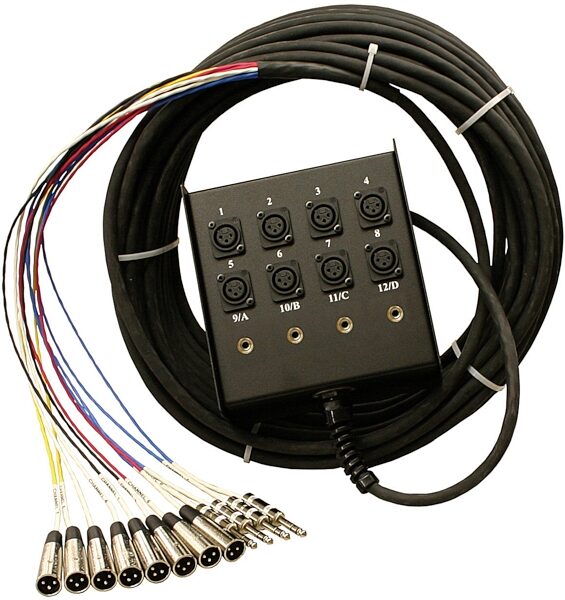

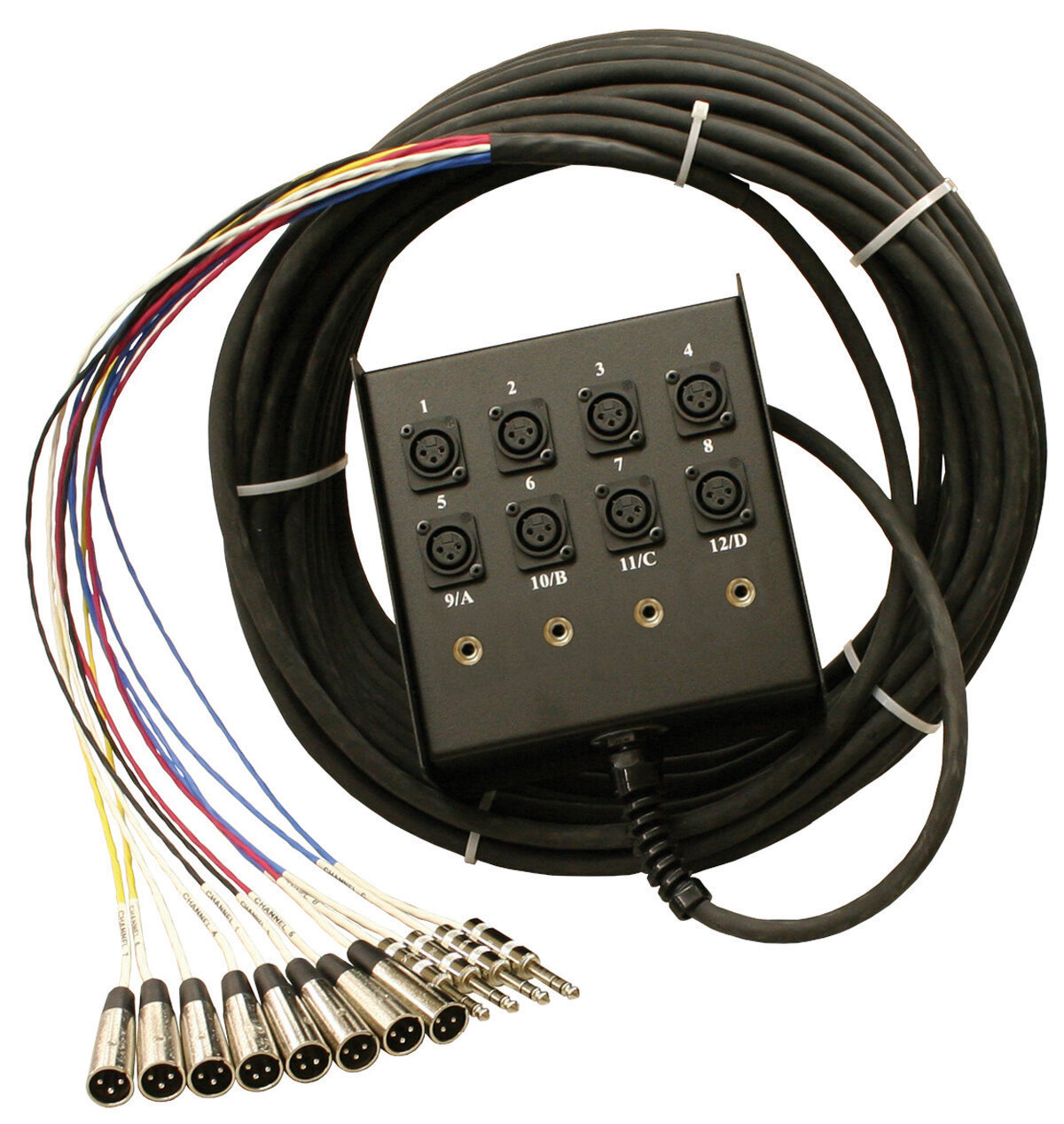

50 foot, SMN0804-FBQ50, 8 In x 4 Out: Shipping Weight: 12.5 lbs; Shipping Dimensions: 21 x 21 x 8 in; Manufacturer Part Number (MPN): SMN0804FBQ-50

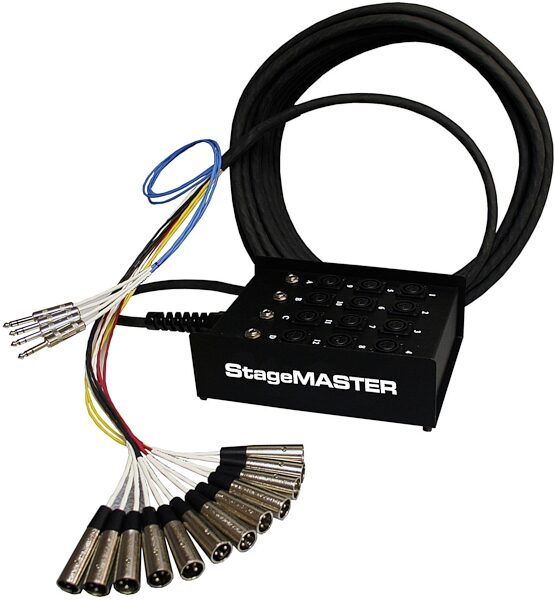

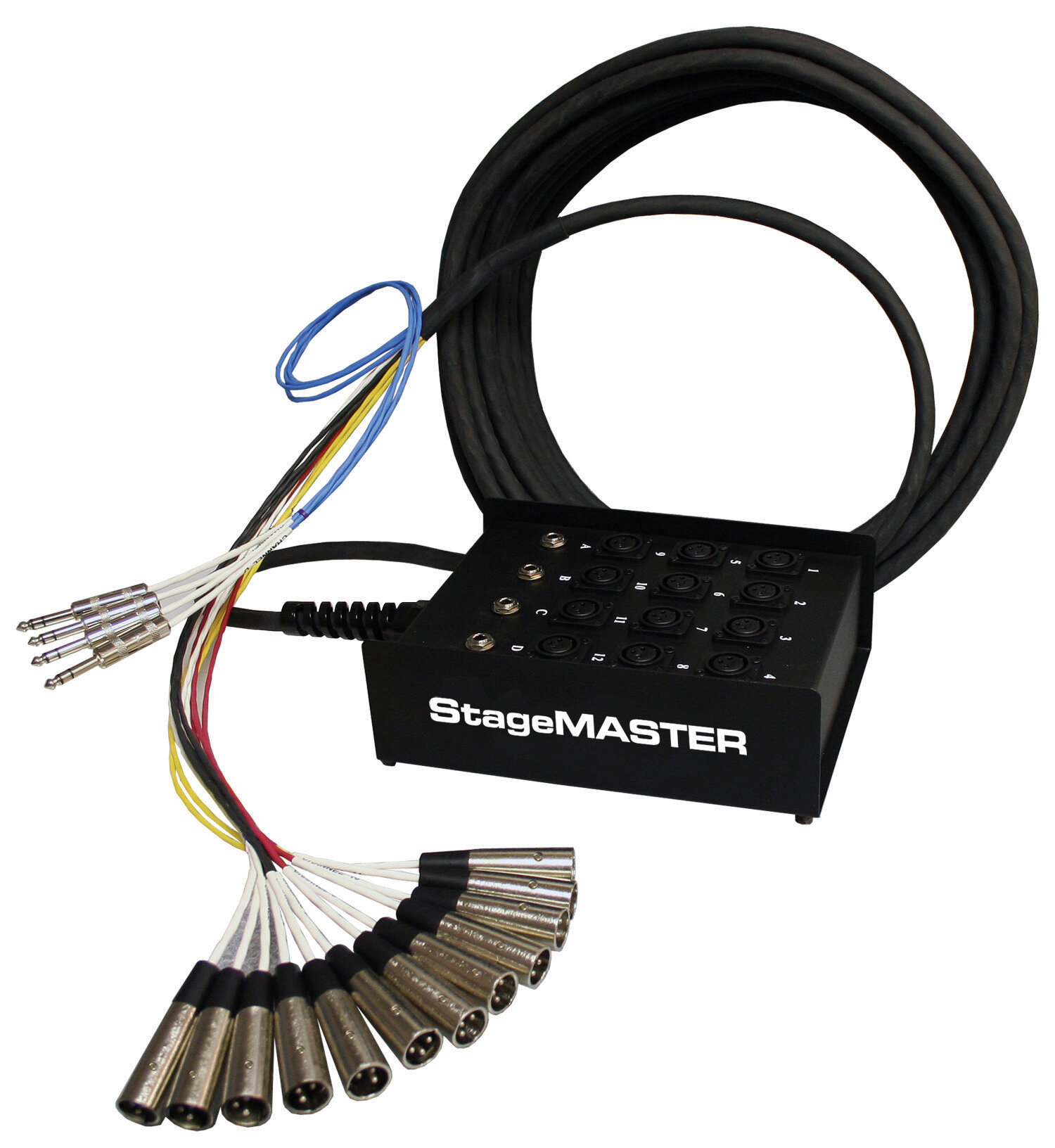

50 foot, SMN1204-FBQ50, 12 In x 4 Out: Shipping Weight: 14.5 lbs; Shipping Dimensions: 19 x 19 x 12 in; Manufacturer Part Number (MPN): SMN1204FBQ-50
100 foot, SMN1204-FBQ100, 12 In x 4 Out: Shipping Weight: 21 lbs; Shipping Dimensions: 19 x 19 x 12 in; Manufacturer Part Number (MPN): SMN1204FBQ-100

Documents and Manuals

For support or warranty questions, please contact the manufacturer:
Phone: 800-253-7360

Pro Co's Description

Pro Co SMC StageMASTER Audio Snake

StageMASTER Multipair audio snakes are designed and built to provide the greatest value. StageMASTER Snakes are not outsourced. They are manufactured in the Pro Co facilities, by Pro Co employees, according to the strictest quality standards. ProCo takes pride in providing you with a system that you can rely on at a price you will appreciate.

Each StageMASTER audio snake stagebox is constructed of a steel connector panel chassis and a heavy-duty steel U-channel enclosure designed for excellent shielding and protection of connectors. The stagebox is coated with a durable black powder-coat finish with white silkscreened channel identification numbers.

Mic inputs are rugged Neutrik D-Series nylon XLR panel connectors and returns are durable metal 1/4-inch TRS panel jacks.

The stagebox is wired with SN Multipair Audio Cable to a Fanout with RHC Male XLR connectors and RHC 1/4-inch TRS jacks.

The cable is secured to the stagebox with a rugged nylon strain relief. The individual channels of the Fanout are protected with color-coded irradiated polyolefin shrink-tubing for long flex-life and easy channel identification.

StageMASTER Multipair Audio Snakes are available in 8 x 4, 12 x 4, 16 x 4 and 24 x 4 (Mics x Returns) Fan to Box configurations and standard 50, 100 and 150-foot lengths.

Features:

- Steel u-channel stagebox for best shielding and connector protection.
- SN series multipair (2 x 24 AWG) audio cable
- Individually shielded pairs with 100% coverage foil shield and drain wire
- Durable PVC outer jacket
- Color-coded fanout for easy channel identification
- Cable is highly flexible
- Rugged Neutrik D-Series nylon XLR panel-mount connectors
- RHC metal-shell cable connectors for high-use durability
- Limited 1-year warranty
