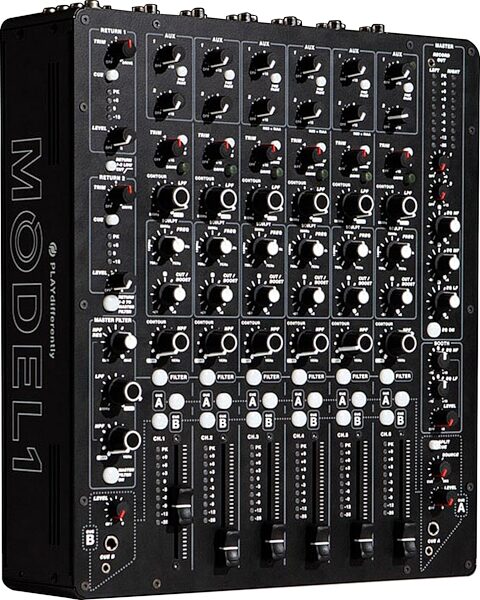

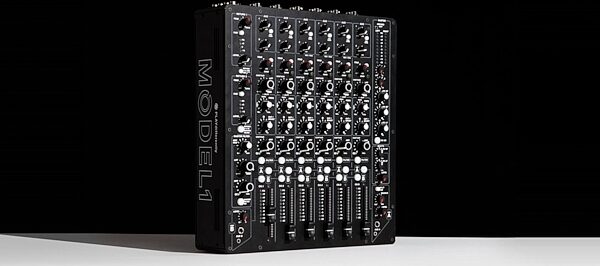

PLAYdifferently Model 1 DJ Mixer

MODEL 1 is a performance instrument providing new creative possibilities to artists, and empowering them to PLAYdifferently.

A mixer of uncompromising build quality, intuitive tactile controls and beautifully warm analog circuitry, MODEL 1 is engineered by Andy Rigby-Jones and co-designed by Richie Hawtin, with two years of testing, insight and refinement with artists, clubs and engineers from across the electronic music community.

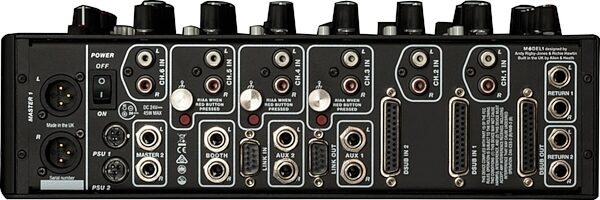

MODEL 1 has a unique offering of six fully featured input channels plus two stereo returns in a small format frame. It has many unique features, such as Input pre-amplifier drive control, hybrid filter/swept bell EQ, dual cue system, dual mixer linking system, and a fully balanced Tascam DB25 connector system.

MODEL 1 is a purely analogue mixer featuring technology normally found in the finest studio consoles, such as a fully balanced mix buss, zero crossing detection for seamless filter & master EQ routing along high voltage differential power rails.

2 Stereo Sends

The two AUX controls send the channel signal to the Aux mix outputs for use with external effects processors or, in some applications, local monitors. AUX 1 offers either PRE or POST FADE while AUX 2 is internally set to post fader.

2 Stereo Returns

Two basic stereo channels for use as return inputs from external effects processors or other sources. Each return features TRIM to adjust the return signal, input DRIVE circuit, and CUE routing to both Cue A and Cue B. Each Return… read more also feature Metering for visual feedback of the signal level, a rotary LEVEL fader to adjust Mix amount and combined Return 1-2 Low Cut EQ and Master Filter routing.

3 High Performance Phono Preamps

3 high performance turntable inputs, optimized for the club environment in order to minimise the tonal imbalance between vinyl and Digital audio, and to eliminate sub frequency feedback. Each phono input has it's own Individual Turntable Earth Binding for greater flexibility.

Studio Grade Faders

Custom TKD 60mm faders. These twin rails faders have been carefully chosen to ensure long life and smooth operation and feature a heavy feel for greater precision.

Precision Sculpting EQ

SCULPT is a semi-parametric swept bell filter, and consist of two controls,FREQ which sets the centre frequency and CUT/BOOST which adjust the gain or a attenuation at this frequency. The level of cut/boost is asymmetric; maximum boost is limited to +8dB, while the cut is extended to -20dB. Sculpt has a wide Q and a frequency range that covers almost seven octaves.

Contouring Low & High Pass Filters

As the name implies these two controls allow you to "contour" the frequency range of the audio signal. They consist of low Q, High-Pass and Low-Pass filters designed not to add colour to the sound as they are swept across their frequency range.

Analog Overdrive

A unique feature on every input, the DRIVE control. This control allows the user to adjust the level at which the channel pre-amplifier clips the input signal, thus creating harmonic distortion as a creative effect.

DualCue

Two independent Cue systems, A and B. Cue A routes to the right hand side headphone monitor and the Cue B routes to the left hand headphone monitor. The DualCue system makes it much easier for two DJs to perform on the mixer together in "Back2Back" setups, as each can select a separate channel to monitor without interfering with the other. This feature also assists DJ's handing off to each other in a smooth and natural way.

Mixer Link

A system that allows multiple mixers to be linked together, either for use with two or more performers, or as a way to expand the number of channels. When Linked together the mixers share a common balanced mix feeding the PA and Booth monitors. In addition, the two Cue systems are joined allowing interactive cueing between multiple performers. read less
