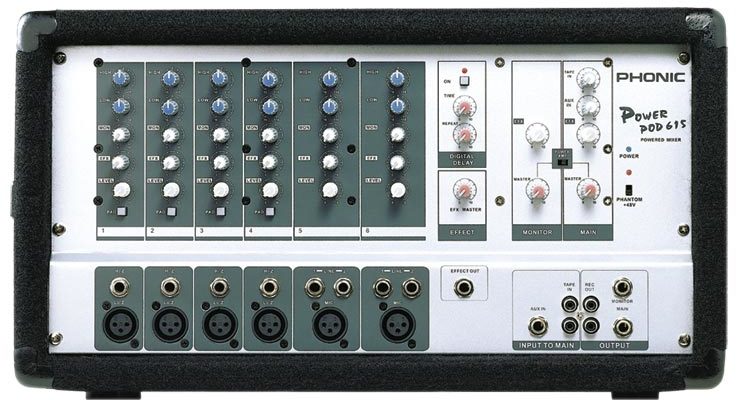

Phonic PowerPod 615 Powered Mixer (150 Watts)

No longer available at zZounds

zZounds Gear Experts Say...

150 Watts, digital delay, 6 mic inputs, 8 line inputs

Overview

The Phonic Powerpod 615 Powered Mixer is a 6-channel mixer with microphone inputs on every channel, 150 watts of power and built-in digital delay. Since the introduction of Phonic's Powerpod Series of powered mixers, it has become established as one of the most popular compact PA solutions available in the market today.

The combination of attractive styling, plentiful features and realistic pricing ensures the Powerpod's enduring popularity. The Powerpod series starts from the entry level Powerpod 408 to the more sophisticated and advanced Powerpod 2280 giving musicians more flexibility, facility and power to cater to large audiences. The Powerpod 615 is ideal for schools, houses of worship and karaoke application to bigger scale commercial application.

Features
Integrated 150 Watts power amplifier

Built-in digital delay effect with time and repeat adjustment

6 balanced microphone inputs

8 line level inputs

2-band EQ on all channels

Separate tape input with level control

Record out allows for easy recording of live performance

Monitor sends on all main input channels

Effect out and Aux in allows for the connection of an external effects device

Globally switchable 48V phantom power for powering condenser microphones

Specs

Power Amp
Output power in watts (@THD<0.5%, 1KHz)
Number of Power Channels: 1
8 Ohms per channel: 100
4 Ohms per channel: 150

Inputs
Lo-Z/Hi-Z Channels: 6

Balanced Mic/ST Line Channels : 2

2T Input: RCA

Aux In: TRS, unbalanced

Outputs
Main Mono: TRS, unbalanced

Monitor: TRS, unbalanced

Effect Out: TRS, unbalanced

Rec Out: RCA

Channel Strips: 6
Aux Controls: Monitor, Effect

Pad In/Out: Channels 1~4

Volume Controls: Rotary

Master Section
Aux Send Masters: Effect, Monitor

Effects Return to Monitor: Yes

Rotary Faders: Monitor, Main

Phantom Power Supply
+48VDC

Switches: Global

Built-in Digital Effect Processor
Variable digital delay

Noise
(20Hz to 20KHz bandwidth, IHF-A weighted, line inputs to main output)

Master Output, All Channel Levels at Minimum: <-78dBu

Power Amp Output, All Channel Levels at Minimum: <-63dBu

THD+N
Power Output, 20Hz-20KHz: <0.12% @150 watts, 4 Ohms

Any Output, 20Hz-20KHz@ 4dBu output: <0.06%

CMRR
(1 KHz @ -60dBu, Gain at maximum)

80dB

Crosstalk
(1KHz @ 0dBu, 20Hz to 20KHz bandwidth, channel in to main output)

Channel Level @ Minimum, Other Channels at Unity: <-63dB

Frequency Response
(Mic input to output)

20Hz ~ 20KHz, line level o/p @ +4dBu into 600 Ohms: +1/-3dB

20Hz ~ 20KHz, power amp o/p 1 watt into 8 Ohms: +1/-3dB

Maximum Levels
Mic Preamp Input: +10dBu

All Other Inputs: +22dBu

Unbalanced Outputs: +22dBu

Impedance
Lo-Z Input: 2.3K Ohms

Hi-Z Inputs: 5.6K Ohms

All Other Inputs: >10K Ohms

RCA 2T Outputs: 1.2K Ohms

All Other Outputs: 560 Ohms

Equalization
2-band, ±15dB

Low EQ: 80Hz

Hi EQ: 12KHz

Microphone Preamp E.I.N.
150 Ohms Terminated, Maximum Gain: <-122dBm

Other
Power Consumption: 75 watts

Power Requirements: 100-120VAC, 220-240VAC 50/60Hz

Dimensions (WxHxD): 18.5 x 10.24 x 10.83 in. (470 x 260 x 275mm)

Weight: 22 lbs. (10 kg)
