Numark CM100 Rackmount DJ Mixer

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

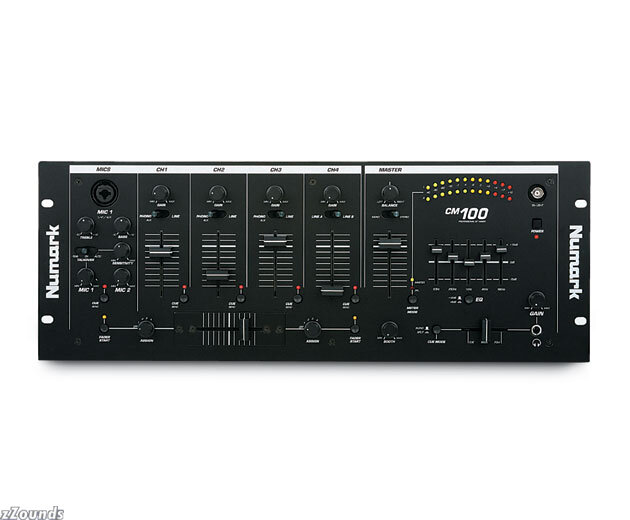

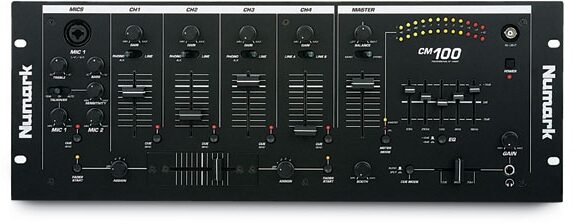

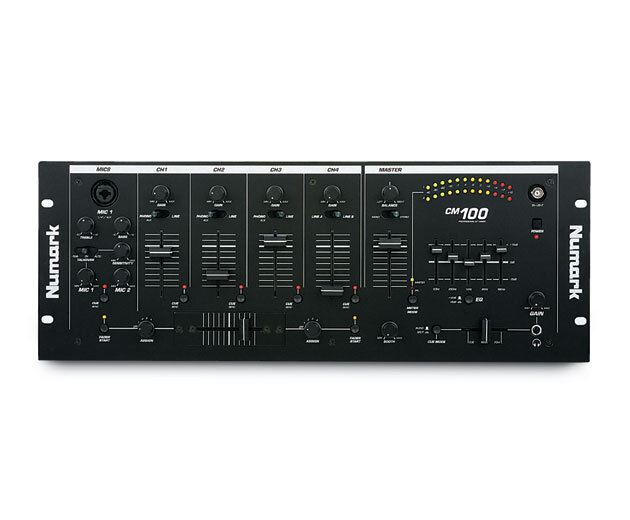

Numark CM100 Rackmount DJ Mixer, Main
Numark CM100 Rackmount DJ Mixer, Main
zZounds Gear Experts Say...
4 Channels. 8 line, 3 phono, 2 mic inputs. 4U rack mount.

Need a 4 channel DJ mixer at an unbeatable price? Check out the Numark CM100. Featuring 13 inputs, 4 outputs, split or blend cueing, EQ, and more, the CM100 gives you more features for your buck.

Features
Inputs: 8 line, 3 phono, 2 mic

Outputs: master balanced, zone, cue, record

Split or blend cueing, PFL gain adjust w/ meter

+/- 6 or 12 dB 5-band graphic EQ w/ rear panel defeat

Mic 1 w/ individual EQ and auto-mute w/ sensitivity adjustment

Fader start, panning on master fader

4U rack mount

INPUTS:
Line: 10kΩ input impedance; 85mV rms sensitivity (for 1.22V output)

Mic: 10kΩ input impedance unbalanced; 2 mV rms sensitivity (for 1.22V output); 60mV rms max input

Phono:47kΩ input impedance; 1.5mV rms sensitivity @ 1 KHz (for 1.22V output)

OUTPUTS:
Line: 9V rms max

Headphone Amp: 0.5 watt into 47Ω

Distortion less than 0.01%

SIGNAL TO NOISE RATIOS* (vs. maximum output):
Line: Better than 96 dB

Mic: Better than 78 dB

Phono:Better than 87 dB

*JIS - weighted

FREQUENCY RESPONSE:
Line: 20 Hz- 22k Hz ±0.5 dB

Line: 20 Hz- 20k Hz ±0.5 dB

Phono:±1 dB except for controlled attenuation of -3 dB @ 20 Hz to reduce rumble and feedback

EQUALIZER:
±12dB @ 63.250.1K.5K.17KHz

POWER CONSUMPTION:
10 Watt typical

17 watt with full headphone output

DIMENSIONS (W x H x D):
480mm x 175mm x 95mm

19” x 7” x 4"

WEIGHT: 3.2 kgs, 8.7 lbs

For support or warranty questions, please contact the manufacturer:
Phone: 401-658-3131
