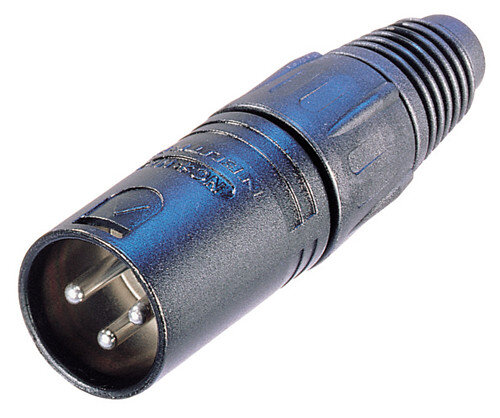

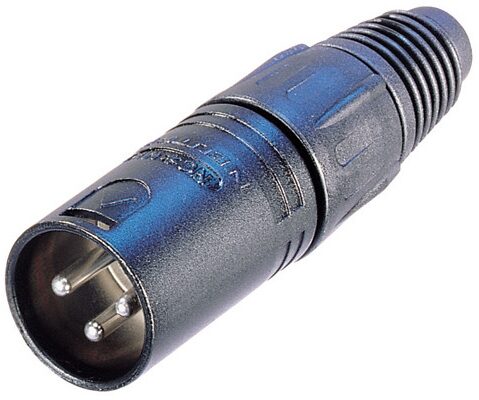

Neutrik NC3MXB Male XLR Connector (Gold Contacts)

No longer available at zZounds

zZounds Gear Experts Say...

Building your own XLR cables? Stock up on these industry-standard Neutrik XLR male 3-pin connectors. With no set screws, they're super fast to assemble.

Overview

The Neutrik NC3MXB is a 3 pole male cable connector with black metal housing and gold contacts. Neutrik is the worldwide accepted standard. Rugged, die-cast shell and compact design (shortest available XLR cable connector). Time-saving assembly: only 4 pieces, no set screws. Neutrik unique chuck-type strain relief. UL recognized component.

Features:

- Rugged zinc diecast shell, long lasting and durable
- Chuck type strain relief system for secure clamping of cables
- Boot with rubber gland gives high protection against bending stresses
- Coloured rings and boots available for coding and marking
- UL recognized components

Specs

Electrical
Number of contacts: 3-7

Contact resistance: = 3 m

Insulation resistance:
initial- > 2 G
after damp heat test: > 1 G

Dielectric strength: 1500 V dc

Rated current: 16 I [A], 2.5/14 mm2/AWG, = 4 C

I ... Rated current per contact
C ... Capacitance between contacts

Mechanical
Lifetime: >1000 cycles

Insertion / withdrawal force: = 20 N

Cable O.D. range: 3.5mm-8.0mm (except RC Series)

Materials
Shell: ZnAI4Cu1, gal Ni or black Cr over Cu plating

Insert: PA 6.6 30% GR (glass reinforced)

Contacts: female (3 pole): CuSn6

Contact surface: gal 2 micrometers Ag or gal 0.2 micrometers Au hard alloy over 2 micrometers Ni

Latch lock: St3K32 (latch) / CK 67 (spring)

Strain-relief clamp: POM

Antikink bushing: PUR

Environmental
Temperature range: -30 degrees C to + 80 degrees C

Flammability: UL 94HB

Solderability: complies with IEC 68-2-20
