920D Custom Strat HSS 5-Way Super Switch Harness

This wiring harness truly has some tricks up its sleeve! With some clever designs and top-shelf components, this wiring harness will spice up your guitar.

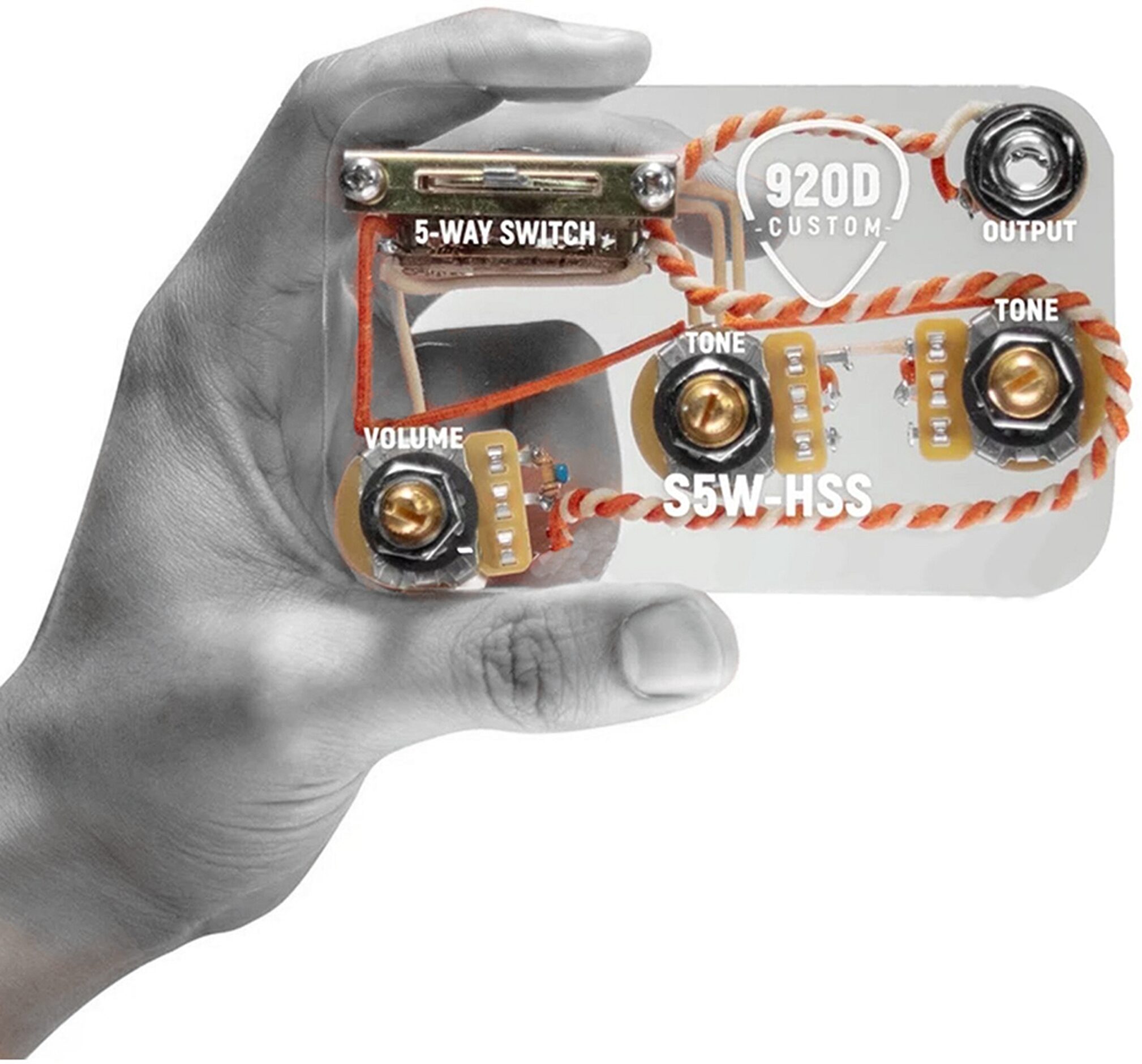

920D's S5W-HSS harness is designed for guitars with a full sized humbucker in the bridge position. It features a five-way super switch that automatically splits the humbucker when combined with the middle pickup (position 2). It also allows the single coil pickups to "see" 250K volume control while the humbucker "sees" 500K volume control. This wiring harness is a must-have for your HSS.

All 920D Custom products are highlighted with 920D's signature orange wire. Gavitt Wire, a leading producer of premium guitar wire, has agreed to custom manufacture 920D's signature cloth covered pushback wire, and 920D believe it is the perfect choice for hotrodding your guitar. The wire is built with an outer waxed cotton layer and an inner Celanese braid that provides impressive ruggedness while still maintaining a 22 gauge thickness. Limiting the amount of wire on each build compliments your choice of pickups by creating the perfect balance between capacitance and resistance.

- 920D Custom 450G Series Potentiometers:
920D Custom potentiometers are used in this build. These pots are manufactured by CTS to exact specifications and are metered for accuracy before being used in any 920D Custom gear.

920D specifies a 10% audio taper, accompanied with a low rotational torque rating of 0.50-2.00 in.oz (compared to the industry standard 0.75-6.00 in.oz rating) to provide a buttery knob sweep.

920D holds potentiometer tolerances to +/-10%. The industry standard is +/-20%. Tightening potentiometer read more tolerances will help you accurately shape your tone.

- Pure Tone 1/4" Output Jack:
920D exclusively uses Pure Tone output jacks in all builds. Why? Because they're unquestionably better than the old, industry standard. Period.

You've all heard the crackle of a weak connection caused by pressure grounds. This is due to the old style jack only having 1 squared-off point of contact trying to meet a rounded quarter inch plug. Pure Tone has completely changed that.

Pure Tone's multi-contact quarter inch output jack has four rounded contact points that hold the quarter inch plug firmly in place. With four times the contact points, all of the dreaded cracks, snaps, and pops are gone for good. The second you plug into this jack, you'll never want to go back.

- Orange Drop Capacitors:
920D uses Orange Drop Capacitors in their builds since day one. Orange Drop Polyester Film / Foil Capacitors are wound from the most reliable polyester film and aluminum foil available and are protected by a rugged conformal coating of orange epoxy.

All of that to say, these capacitors do a tremendous job of warming up your tone and taking away some of the bite of an overly bright sound. Like 920D's potentiometers, these capacitors are held to a +/-10% tolerance.

- 5-Way Super Switch:
920D built their S5W-HSS Wiring Harness with a 5-Way Super Switch. It shouldn't come as a surprise that these switches are well known for being super durable, noise-free, and allowing a variety of mods.

- Hand-Built In The U.S.A.:
All 920D Custom creations are hand-built by experienced technicians at a shop in Greenbrier, Arkansas. 920D treats your new gear like it's going into one of their own guitars. Every millimeter of wire is cut precisely, every solder joint is perfectly smooth and symmetrical, and every bend is purposeful and direct. They hold everything to a tremendous level of quality because they know the smallest details matter and take great pride in their work.
read less

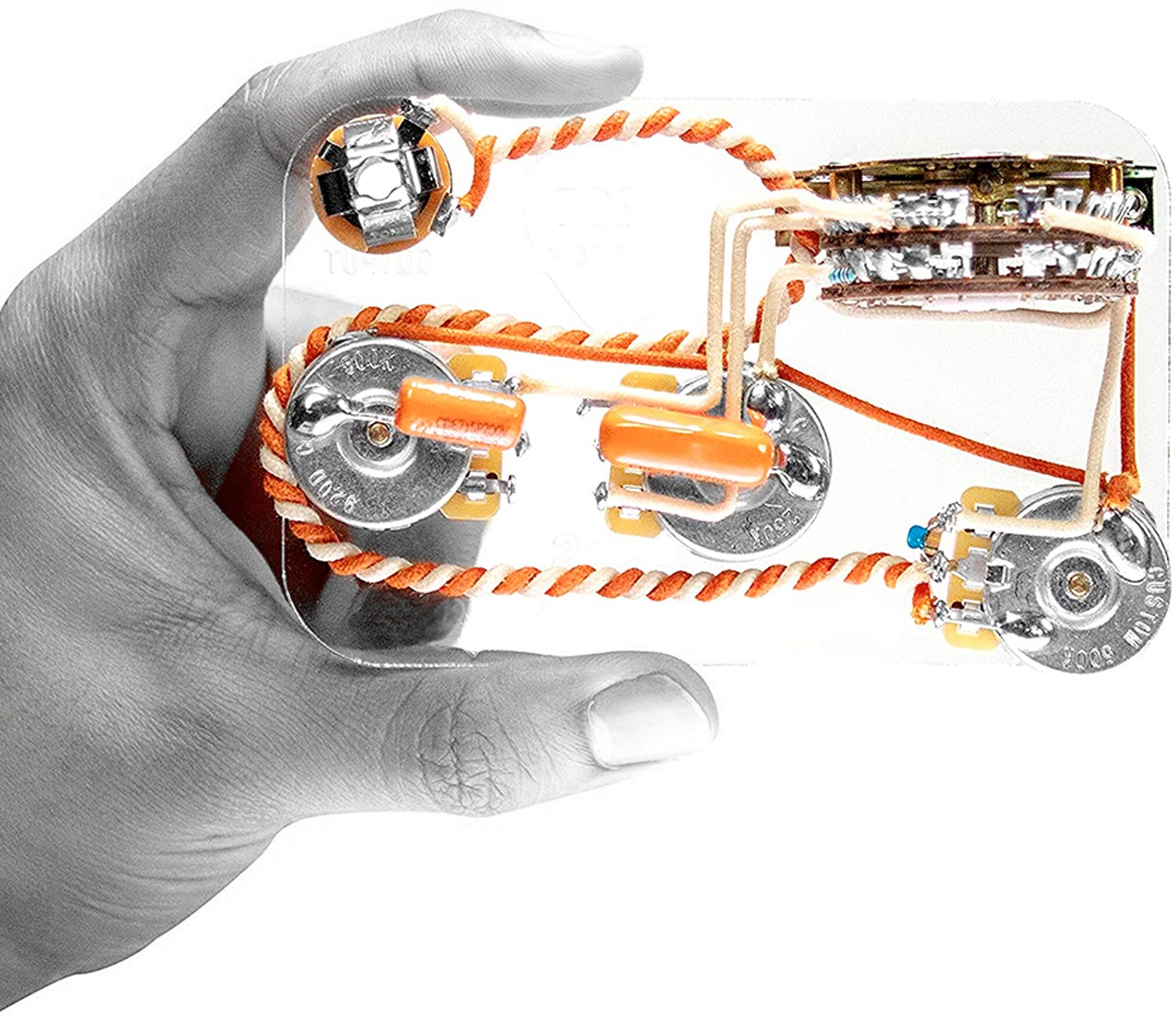

- Components:
- 1 - 920D Custom 450G Series 250K Pot by CTS
- 2 - 920D Custom 450G Series 500K Pots by CTS
- 1 - 5-Way Super Switch
- 1 - .022 Orange Drop Capacitor
- 1 - .047 Orange Drop Capacitor
- 1 - 680pF Ceramic Capacitor (Treble Bleed)
- 1 - 150K Resistor (Treble Bleed)
- 2 - 470K Resistors (Single Coil Pickups)
- 1 - Pure Tone Output Jack
- 920D Custom Signature Wiring by Gavitt Wire

- Switch Positions:
- Bridge
- Bridge / Middle
- Middle
- Middle / Neck
- Neck
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 1 lbs
Shipping Dimensions: 9 x 6 x 3 in
Manufacturer Part Number (MPN): S5W-HSS
