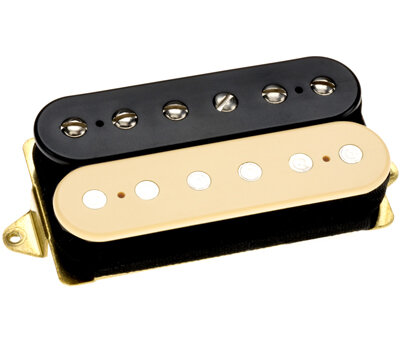

DiMarzio DP193 Air Norton Guitar Pickup

Thankfully, DiMarzio's Air Norton pickup not only produces great tone and rich harmonics -- its magnetic structure improves sustain so those notes last.

The DiMarzio DP193 Air Norton guitar pickup started out simply to be the Airbucker version of the Norton. They thought it would make a distinctive-sounding bridge pickup with high-gain amps, but DiMarzio soon discovered that it's a radically neat neck pickup, too. The tone is deep and warm, but not muddy. It's hot, but not distorted. It's even got cool harmonics, which are really unusual for a neck humbucker. The patented Air Norton magnetic structure reduces string-pull, so sustain is improved; and pick attack and dynamics are tremendously controllable and expressive. Combine the Air Norton with an Air Zone, The Tone Zone or Steve's Special in the bridge position for a perfect blend of power and tone, or use an Air Norton in the bridge position with an Air Classic Bridge model in the neck position for a distinctive medium-output blues-rock sound.

Tech Talk

When the Air Norton is in the neck position, it's a warm, open-sounding pickup with enough power to balance with all bridge humbuckers. Try it with 500K pots for maximum treble and harmonic presence. In the bridge position, the sound is medium output with solid lows and biting harmonics. You can also try it with 250K controls, 500 K volume, and 250K tone to fatten the highs up a little. Combines well with Air Classic in neck, as well as The Cruiser, The Chopper, and Blue Velvet single-coils.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- Wiring: 4 Conductor
- Magnet: Alnico 5
- Output mV: 270
- DC Resistance: 12.58 Kohm
- Year of Introduction: 1995
- Patent: 4,501,185 & 5,399,802
Dimensions and Weight in Packaging
Shipping Weight: 0.5 lbs
Shipping Dimensions: 5 x 3 x 3 in
Manufacturer Part Number (MPN): DP193BK
Black, F-Spaced
Shipping Weight: 0.4 lbs
Shipping Dimensions: 5 x 3 x 3 in
Manufacturer Part Number (MPN): DP193FBK
