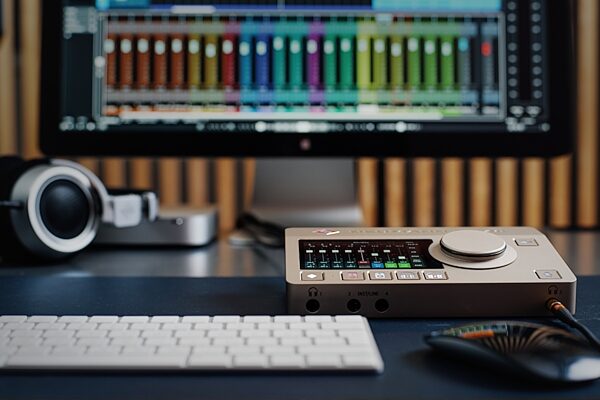

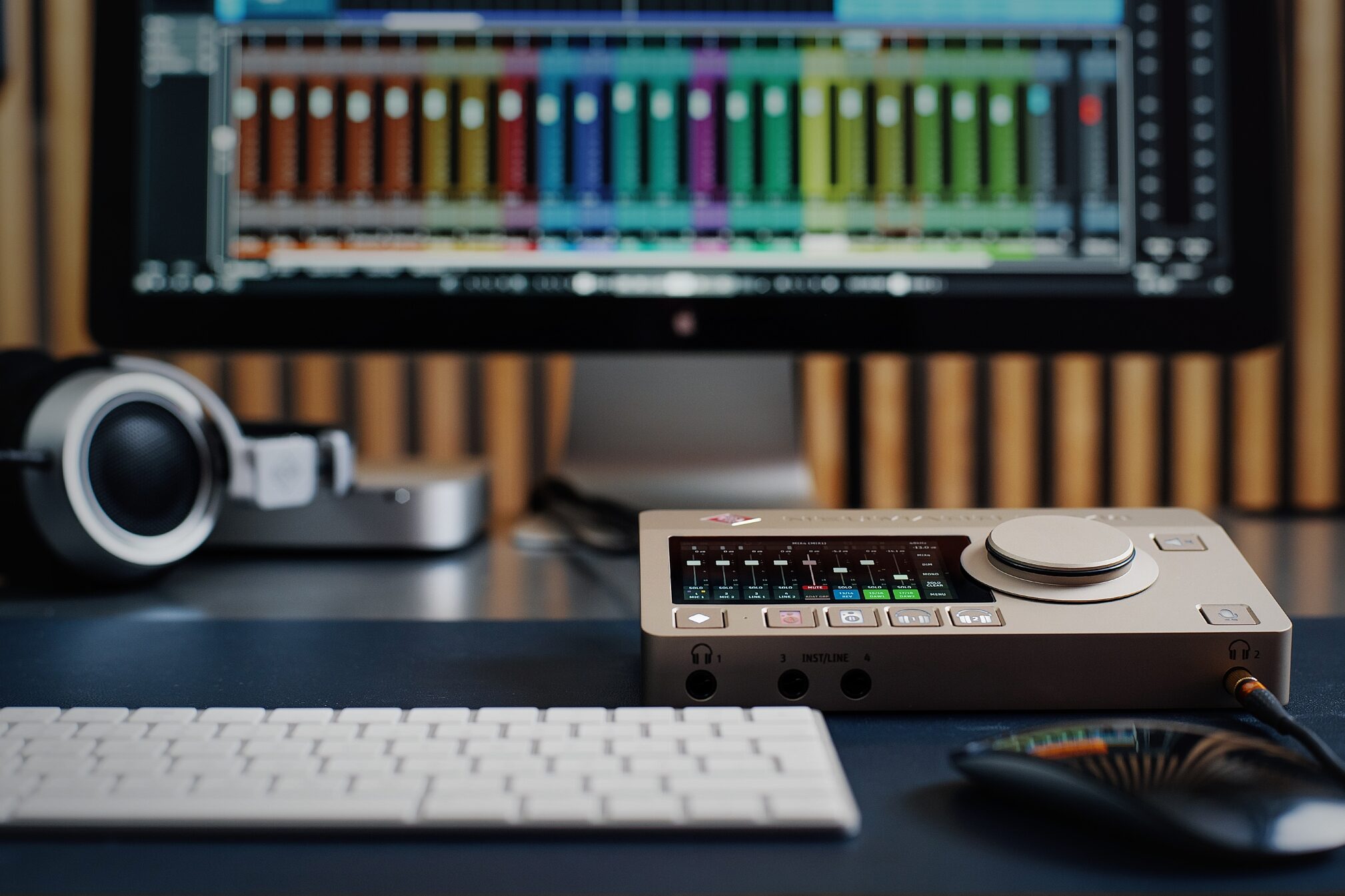

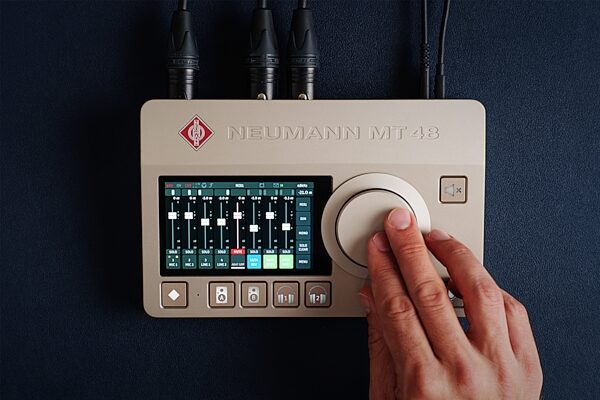

Neumann MT 48 4x8 Reference USB-C Audio Interface

Get pro-studio quality sound wherever you're recording with the Neumann MT 48, a 4x8 USB-C audio interface with class-leading conversion and built-in DSP.

The Neumann MT 48 is an audio interface without compromise. With its huge dynamic range, superior converters, preamps and headphone amplifiers, it sets new standards in sound quality. Internal DSP power allows for monitor mixes with sophisticated EQ and dynamics processing -- all intuitively controlled via touchscreen.

Neumann microphones offer a dynamic range up to 131 dB(A). Yet audio interfaces, so far, offer only 123 dB(A). The MT 48 has four times the resolution: 136 dB(A)! It also delivers more gain than its competitors: Up to 78 dB. So, you not only get the best out of Neumann condensers, but any microphone, even low output ribbons. The same goes for the output side: The MT 48 comes with powerful, ultra-low impedance headphone outputs. Offering better performance than competing devices and even many external headphone amps. So, you'll always get the best out of any headphone, including, of course, Neumann's NDH line.

But it is not only premium sound quality that users need. With musicians becoming their own engineers, ease of use is a crucial factor. Not only for the user but also in sales. While most audio interfaces require a controller application on the computer, the MT 48 features a high-resolution touchscreen with an intuitive user interface. No more switching between hardware and software all settings are made on the device itself.

MT 48 is also a fully featured digital mixing console. Equipped with a powerful DSP, the MT 48 features sophisticated EQ and dynamics read more processing in every channel. Plus reverb for inspiring monitor mixes. As a unique feature, the MT 48 offers Pre-FX and Post-FX recording at the same time! Neumann calls this Dual Output Technology.

With four analog inputs and eight analog output channels, the MT 48 has everything you need for personal recording. And it can be expanded via ADAT / S/PDIF and AES67/RAVENNA to accommodate larger setups, using, for instance, Neumann AES67 speakers and Merging Technology AES67 converters.


- Class-leading AD/DA converters with enormous dynamic range
- Intuitive touchscreen user interface
- DSP processing (EQ, dynamics, reverb)
- 4 independent mixers with integrated talkback
- USB, ADAT and AES67 connectivity
read less

- Mic Inputs 1-2:
- Dynamic Range: 136 dB-A
- Equivalent Input Noise (150 Ohm): -128 dBu-A
- Input Impedance: 10 kO
- Gain Range: 12+78 dB in 0.5 dB steps or 0.1 dB (fine)
- Pad: 12 dB/24 dB
- Max. Input Level: 0 /+12/+24 dBu (without Pad/with Pad)
- THD + N Preamp + ADC @ 1 kHz, 0 dBFS: < -110 dB (0.0003%)
- Line Inputs 1-2:
- Dynamic Range: 138.5 dB-A
- Input Impedance: 10 kO
- Gain Range: 0+66 dB
- Sensitivity: +24 dBu-42 dBu
- Max. Input Level: +24 dBu
- THD + N Preamp + ADC @ 1 kHz, 0 dBFS: < -105 dB (0.0006%)
- Instrument/Line Inputs 3-4:
- Dynamic Range: 135 dB-A
- Input Impedance: 2 MO (balanced) / 1 MO (unbalanced)
- Gain Range: 0+66 dB
- Sensitivity: +18 dBu -48 dBu
- Max. Input Level: +18 dBu
- THD + N Preamp + ADC @ 1 kHz, 0 dBFS: < -112 dB (0.0003%)
- Line/Monitor Outputs:
- Output Impedance: < 70 O
- THD+N@ 1 kHz, 0 dBFS: < -110 dB (0.0003%)
- Dynamic Range: 123 dB-A
- Max. Output Level: +24 dBu
- Headphone Outputs:
- Output Impedance: 0.035 O
- Dynamic Range: 122 dB-A (high) / 117 dB (low)
- Max. Output Level: +16 dBu (high) /+8 dBu (low)
- AES67/Ravenna: Standard RJ-45 Gigabit-Ethernet-Anschluss
- Expansion Connectivity: "ADAT/S/PDIF optical I/O, MIDI I/O via 1/4" jack, (DIN5 adapter set available from Neumann: Cat. No.700261)"
- Computer Interface: USB-C, 2.0 High Speed (480 MB/s) or higher
- Power Consumption: <25 W
- In the Box:
- MT 48 US
- 1x MT 48 Audio Interface
- 1x US Power Supply incl. USB C Connection Cable
- 1x USB A Data Cable
- 1x USB C Data Cable
- 1x Softcase
- 1x Quick Guide
- 1x Safety Guide
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 3.55 lbs
Shipping Dimensions: 15 x 7 x 4 in
Manufacturer Part Number (MPN): 700259
