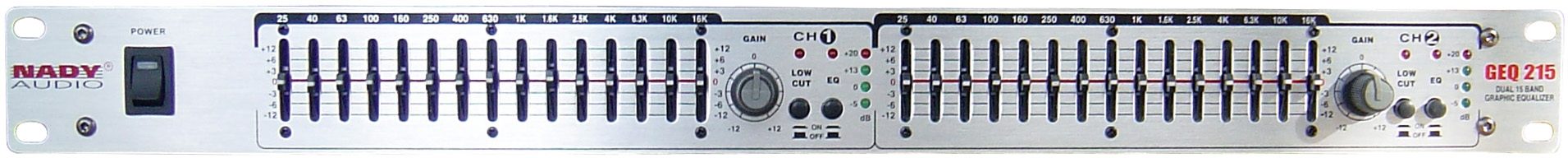

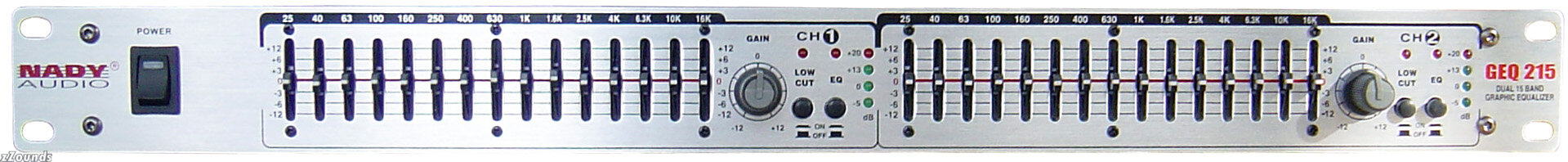

Nady GEQ215 Dual 15-Band Graphic Equalizer

No longer available at zZounds

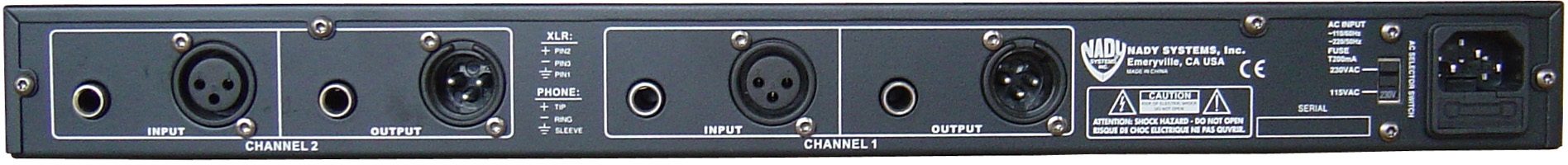

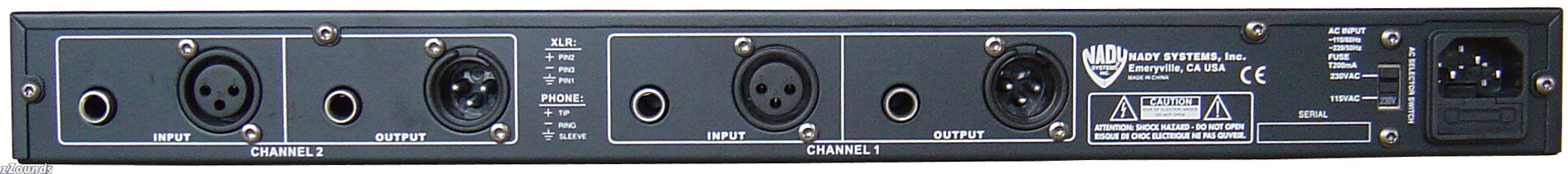

Nady GEQ215 Dual 15-Band Graphic Equalizer, Rear

zZounds Gear Experts Say...

Optimum audio control for all live and recording applications.

Overview

With compact and durable all-steel-chassis design, the GEQ Series provides optimum audio control for all live and recording applications, plus ultimate operating convenience and maximum reliability.

Features:
2 channel, single rack space (1U), 15-2/3 octave bands each channel, with 2/3 octave ISO spacing from 25Hz to 16KHz.

Active balanced (XLR and 1/4 in. TRS) and unbalanced (RCA) input/output connectors

Constant Q bandwidth from each filter with 3% center frequency accuracy

Parallel filter design for minimal phase distortion

Ultra low-noise circuitry

Low-cut filter at 40Hz, 12dB/octave, switchable Selectable range, 6dB or 12dB gain

Center detents on faders

Variable input level control

Power off automatic bypass function

Equalizer ON/OFF bypass switch

Peak (overload threshold) LED

Shielded internal power supply with AC input and selectable line voltage (~115V/60Hz or ~230V/50Hz)

Ground lift switch

Specs

Equalizer
Equalizer Control Bands: 2x15, 2/3 Octave ISO Spacing from 25Hz to 26KHz

Filter Type: Constant Q

Slider Travel: 20mm (Center Detent)

Level Control Range: +/-6dB or +/-12dB (Selectable)

Inputs
Type: Active Balanced/Unbalanced

Connectors: 3-P XLR, 1/4 in. TRS (Balanced), RCA (Unbalanced)

Impedance: 20K Ohms Balanced; 15K Ohms Unbalanced

Maximum Level: +/-18dBV

Outputs
Type: Active Balanced/Unbalanced

Connectors: 3-P XLR, 1/4 in. TRS (Balanced) RCA (Unbalanced)

Impedance: Typically < 600 Ohms

Maximum Level: +/-16dBV

Clip LED Threshold: 5dB (Below Clipping)

Low Cut (High Pass) Filter: 40Hz (12dB/Octave), switchable

Low Pass (High Cut) Filter: 16KHz (12dB/Octave), switchable

Frequency Response: 20Hz - 20KHz, +/- 1dB

THD + Noise: <0.02% (@ 1KHz, all faders at mid position)

Signal to Noise Ratio: 93dB (@ 1KHz)

Channel Separation: 60dB (1KHz)

Line Voltage: 100-130V AC, 50/60Hz

Power Consumption Maximum: 15 watts

Size (W x H x D): 19 x 1.75 x 8.66 in. Ý 48.2 x 4.4 x 22 cm (1U)
For GEQ 131/215

Weight: 6.16 lbs. (2.8 kg)

Note: For improvement purposes, all specifications and design are subject to change without notice.
