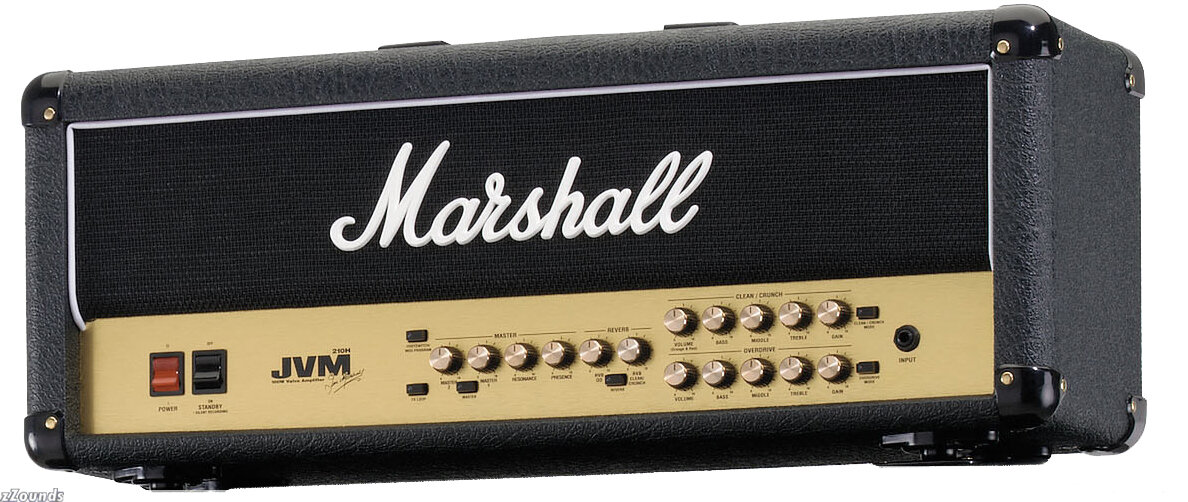

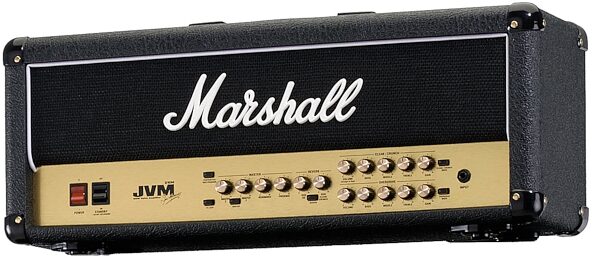

A Marshall Head with Vast Tonal Power and a Killer Footswitch!
Want pure tube sound, enormous tonal range, and serious customizability? You want the 2-channel, 50-watt Marshall JVM205H. This guitar amplifier head's front panel is a delight for tone freaks, while its MIDI-ready interface and supplied footswitch make it an incredibly versatile tool for live performance.
Legendary Custom Valve Design
The Marshall JVM205H employs two sets of custom-designed tubes to achieve its incredible tonal capabilities. The preamp section has 4 x ECC83 vales that offer unmatched clarity and depth at the low end of the gain stage, developing gradually into rich and complex crunches and overdrives. The drive stage employs 1 x ECC83 and 2 x EL34s to drive this tone through whatever speakers or cabinet you have attached.
The JVM205H comes with a fully programmable footswitch in a unique, patent-pending design -- allowing you to pre-set entire configurations and recall them with a single tap of the foot. Prepare different guitar tones for whatever your music requires, and save them as footswitchable presets. The design promises silent switching, and remembers the position of each front panel knob for any preset. It even remembers volume levels, and whether or not the Reverb or FX Loop is turned on or off for a given preset. When you switch to any one of your presets, the switch settings will be right like you left them! The footswitch itself is housed in a super-rugged steel casing with blank panels that allow you to label your presets as you'd like.
Intuitive and Powerful Controls
The front panel on the Marshall JVM205H is simple and straightforward, yet offers incredible tonal crafting capabilities. It has a single input that is switchable between the Clean/Crunch and Overdrive channels. On each channel, you'll find a Master Gain, a 3-band EQ, and Volume. There is a separate Reverb section with controls for both channels. The Master section features two Master Volume knobs, as well as Resonance and Presence.
Thoughtful and Poweful I/O
The rear panel on the JVM205H features a Serial/Parallel FX Loop with a +4 dB/-10 dB pad switch and an FX Loop mix knob. There's also a separate Send/Return for hooking up with an external power amp, with an Active/Bypass switch. A balanced XLR output lets you run direct to mixers in studio situations, while the footswitch jack and MIDI I/O gives you incredible onstage versatility.
Learn more about the JVM2 series with this video:
- Single input, 2-channel design
- 4 x ECC83 Pre-amp Valves
- 1 x ECC83 Power Amp Valves
- 2 x EL34 Power Amp Valves
- 3 Band EQ
- Presence and Resonance Knobs
- 2 channel Reverb
- Includes programmable footswitch
- MIDI I/O
- FX Loop Send and Return
- External Pre-amp Send and Return
- 2 x Stereo extension speaker jacks
- Power Standby switch
zZounds is an authorized dealer of Marshall products.
MASTER VOLUME YES x 2ELECTRONICS
INPUTS 1 (+MIDI)
CONTROLS VOLUME, GAIN, BASS, MIDDLE, TREBLE x 2, REVERB x 2, CHANNEL SELECT x 2, PRESENCE, RESONANCE, FX LOOP, FOOTSWITCH/PROGRAMMESPEAKERS
PRE AMP VALVES 4 x ECC83
POWER AMP VALVES 1 x ECC83, 2 x EL34ACCESSORIES
WEIGHT (KG) 17.5
DIMENSIONS in mm (W x H x D) 750 x 310 x 215OTHER
EFFECTS REVERB x 2
EFFECTS LOOP YES x 2
UNIQUE 3 MODES PER CHANNEL PROGRAMMABLE FOOTSWITCH
- Weight, Dimensions, and Manufacturer Part Numbers
- Base Item
Manufacturer Part Number (MPN):
- Blemished, USED
Manufacturer Part Number (MPN):
- Warehouse Resealed, USED
Manufacturer Part Number (MPN):
If you have additional warranty questions, please contact the manufacturer at 800-877-6863
Marshall JVM205H 2-Channel Guitar AmpThe JVM Series from Marshall is the most comprehensive range of professional, all-valve amplifiers ever offered. The JVM205H head is a 2-Channel 50 Watts tone buster. No other multi-channel, multi-mode amplifier delivers the amazing all-valve tone offered by the JVM at any price. Multiple, all-valve voicings provide an amazing array of tones which are accessible from the front-panel switches, MIDI or via the revolutionary technology of the supplied footswitch. Hailed as a breakthrough in amplification by the world's guitar press, the JVM Series offers a powerstage built on the peerless EL34 designs responsible for the legendary Marshall roar.
The JVM4 range delivers an enormous arsenal of valve tone with vast flexibility, while the JVM2 range is its logical evolutionary partner, delivering JVM's sophisticated functionality in a refined format. Handbuilt with pride and meticulously tested in Marshall's world famous British factory, the JVM range comes in a variety of models to suit every guitarist.
Offers Outstanding ToneThe Marshall JVM205H uses a carefully designed, 4 x ECC83 pre-amp stage to generate the desired amount of gain, from the cleanest, yet complex, clean imaginable to a vast palette of overdrives that range from sophisticated and subtle to explosive and extreme. Boasting a truly amazing array of instantly switchable sounds, overflowing with harmonically rich tones and responsive fluidity, every JVM205H mode exudes that unmistakable Marshall sound and expands on it, effectively offering multiple Marshalls in one easy-to-use package.
Ultimate FlexibilityEach totally independent JVM channel offers three footswitchable modes which progressively add gain while offering a complementary tonal topology, making the JVM205H the perfect amplifier for any situation.
The Marshall JVM205H's layout is simple and uncompromising with dedicated Gain, 3-band EQ, Volume and Reverb for each channel. The Master section, featuring Dual Master Volumes, Resonance and Presence, finishes the concise layout, making each JVM205H a familiar "old friend" that's intuitive to use. Even with its programmability, multiple channels and modes plus switchable Reverb, FX Loop and Master Volume, each Marshall JVM205H is incredibly easy to navigate and understand.
Seamless, Silent Switching with the Marshall JVM205HThe onboard logic ensures swift silent-switching and remembers the position of each front panel switch in every mode: Reverb (on/off), FX Loop (on/off) and Master Volume (1 or 2). When returning to any mode, switch settings will be exactly as you left them, even after you've powered the amp down. This groundbreaking technology combined with revolutionary footswitch technology, plus MIDI switching capabilities, add even further to the JVM's already incredible flexibility.
Ultimate Control and Connectivity Every JVM is supplied with a fully programmable footswitch. This revolutionary, patent-pending technology allows single front panel switching (Switch Store) or entire set-ups (Preset Store - Channel/Mode, Reverb, FX Loop, Master Volume) to be simply assigned to any footswitch -- or, even cooler, a mix 'n' match of both modes. Housed in a rugged metal casing with blank panels on its surface which allow the user to label the pedal exactly as they want, the JVM pedal has no restrictive factory set-ups or functionality barriers, plus it's a breeze to program. The multi-coloured LEDs reflect every front panel switch status so you know exactly where you are, in the heat of a performance, without the need to glance at the amplifier itself.
The JVM's MIDI In and Thru connection means it can easily be integrated in a MIDI switching set-up, allowing you to store and recall 128 amplifier set-ups and enabling your MIDI effects board to easily control the amp. With its built-in memory and switching options the possibilities are endless!
Studio-Quality ReverbThe onboard, studio quality Digital Reverb is routed in parallel (ensuring no digital degradation of the direct signal) and mixed with the direct signal by means of a valve. Specifically developed for the JVM, the Reverb retains signal clarity in its tail and low noise, analogue switching allows it to decay naturally when switching the effect off or changing channels. In addition, when the Reverb is switched off, it is totally removed from the circuit.
Effective ControlEach JVM boasts two FX Loops that live on its rear panel. A footswitchable Parallel/Series Loop with Level and Mix controls plus a Series Loop with a Bypass switch. Combine the JVM with a MIDI FX processor and a MIDI footswitch and the sky's the limit!
Silence is GoldenWhen on Standby, the JVM's emulated XLR output is fully operational, allowing you to record in total silence, a godsend for those late night recording sessions.
The Tone of the ConeSpeakers aren't just there to move air, they're an integral part of an amplifier's tonal voice. To that end, all JVM heads have been designed to be sonically complimented by every single one of Marshall's vast array of 4x12" and 2x12 in. cabinet offerings.
In the case of the 2x12 in. JVM combos, after exhaustive testing of every speaker available, all agreed that the pairing of a Marshall/Celestion 'Heritage' with a Marshall/Celestion 'Vintage' was the only way to go as the combination produces a fantastic depth and breadth of sound while maintaining a tight, musical response and a solid low-end thump. In the case of the 50 Watt 1x12" combo, a Celestion G12B delivers a full, wide sound that is much "bigger" than the JVM215C's compact size would suggest.
Building a Better Marshall Every JVM is made at the Marshall factory in the heart of England. Time-tested craftsmanship and construction are combined with the manufacturing technology, ensuring world-class build quality and roadworthiness.
Internally, the JVM circuitry and layout has been kept as simple and logical as possible, ensuring the integrity of the guitar tone and an incredibly low noise-floor for such a high gain beast. Four, double-sided PCBs are used and connections are kept to a minimum to ensure maximum reliability. Only the best components are used to ensure very high quality and all of the internal wiring and amplifier assembly is performed by hand. Strict quality controls ensure every unit made is worthy of the world-renowned and respected white script Marshall logo. Meticulous valve selection adds further to the all-important tone and reliability that are both synonymous with the Marshall
