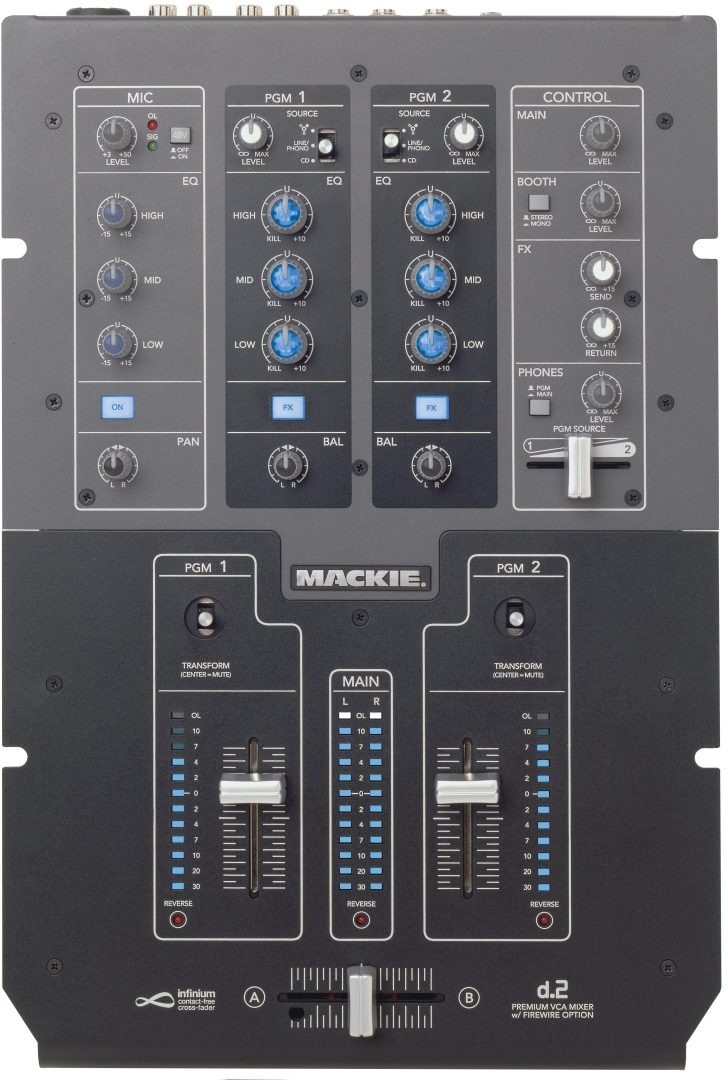

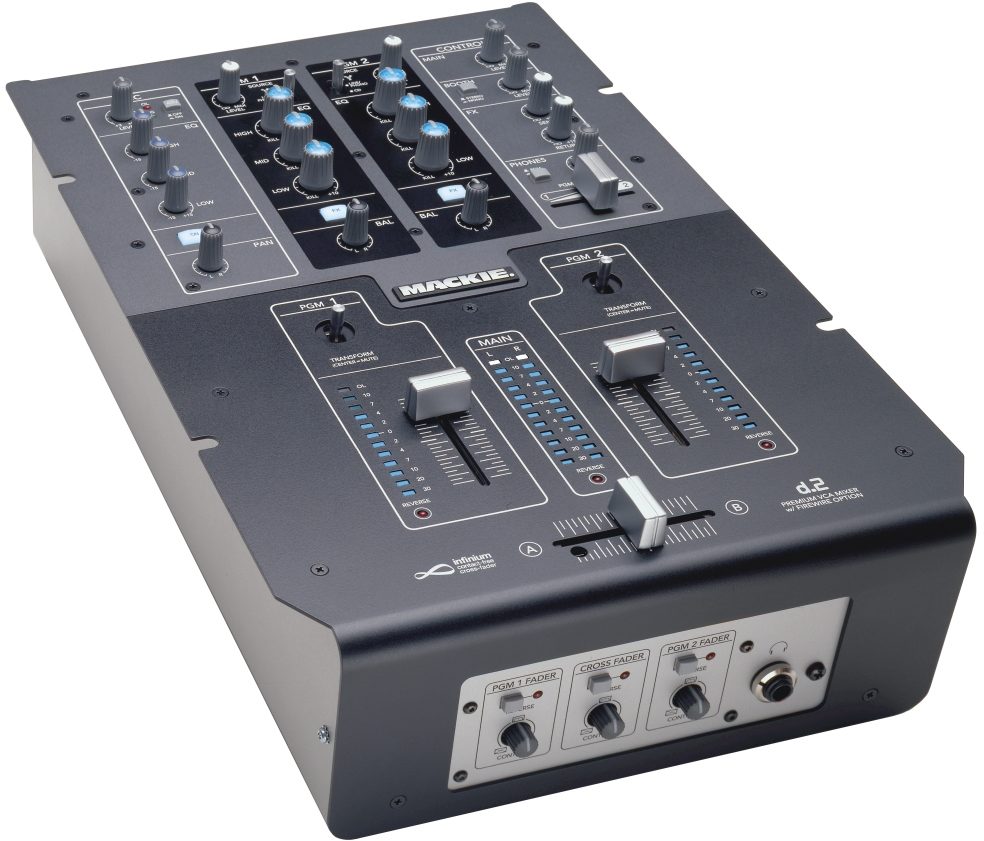

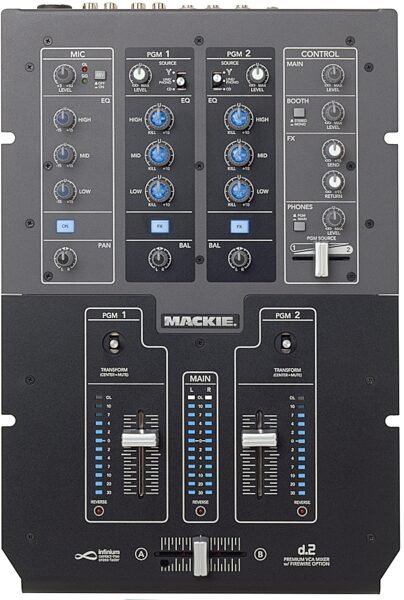

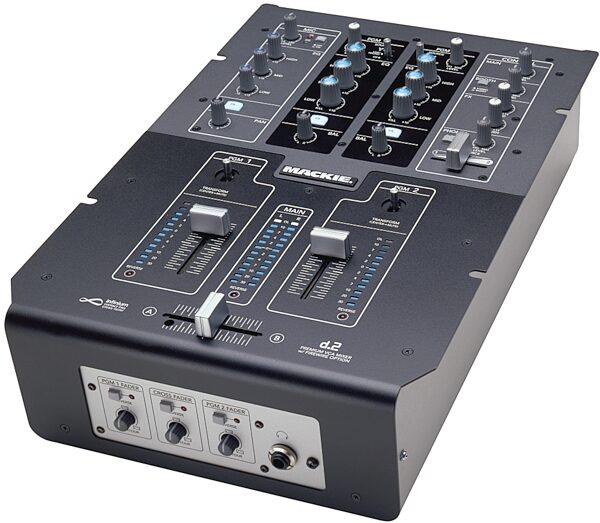

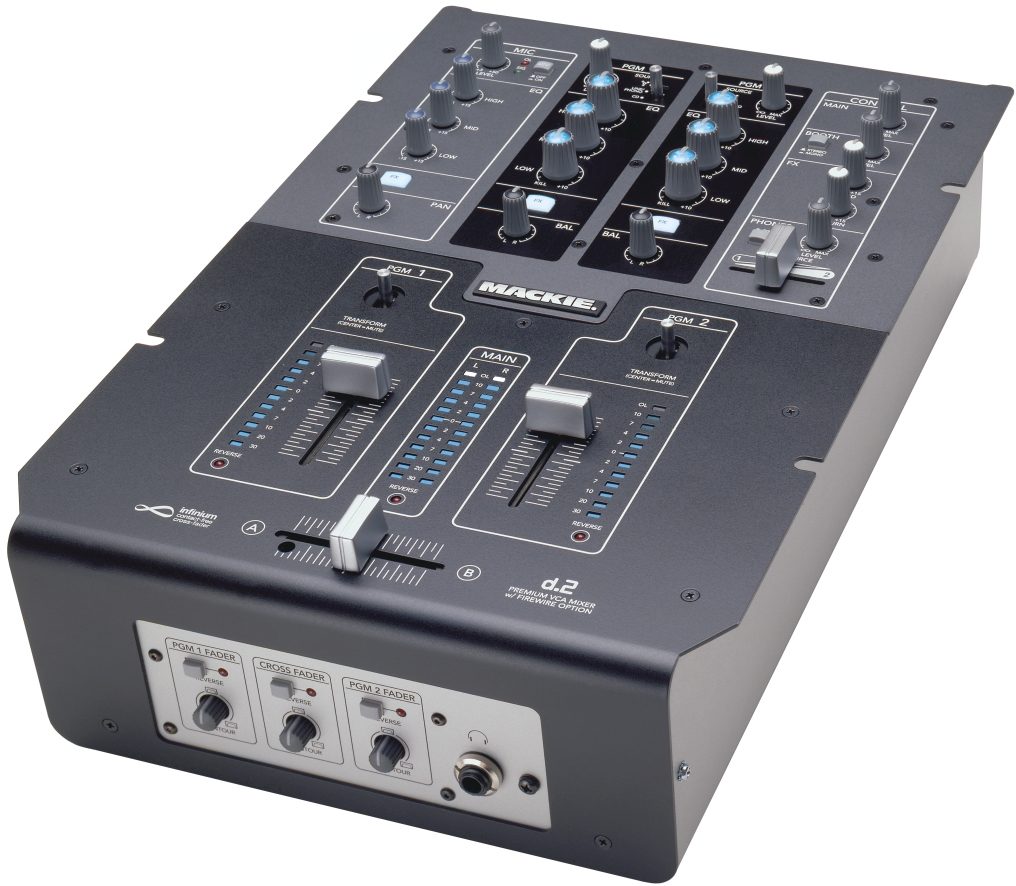

Mackie D2 DJ Mixer

Optical crossfader. Mackie-designed mic and turntable preamps. Smooth analog EQ. Firewire I/O card optional. Rate and review this product
Ships to: Can ship to United States
close [x]
zZounds.com 800-ZZOUNDS (800-996-8637)

Sorry, this product is no longer available on zZounds

In most cases, a product is unavailable because it has been discontinued by the manufacturer

Please shop our site for related products:

Mackie D2 DJ Mixer

The Ultimate 2-Channel DJ Mixer. And the Only one with FireWire.
For most of Mackie's 15-year history, they've been asked by professional DJs, remix artists and producers to bring their world-renowned mixer expertise to the world of DJ mixers. But they didn't think the world really needed another DJ mixer, unless it would bring something truly new and different to the game. Now, they're proud to announce the DJ mixer of the future. Introducing the d.2.

The Basics
The d.2 is the world's best-sounding, best-built 2-channel DJ mixer. It's also the first DJ mixer with a FireWire option, letting you mix and record music directly to and from your Mac or PC laptop or desktop. Among the d.2's standout features are a clean, intuitive layout, bulletproof construction, premium analog VCA circuitry, and ultra high-performance components.

Just a few of these standout components include:
-- An Infinium optical, no-contact crossfader with adjustable tension

-- Mackie-designed mic and turntable preamps with superior detail and maximum "punch"

-- Smooth analog EQ with full kill capabilities

-- Optional FireWire I/O card for recording and playback of 24-bit audio directly to Mac or PC

-- 3-position spring-loaded Transform switches

-- A solid 14-gauge all-steel chassis (thicker than Vestax, Rane, etc.)

Why should you care about these components? Because they directly effect the sound and reliability you get out of your DJ mixer.

Features
Premium 2-channel DJ mixer with analog VCA circuitry

FireWire option card for recording and mixing mp3s and other files directly to/from Mac or PC

45mm "no-contact" Infinium optical crossfader for years of use with no audio degradation

Mackie-designed mic and turntable preamps for ultra-low noise and maximum "punch"

2 stereo program channels with CD, Phono/Line, and FireWire input select

3-band EQ per channel w/ complete kill filters and blue backlit knobs

User-rotatable 3-position spring-loaded Transform switches with latching mode

Flexible effects routing with variable FX send control

Neutrik combo jack for XLR and 1/4 in. microphone connections

"Planet Earth" Power Supply -- no need for power converters, no matter the country

XLR main outs with mic/line switch for easy stage integration (No D.I.s)

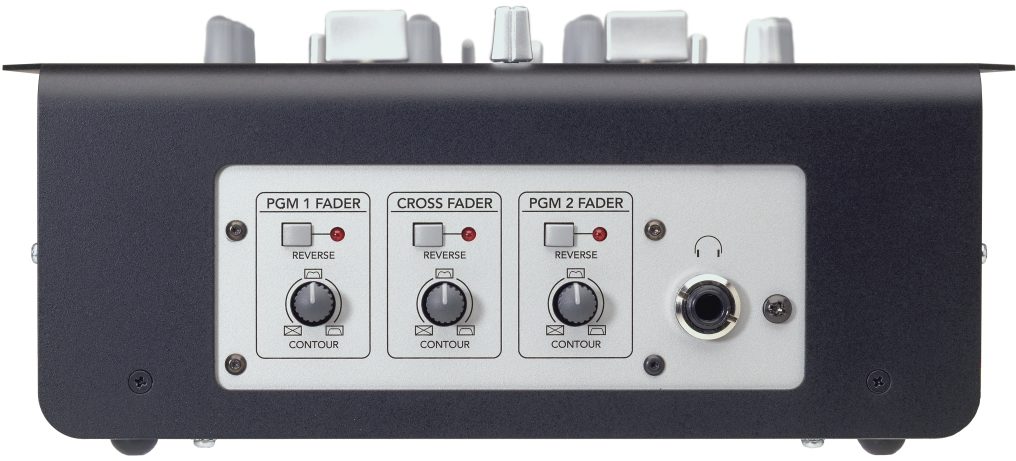

Crossfader features Resistance and Curve controls and Reverse switch

Fader Reverse switches and Curve controls

1/4 in. Booth Outputs with Stereo/Mono switch and volume control

Individual program meters plus main out meters

Ideal mixer for turntablists, remixers, and digital DJs alike

The Infinium Crossfader
The d.2 is the world's first DJ mixer to incorporate the revolutionary Infinium optical crossfader with adjustable tension. Based on the world's first optical, no-contact design, the Infinium crossfader delivers precise, ultra-smooth response for years... no matter how much you scratch. And without the risk of dust and grime deteriorating its audio performance, this crossfader will sound as good in 10 years as the day you bought your mixer. The Infinium crossfader features an adjustable tension control which can be set using a small screwdriver. So you can customize the fader feel to be as loose or tight as you desire.

A High-Headroom, Analog VCA Design
The d.2 uses an all-analog Voltage-Controlled Amplifier (VCA) design with ultra high-performance components, tuned to provide the maximum headroom and lowest noise of any mixer in its class. Thanks to its VCA design, the d.2 is immune to the deterioration in sound quality plaguing traditional DJ mixers. Dust particles and the general crud of life will wreck old-school faders -- but VCA faders power right through these obstacles night after night, year after year, to deliver rock-solid performance with zero audio degradation. VCAs also let you fine-tune the curves of all three faders to perfectly suit your style, and even reverse them via conveniently positioned controls.

FireWire Computer Connection
The d.2 is the world's first mixer with an optional FireWire computer connection. With the FireWire card installed, you can connect the d.2 mixer to any Mac or PC (Mac OSX 10.3.5 and higher, Windows XP) to directly play back music from almost any music software application--including Traktor, Serato, Live, iTunes, and Windows Media Player. You just set the Input Select switch at the of either or both channels to "FireWire," and mix two stereo tracks directly from your computer.

The FireWire card also lets you simultaneously record your DJ sets to your computer with no additional hardware required. This is perfect for DJs making mix CDs, recording podcasts, and literally dozens of other applications. It's the next step in the evolution of the DJ mixer, and you can only get it with the d.2.

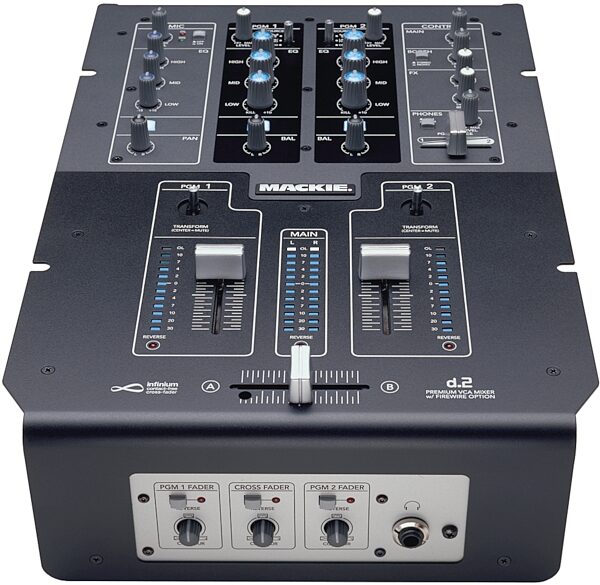

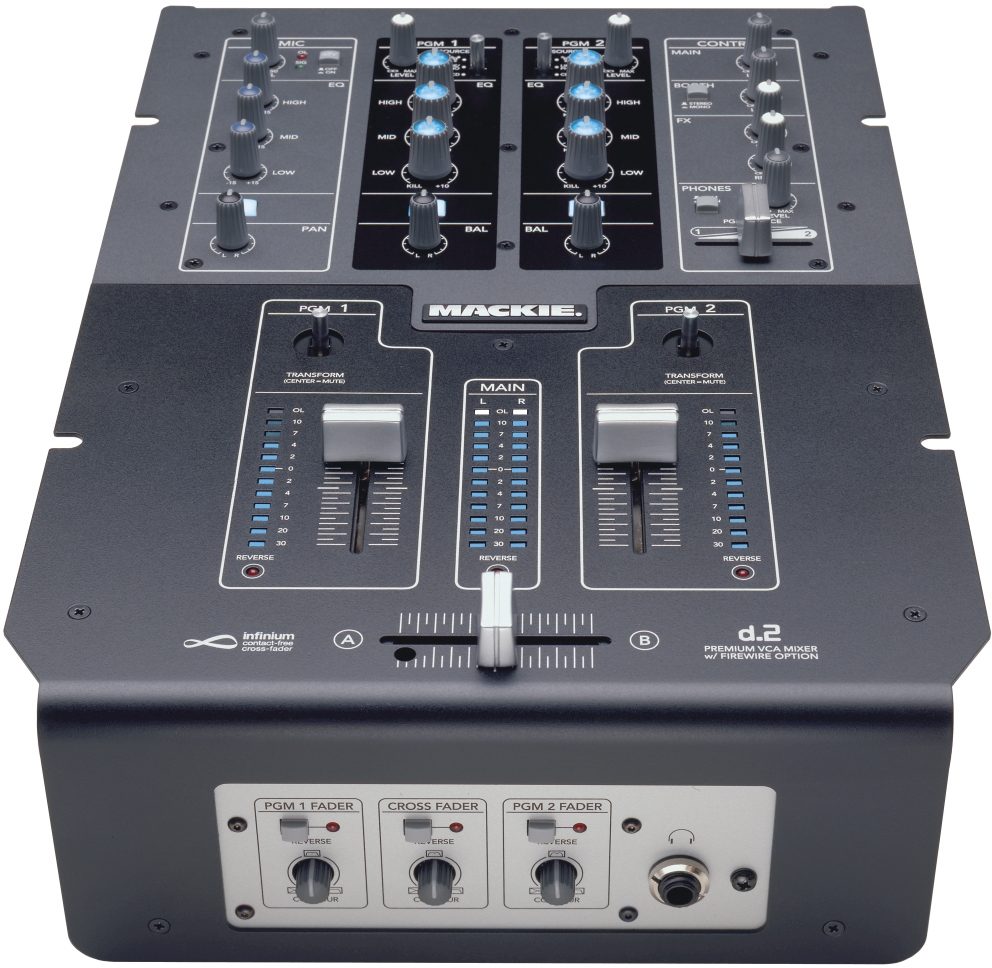

Thoughtful Performance Features
In addition to its ultra-robust construction and comfortable layout, the d.2's control surface offers several cool performance features. Rotatable spring-loaded 3-position (on/off/momentary) switches provide a whole new world of Transformer effects. (Check out the video [.mov] or [.wmv].) A Reverse switch and variable Contour control for each fader let you dial in the feel that's just right. And the Channel EQ gives you up to 10dB of boost or complete kill of each frequency range--complete with backlit blue knobs so you can see your EQ settings, even in low-light clubs and DJ booths.

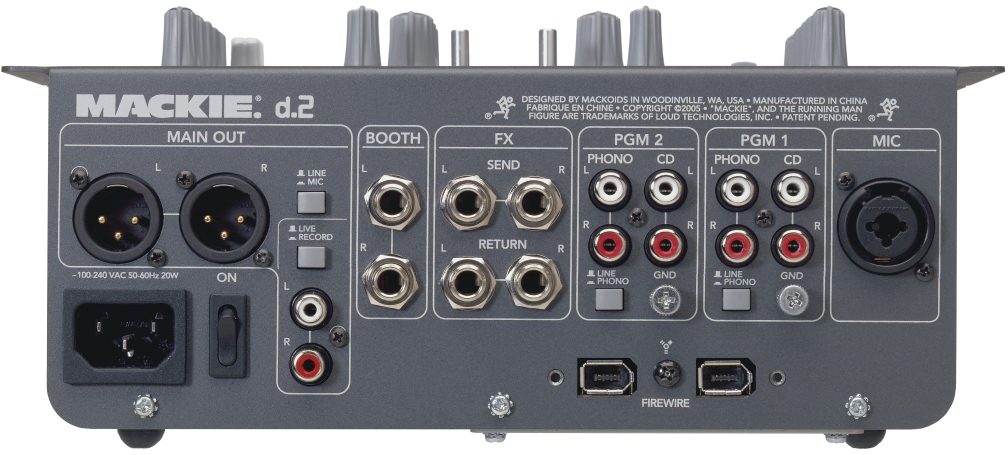

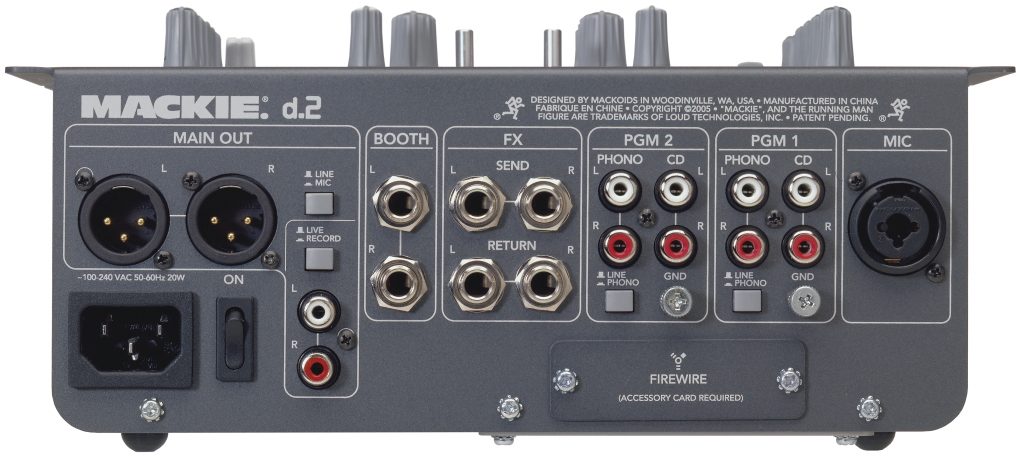

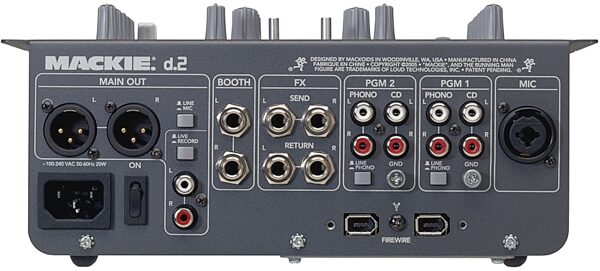

Professional Audio And Power Connections
As you might expect, the d.2's rear panel is equally impressive. A genuine Mackie mic preamp provides up to 50dB of gain with +48V Phantom Power, so you can connect both dynamic mics and studio condenser mics. Balanced XLR Main outputs with a Mic/Line level switch assure a great-sounding connection to any PA system. RCA outputs include a Live/Record switch so that volume adjustments to the Main output won't wreck your recording levels. The built-in Stereo FX Loop offers dual 1/4-inch inputs and outputs with dedicated master Send and Return level knobs. And separate 1/4 in. Booth outputs include a dedicated volume control and Stereo/Mono switch for tailoring to your exact monitor setup.

Finally, thanks to its Planet Earth switching power supply, the d.2 can accompany you wherever your gig takes you (~100-240 VAC / 50-60Hz). Just plug-in and start spinnin' wherever you are, worldwide.

FAQ
Q: How many channels (digitally) can the d.2 accommodate when I have the optional FireWire card installed?

A: The d.2 with the FireWire card installed can accommodate 2 stereo inputs and 1 stereo output (taken right before the Main Mix fader).

Q: How can I adjust my crossfader tension?

A: The tension of the Infinium cross fader is easily adjustable with a small flathead screwdriver. First slide the crossfader all the way to left, then carefully pull straight up on the fader cap to remove it. Once the cap is off, you'll notice a small screw is now aligned with the hole in the chassis. Using a flathead screwdriver, adjust the tension of the fader by turning clockwise to tighten, and counter-clockwise to loosen. Once the fader is at the desired tension, put the cap back on.

Q: How many total inputs can you get into the d.2?

A: Seven. 2 Phono turntables, 2 CD players, 2 stereo inputs (via FireWire option), and 1 microphone.

Q: Can I use external effects processors with my d.2?

A: Yes the d.2 comes fully equipped with a FX Send and Return so that you can use outboard effects to get your swerve on.

Q: What is that Live/Record switch on the back for?

A: The Live/Record switch selects whether the signal being sent out the RCA Main Outs is pre-fader or post-fader. In a live situation, you can use the pre-fader (Record) mode to send a signal to an external recording device, giving you a mix that is not affected by changes to the Main Mix level.

Q: Why does the d.2 have a Mic/Line switch on the back?

A: The d.2 comes equipped with its own built in D.I. box. There is no more need for clunky D.I. boxes when playing on stages or venues that do not normally cater to DJs. Use the Line position to connect to line level devices like a power amplifier. The Mic position can be used to connect to the Mic inputs of a mixer.

Q: Can I use a condenser microphone with my d.2?

A: Yes! The d.2 comes fully equipped with 48V phantom power on the microphone input.

zZounds is an authorized dealer of Mackie products.
Frequency Response
Mic Input to any Output (Trim at 0 dB): +0, -1 dB; 20 Hz to 20 kHz

Line/CD Input to any Output: +/- 0.5 dB; 20 Hz to 20 kHz

Phono Input to any Output: +/- 1 dB of RIAA EQ curve

Distortion (THD & IMD)
THD @ Main Output, 20 Hz to 20 kHz
-- Mic Input @ 30 dB Gain: Less than 0.0075%

-- Line/CD Input @ 0 dB Gain: Less than 0.0075%

-- Phono Input: Less than 0.01%

THD @ Phones Output, 20 Hz to 20 kHz
-- Line Input @ 0 dB Gain: Less than 0.03%

-- 10mV rms input, gain at 1 dB FS output

SMPTE IMD @ +4 dBu Output
-- Mic Input @ 30 dB Gain: Less than 0.008%

-- Line/CD Input @ 0 dB Gain: Less than 0.008%

Common Mode Rejection Ratio (CMRR)
Mic Input (Gain = maximum): Greater than 60 dB @ 1 kHz

Crosstalk
Adjacent Inputs or Input to Main Output: Less than 85 dB @ 1 kHz

Noise Characteristics
Equivalent Input Noise (E.I.N.) (20 Hz to 20 kHz)
-- Mic Input (150 - source impedance): Less than 123 dBu

-- Phono Input (500 /500 mH source impedance): Less than 0.3 V

-- CD/Line Input (150 - source impedance): Less than 110 dBu

-- Dynamic Range (Main Out): Greater than 100 dB

Maximum Input Levels (rated at 1% THD)
-- Mic Input (Gain @ minimum): +9 dBu

-- CD and Line Inputs (PGM Gain = 0 dB): +22 dBu

-- FX Input: +22 dBu

-- Phono Input: 78 mV @ 1kHz

Input/Output Characteristics:
Input Gain Control Range:
-- Mic Input: +13 dB to +63 dB

-- PGM Input: OFF to +13 dB

-- FX Return: OFF to +13 dB

Input Impedance:
-- Mic Input: 2.4 k balanced

-- CD/ Line Input: 20 k balanced

-- FX Return: 20 - balanced

-- Phono Input: 47.5 k shunted with 200 pF

Maximum Output Levels:
-- XLR Main Output: +22 dBu

-- RCA Main Output: +22 dBu

-- Booth Output: +22 dBu

-- FX Send: +22 dBu

-- Phones: 15 volts rms into 8 (28 watts)

Output Impedance:
-- Main XLR/RCA Output: 150 -
-- Booth Output: 150 -
-- FX Send: 150 -
-- Phones: 25 -
Equalization
Mic Channel
-- Low: +/- 15 dB @ 80 Hz

-- Mid: +/- 15 dB @ 2.5 kHz

-- High: +/- 15 dB @ 12 kHz

PGM Channel
-- Low: +10/inf dB @ 300 Hz

-- Mid: +10/inf dB @ 1 kHz

-- High: +10/inf dB @ 4 kHz

VU Meters
-- 12-segment pre-fader PGM meters

-- 12-segment pre-fader Main Mix meters

-- OL (+20), +10, +7, +4, +2, 0, -2, -4, -7, -10, -20, -30

-- 0 LED = +4 dBu

-- Mic Input Signal Present LED (Sensitivity): 20 dBu

AC Power Requirements:
Power Consumption: 20 watts

Universal AC Power Supply: 100 VAC - 240 VAC, 50-60 Hz

Physical Dimensions and Weight:
Height: 15.49 in./393.4 mm (including knobs and connectors)

Width: 10 in./254 mm

Depth: 4.62 in./ 117.3 mm (including knobs and connectors)

Weight: 11 lb/5 kg (with FireWire card)

The d.2 mounting slots are compatible with the Odyssey Battle Bridge. This consists of two L brackets which bolt to the d.2 and allow you to fi t it securely between two turntable cases.

Options: d.2 FireWire Interface Card
