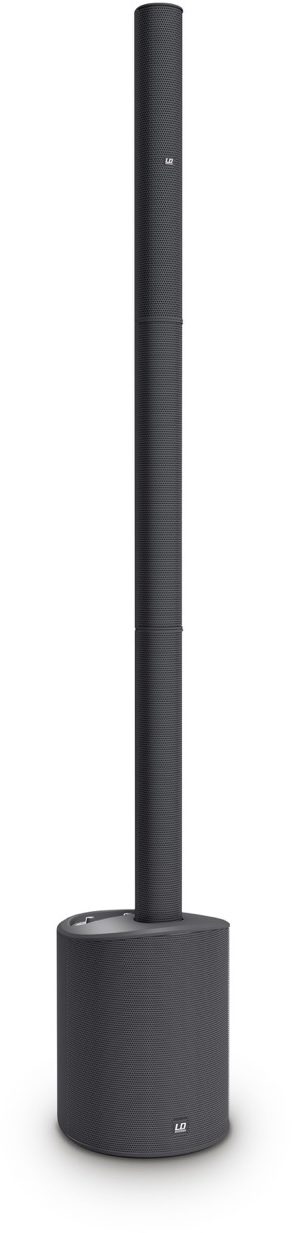

LD Systems Maui 5 GO Battery-Powered PA System

Overall:
- Weight: 28.4 lbs (12.9 kg)
- Product type: PA Complete System
- Type: active
- Number of subwoofers: 1
- Max. SPL (peak): 120 dB
- Frequency response: 50 - 20,000 Hz
- Dispersion (H x V): 120 x 20 degrees
- Overall height: 6 feet, 6-1/2 inches (1985 mm)

Battery:
- Rechargeable batteries: 29.6 V / 5200 mAh
- Battery manufacturer: LG Chem
- Battery technology: Lithium-ion
- Battery operation time at maximum load: 10 hours @ 104 dB (Live music), 20 hours @ 98 dB (Lounge mode), 6 hours @ 120 dB (DJ mode)
- Charging time: 3 hours up to 100%, 2 hours up to 80%

Woofer characteristics:
- Low/mid driver dimensions: 8"
- Woofer size: 203.2mm
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- Woofer voice coil: 2" (50.8mm)
- Cabinet construction: vented
- Cabinet material: ABS plastic
- Subwoofer width: 305mm
- Subwoofer height: 405mm
- Subwoofer depth: 395mm
- Subwoofer weight: 8.5kg

Mid/Hi System:
- Midrange size: 4 x 3" (76.2mm)
- Midrange magnet: Ferrite
- Midrange brand: Custom-made
- Midrange voice coil: 1" (25.4mm)
- Mid/Hi system impedance: 4Ohm(s)
- Loudspeaker inputs: 1
- Speaker input connections: Custom-made multipin
- Cabinet construction mid/high: Closed
- Mid/Hi system cabinet material: ABS plastic
- Mid/Hi system width: 82mm
- Mid/Hi system height: 535mm
- Mid/Hi system depth: 105mm
- Mid/Hi system weight: 3.8 (3ps)kg

Amplifier module (integrated in subwoofer):
- Amplifier: Class D
- Amplifier output system (RMS): 200W
- Amplifier output system (peak): 800W
- Protection circuits: DSP-based multiband limiter, short circuit, over-current, thermal overload
- Cooling: Convection
- Controls: Line level, Mic level, BT pairing, Main level, On / Off, Sub level, Mono/stereo mode, BT level, MP3 / Hi-Z level
- Indicators: Signal, On, Limit, Protect (protection circuit engaged)
- Operating voltage: Switching power supply, 200 V AC - 240 V AC, 50 - 60 Hz (Automatic conversion), 100 V AC - 120 V AC, 50 - 60 Hz

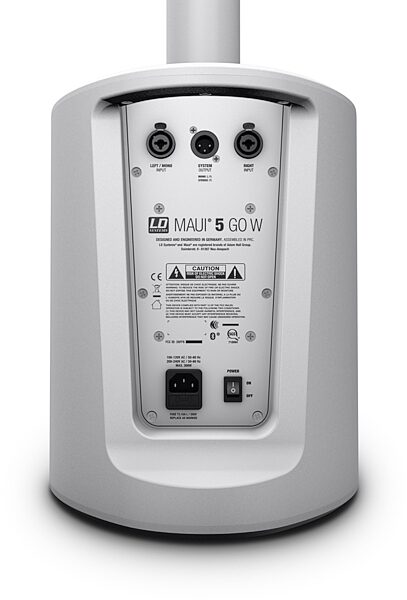

- Line inputs: 2 x stereo
- Line input connectors: XLR, 6.3 mm jack
- Mic inputs: 1, XLR, 6.3 mm jack
- MP3 inputs: 1
- MP3 input connectors: 3.5 mm jack
- Hi-Z inputs: 1
- Hi-Z input connectors: 6.3 mm jack
- Loudspeaker outputs: 1
- Speaker output connections: Custom-made multipin

DSP characteristics:
- Bit depth AD/DA converter: 24 / 24bit
- Internal sampling frequency: 48kHz
Dimensions and Weight in Packaging
Black
Shipping Weight: 39.5 lbs
Shipping Dimensions: 27 x 24 x 16 in
Manufacturer Part Number (MPN): LDS MAUI5GO
White
Shipping Weight: 37.75 lbs
Shipping Dimensions: 27 x 23 x 16 in
Manufacturer Part Number (MPN): LDS MAUI5GOW
If you have additional warranty questions, please contact the manufacturer at 973-335-7888 x 207
(6 ratings)
Submitted January 8, 2019 by Pete L in Allen, TX
"Mobile DJ review"
Verified Customer zZounds has verified that this reviewer made a purchase from us.
With 22 years professional experience I was looking for some small/light effective audio gear for smaller venues. After some exhaustive research and demos with other brands, I found that this Line Array works well and sounds great and has enough controls for my needs. I will use this for Ceremonies and mobile audio anywhere. The Sound is great but the battery feature is awesome!
Musical Background:
DJ, Guitarist, Performer
Musical Style:
All genres
7 of 7 people (100%) people found this review helpful. Did you?
