LD Systems Maui 5 Ultra-Portable Column PA System
This elegant column PA system gives you real bang-for-buck, with a mic input, Hi-Z input, 2 line ins, 1/8" stereo in, Bluetooth receiver and 4-channel mixer.
Overview

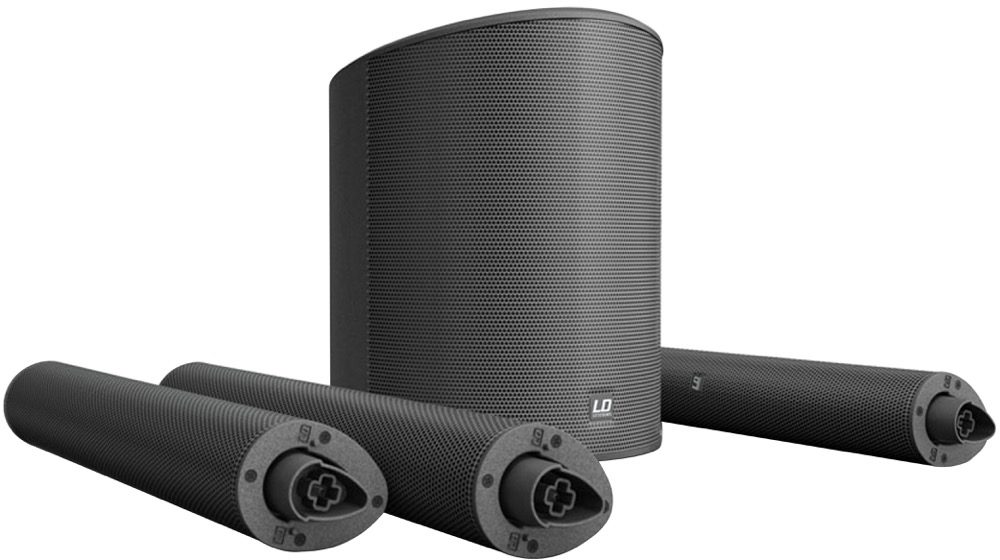

The ultra compact MAUI 5 weighs in at about 24 lbs while delivering 800 watts of peak power and a maximum SPL of 120 dB. Providing both sound reinforcement with extended coverage and feedback resistant monitoring the subwoofer base and 3-piece column system assembles in seconds with custom multipin connectors. The junior member of the MAUI family is most easily portable and fits onto any car seat.
The vented 8" subwoofer also houses the system's Class D amplification with overcurrent, short circuit and thermal protection, LD Systems' proprietary LECC digital processing and a 4-channel mixer. Featuring Bluetooth technology for wireless streaming and microphone, line level and hi-Z inputs which can be used simultaneously the MAUI 5 lets you connect a wide variety of sources including music players and instruments such as keyboards or guitars. Individual level controls, subwoofer and master volumes plus high shelf filtering for room correction enable a perfectly balanced performance.
The vented 8" subwoofer also houses the system's Class D amplification with overcurrent, short circuit and thermal protection, LD Systems' proprietary LECC digital processing and a 4-channel mixer. Featuring Bluetooth technology for wireless streaming and microphone, line level and hi-Z inputs which can be used simultaneously the MAUI 5 lets you connect a wide variety of sources including music players and instruments such as keyboards or guitars. Individual level controls, subwoofer and master volumes plus high shelf filtering for room correction enable a perfectly balanced performance.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
Specs
- Max. SPL (continuous): 114dB
- Max. SPL (peak): 120dB
- Frequency response: 50 - 20000Hz
- Dispersion (H x V): 120* x 20*
- Overall height: 6 feet, 6-1/2 inches (1985mm)
- Weight: 24.92 lbs (11.3kg)
- 4 channel mixer with DSP-based signal processing and Bluetooth
- Low/mid driver dimensions: 8" (203.2mm)
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- Woofer voice coil: 2" (50.8mm)
- Cabinet construction: vented
- Cabinet material: ABS plastic
- Subwoofer Dimensions: 305 x 405 x 395mm
- Midrange size: 4 x 3" (4 x 76.2mm)
- Midrange magnet: Neodymium
- Midrange brand: Custom-made
- Midrange voice coil: 1" (25.4mm)
- Mid/Hi system impedance: 4Ohm(s)
- Loudspeaker inputs: 1
- Speaker input connections: Custom-made multipin
- Cabinet construction mid/high: Closed
- Mid/Hi system cabinet material: ABS plastic
- Mid/Hi system Dimensions: 82 x 535 x 105mm
- Amplifier: Class D
- Amplifier Output System (RMS): 200W
- Amplifier Output System (Peak): 800W
- Protection circuits: over-current, DSP-based multiband limiter, short circuit, thermal overload
- Cooling: Convection
- Controls: Mic Level, BT Pairing, Line Level, BT level, Main Level, sub level, MP3 / Hi-Z Level
- Indicators: signal, protect (protection circuit engaged), on, limit
- Operating voltage: Switching Power Supply, 200 V AC - 240 V AC, 50 - 60 Hz (automatic conversion), 100 V AC - 120 V AC, 50 - 60 Hz
- Line inputs: 2 x stereo
- Line input connectors: XLR, 6.3 mm Jack
- Mic inputs: 1, XLR, 6.3 mm Jack
- MP3 inputs: 1
- MP3 input connectors: 3.5 mm jack
- Hi-Z inputs: 1
- Hi-Z input connectors: 6.3 mm Jack
- Loudspeaker outputs: 1
- Speaker output connections: Custom-made multipin
- Bit depth AD/DA converter: 24 / 24bit
- Internal sampling frequency: 48kHz
- Max. SPL (peak): 120dB
- Frequency response: 50 - 20000Hz
- Dispersion (H x V): 120* x 20*
- Overall height: 6 feet, 6-1/2 inches (1985mm)
- Weight: 24.92 lbs (11.3kg)
- 4 channel mixer with DSP-based signal processing and Bluetooth
- Low/mid driver dimensions: 8" (203.2mm)
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- Woofer voice coil: 2" (50.8mm)
- Cabinet construction: vented
- Cabinet material: ABS plastic
- Subwoofer Dimensions: 305 x 405 x 395mm
- Midrange size: 4 x 3" (4 x 76.2mm)
- Midrange magnet: Neodymium
- Midrange brand: Custom-made
- Midrange voice coil: 1" (25.4mm)
- Mid/Hi system impedance: 4Ohm(s)
- Loudspeaker inputs: 1
- Speaker input connections: Custom-made multipin
- Cabinet construction mid/high: Closed
- Mid/Hi system cabinet material: ABS plastic
- Mid/Hi system Dimensions: 82 x 535 x 105mm
- Amplifier: Class D
- Amplifier Output System (RMS): 200W
- Amplifier Output System (Peak): 800W
- Protection circuits: over-current, DSP-based multiband limiter, short circuit, thermal overload
- Cooling: Convection
- Controls: Mic Level, BT Pairing, Line Level, BT level, Main Level, sub level, MP3 / Hi-Z Level
- Indicators: signal, protect (protection circuit engaged), on, limit
- Operating voltage: Switching Power Supply, 200 V AC - 240 V AC, 50 - 60 Hz (automatic conversion), 100 V AC - 120 V AC, 50 - 60 Hz
- Line inputs: 2 x stereo
- Line input connectors: XLR, 6.3 mm Jack
- Mic inputs: 1, XLR, 6.3 mm Jack
- MP3 inputs: 1
- MP3 input connectors: 3.5 mm jack
- Hi-Z inputs: 1
- Hi-Z input connectors: 6.3 mm Jack
- Loudspeaker outputs: 1
- Speaker output connections: Custom-made multipin
- Bit depth AD/DA converter: 24 / 24bit
- Internal sampling frequency: 48kHz
- Dimensions and Weight in Packaging
- White
- Shipping Weight: 33.25 lbs
- Shipping Dimensions: 26 x 23 x 16 in
- Manufacturer Part Number (MPN): LDS-MAUI5W
- Black
- Shipping Weight: 30.5 lbs
- Shipping Dimensions: 25 x 23 x 15 in
- Manufacturer Part Number (MPN): LDS MAUI5
