LD Systems ICOA 15 A Powered Coaxial Loudspeaker

Get clear, room-filling audio. The LD Systems ICOA 15 A speaker uses a coaxial design for phase-aligned sound whether deployed vertically or horizontally.

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 15 A by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this active 15" loudspeaker exceptionally flexible.


Get a closer look at LD Systems' ICOA series of coaxial loudspeakers in this video:


Spin Your Sound Right Round with LD Systems ICOA:


The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 15 A the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 128 dB max. SPL and 300 W RMS performance.

Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.

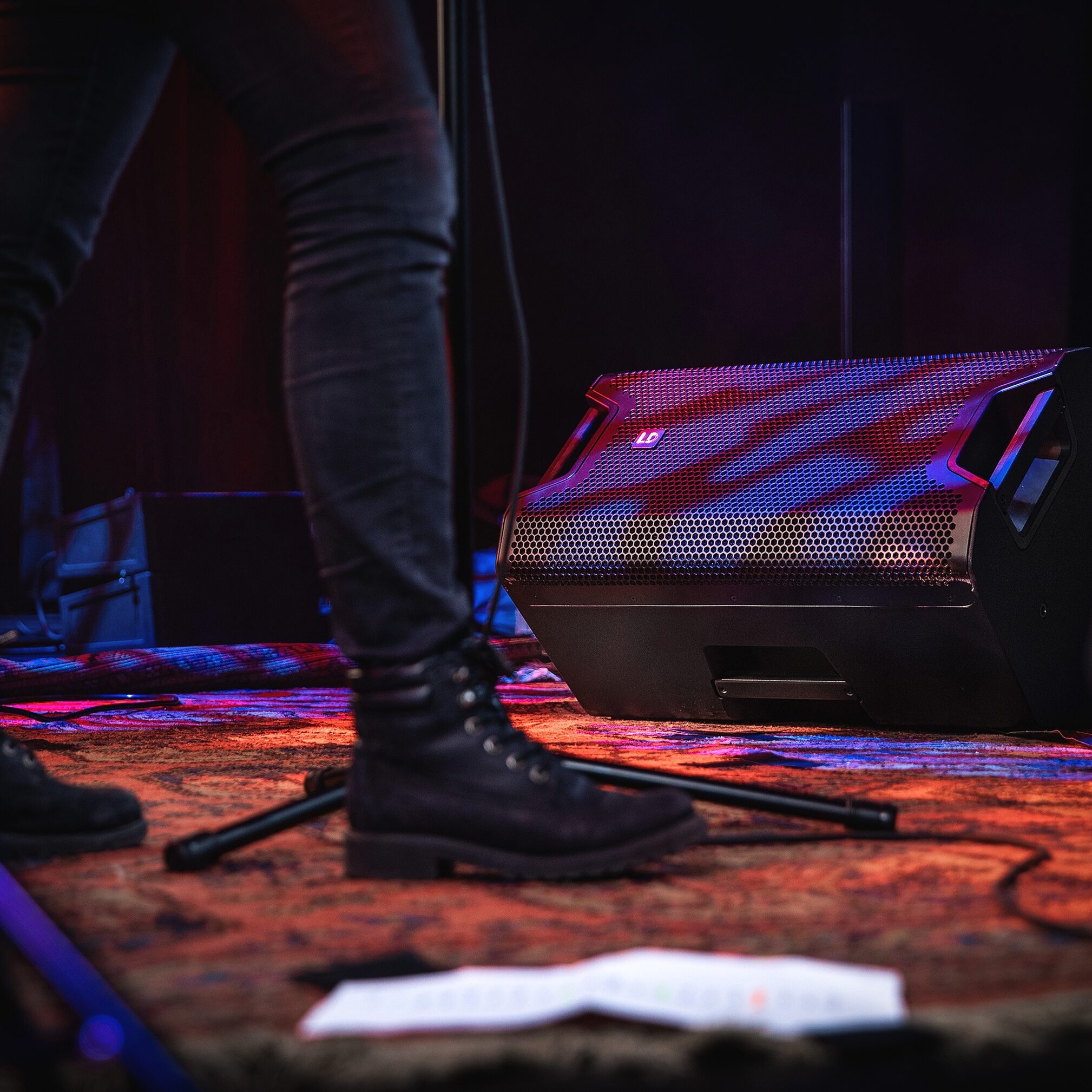

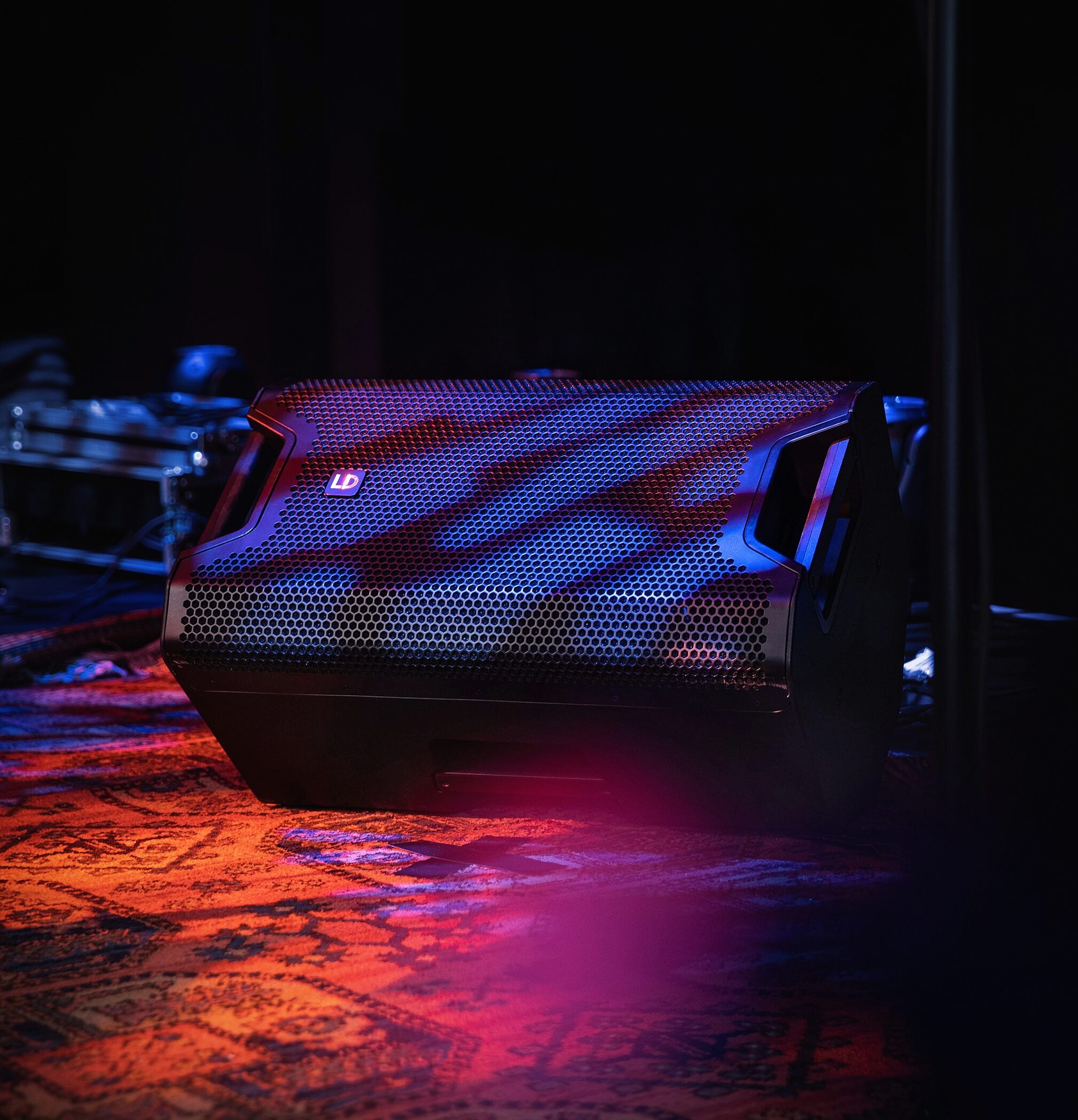

Thanks to its shock-resistant front grille and ideal 55degrees tilt angle, the LD ICOA 15 A is also outstanding as a floor read more monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0 degrees or 5 degrees tilt angle for optimally adapting the system to the local acoustic environment. Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

Features:

- A genuine all-rounder for full-range, satellite and monitor applications
- 128 dB max. SPL and 1200 W peak power
- Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent Pending)
- Horn-loaded woofer
- DynX DSP with 4 presets, 3-band EQ and delay function
- 2 line/mic input channels with individual gain controllers plus mono mix output
- 36 mm dual tilt stand attachment with 0 degrees and 5 degrees tilt angle, 55 degrees monitor angle with sturdy stand
- Shock-resistant front grille for optimal protection of the speaker
- 4 aluminium grips with ergonomic, rubber surface
- Extensive, optionally available accessories for installation and transport
read less

Product Type: PA Loudspeaker
Type: Actives
Low/Mid Driver Dimensions: 15"
Woofer Size: 381 mm
Woofer Magnet: Ferrite
Woofer Brand: Custom-made
Horn: BEM optimized CD Horn
HF Driver Dimensions: 1"
HF Driver Size: 25.4 mm
HF Driver Magnet: Ferrite
HF Driver Brand: Custom-made
HF Driver Voice Coil: 1"
HF Driver Voice Coil: 25.4 mm
Amplifier: Class D
Dispersion (H x V): 90 degrees x 50 degrees
RMS: 300 W
Peak Power: 1200 W
Frequency Response: 48 - 20000 Hz
Crossover Frequency kHz: 2 kHz
Max. SPL (peak): 128 dB
Protection Circuits: Multiband limiter, over voltage, over-current, thermal overload
Controls: 2 x gain, On / off switch, Rotary/push encoder
Indicators: LC Display
Mic/ Line Inputs: 2
Mic-/ Line Input Connectors: 6.3 mm jack Combination sockets (symmetrical), XLR
Line Inputs: 1
Line Input Connectors: 3.5 mm TRS
Line Outputs: 1
Line output Connectors: XLR
Operating Voltage: SMPS
Power Consumption: 150 W
Ambient Temperature (In Operation): 0 - 40 C
Operating Voltage: 100 V - 240 V AC / 50 - 60 Hz
Relative Humidity: < 80 %, not condensing
Fuse: T4AL 250 V
Cabinet Material: Polypropylene
Cabinet Construction: Bass Reflex
Tripod Flange: 32 F, 36mm flange, 5 degrees
Monitor Angle: 55 degrees
Width: 416 mm
Height: 695 mm
Depth: 415 mm
Weight: 24,3 kg
Accessories (Included): Power cord
Dimensions and Weight in Packaging
Single Speaker
Shipping Weight: 65 lbs
Shipping Dimensions: 34 x 21 x 21 in
Manufacturer Part Number (MPN): LDS ICOA15A
Blemished, Single Speaker
Shipping Weight: 65 lbs
Shipping Dimensions: 34 x 21 x 21 in
Manufacturer Part Number (MPN): MBP LDSICOA15A
Warehouse Resealed, Single Speaker
Shipping Weight: 65 lbs
Shipping Dimensions: 34 x 21 x 21 in
Manufacturer Part Number (MPN): NFS LDSICOA15A
Pair
Shipping Weight: 130 lbs
