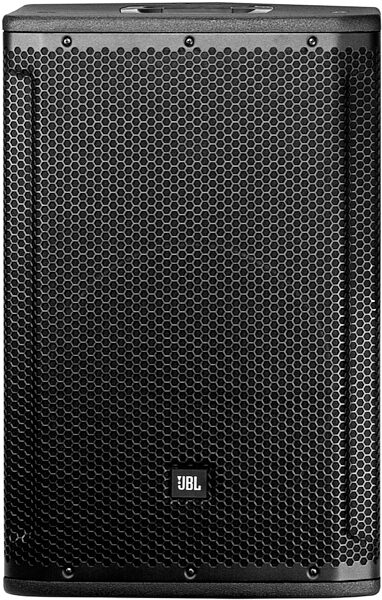

JBL SRX812 Passive, Unpowered Loudspeaker

Outfit your PA rig with JBL SRX812 passive loudspeakers for a versatile setup. With a power rating of 2600 watts peak, they can handle almost anything! Unpowered. Requires separate power amplifier.

JBL has made a name for itself by producing great sounding, long lasting portable PA systems. With the introduction of the SRX800 line of passive portable PA loudspeakers, JBL has set the standard for what a fully professional PA system should be.

Integrating industry-leading levels of sound quality, power, control, and durability, SRX800 is a perfect all in one solution wherever high performance, and pristine sound are required. Each component in the SRX800 Series was purposefully designed and thought through to deliver a perfectly tuned system that is powerful, easy to use, and rugged enough for the most demanding applications.

Note: Unpowered speaker, requires separate power amplifier.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- System type: Passive 12", three way, bass reflex
- Maximum SPL Output: 136dB
- Frequency Range (-10dB): 40hz - 21khz
- Frequency Response (- 3dB): 48hz - 20khz
- System Power Rating: 2600W Peak, 1300W Program, 650W Continuous
- Nominal Impedance: 8 Ohm
- Input Connectors: 2 x NL4
- Operational Modes: Passive/Bi-Amp
- Low Frequency Driver: 2272F
- High Frequency Driver: 2432H
- Coverage Pattern: 90 x 50
- Crossover Frequency: 1.9khz
- Pole Socket Size: 1-7/16" (36 mm)

Dimensions: 16.87" x 16.31" x 25.11"
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 61 lbs
Shipping Dimensions: 27 x 22 x 21 in
Manufacturer Part Number (MPN): SRX812

Note: Unpowered speaker, requires separate power amplifier.

For support or warranty questions, please contact the manufacturer:
Phone: 800-336-4525
Web: https://jblpro.com/en/support for pro audio, https://support.jbl.com for consumer/home audio

Reviewers gave this product an overall rating of 5 out of 5 stars. (1 ratings)
Submitted January 17, 2023 by a customer from yahoo.com

"Amazing Sound"

Overall: 5 out of 5 stars
(see rating details)
Verified Customer zZounds has verified that this reviewer made a purchase from us.
I have 4 of these JBL SRX 812 passive speakers ,I prefer them over powered speakers because of the extra head room, you can get out of a passive speaker, I run them as a mid high's with my JBL SRX 718 subs, I also use them as stage monitors as well as full range speakers for other events such as stage plays or conferences. These speakers do not fizzle out at loud levels, they stay crisp and clear. JBL recommends you power these speakers with 2400 watts per speaker for demanding events, not so demanding minimum 1600 watts per speaker. I use QSC PL 236 Amplifiers Bridged or QSC PLX2 3102 Amplifiers Bridged with DBX Venu360 Processing. Crown XTI4002 Amplifiers are also a good option.

Musical Background:

Live Sound Reinforcement
