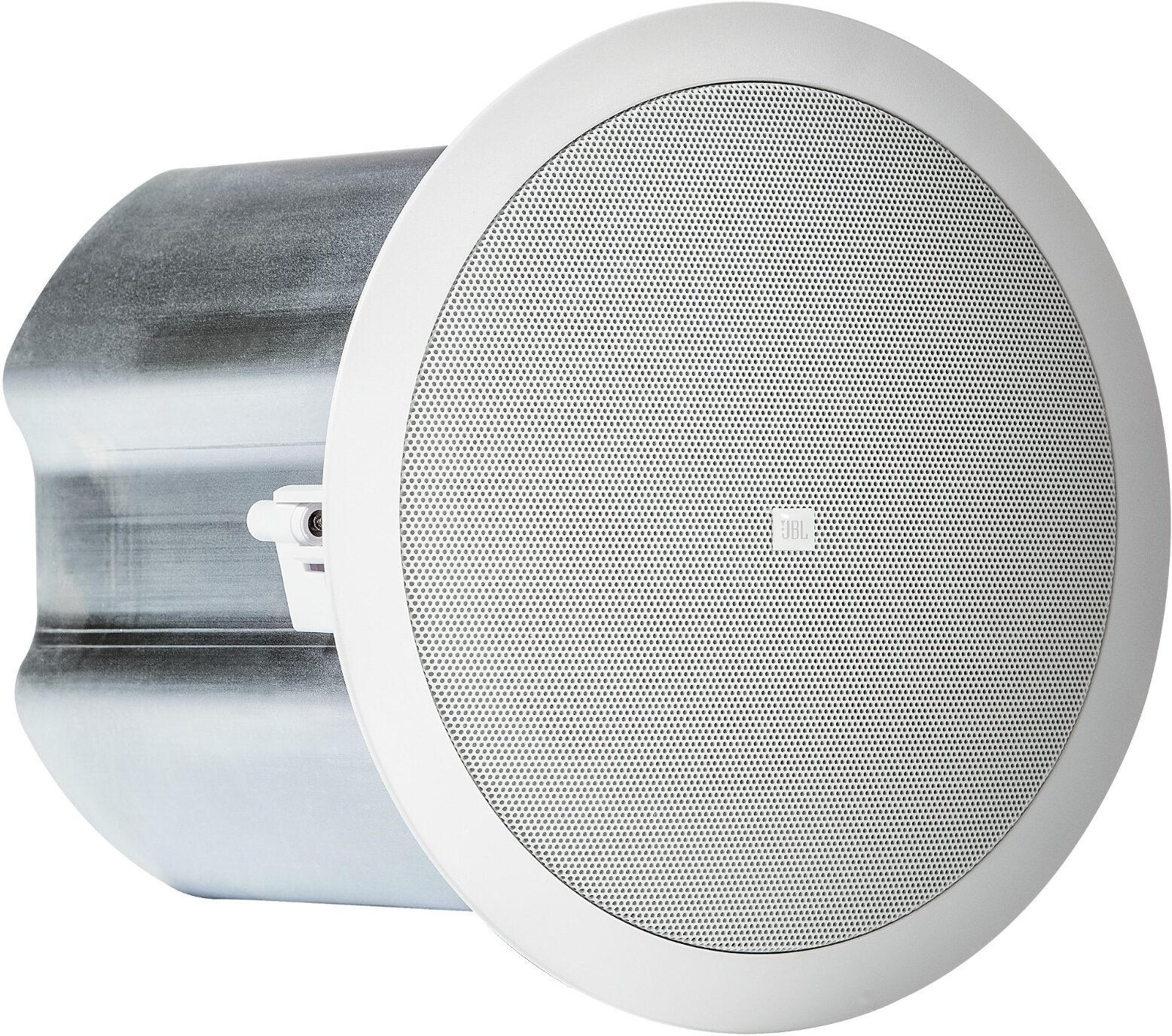

JBL Control 16C/T Ceiling Speaker

Frequency Range (-10 dB): 62 Hz - 20 kHz
Power Rating:
- IEC System Long-Term Ratings (low-Z direct): 100 Watts Continuous Program Power
- 50 Watts Continuous Pink Noise (200W peak), 100 hr
Transformer Taps: 30 W, 15 W, 7.5 W @ 70V or 100V (plus 3.8 W @ 70V only)
Frequency Response (+/-3 dB): 96 Hz - 15 kHz
Sensitivity (1W, 1m): 91 dB (1kHz - 16 kHz)
Coverage Angle: 110 degrees conical
Directivity Factor (Q): 7.8
Directivity Index (DI): 8.2 dB
Rated Maximum SPL (1m):
- 108 dB (low-impedance, 116 dB peak)
- 106 dB (top 70V/100V tap)
Impedance: 8 ohms (in direct/bypass setting)
Crossover Network: 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver

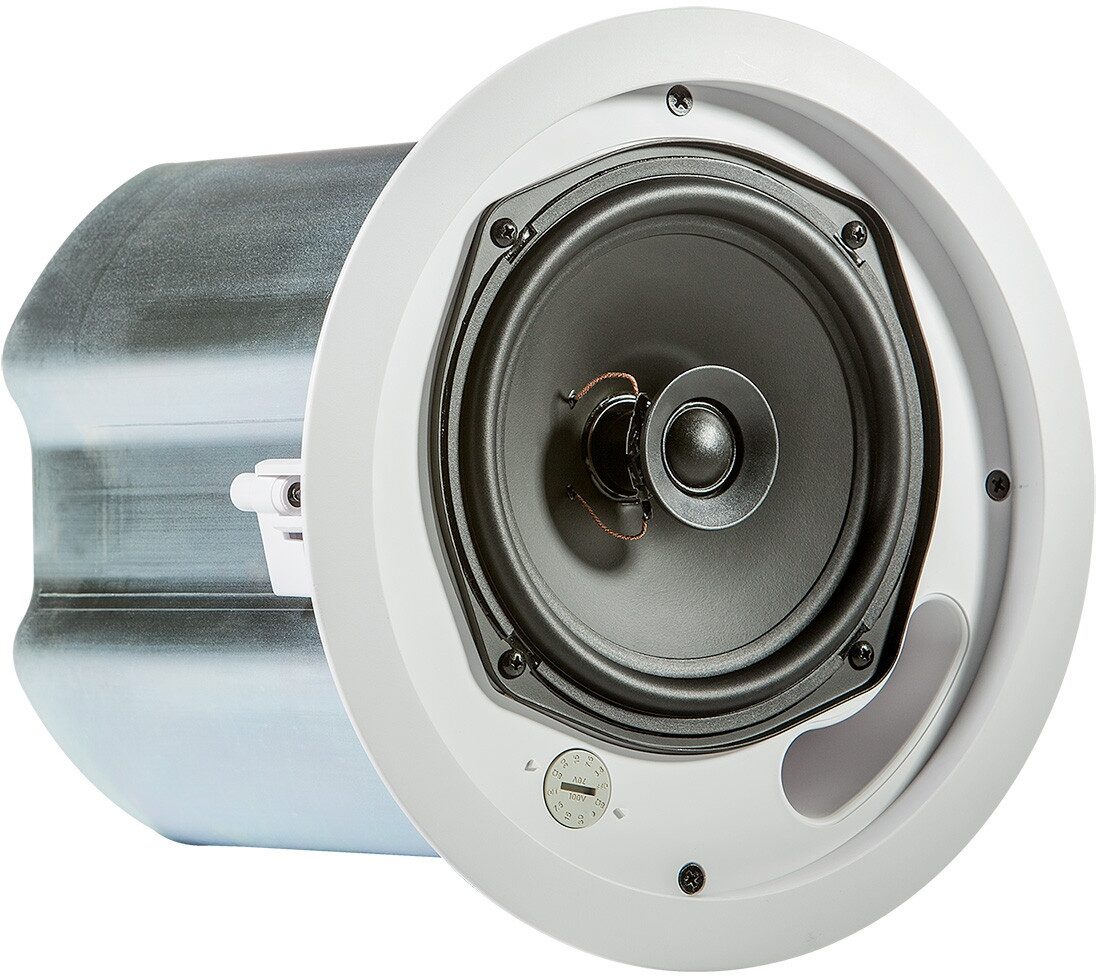

Drivers:
- LF Driver: 165 mm (6.5 in)
- HF Driver: 19 mm (3/4 in)
Input Connectors: Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
Connector Wiring: Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
Strain Reliefs: Strain relief for two cables or two flex conduits via coupled clamping mechanism

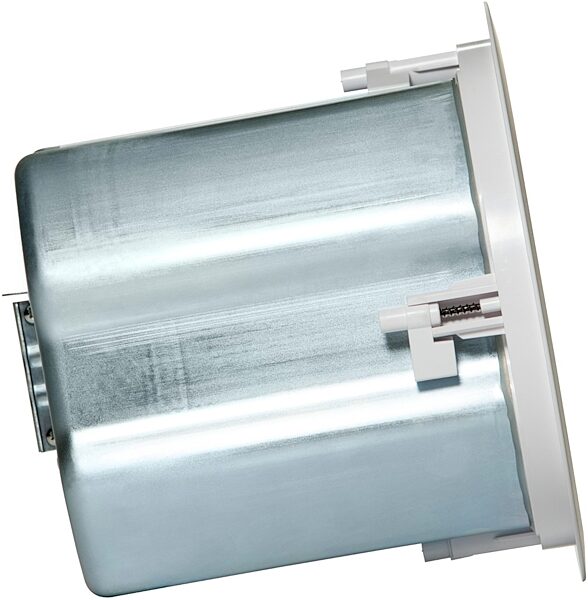

Materials: ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan
Safety Agency: UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
Dimensions: 253 mm diameter x 225 mm depth from back of baffle (10.0 in diameter x 8.8 in depth)
Ceiling Cutout Size: Circular cutout with 223 mm (8.8 in) diameter (cardboard cutout template included)
Ceiling Thickness Range: Up to 38 mm (1.5 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 60 mm (2.4 in) ceiling thicknesses
Safety Seismic Attachment: One point, top surface
Net Weight: 3.4 kg (7.4 lbs, one speaker)
Shipping Weight: 11.2 kg (24.7 lbs, pair in master carton)
Included Accessories: C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille
Optional Accessories: MTC-26NC new construction bracket MTC-26MR mud-ring construction bracket MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 60 mm (2.4 in, ordering one set = 24 dog-ears for 6 speakers) MTC-48TR tile rail for 1200 mm (4 ft) tile spans
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 24.5 lbs
Shipping Dimensions: 27 x 14 x 12 in
Manufacturer Part Number (MPN): CONTROL 16C/T
