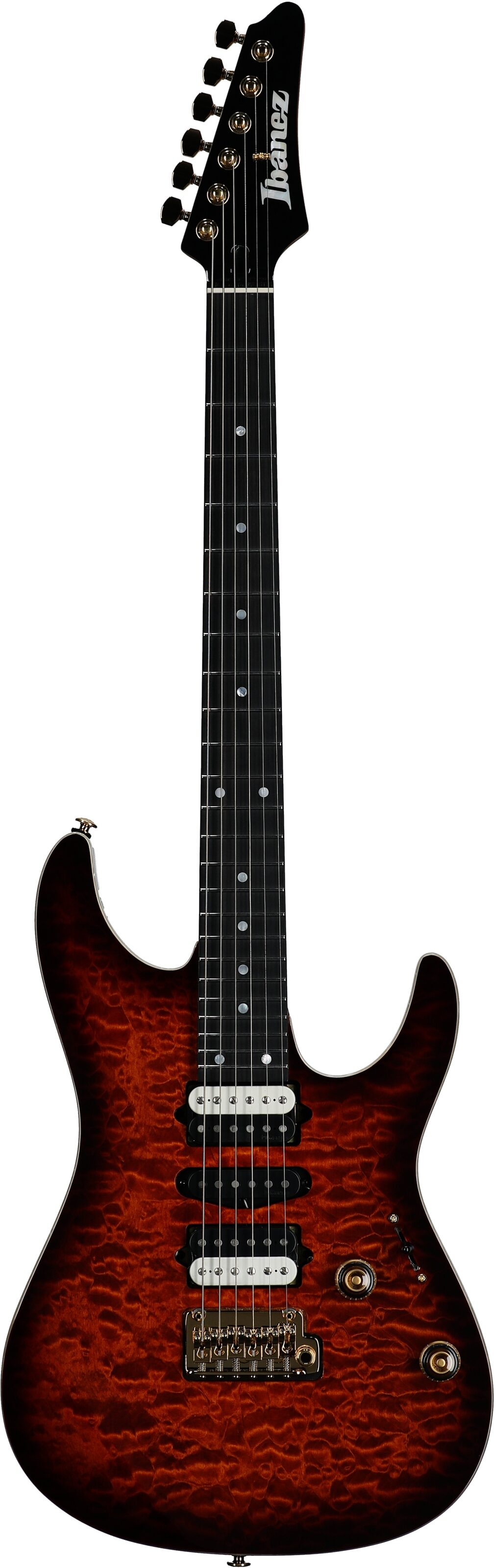

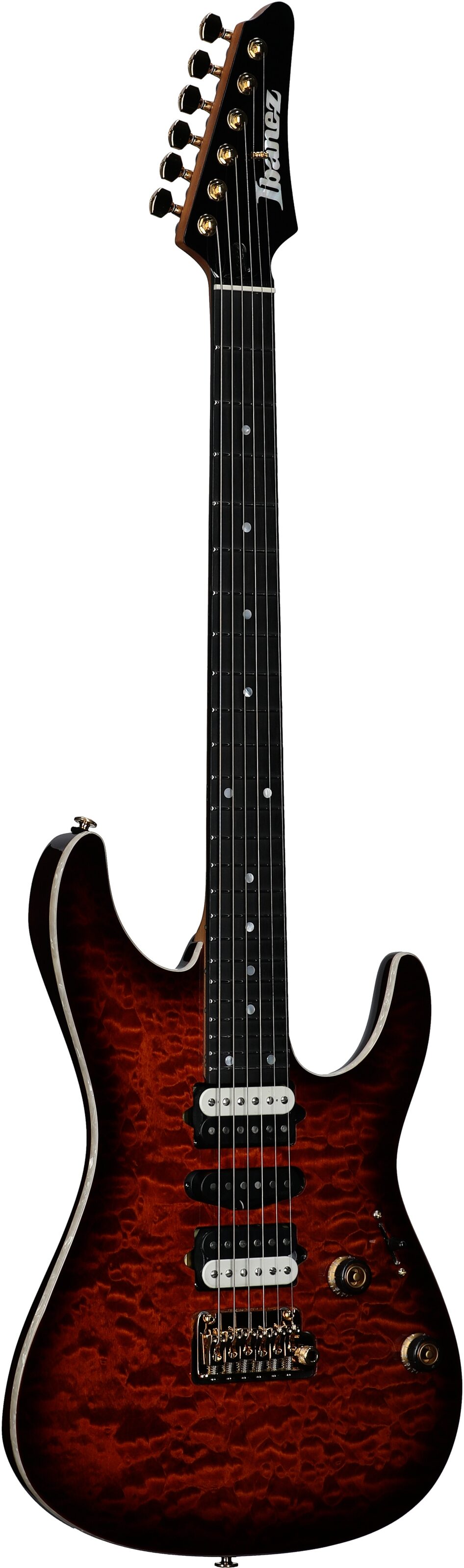

Ibanez AZ47P1QM Premium Electric Guitar (with Gig Bag)

zZounds Gear Experts Say...
Premium hardware, DiMarzio pickups, 24 jumbo frets, AND a quilted maple top? Say no more -- this Premium series AZ is the guitar you've been dreaming of!

What's special about this item?

Feature: What it does:
DiMarzio Air Norton neck pickup Deep and warm sound; hotter output
DiMarzio Tone Zone bridge pickup Higher output, wider dynamic range
DiMarzio True Velvet middle pickup Excellent balance & clarity without sounding thin
Quilted maple top Beautiful "wavy" grain; adds clarity

Taking adaptability to new extremes, the AZ series has established itself and carved out a place that spans everything from the warmest blues licks, to the most intense, shred-heavy metal riffs. Carrying this ethos forward, the AZ line embodies time-tested Ibanez innovation and player-focused features like a smooth, oval neck grip, a well-balanced asymmetrical body shape, and the neck heel allowing for unrivaled playability.

"Designed to Inspire", all Ibanez Premium series are manufactured with select tone woods, high-profile electronics, hardware and dedicated skills of craftsmanship and care in details for your musical journey. The richness of sound, stunning appearance and unrivalled playability of the Ibanez Premium series will open the gate of your reservoir of inspiration.

- Oval C Roasted Maple neck:
Heat-treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes.

- Ebony fretboard:
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

- Jumbo Stainless Steel frets:
Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response and effortless articulation when playing chords and clear tone when playing single notes.

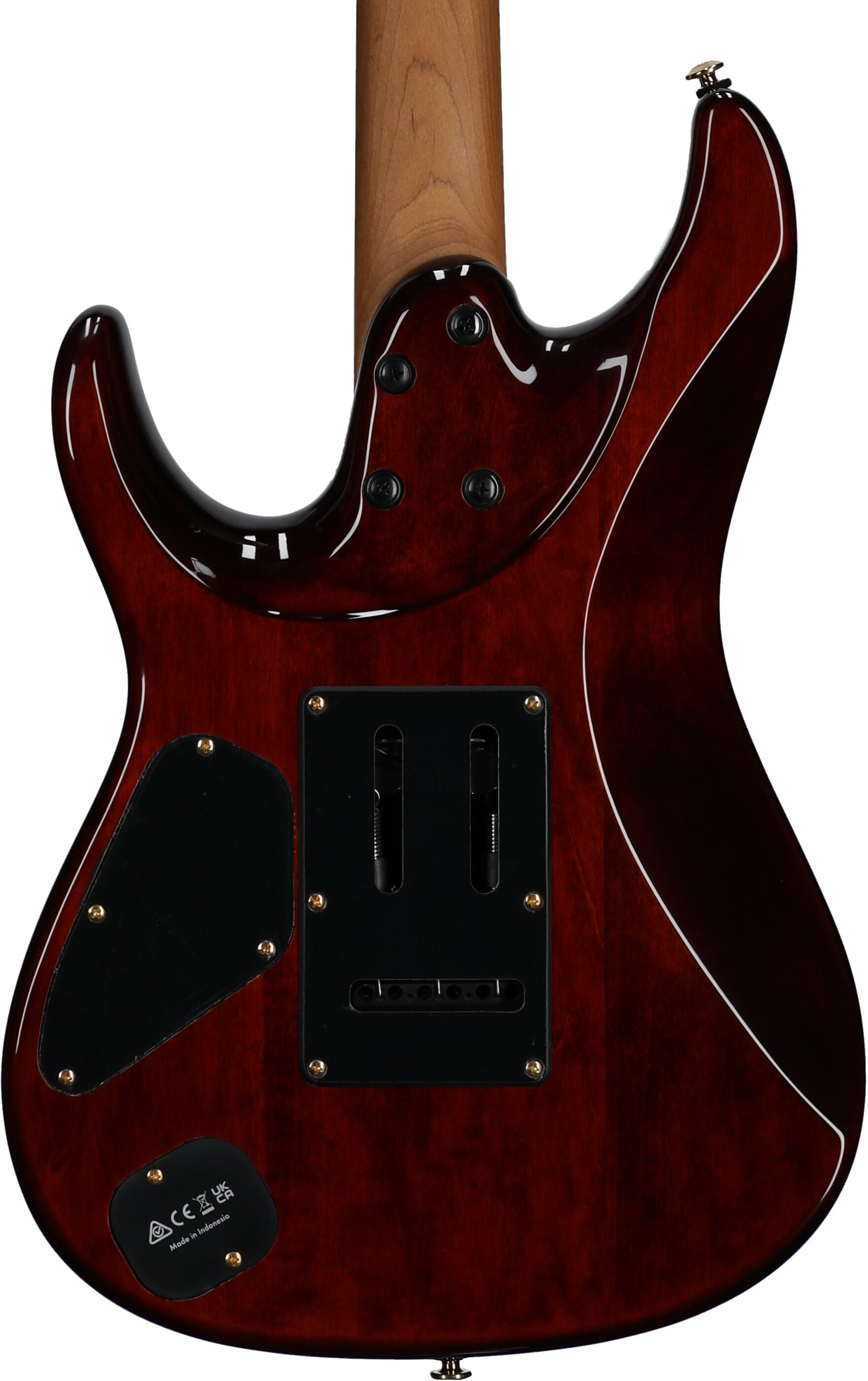

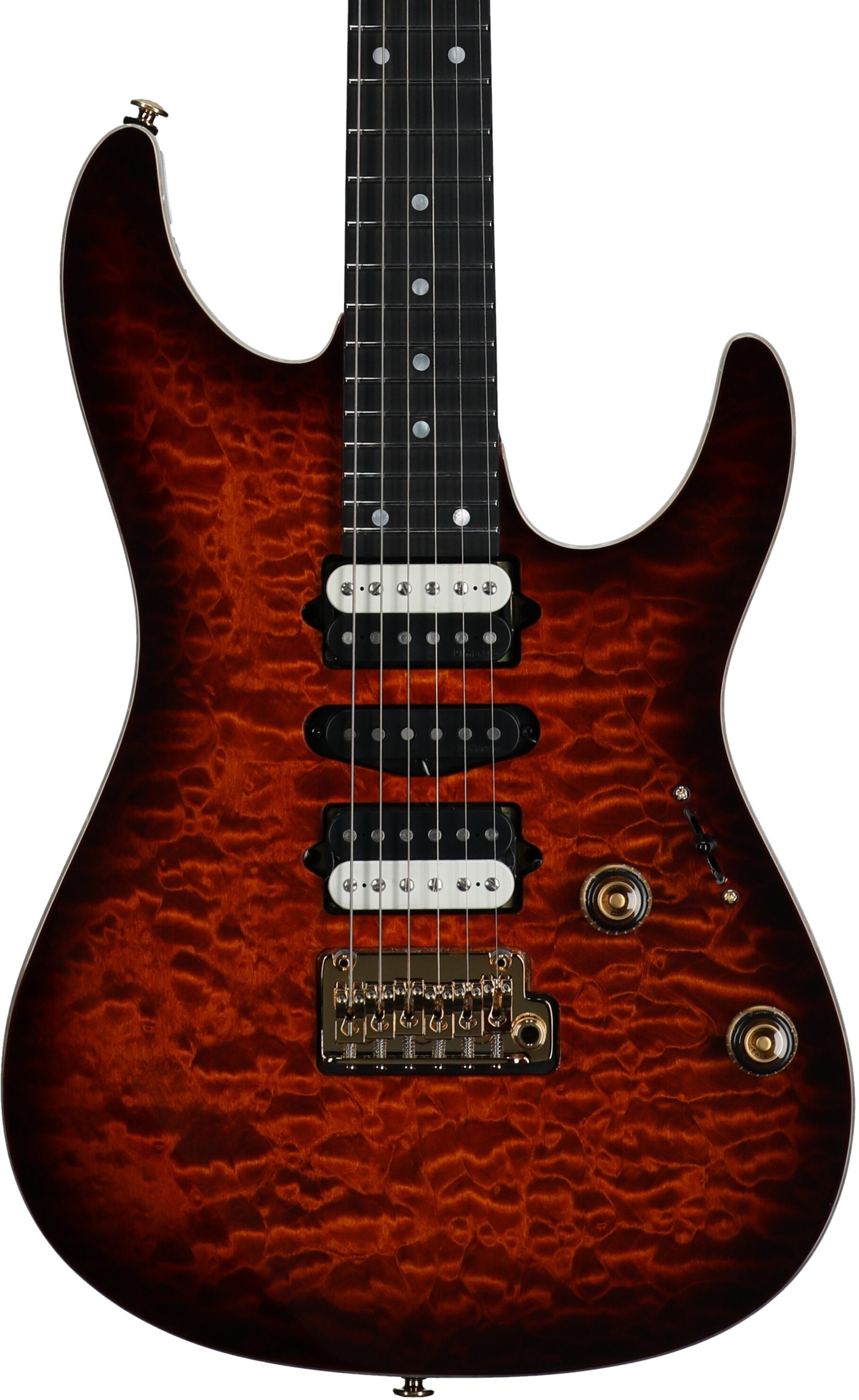

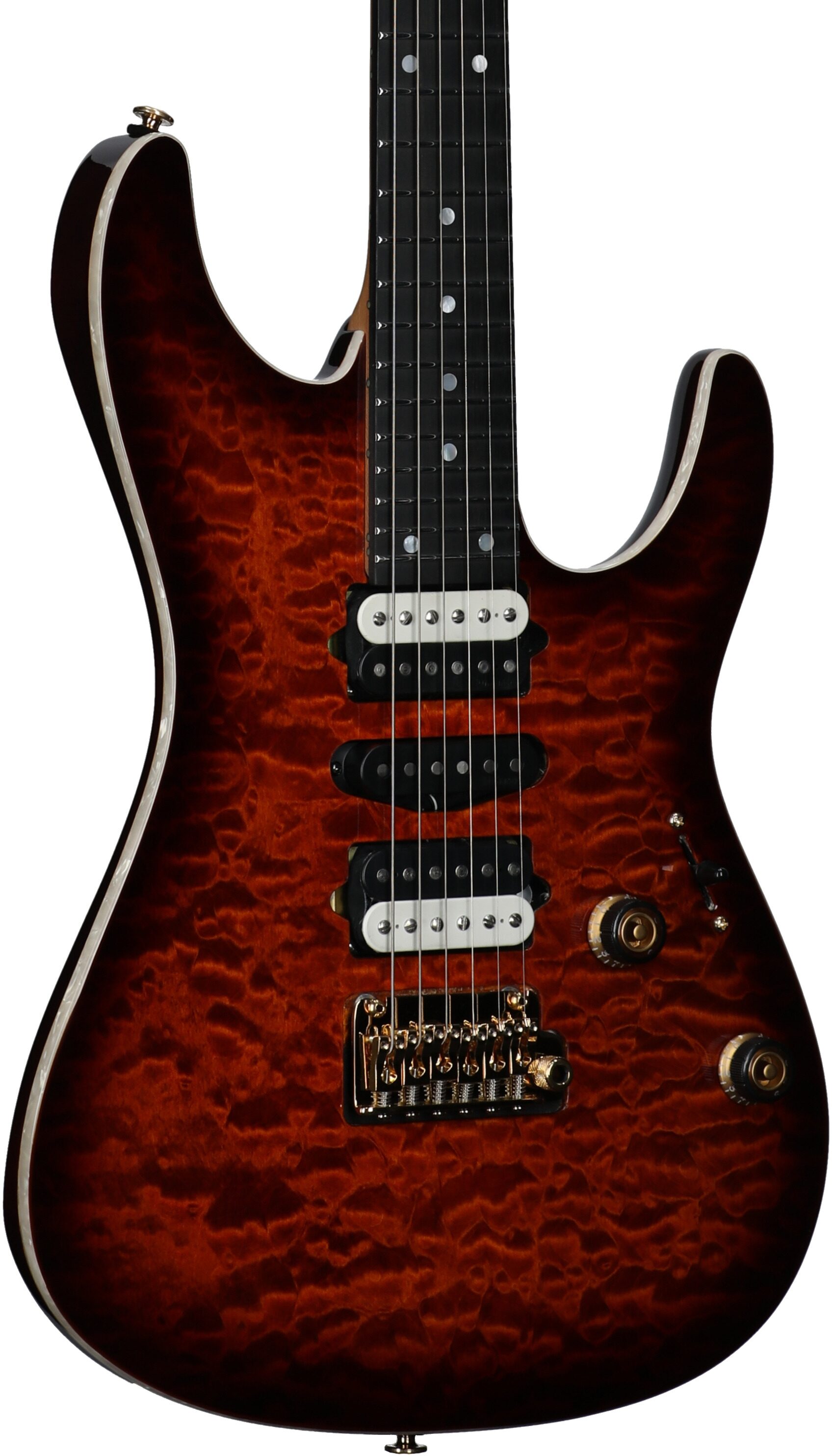

- Quilted Maple top / American Basswood body:
The Quilted Maple top sonically enriches the response for picking and the American Basswood body delivers a natural and flat tone.

- DiMarzio read more Air Norton / True Velvet / The Tone Zone pickups:
The DiMarzio Air Norton, True Velvet and Tone Zone pickups offer depth, warmth and rich dynamics when combined with the 5-way pickup switch.

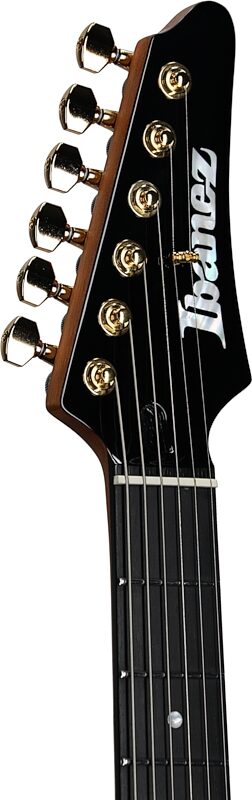

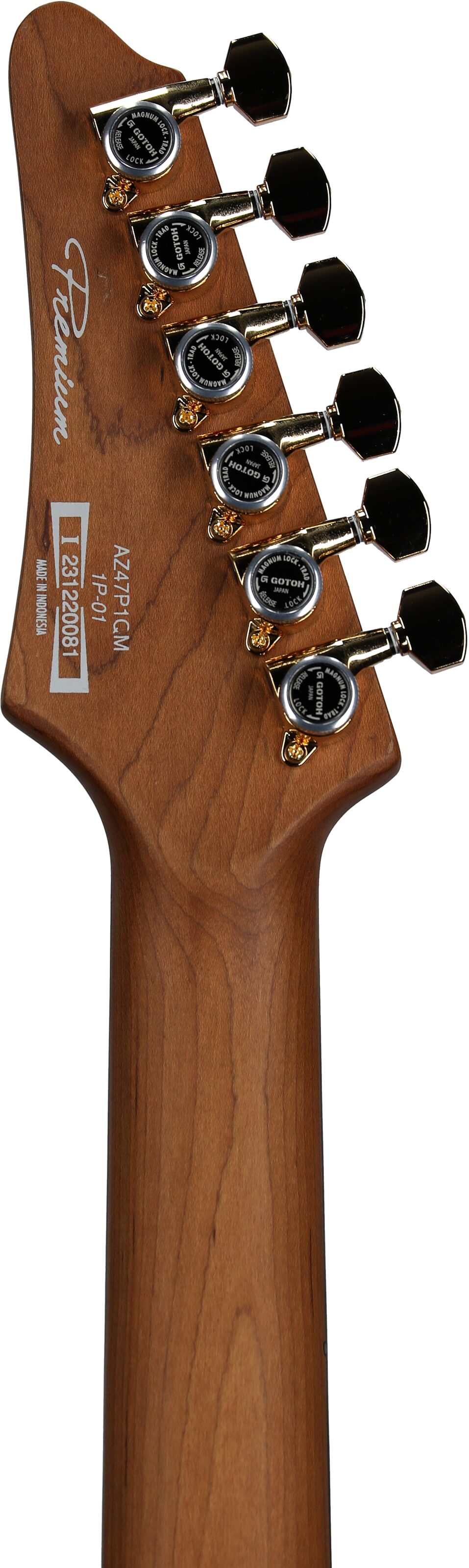

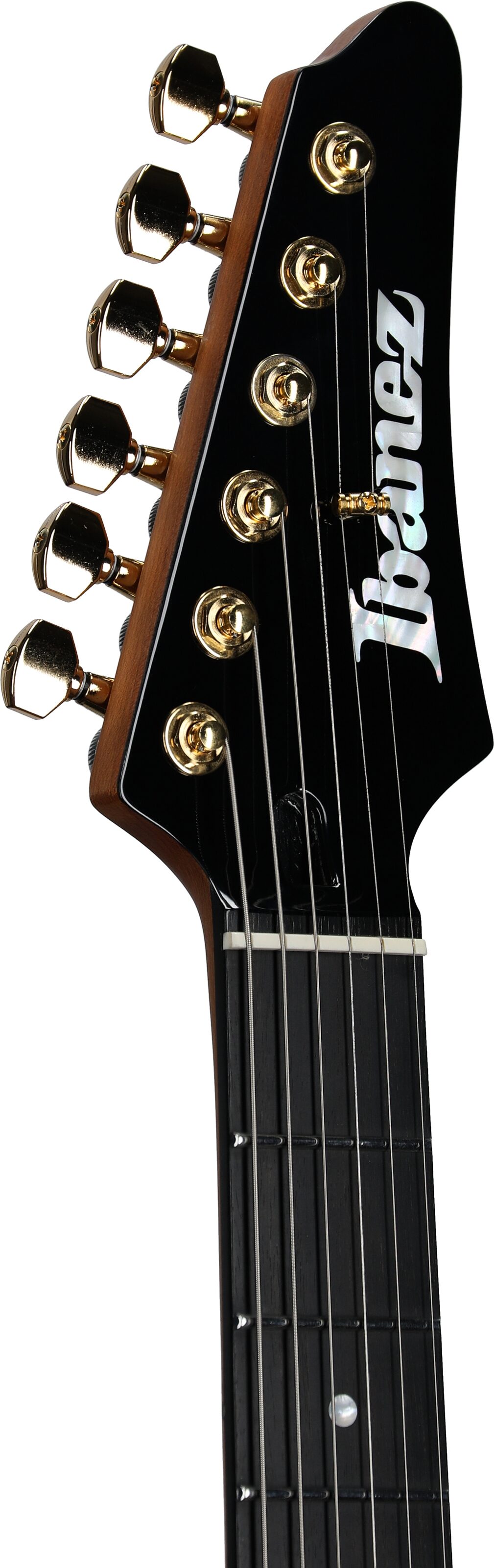

- Gotoh MG-T locking machine heads:
The Gotoh MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

- Gotoh T1502 tremolo:
The T1502 tremolo bridge features steel saddles and a die-cast zinc tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.

- Gig bag included:
It comes with Ibanez gig bag which is designed specifically to fit and protect this instrument.

Features:

- AZ Oval C Roasted Maple neck
- 24 frets
- Quilted Maple top/American Basswood body
- Ebony fretboard with Mother of Pearl dot inlay
- Jumbo Stainless Steel frets
- Graph Tech nut
- DiMarzio Air Norton (H) neck pickup
- DiMarzio True Velvet (S) middle pickup
- DiMarzio The Tone Zone (H) bridge pickup
- Gotoh T1502 tremolo bridge
- Gold hardware
- Gotoh MG-T locking machine heads
- Luminescent side dot inlay
- Gig bag included
read less

- Number of Strings: 6
- Body Material: American Basswood
- Body Shape: AZ
- Body Finish: Polyurethane high gloss
- Neck Material: Roasted Maple
- Neck Shape: AZ Oval C
- Neck Construction: Bolt-on
- Scale Length: 25.5" (648mm)
- Fingerboard Material: Ebony
- Fingerboard Radius: 12" (305mmR)
- Number of Frets: 24
- Fret Size: Jumbo Stainless Steel
- Nut Material: Graph Tech TUSQ
- Nut Width: 42mm (1.65")
- Inlays: Mother of Pearl dot
- Truss Rod: Standard
- Bridge/Tailpiece: Gotoh T1502 Tremolo
- Tuners: Gotoh MG-T locking machine heads
- Pickups: Neck: DiMarzio Air Norton (H), Middle: DiMarzio True Velvet (S), Bridge: DiMarzio Tone Zone (H)
- Controls: 1 Volume, 1 Tone, 1 Alter Switch (for Dyna-MIX9 system)
- Switching: Dyna-MIX9 switching system with Alter Switch and 5-way pickup selector switch
- Configuration: HSH
- Hardware Finish: Gold
- Electronics: Passive
- Strings: Gauge: D'Addario EXL110 (.010/.013/.017/.026/.036/.046)

Dimensions and Weight in Packaging

Dragon Eye Burst

  • Shipping Weight: 6 lbs
  • Shipping Dimensions: 44 x 17 x 5 in
  • Manufacturer Part Number (MPN): AZ47P1QMDEB

Open Box (Very Good), Dragon Eye Burst

  • Shipping Weight: 6 lbs
  • Shipping Dimensions: 44 x 17 x 5 in
  • Manufacturer Part Number (MPN): AZ47P1QMDEB

Open Box (Very Good), Black Ice Burst

  • Shipping Weight: 13.5 lbs
  • Shipping Dimensions: 44 x 17 x 5 in
  • Manufacturer Part Number (MPN): AZ47P1QMBIB

For support or warranty questions, please contact the manufacturer:
Phone: 800-669-8262
Web: https://www.ibanez.com/usa/support/

Reviewers gave this product an overall rating of 5 out of 5 stars. (3 ratings)
Submitted September 16, 2025 by Art Cisneros in Laredo, TX

"Almost returned this amazing guitar"

Overall: 5 out of 5 stars
(see rating details)
Verified Customer zZounds has verified that this reviewer made a purchase from us.
So I got this beauty 3 days ago, just tuned it and played it with the stock strings, it sounded great but it didnt stay much in tune and it was in Eb. I put new strings on it, saw youtube vids on how to restrings these gotoh mt series machine heads, set up the gotoh t1501 bridge nice and flat like a floyd/edge zero like I always do... stretched the strings and everything... all the strings stayed in tune except for the high B and E. They kept going sharp. Didn't find much help online with youtube and reddit... you'd be surprised how LITTLE there was on this hardware onine. Call zZounds to make a return... I believe I spoke with an Aaron.. sorry if I forgot your name brother.. it was with an A.. he asked why I was returning it and told him about those 2 strings. He said he had a similar guitar and suggested it might be the nut. Either file the nut or add some lubricant. He said that was usually the case, so after a nice 10 minute discussion I said I would try that. Went to guitar center and found Music Nomad tune it.... WOW... if you made it this far into my review, i'm surprised. lol. It WORKED! lubed up the nut and the bridge, stretched the strings and everything.... it plays like a DREAM. If you are used to Floyds and Edge Zeros with double locking trem... this is a bit different. But it works and sounds amazing. So i have to say thank you to this gentleman employee. Thank you for giving me these tips. Been playing for over 30 years and I know learned a new way to work on these read more gotoh trems.

Musical Background:
Gigging musician for over 20 plus years

Musical Style:
Rock, metal, spanish rock etc
read less
4 of 4 people (100%) people found this review helpful. Did you?
