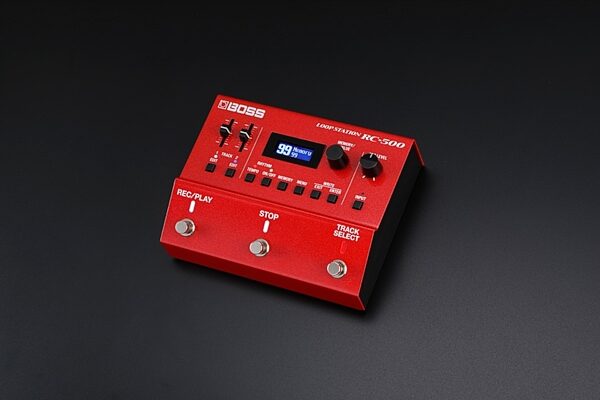

Boss RC-500 Loop Station Pedal

Specifications


Sampling Frequency: 44.1 kHz
AD/DA Conversion: 32 bits
Processing: 32-bit floating point

Recording/Playback:
Number of Tracks: 2
Data Format: WAV (44.1 kHz, 32-bit float, stereo)
Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories)

Rhythm Type: 57 Patterns x 2 Variations
Rhythm Kit: 16 types

Effect:
- LOOP FX (only for loop tracks)
- Type: BEAT REPEAT, BEAT SHIFT, BEAT SCATTER, VINYL FLICK
- Reverb (only for rhythm part)

Memory: 99

Nominal Input Level:
MIC IN: -40 dBu (variable)
INST IN A/MONO B: -10 dBu

Maximum Input Level:
- MIC IN:+8 dBu
- INST IN A/MONO, B: +8 dBu

Input Impedance:
- MIC IN: 4 k ohms
- INST IN A/MONO, B: 1 M ohm

Nominal Output Level: OUTPUT A/MONO, B: -10 dBu
Maximum Output Level: OUTPUT A/MONO, B: +8 dBu

Output Impedance: OUTPUT A/MONO, B: 1 k ohm
Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater

Bypass: Buffered bypass

Controls:
REC/PLAY switch, STOP switch, TRACK SELECT switch, MEMORY/VALUE knob, MIC LEVEL knob, TRACK 1 slider, TRACK 2 slider, TRACK 1 EDIT button, TRACK 2 EDIT button, RHYTHM TEMPO button, RHYTHM ON/OFF button, MEMORY button, MENU button, EXIT button, ENTER button, INPUT button

Display: Graphic LCD (96 x 32 dots, RGB backlit LCD)

Connectors:
- INST IN A/MONO, B jacks: 1/4-inch phone type
- MIC IN jack: XLR type (balanced, phantom power: DC 48 V, 10 mA Max
- OUTPUT A/MONO, B jacks: 1/4-inch phone type
- CTL 1,2/EXP jack: 1/4-inch TRS phone type
- USB port: USB micro B type
- MIDI (IN, OUT) jacks: stereo miniature type
- DC IN jack

Power Supply:
- Alkaline battery (AA, LR6) x 4
- AC adaptor (PSA-S series: sold separately)

Current Draw:
- 330 mA (with phantom power)
- 240 mA (without phantom power)

Expected battery life: under continuous use (These figures will vary depending on the actual conditions of use.)
Alkaline: Approx. 3.5 hours (without phantom power), Approx. 2 hours (with phantom power)

Dimensions:
- 170 (W) x 138 (D) x 60. (H) mm
- 6-3/4 (W) x 5-7/16 (D) x 2-3/8 (H) inches (excluding rubber foot)
- 170 (W) x 138 (D) x 62 (H) mm
- 4 (W) x 5-7/16 (D) x 2-1/2 (H) inches (including rubber foot)

Weight:
- 850g / 1.9 lbs (excluding battery)
- 950 g / 2.1 lbs (including battery)

Accessories:
- Owner's Manual
- Leaflet "USING THE UNIT SAFELY"
- Alkaline battery (AA, LR6) x 4
- Rubber foot x 4

Options (sold separately):
- AC adapter: PSA-S series
- Footswitch: FS-5U
- Dual Footswitch: FS-6, FS-7
- Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5
- TRS/MIDI connecting cable: BMIDI-5-35
- * 0 dBu = 0.775 Vrms
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 3.5 lbs
Shipping Dimensions: 10 x 8 x 5 in
Manufacturer Part Number (MPN): RC-500
