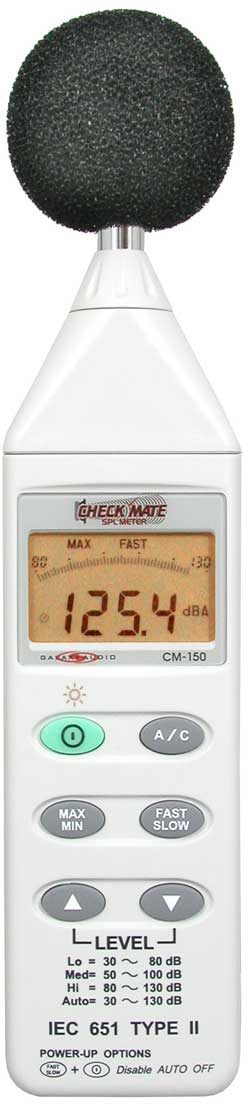

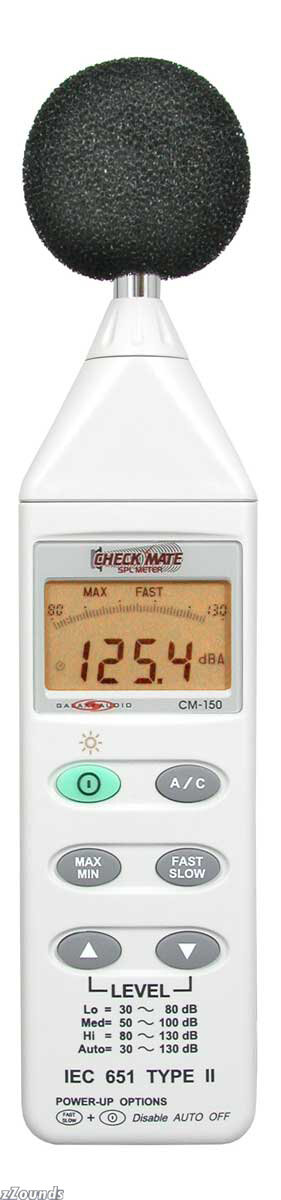

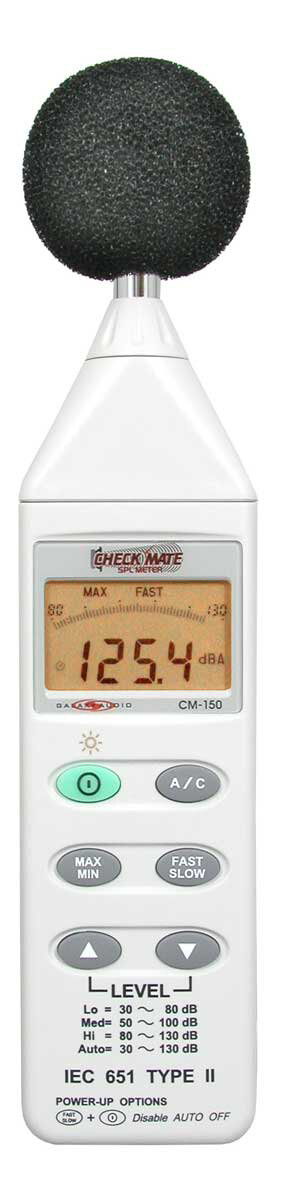

Galaxy Audio CM150 Checkmate Pro Portable SPL Meter
No longer available at zZounds
zZounds Gear Experts Say...
IEC 651 Type II, ANSI S1.4 Type II. Auto Ranging (30 ~ 130dB).
Overview
The Galaxy Audio CM150 SPL Meters are inexpensive tools everybody should own.
The ability to accurately measure the lever of sound in high volume situations can make a huge difference in the percieved audio quality of a mix. The CM150 meets the same IEC 651 Type 2 standards of SPL meters that cost 5 times as much or more.

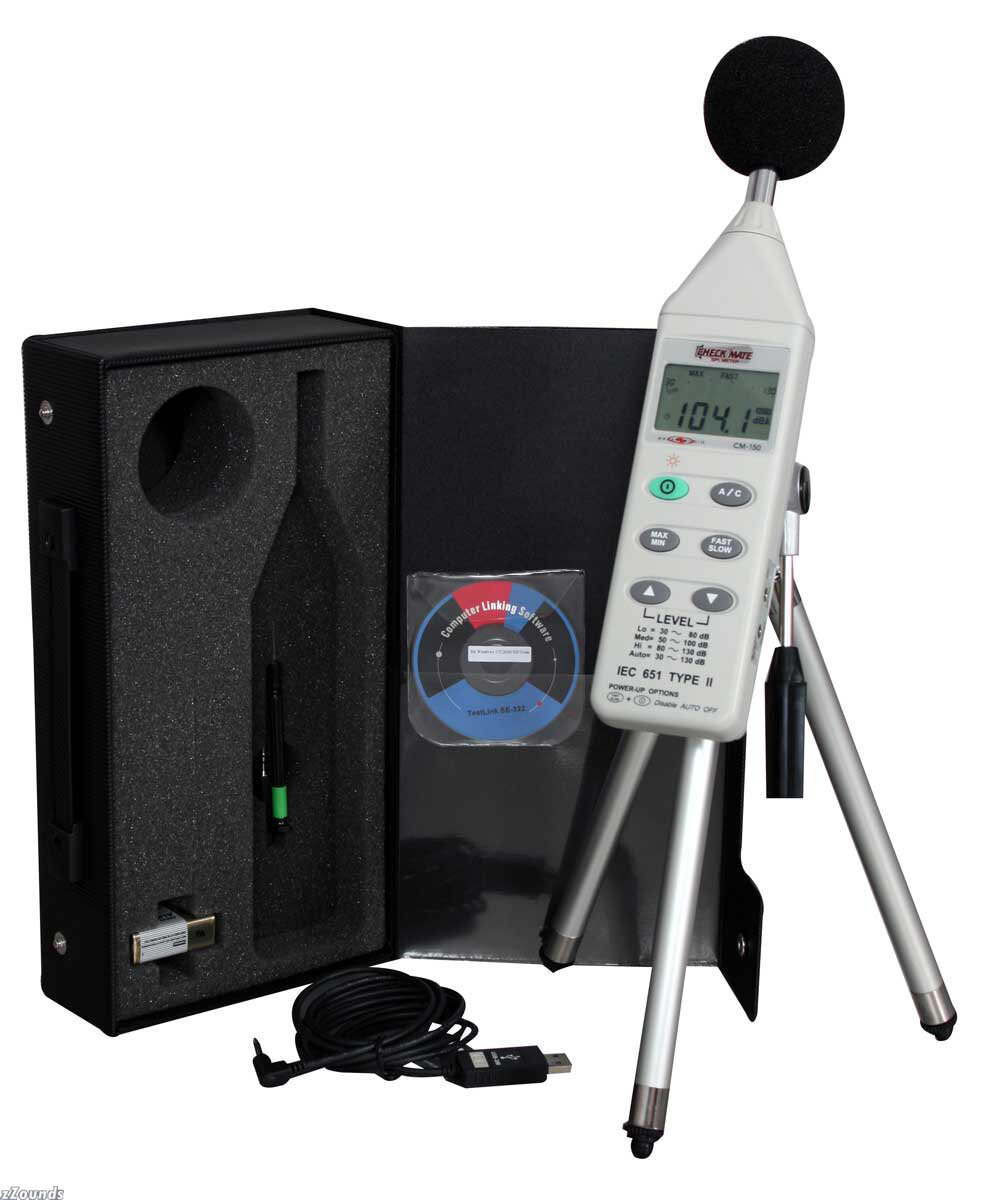

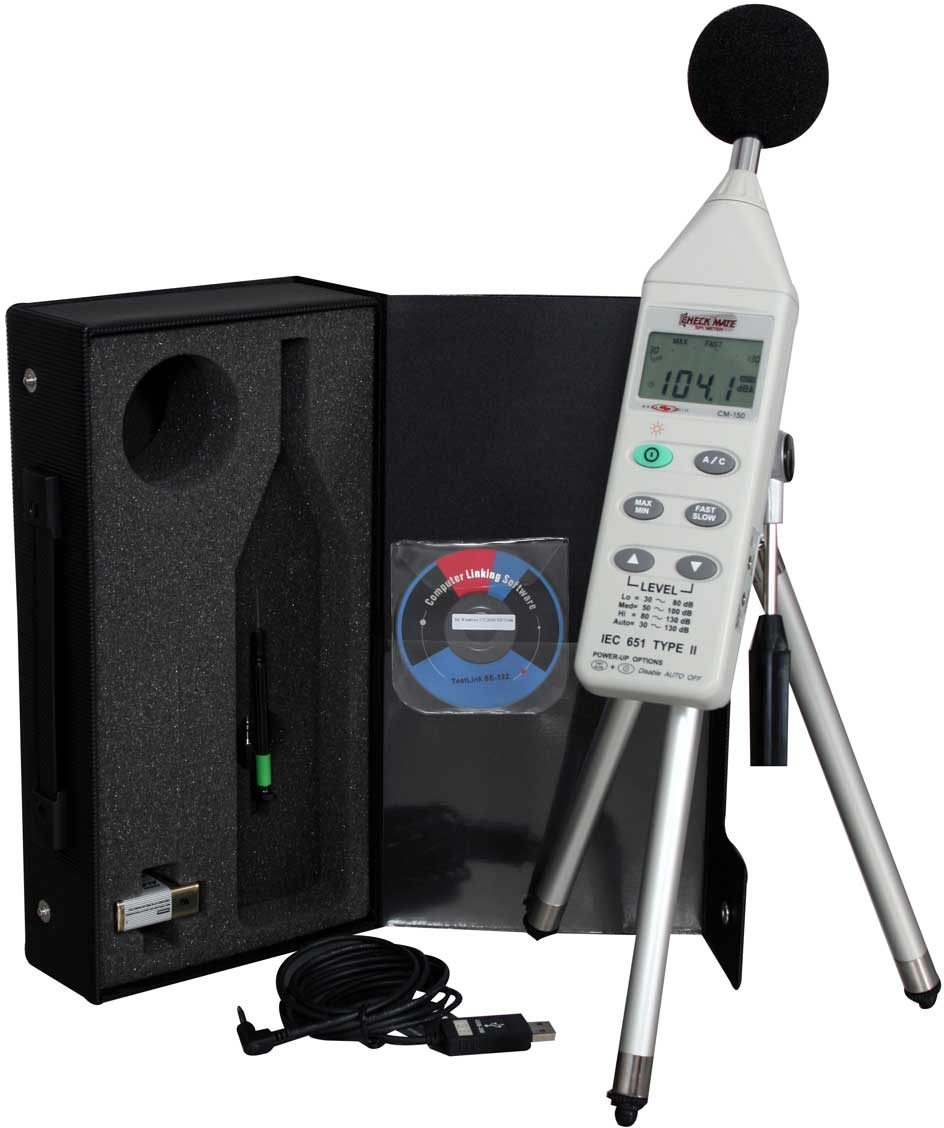

Included Accessories
Carrying Case
Graphical Interface Software Mini CD & Cable CM-SE321 COMBO
CM-BS-6 Tripod
Calibration Screwdriver
Operation Manual
9V Battery
Windscreen
Features
Back light
RS-232 Interface
Graph Indication
MAX/MIN Function
Auto Ranging (30 ~ 130dB)
Level Range Display
AC/DC Signal Output
Resolution 0.1 dB
Auto Power Off
IEC 651 Type II, ANSI S1.4 Type II
The ability to accurately measure the lever of sound in high volume situations can make a huge difference in the percieved audio quality of a mix. The CM150 meets the same IEC 651 Type 2 standards of SPL meters that cost 5 times as much or more.
Included Accessories
Carrying Case
Graphical Interface Software Mini CD & Cable CM-SE321 COMBO
CM-BS-6 Tripod
Calibration Screwdriver
Operation Manual
9V Battery
Windscreen
Features
Back light
RS-232 Interface
Graph Indication
MAX/MIN Function
Auto Ranging (30 ~ 130dB)
Level Range Display
AC/DC Signal Output
Resolution 0.1 dB
Auto Power Off
IEC 651 Type II, ANSI S1.4 Type II
Specs
Microphone: 1/2 Inch Electret condenser microphone
Accuracy: +/- 1.5 dB ( under reference conditions 94dB @1KHz )
Level Range:
- Lo = 30 ~ 80 dB
- Med = 50 ~ 100 dB
- Hi = 80 ~ 130 dB
- Auto = 30 ~ 130 dB
Auxiliary Outputs: AC Signal Output
Frequency Weighting: A , C
Time Weighting: Fast (125mS) , Slow (1 sec.)
Dynamic Range: 50 dB
Frequency Range: 31.5Hz to 8KHz
Alarm Function: Over, Under
Battery Life: 9V Battery 50 hours (included)
Storage Temp.: -10 degrees C~ 60 degrees C(<70% R.H.)
Dimension: 10.8 x 2.5 x 1.2 Inches ( 275mm x 64mm x 30mm )
Weight: Approx. 0.764lbs. (285g)(including battery)
Accuracy: +/- 1.5 dB ( under reference conditions 94dB @1KHz )
Level Range:
- Lo = 30 ~ 80 dB
- Med = 50 ~ 100 dB
- Hi = 80 ~ 130 dB
- Auto = 30 ~ 130 dB
Auxiliary Outputs: AC Signal Output
Frequency Weighting: A , C
Time Weighting: Fast (125mS) , Slow (1 sec.)
Dynamic Range: 50 dB
Frequency Range: 31.5Hz to 8KHz
Alarm Function: Over, Under
Battery Life: 9V Battery 50 hours (included)
Storage Temp.: -10 degrees C~ 60 degrees C(<70% R.H.)
Dimension: 10.8 x 2.5 x 1.2 Inches ( 275mm x 64mm x 30mm )
Weight: Approx. 0.764lbs. (285g)(including battery)
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 800-369-7768 x101
Email: service@galaxyaudio.com
Phone: 800-369-7768 x101
Email: service@galaxyaudio.com
