Galaxy Audio CM130 Checkmate Sound Level SPL Meter

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

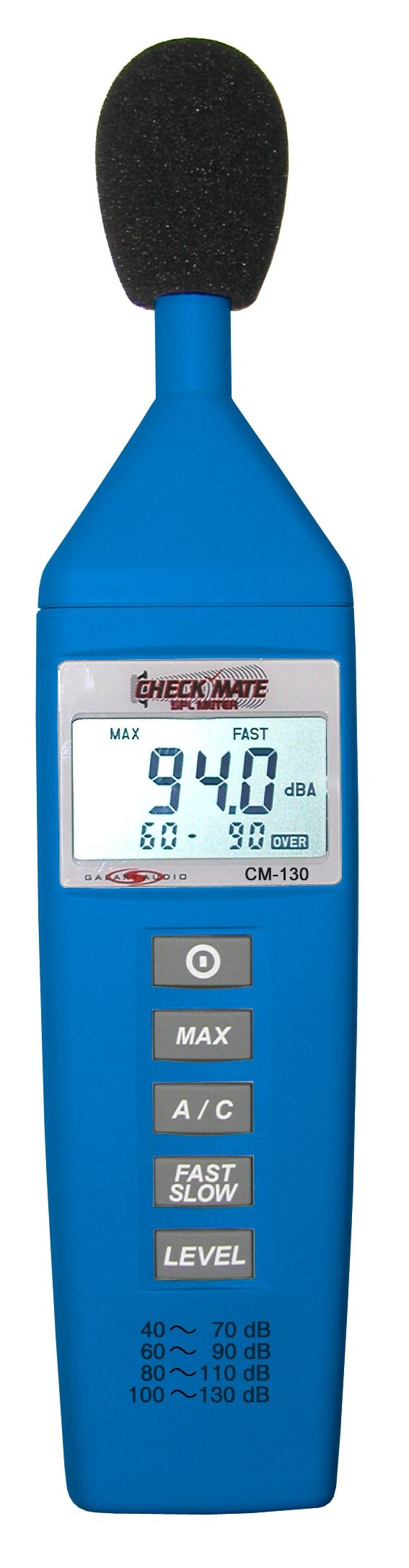

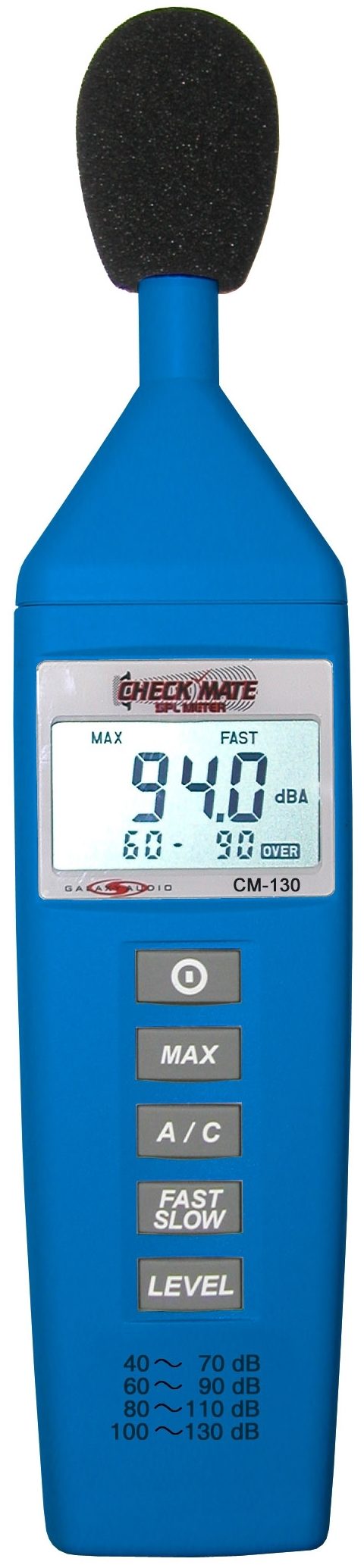

Galaxy Audio CM130 Checkmate Sound Level SPL Meter, Main
Galaxy Audio CM130 Checkmate Sound Level SPL Meter, Main

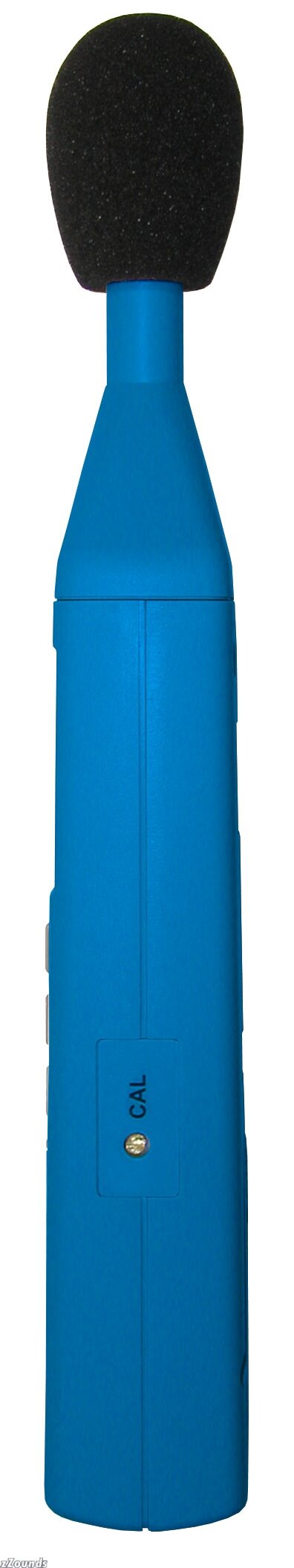

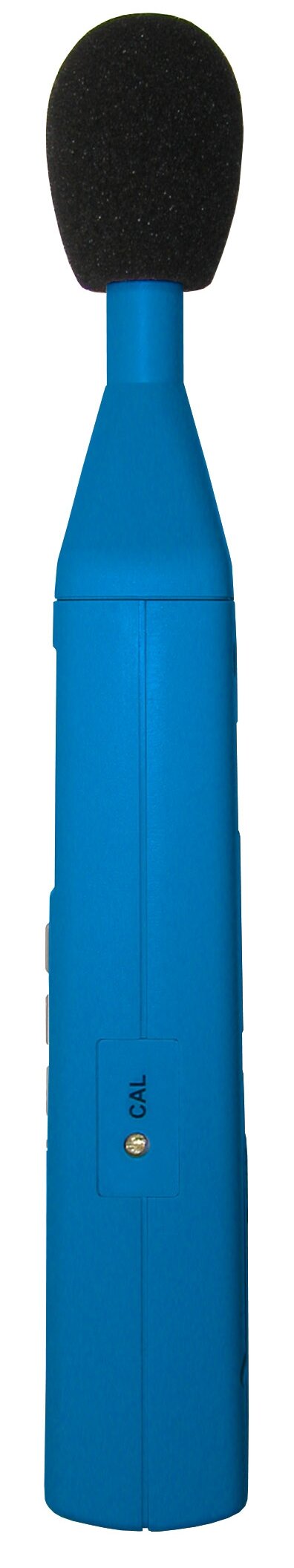

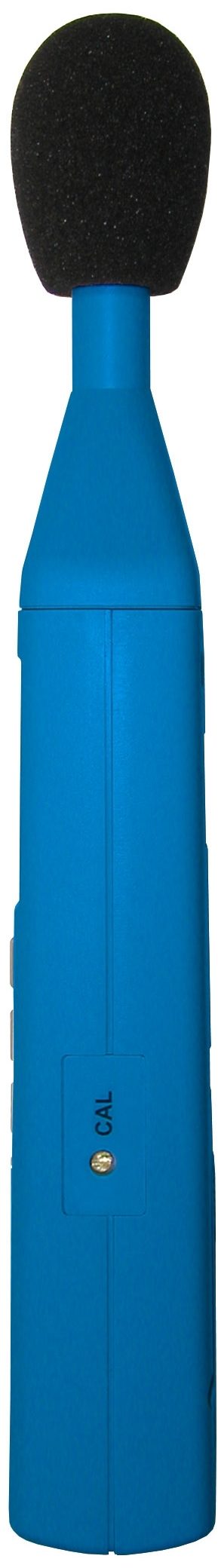

Galaxy Audio CM130 Checkmate Sound Level SPL Meter, Side View
Galaxy Audio CM130 Checkmate Sound Level SPL Meter, Side View
Galaxy Audio CM130 Checkmate Sound Level SPL Meter, Main
Galaxy Audio CM130 Checkmate Sound Level SPL Meter, Side View
Galaxy Audio CM130 Checkmate Sound Level SPL Meter, Main
Galaxy Audio CM130 Checkmate Sound Level SPL Meter, Side View
Galaxy Audio CM130 Checkmate Sound Level SPL Meter, Main Galaxy Audio CM130 Checkmate Sound Level SPL Meter, Main Galaxy Audio CM130 Checkmate Sound Level SPL Meter, Side View Galaxy Audio CM130 Checkmate Sound Level SPL Meter, Side View Galaxy Audio CM130 Checkmate Sound Level SPL Meter, Main Galaxy Audio CM130 Checkmate Sound Level SPL Meter, Side View Galaxy Audio CM130 Checkmate Sound Level SPL Meter, Main Galaxy Audio CM130 Checkmate Sound Level SPL Meter, Side View
zZounds Gear Experts Say...
Affordable and effective, the Galaxy Audio CM130 Checkmate SPL meter features a 40 to 130dB range, A/C weighting, and fast/slow/max response settings.

This portable SPL meter features a built-in condenser mic and digital display. It accurately measures the sound level of just about anything from PA systems to car audio (accuracy +/-2dB).

Features:

- Mini Size
- Low Cost High Performance
- MAX Function
- Level Range Display
- Resolution 0.5 dB

Accessories:

- Operation Manual
- 9V Battery
- Windscreen

- Microphone: 1/2 in. Electret condenser microphone
- Accuracy: +/-2 dB ( under reference conditions 94dB @1KHz )
- Level Range: 1 = 40 ~ 70 dB 2 = 60 ~ 90 dB 3 = 80 ~ 110 dB 4 = 100 ~ 130 dB
- Frequency Weighting: A , C
- Time Weighting: Fast , Slow
- Dynamic Range: 30 dB
- Frequency Range: 125Hz to 8KHz
- Battery Life: 9V Battery 110 hours (included)
- Operation Temp.: 0 degrees C~ 40 degrees C (32 to 104 degrees F)
- Storage Temp.: -10 degrees C~ 60 degrees C(14 to 140 degrees F)
- Dimension: 9.1 in. x 2.1 in. x 1.3 in. (232mmx54mmx34mm)
- Weight: Approx. 0.37lbs. (170g)(including battery)

For support or warranty questions, please contact the manufacturer:
Phone: 800-369-7768 x101
Email: service@galaxyaudio.com

Reviewers gave this product an overall rating of 4 out of 5 stars. (46 ratings)
Submitted July 25, 2012 by Adriaan N Roggeveen in Camilla, GA

""Making Sound Visible""

Overall: 4 out of 5 stars
(see rating details)
Verified Purchaser zZounds has verified that this reviewer purchased this specific product from us.
This small device can do a lot to help hunt down sound or simply tell you were it is going, and where it is not. For the price it will not do a $1000 diagnostic on a home studio or even Lincoln Center. But after a while you will be able to find those low frequency hums that hide in corners or come from other sources than the ones making and recording music. Might even come in handy when telling yuor neighbor that his doggs are louder than your band. Simple controls, battery powered, portable, and more useful than what the title "Sound Pressure Level Meter" may tell you. And...it just might be the one thing you need to "fix" a bad space, or at least put your finger on it...or better your ear.

Musical Background:

Write, Play, Sing, Record Gutar, Banjo, HArmonica, Porchboard Bass 50+ years

Musical Style:

Bluegrass and Christian Gospel, Folk
3 of 3 people (100%) people found this review helpful. Did you?
Thanks for your opinion!
Rate and Review this Product
Read more reviews

No longer available at zZounds

In most cases, a product is unavailable because it has been discontinued by the manufacturer
