Gemini MM4000 4-Channel Mixer with Effects

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

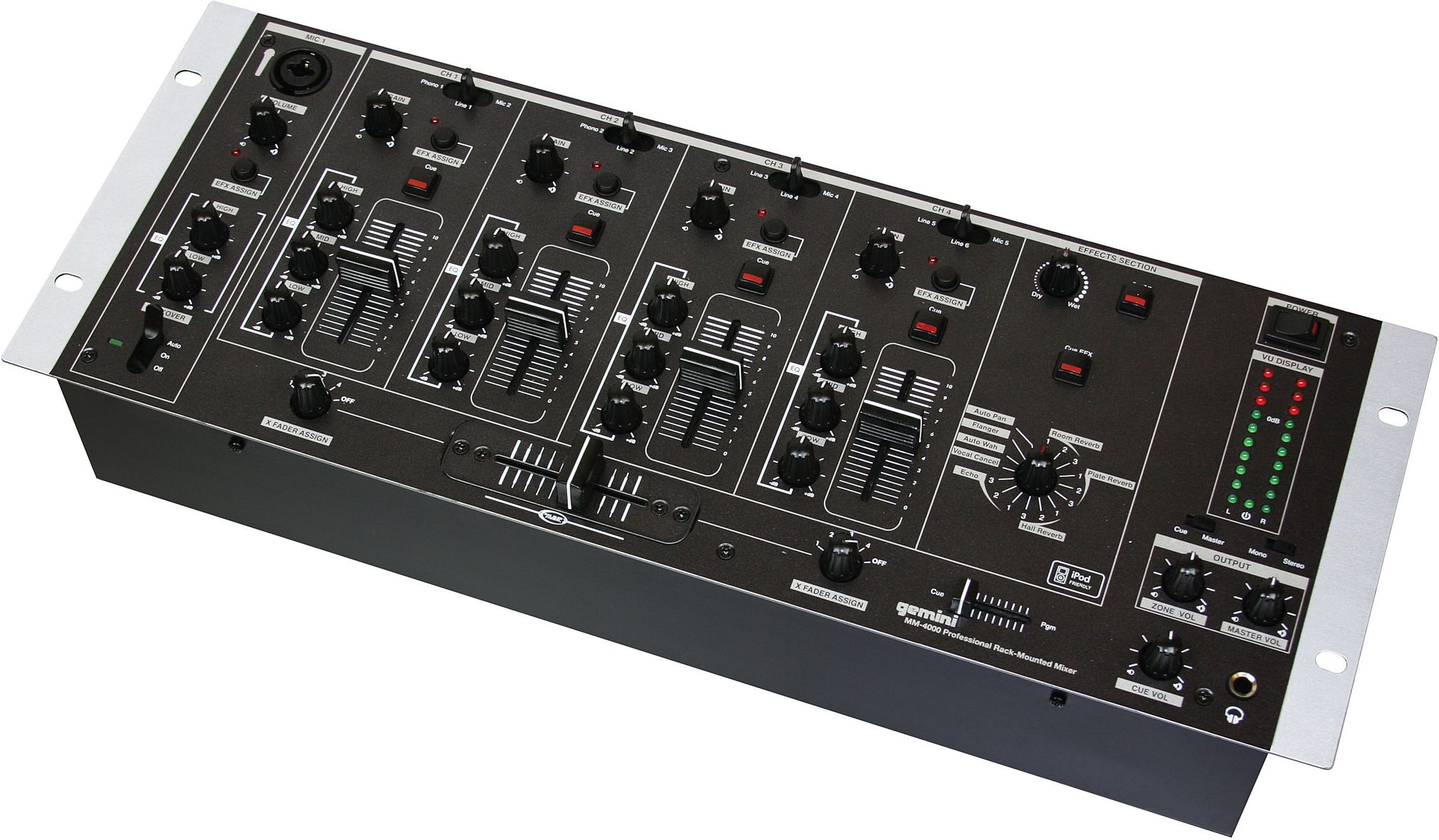

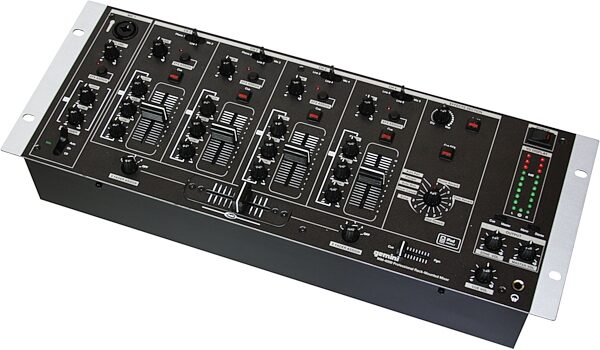

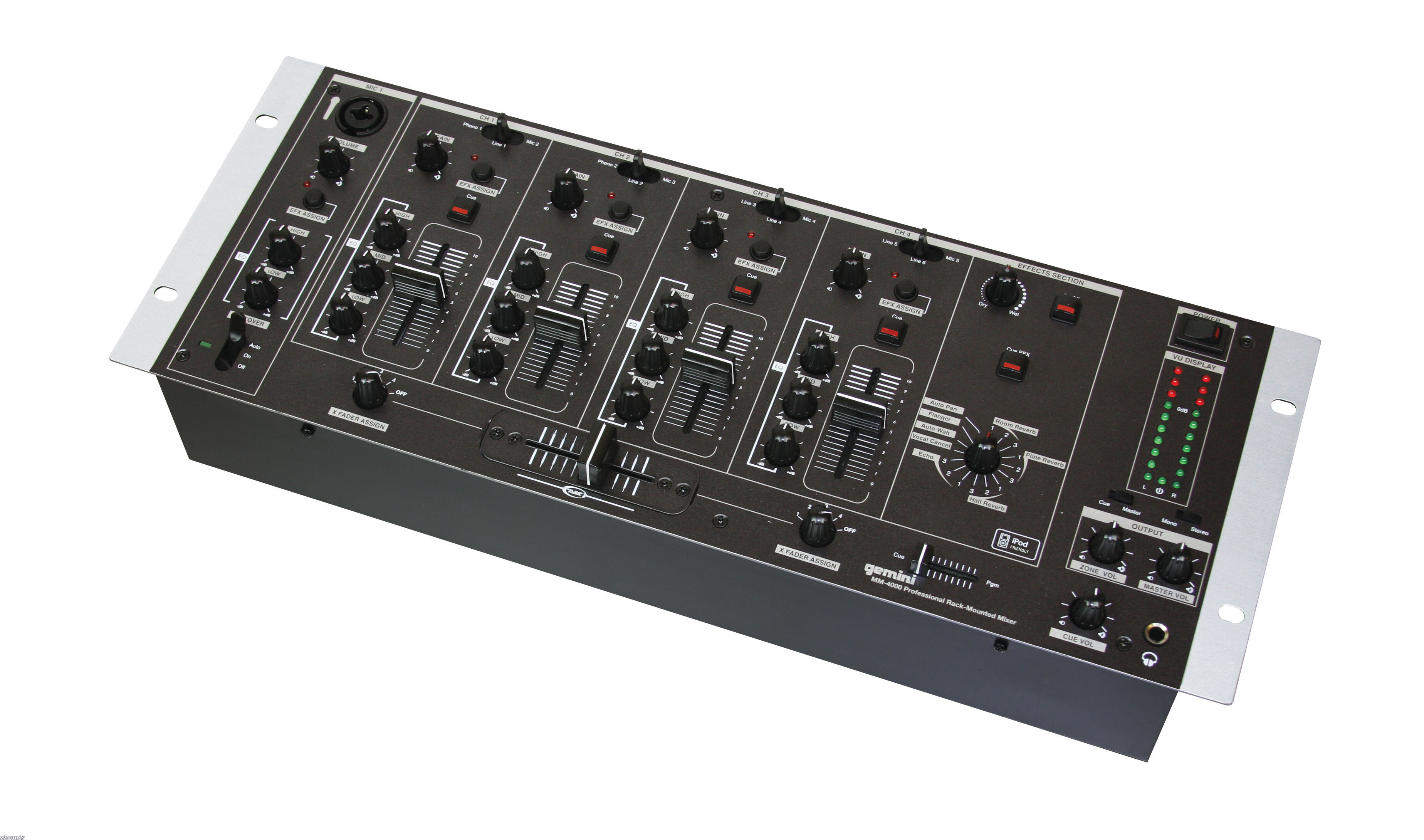

Gemini MM4000 4-Channel Mixer with Effects, Main

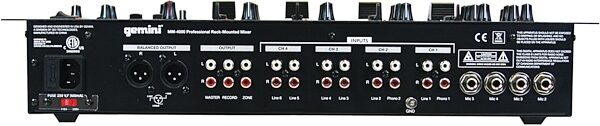

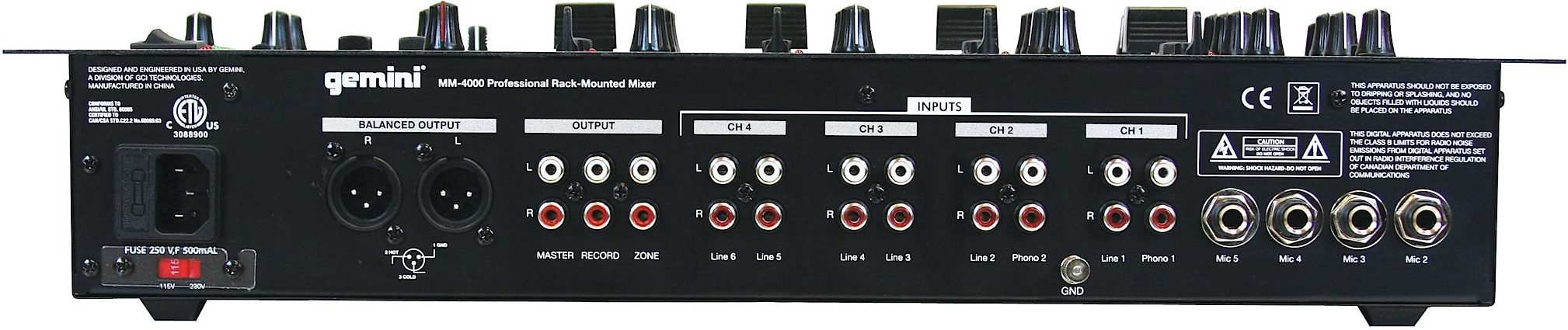

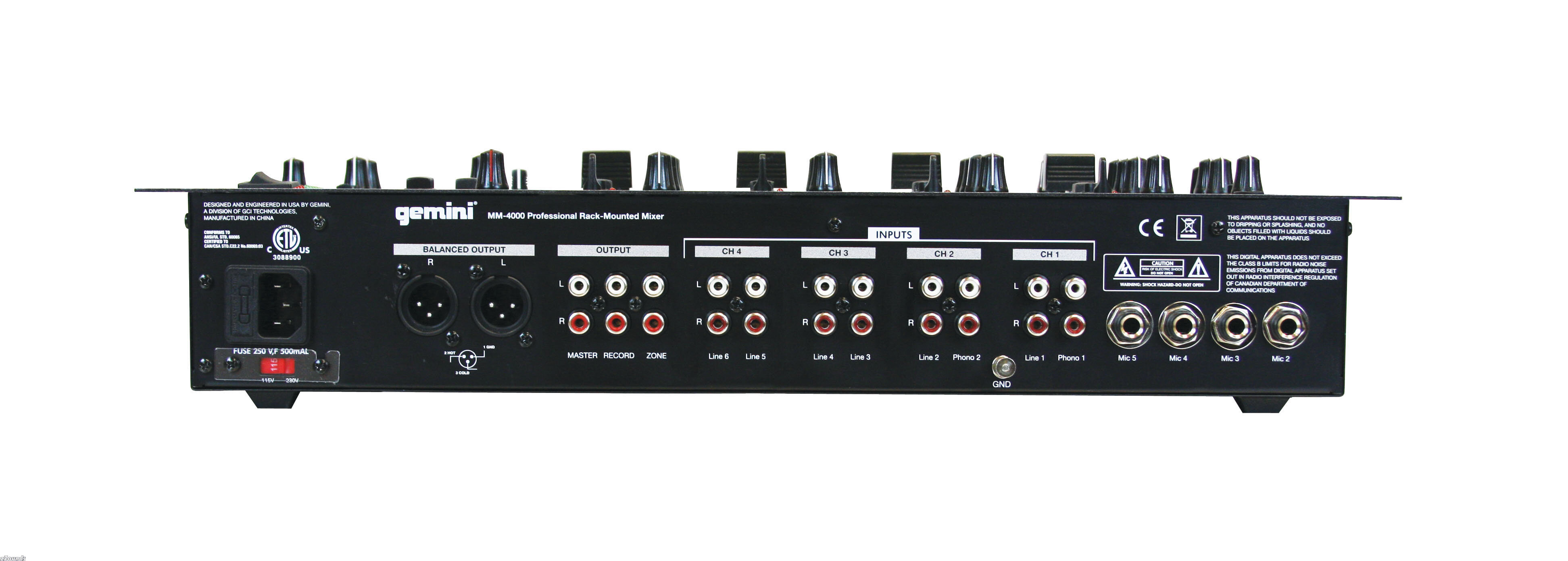

Gemini MM4000 4-Channel Mixer with Effects, Back

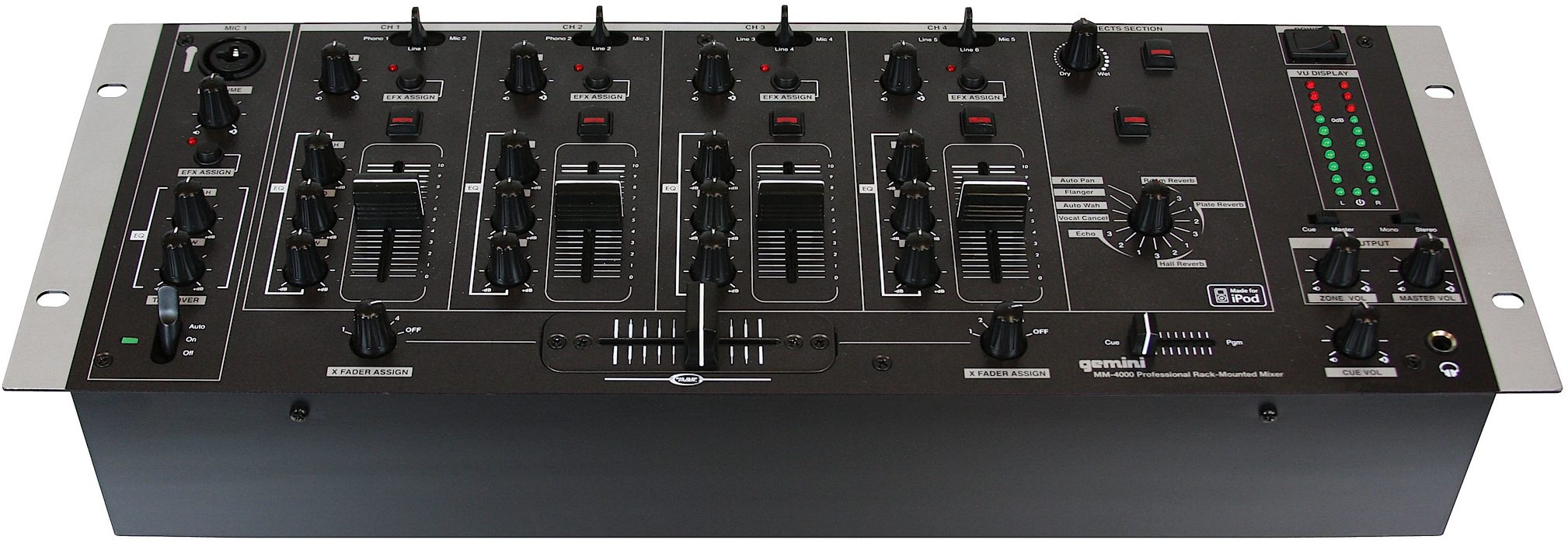

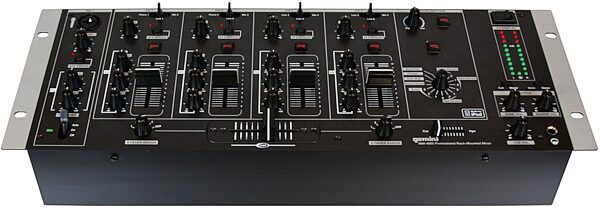

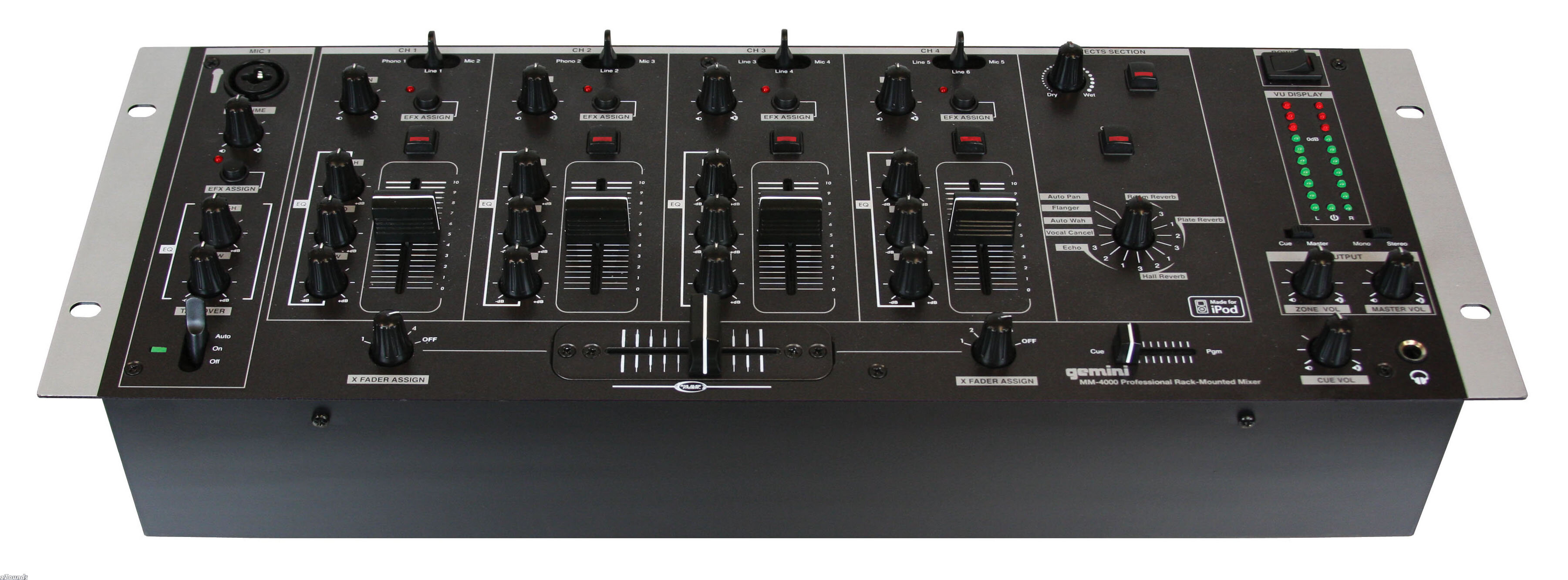

Gemini MM4000 4-Channel Mixer with Effects, Front

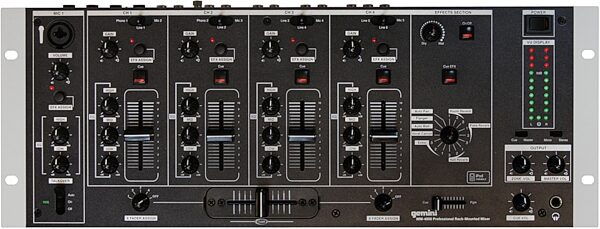

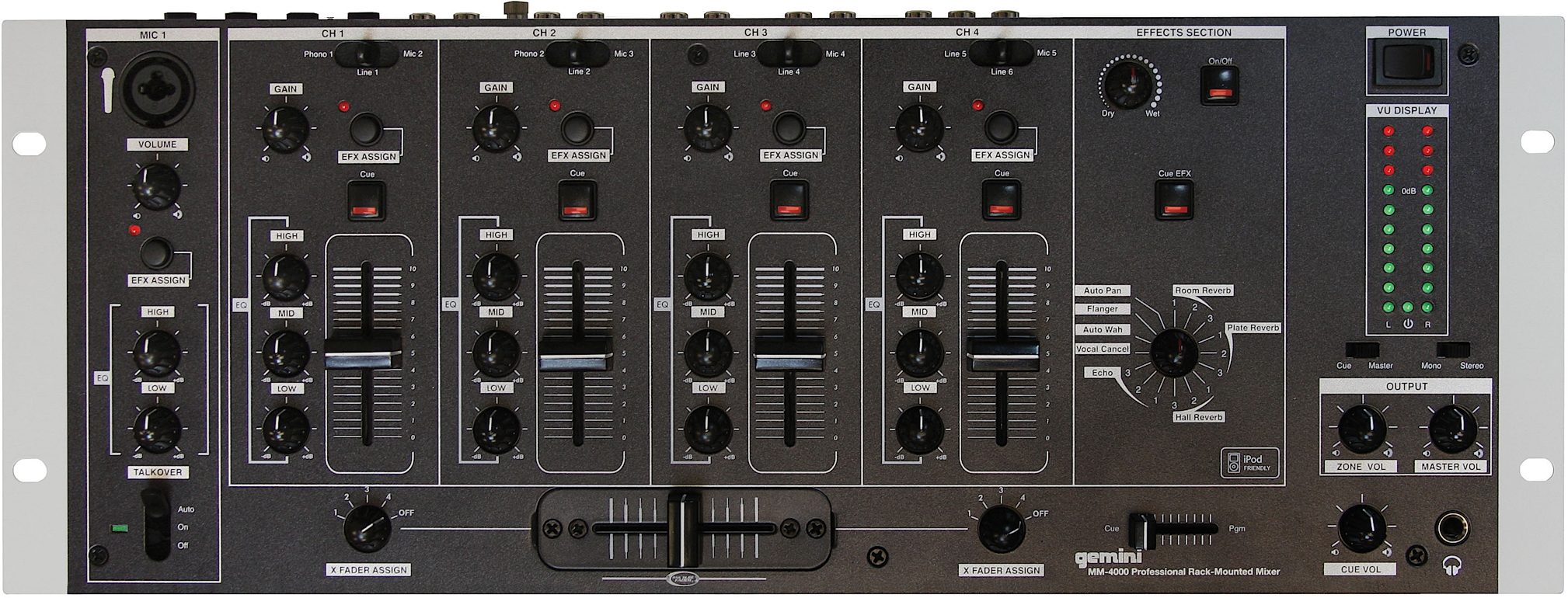

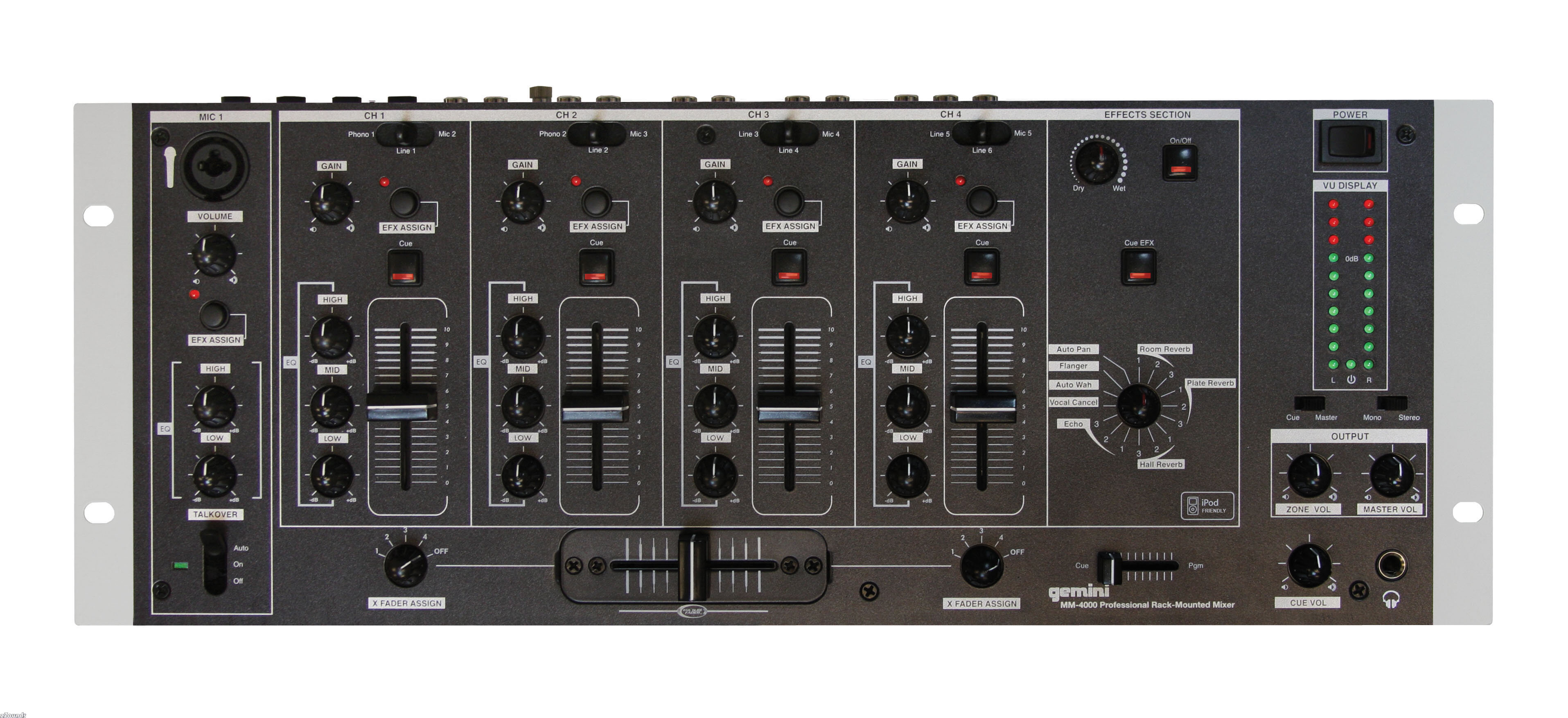

Gemini MM4000 4-Channel Mixer with Effects, Top
Gemini MM4000 4-Channel Mixer with Effects, Main Gemini MM4000 4-Channel Mixer with Effects, Back Gemini MM4000 4-Channel Mixer with Effects, Front Gemini MM4000 4-Channel Mixer with Effects, Top
zZounds Gear Experts Say...
For the DJ that needs an affordable controller, this rack-mountable unit has 6 line and 2 phono RCA inputs, 4 mic inputs, and myriad digital effects.

The Perfect, affordable rack-mount DJ FX Mixer, Gemini's MM-4000 offers exceptional value to Karaoke and Club DJ's. Perfect for vocal manipulation and mixing, this unit comes equipped with 4 unbalanced quarter-inch mic channel inputs, 1 balanced XLR master microphone input, Dry/Web rotary control, plus a rotary control FX Selector that lets you choose between 16 high quality built-in effect choices such as room reverbs, chorus, flange and delays!

Features
# 4U 19-inch rack mounted audio FX mixer
# 4 stereo channels

# 6 line and 2 phono RCA inputs

# 4 1/4-inch unbalanced mic inputs

# 1 balanced XLR master microphone input

# Master, zone & record RCA outputs

# Balanced XLR master output

# 3 band rotary line EQ control per channel

# 8 effect DSP module w/16 presets

# Dry/Wet rotary control

# Rotary control FX selector

# Fully removable, user replaceable Rail Glide cross fader

# Assignable cross fader

# Rotary gain control per channel

# Dual mode VU display with bright LED

# Push-button cue section with CUE/PGM fader control

# Rotary master, zone, balance and cue volume controls

# Rotary main mic volume control

# 2 band main mic EQ

# Auto or manual talk-over feature

# Face plate located 1/4-inch headphone jack

Specifications
Frequency Response: 20 Hz to 20 kHz +/- 0.5 dB

THD+N: 0.02% at 1 kHz

Signal to Noise Ratio (Ref to Max. Level) Dynamic Range: >98 dB

Noise Floor (Line in to any output): <-80 dBV

Max Output Level (Unity Gain- Line Input): +17 dBV Unbalanced | +23 dBV Balanced

EQ (Mic Channel): 2 band +/- 12 dB | Hi +10, -30 dB | Mid +8, -30 dB | Low +12, -32 dB

Line Inputs: x12 (RCA) 6 line inputs, -17 dBV / >10 K Ohm

Phono Inputs: x4 (RCA) x2 phono inputs, -54 dBV / 47 K Ohm

Mic Input: x5 (1/4 in. 6.3 mm jack) -60 dBV / 1 K Ohm

Master Outputs: x2 (XLR) Balanced / x2 (RCA) Unbalanced, +6 dBV Balanced / 0dBV Unbalanced

Record Output: x2 (RCA) Unbalanced/ -16 dBV

Headphone Output: x1 (1/4 in.) 32 Ohm load

Dimensions: 19 x 7 x 3 in. (483 x 178 x 76 mm)

Weight: 10 lbs (4.53 kg)

For support or warranty questions, please contact the manufacturer:
Phone: 732-346-0061 or 844-GEMINI-9
Email: hello@geminisound.com
Web: https://support.geminisound.com
