Gemini MM02 4-Channel 19 in. Rackmount DJ Mixer

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

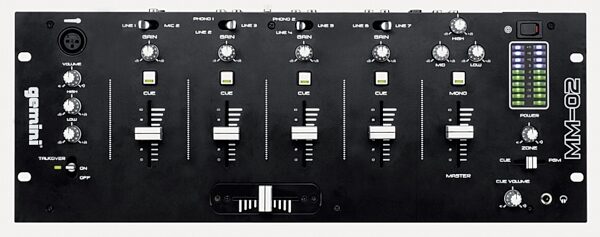

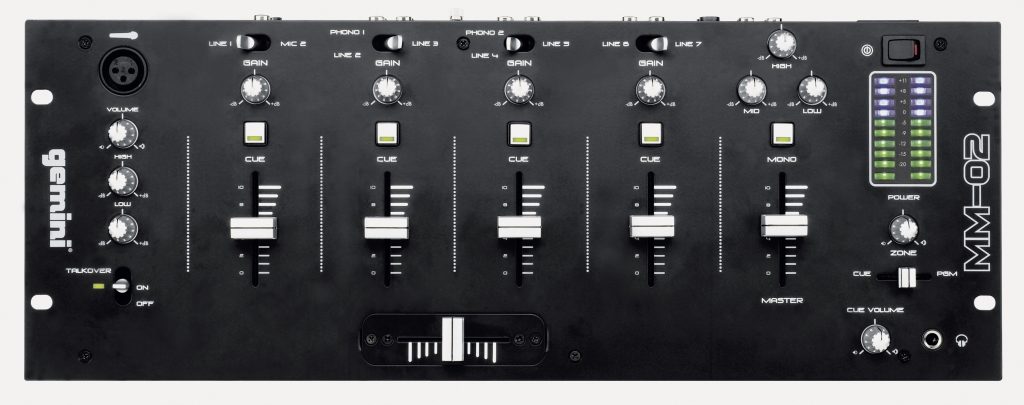

Gemini MM02 4-Channel 19 in. Rackmount DJ Mixer, Main

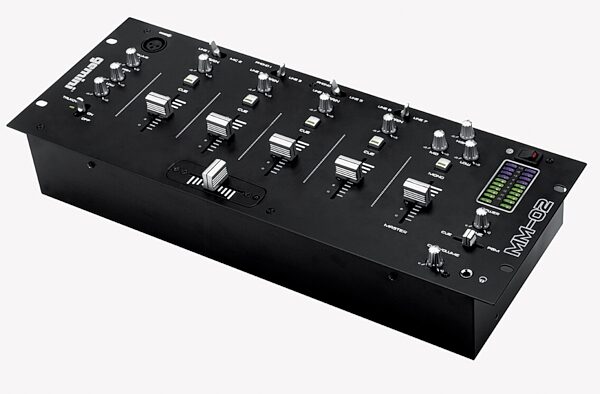

Gemini MM02 4-Channel 19 in. Rackmount DJ Mixer, Angle
Gemini MM02 4-Channel 19 in. Rackmount DJ Mixer, Back
Gemini MM02 4-Channel 19 in. Rackmount DJ Mixer, Main Gemini MM02 4-Channel 19 in. Rackmount DJ Mixer, Angle Gemini MM02 4-Channel 19 in. Rackmount DJ Mixer, Back
zZounds Gear Experts Say...
7 line, 2 mic, 2 convertible phono/line RCA inputs. 3 band rotary master EQ with cut feature.

Introducing the MM-02, 4U, 19 in. rack mounted club mixer from Gemini. This 4 channel mixer is perfect for the versatile DJ offering the latest advancements. With 7 line, 2 mic, 2 convertible phono/line, RCA inputs, and mic inputs with talkover feature, the MM-01 is just the right mixer for your club setup.

Features
4U 19 in. rack mounted club/mobile mixer

4 stereo channels

7 line, 2 mic, 2 convertible phono/line RCA inputs

Master, record, & zone RCA outputs

1/4 in. balanced master outputs

3 band rotary master EQ with cut feature

Push button mono control

Rotary gain channel control

XLR mic input

Removable, user replaceable Rail Glide cross fader

Dual VU display with bright LED

Push button cue section with CUE/PGM fader control

Rotary mic volume & EQ controls

Talkover feature

1/4 in. headphone output

Inputs:
-- Phono: 3 mV, 47 kilohms

-- Line: 150 mV, 10 kilohms

-- Mic 1 & mic 2: 1.5 mV, 1 kilohm balanced

Outputs:
-- Amp/booth: 0 dB 1V, 400 ohm

-- Max: 20V peak-to-peak

-- Rec: 225 mV, 5 kilohms

General:
-- Frequency response: 20Hz - 20KHz +/- 2 dB

-- Distortion: 0.02%

-- S/N ratio: better than 80 dB

-- Talkover attenuation: -16 dB

-- Headphone impedance: 16 ohm

-- Power source: 115V, 50/60Hz

For support or warranty questions, please contact the manufacturer:
Phone: 732-346-0061 or 844-GEMINI-9
Email: hello@geminisound.com
Web: https://support.geminisound.com
Owner's Manual
