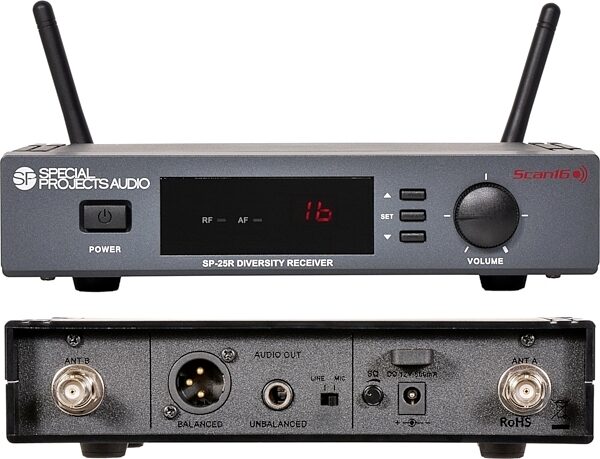

Special Projects Audio by Galaxy Audio SP-25RD1 Wireless Receiver

A replacement receiver for the EVO fitness wireless system, the Special Projects Audio SP-25RD1 uses true diversity operation for reliably clear audio.

Overview

The Special Projects Audio by Galaxy Audio SP-25RD1 is a 16-channel, true-diversity, auto-scan replacement receiver for EVO Headset Mic or fitness pack system in the 540-570 MHz frequency range. The Scan16 and EVO Mic Auto Scan true wireless system is easy to set up and use. The receiver finds the strongest channel -- all you have to do is set the EVO headset or a fitness body pack to the corresponding channel and you're done!

Features:

- 540-570 MHz Frequency Range
- 16 Channels
- Auto Scan
- True Diversity

Specs

- Band: UHF
- Frequency Channels: 16
- Frequency Range: 540-570 MHz
- Frequency Stability: 0.005%
- Outputs: 1 Balanced XLR, 1/4" Unbalanced (Mic.= -20dB / Line = 0dB)
- Sensitivity: 8 dBV over 80dB S/N ratio
- Image and Spurious Rejection: 80 dB minimum
- Modulation: FM
- Signal to Noise: >94dB, at 48KHz deviation and 60dBV antenna input
- Frequency Response: 80Hz to 12KHz (3dB)
- T.H.D.: <1.0% (at 1KHz)
- Power Supply: DC 12V ~ 18V
- Current Consumption: 110mA at 3V
- Dimensions: 13 10 6 in
- Weight: 2.75 lbs

Dimensions and Weight in Packaging
540-570MHz: Shipping Weight: 3.75 lbs; Shipping Dimensions: 13 x 11 x 6 in; Manufacturer Part Number (MPN): SP-25RD1

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
