Galaxy Audio ECMR/52 Body Pack Wireless System
No longer available at zZounds
zZounds Gear Experts Say...
Pair the Galaxy Audio ECMR/52 body pack system with your favorite headset or lavalier microphone for a rugged, reliable wireless onstage vocal solution.
Overview
The Galaxy Audio ECM is an economical solution to a great wireless microphone system. The ECM has 16 selectable channels, IR Sync, Diversity Antennas mounted to the front of the rugged plastic casing.

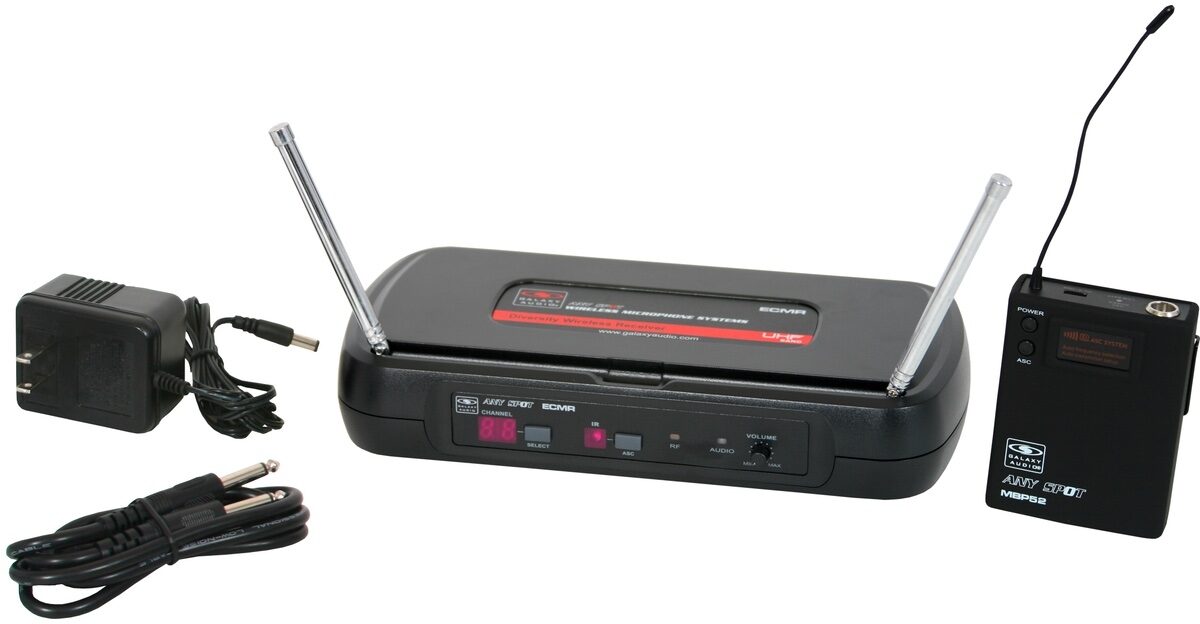

The ECMR/52 Body Pack system includes the ECMR Receiver, the MBP52 Body Pack Transmitter, 1/4" to 1/4" cable, and Power Supply.
Add your own headset microphone, lavalier microphone, or instrument cable to complete this wireless system.
- 16 Selectable UHF Frequencies
- Diversity Antennas
- Output Volume Control
- IR Sync Receiver to Transmitter
- RF/AF Presence Indicators
- Squelch Adjustment
- XLR / 1/4" Outputs
- Rugged Plastic Casing
The ECMR/52 Body Pack system includes the ECMR Receiver, the MBP52 Body Pack Transmitter, 1/4" to 1/4" cable, and Power Supply.
Add your own headset microphone, lavalier microphone, or instrument cable to complete this wireless system.
Features:
- 200' Range- 16 Selectable UHF Frequencies
- Diversity Antennas
- Output Volume Control
- IR Sync Receiver to Transmitter
- RF/AF Presence Indicators
- Squelch Adjustment
- XLR / 1/4" Outputs
- Rugged Plastic Casing
Specs
Available Channels: 16
Frequency Range: CODE D 584~607 MHz, CODE N 518~542 MHz
Transmitter Output Level: 10 mW
Band: UHF
Operating Range Under Typical Conditions: 200' (61 m), actual range depends on RF signal absorption, reflection, and interference.
Audio Frequency Response: (+/-3 dB) 70 Hz ~ 16 kHz
Total Harmonic Distortion: (+/-30 kHz deviation 1 kHz tone): <1%
Dynamic Range: >90 dB A-weighted
Operating Temperature Range: 14 degrees F to 122 degrees F, battery characteristics may limit this range
Frequency Range: CODE D 584~607 MHz, CODE N 518~542 MHz
Transmitter Output Level: 10 mW
Band: UHF
Operating Range Under Typical Conditions: 200' (61 m), actual range depends on RF signal absorption, reflection, and interference.
Audio Frequency Response: (+/-3 dB) 70 Hz ~ 16 kHz
Total Harmonic Distortion: (+/-30 kHz deviation 1 kHz tone): <1%
Dynamic Range: >90 dB A-weighted
Operating Temperature Range: 14 degrees F to 122 degrees F, battery characteristics may limit this range
