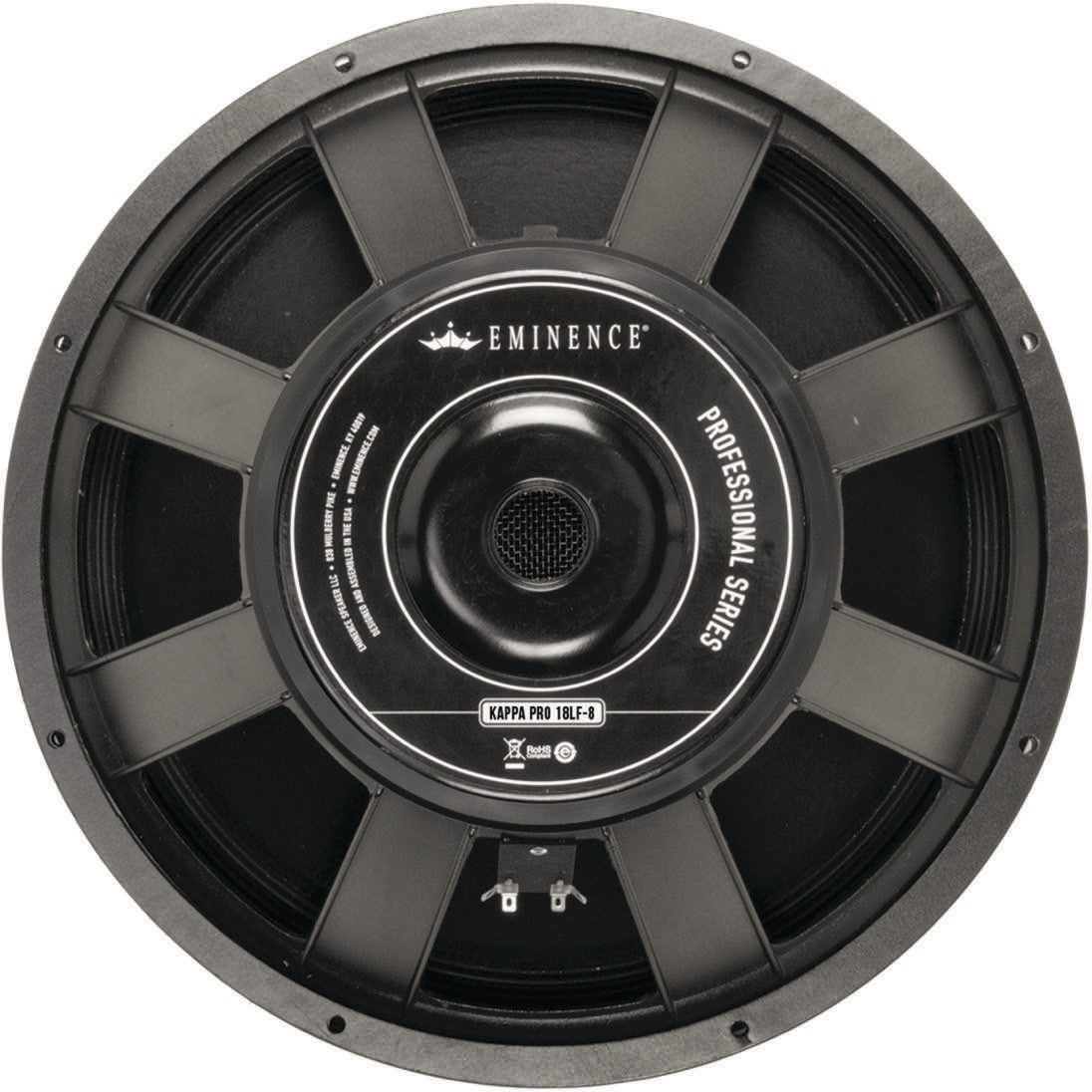

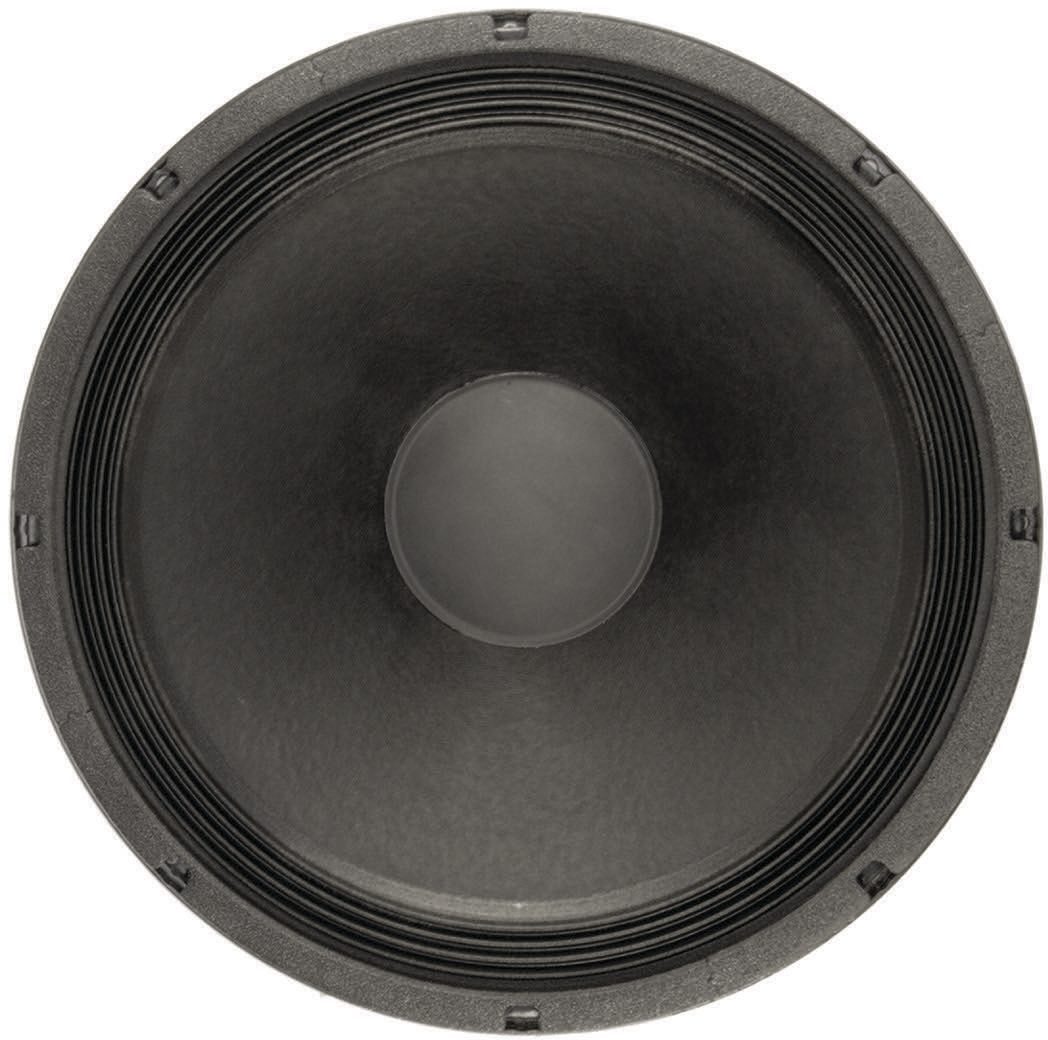

Eminence Kappa Pro Bass Speaker (800 Watts, 18")

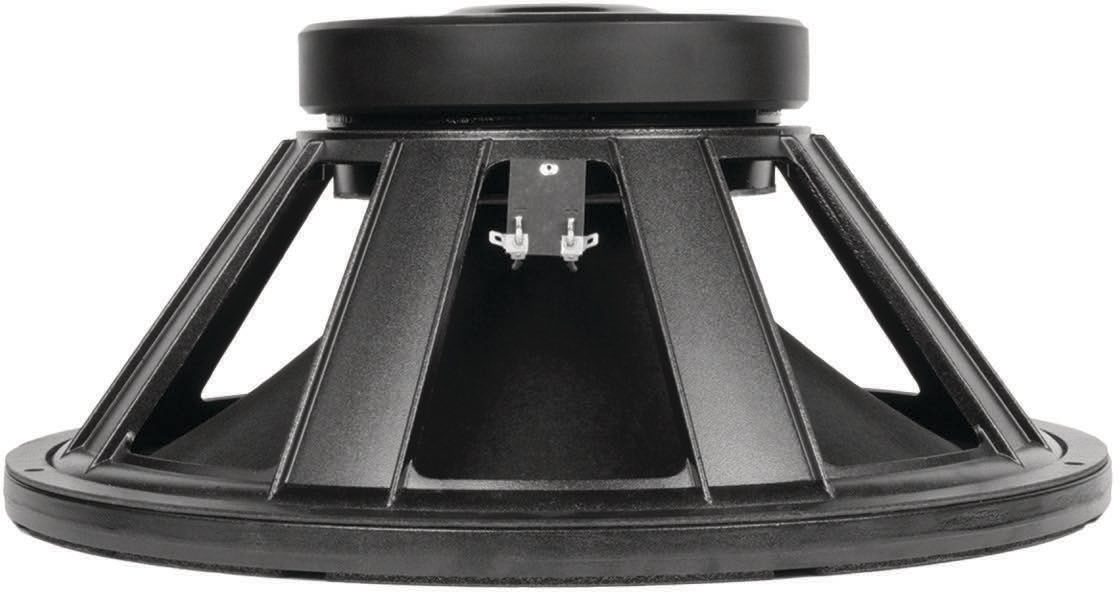

Eminence Kappa Pro Bass Speaker (800 Watts, 18"), 8 Ohms, Side

zZounds Gear Experts Say...

Great for subwoofers, three-way PA enclosures, or high-power bass guitar amps, the Eminence Kappa Pro 18LF is a low-end monster in a light, aluminum chassis.

Overview

The Eminence Kappa Pro 18LF is the latest addition to the popular Kappa series of drivers that provides tons of low frequency output in a lightweight, durable cast aluminum chassis. Use it as a subwoofer in small to medium sized boxes, a woofer in large three-way PA enclosures, or as a high-power bass guitar woofer. The 1,600 watt program power rating makes it an easy choice for new box designs or as a replacement for many single and double subwoofer cabinets.

Jerry McNutt, Product Design Manager at Eminence, commented "The 1,600 watt program power rating will give you the confidence to crank them up. The Kappa Pro 18LF is well-suited for new projects, and works well as a replacement for many single and double subwoofer cabinets."

Take an in-depth tour of the Eminence speaker factory:

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

- Nominal Basket Diameter: 18", 457 mm
- Nominal Impedance: 8 O
- Program Power: 1600 W
- Watts: 800 W
- Resonance : 32 Hz
- Usable Frequency Range: 38 Hz - 0.7 kHz
- Sensitivity: 98 dB
- Magnet Weight: 120 oz.
- Gap Height: 0.37", 9.5 mm
- Voice Coil Diameter: 3", 76 mm

THIELE & SMALL PARAMETERS
- Resonant Frequency (fs): 32 Hz
- DC Resistance (Re): 5.39 O
- Coil Inductance (Le): 1.21m H
- Mechanical Q (Qms): 10.66
- Electromagnetic Q (Qes): 0.34
- Total Q (Qts): 0.33
- Compliance Equivalent Volume (Vas): 391.61 liters / 13.83 cu.ft.
- Peak Diaphragm Displacement Volume (Vd): 927.2 cc
- Mechanical Compliance of Suspension (Cms): 0.21 mm/N
- BL Product (BL): 19.39 T-M
- Diaphragm Mass Inc. Airload (MMs): 119 grams
- Efficiency Bandwidth Product (EBP): 94
- Maximum Linear Excursion (Xmax): 8 mm
- Surface Area of Cone (Sd): 1159 cm2
- Maximum Mechanical Limit (Xlim): 18 mm

MOUNTING INFORMATION
- Recommended Enclosure Volume
- Sealed: 0-0 liters / 0-0 cu.ft.
- Vented: 113.27-353.96 liters / 4-12.5 cu.ft.
- Driver Volume Displaced: 0.234 cu.ft. / 6.62 liters
- Overall Diameter: 18", 457.2 mm
- Baffle Hole Diameter: 16.58", 421.1 mm
- Front Sealing Gasket: Yes
- Rear Sealing Gasket: Yes
- Mounting Holes Diameter: 0.28", 7.1mm
- Mounting Holes B.C.D.: 17.25", 438.2mm
- Depth: 8.15", 207 mm
- Net Weight: 24.5 lbs, 11.11 kg
- Shipping Weight: 28.1 lbs, 12.75 kgs

MATERIALS OF CONSTRUCTION
- Coil Construction: Copper voice coil
- Coil Former: Kapton former
- Magnet Composition: Ferrite magnet
- Core Details: Vented and extended core
- Basket Materials: Die-cast aluminum basket
- Cone Composition: Treated paper cone
- Cone Edge Composition: Cloth cone edge
- Dust Cap Composition: Treated paper dust cap

Dimensions and Weight in Packaging
8 Ohms: Shipping Weight: 26.25 lbs; Shipping Dimensions: 20 x 19 x 9 in; Manufacturer Part Number (MPN): KAPPA PRO 18LF-8
