Electro-Harmonix Switchblade Plus Channel Switcher Pedal

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

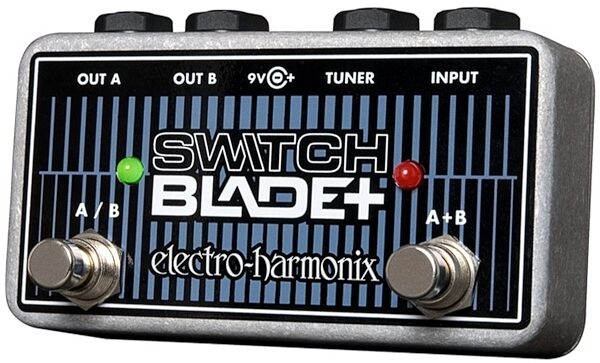

open zoom image for Electro-Harmonix Switchblade Plus Channel Switcher Pedal, New, Main
Electro-Harmonix Switchblade Plus Channel Switcher Pedal, New, Main
zZounds Gear Experts Say...
Stomp on the Switchblade Plus to add a healthy dose of versatility to your rig. This ABY pedal allows you to select between two destinations, or engage both.

Convenient solution to every player's switching needs. Route your signal to either output A or B, or send it to both at once. Connect a tuner to its dedicated tuner output. Features a fully passive audio path and active LED indication.

Features:

- Route your signal to output A or output B or both simultaneously
- Easily switch between different pedal boards
- The tuner jack is hardwired to the input jack and provides a direct output for a tuner or other effects regardless of the state of the unit
- The audio path is completely passive
- The Switchblade Plus can be powered by a 9 volt battery or 9VDC eliminator
- Dimensions in inches: 2.75 (w) x 4.5 (l) x 2.1 (h)
- Dimensions in mm: 70 (w) x 115 (l) x 54 (h)
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- Input Connectors: 1/4" jack
- Output Connectors: 2 x 1/4" jacks (OUT A, OUT B), 1 x 1/4" tuner jack
- Switching Type: Passive mechanical switching
- Channels: A/B or A+B (both simultaneously)
- Impedance: 50kΩ (when A+B engaged) / 100kΩ (when A+B not engaged) in parallel with connected device impedances
- Power Requirements: 9V battery or 9VDC eliminator (minimum 16mA), optional 9.6VDC-200mA adapter

Dimensions and Weight in Packaging

Base Item

  • Shipping Weight: 0.69 lbs
  • Shipping Dimensions: 6 x 3 x 3 in
  • Manufacturer Part Number (MPN): SWITCH+

For support or warranty questions, please contact the manufacturer:
Phone: 718-937-7818
Web: https://www.ehx.com/support/

Reviewers gave this product an overall rating of 5 out of 5 stars. (1 ratings)
Submitted July 10, 2023 by a customer from att.net

"Great A/B pedal"

Overall: 5 out of 5 stars
(see rating details)
Verified Purchaser zZounds has verified that this reviewer purchased this specific product from us.
I wanted a pedal that would let me use two amps at once as well as switch from one to the other. This works perfectly for that application. Product feels well made and the switches seem to be very robust. Came with the battery preinstalled. You do have to remove 4 screws to access the battery but it is only used for the 3 indicator lights on the pedal so it should last a good, long while. I haven't noticed any sound degradation while using it. I highly recommend it this pedal.
7 of 7 people (100%) people found this review helpful. Did you?
Thanks for your opinion!
Rate and Review this Product
Read more reviews

New

$56.30
