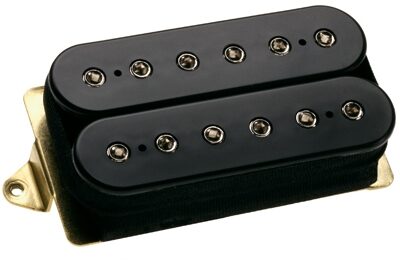

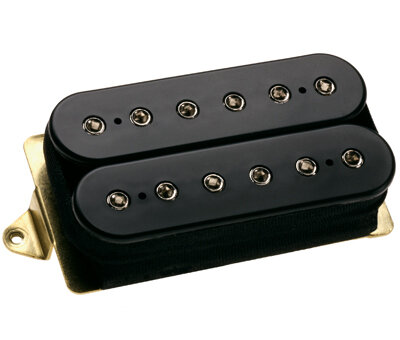

DiMarzio D Activator Humbucker Guitar Pickup

Add a harmonic quality to your playing while eliminating the unwanted edginess with this humbucker pickup. It's designed to be used in the bridge and neck positions.

The D Activator(tm) bridge has an enriched harmonic quality and the notes want to sing. Both the D Activator neck and bridge pickups were designed to eliminate the sterile edginess commonly associated with active pickups. The D Activators use coils tuned to different frequencies. The idea is to shift the resonant point of the pickup to the frequencies of the harmonics that you want to accentuate from the guitar. The D Activator bridge pickup is about 25% louder than the D Activator neck. Since DiMarzio were developing both pickups from the ground up as a set, they adjusted the volume levels on the pickups so they are balanced. That way when you switch from the neck to the bridge, you don't hear a drop in volume, another common problem with active pickups.

Recommended For: Bridge, Neck

Tech Talk: An interesting fact about the most popular active bridge pickups is that they aren't incredibly loud. Instead, they have a strong, focused attack that hits the amp very hard and makes them 'feel' more powerful than they actually spec out to be. This is an important characteristic that they needed to capture with the D Activator bridge pickup. They also wanted to avoid the limiting effect that can occur with active pickups when they are played hard. DiMarzio's pickup is passive with a lot of headroom, and it responds quickly and accurately to changes in pick attack. A hard pick attack doesn't cause the signal to flatten out, and picking more softly or rolling the volume control down read more lets the sound clean up naturally. Like all passive pickups, D Activators require controls with a minimum value of 250Kohms. 500K is the standard all around value, and DiMarzio's 1Megohm tone control is best for long cable runs.
read less

Wiring: 4 conductor

Magnet: ceramic

Output: 470

DC Resistance: 11.41

Year of introduction: 2007

Patent#: 4501185
Dimensions and Weight in Packaging
Black, DP220F, F-Spaced Bridge
Shipping Weight: 0.5 lbs
Shipping Dimensions: 4 x 2 x 2 in
Manufacturer Part Number (MPN): DP220FBK

For support or warranty questions, please contact the manufacturer:
Phone: 718-981-9286

Reviewers gave this product an overall rating of 5 out of 5 stars. (17 ratings)
Submitted February 6, 2008 by a customer from aol.com

"More METAL for the Buck!"

Overall: 5 out of 5 stars
(see rating details)
Verified Customer zZounds has verified that this reviewer made a purchase from us.
Looks, Sound, Features, and Price make this pickup a great upgrade to any guitar and an excellent value!
Sound
I got this pickup on an Ibanez EX 370 I won off E-bay. I was surprised by the response I got win I cranked it up. This pickup can give you some sweet sustain on clean channels and on an overdriven channel with a Digitech Metal Master pedal it creates some great Metal sounds like Tommi Iommi's vintage sound to Nickelbacks cranking tones.
Features
The best feature I like about this pickup is getting the Active sound without having to feed it 9 volt batterys!
Ease of Use
Couldn't be easier to use, it reacts to the force at which strike the strings. It gives you all the features of an active pickup with the wiring ease of a passive pickup.
Quality
It's a Dimarzio! Nuff said!
Value
Definitely worth the price considering what active EMGs or Duncans are selling for.
Manufacturer Support
I know from past experoences that Dimarzio is great with customer support, whether your having problems with a product oe just need a wiring diagram.
The Wow Factor
Its a sweet looking set of open coils all rivets no screw heads, looks great sitting above a Floyd Rose Bridge!

Musical Background:

Musician

Musical Style:

Classic Rock, Metal, New Metal, Death Metal if it KRANKS, I like it!!!!!!!!!!!!!!!!!!!!
19 of 19 people (100%) people found this review helpful. Did you?
Thanks for your opinion!

Black, DP220F, F-Spaced Bridge
