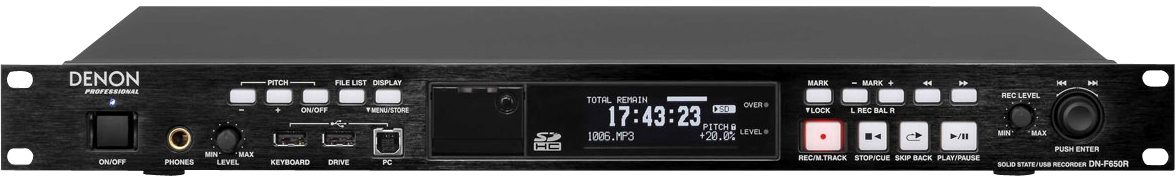

Denon DNF650R Solid State USB Digital Recorder

No longer available at zZounds

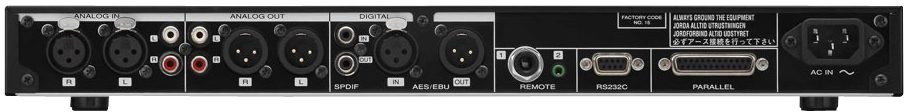

Denon DNF650R Solid State USB Digital Recorder, Rear

zZounds Gear Experts Say...

Meet the most demanding needs of any recording or playback application with this rackmount sized digital recorder from Denon.

Overview

The Denon DNF650R digital recorder is a highly versatile professional solid state recorder offering recording to and between SD/SDHC flash card and USB external drives. Designed to fulfill the most demanding playback and recording applications in AV installation, audio production, live sound, theatre and broadcast, the DNF650R is a professionally specified, up to date replacement for cassette, DAT, MD, CDR and commodity PC based systems currently fulfilling such roles. Balanced XLR analog audio and AES/EBU digital I/Os are featured, as well as unbalanced analog and S/PDIF connectivity. Serial, parallel and contact closure remote control are supported, and the unit can be operated with Denon Professional's latest RC-F400S 'Hot Start' serial remote controller.

Features

- 1U rackmount size for easy installation
- Records and plays back from stable, industry-standard SD/SDHC flash media and USB drives (Thumb/HDD)
- Records WAV (.wav) at 44.1/48/96 kHz
- Records MP3 (.mp3) at 32-320 kbps
- Balanced (XLR) and unbalanced (RCA) analog inputs and outputs
- S/PDIF and AES/EBU digital input and output
- +20%/-40% pitch control with tempo lock
- Power on auto-play
- Various playback modes (single/continuous, repeat, random)
- Audible quick search
- Skip back playback
- Marking and mark search
- Large, easy-to-read OLED display
- Front-panel mounted USB for connecting to a computer
- Front-panel mounted USB keyboard input for file naming and control
- Serial (RS-232c) and parallel… read more remote inputs
- Headphone output with level control

Advanced Usability

The OLED display and easy file search jog wheel enable simple front panel operation. A USB keyboard input allows for simple file name editing. A variety of playback modes includes single, repeat, random, continuous and skip back play. Pitch control (between +20 and -40%), tempo lock, and a headphone out with volume control are also included.

Recording and Formats

Stereo and mono audio channels are simultaneously available and both WAV and MP3 file formats are supported, with selectable sample rates of 96, 48 and 44.1 kHz, 24 and 16 bit resolution, and MP3 bit rates between 32 and 320 kbps. Cascade recording and file management capabilities between the SD/SDHC card and connected USB drive, and USB connectivity to PC enables file transfer.

Specs

Media: SD/SDHC, USB drives

File Format: WAV/MP3 (MPEG-1 Layer III)

Media Format: FAT/FAT32

MP3 Bit Rate: 32 - 320 kbps/stereo

Sampling Frequency: 96/48/44.1 kHz

Quantization: 24/16 bit

Audio Channels: 2 (stereo)/1 (mono)

Frequency Response: 20Hz - 40kHz +/-1dB

S/N Ratio: 96 dB (1kHz, 0dB playback, A filter)

Channel Separation: 86 dB (1kHz, 0dB playback)

Total Harmonic Distortion: 0.01% (1kHz, 0dB playback)

Dynamic Range: 96dB

Variable Pitch Control: +20%/-40% (0.1% step)

Balanced Input: XLR

Input Impedance: 24 kohms

Unbalanced Input: RCA

Input Impedance: 22 kohms

Digital Input (AES/EBU): XLR

Digital Input (S/PDIF): RCA

Balanced Output: XLR

Unbalanced Output: RCA

Digital Output (AES/EBU): XLR

Digital Output (S/PDIF): RCA

Headphone Output: 1/4 inch TRS

Level: 20 mW/32 ohms

Power Supply: 100V to 230V, 50/60Hz

Power Consumption: 22W

Dimensions (WxHxD): 483 x 44 x 325 mm

Weight: 3.7 kg

Included Accessories:
Stereo Audio Cable
USB Cable
AC Cord
SD door screw x 2
Retainer
Operating Instructions
CD-ROM for multi-language DFUs and DMP Mark Editor software
