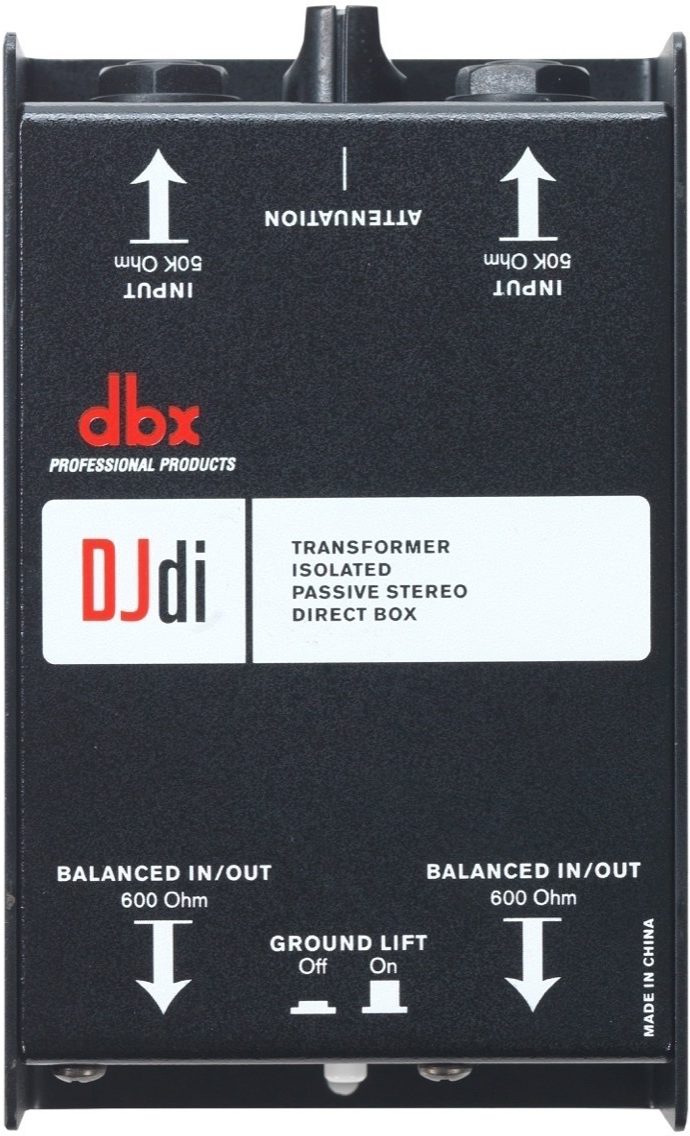

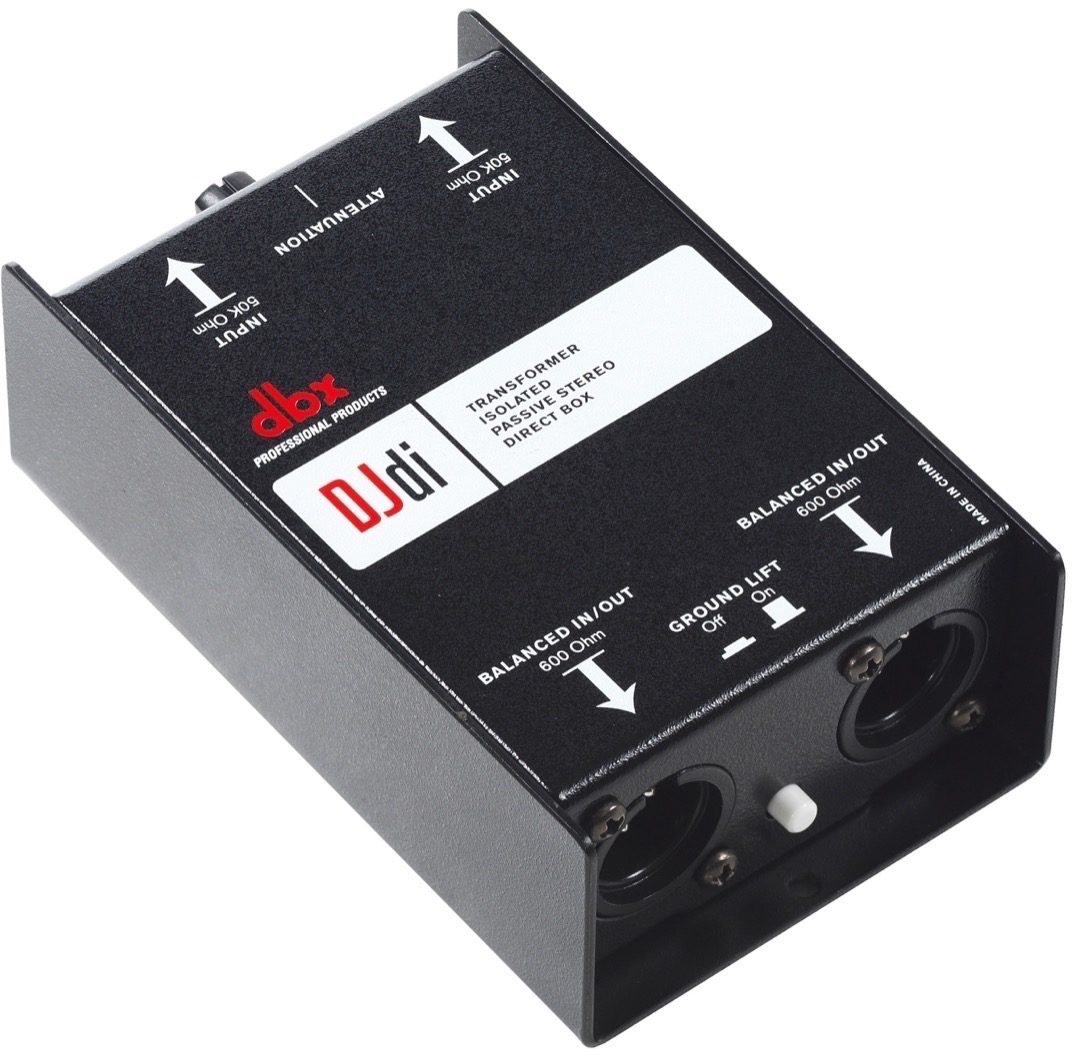

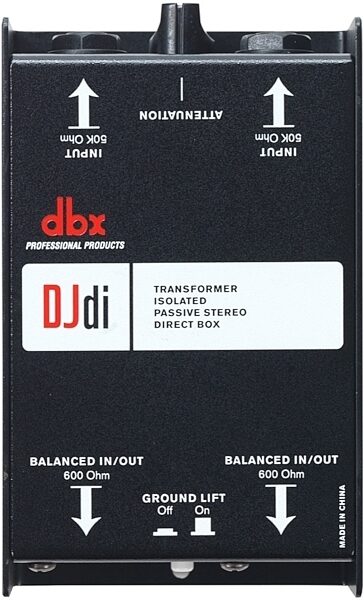

dbx DJDI 2-Channel Transformer Isolated Passive Direct Box
zZounds Gear Experts Say...
Connect keyboards, guitars, DJ gear or any hi-Z source to this stereo DI box to get a low-Z balanced XLR output. The attenuator knob can handle loud sources.
Overview
2-channel passive direct box that converts unbalanced signals into balanced output for use with mixers, PAs, recording consoles and more.
The 2-channel passive DJdi is designed to be used as a standard tool for many audio applications.
The continuously variable input signal attenuator can accommodate a wide range of signal levels and its passive design means clean, quiet and uncolored operation with no power required.
The 2-channel passive DJdi is designed to be used as a standard tool for many audio applications.
The continuously variable input signal attenuator can accommodate a wide range of signal levels and its passive design means clean, quiet and uncolored operation with no power required.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
Specs
- Circuit: Passive
- Inputs: 2

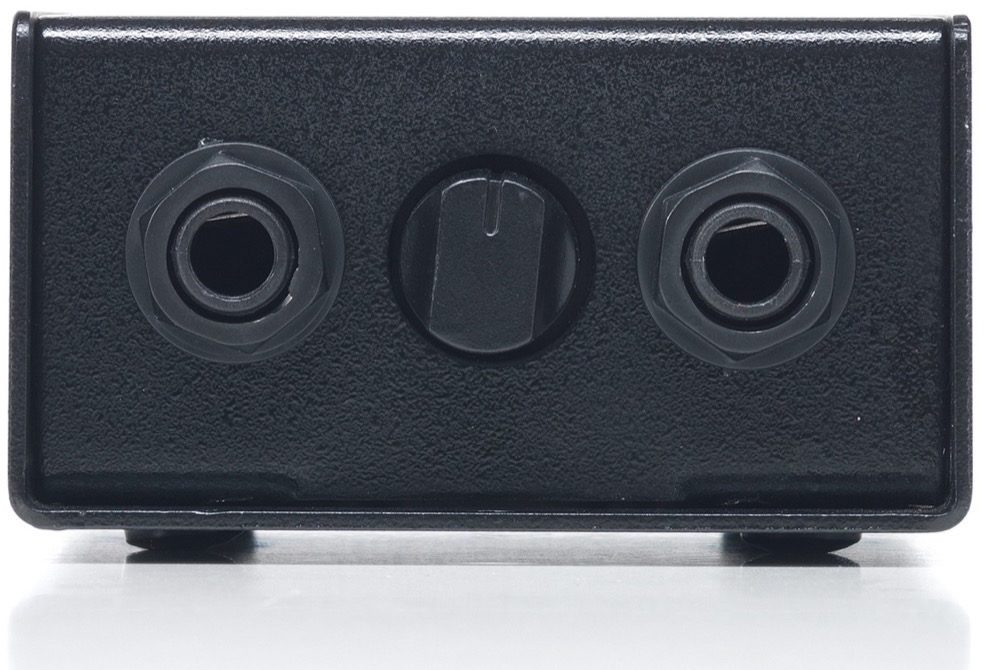

- Input Connectors: 1/4" TS (Tip Hot, Sleeve Ground)
- Input Type: Unbalanced, RF Filtered
- Input Impedance: 50 kOhm
- Outputs: 2

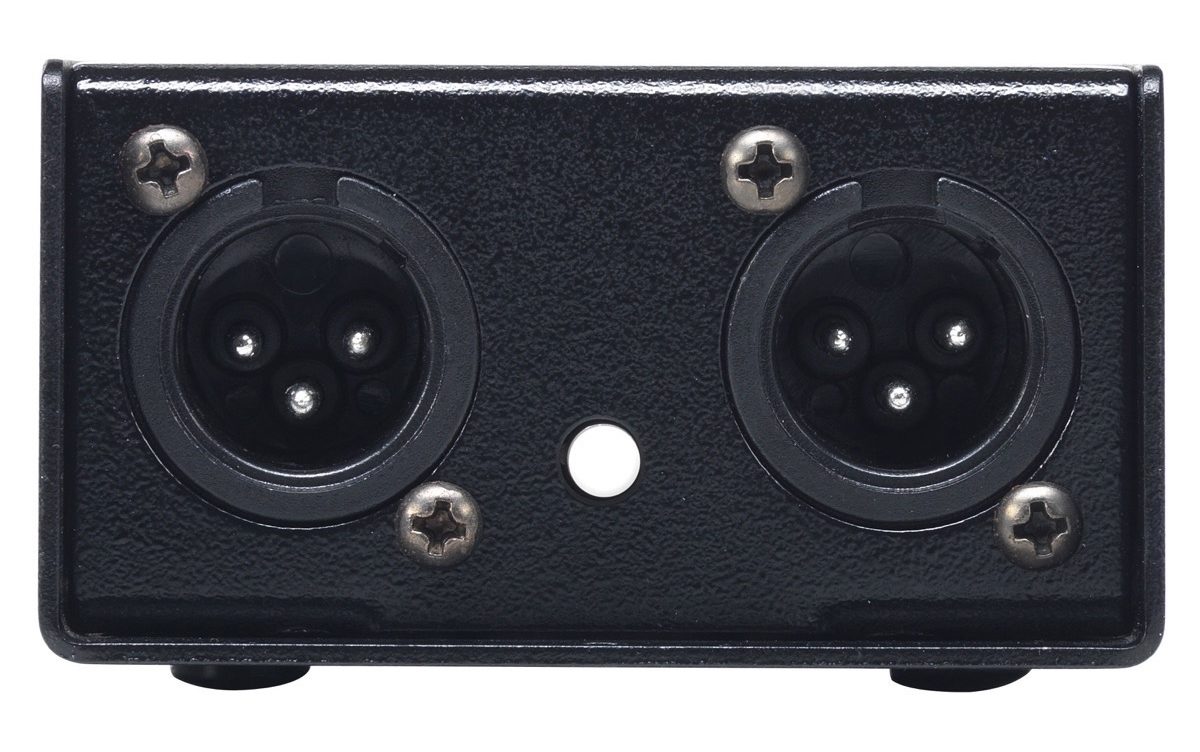

- Output Connectors: Male XLR, Balanced, Pin 2 hot
- Output Impedance: 600 Ohms
- Noise Level: -104dBu (22Hz -22kHz, Input Shorted) THD+N (10Hz-22kHz) 0.23% typical @ +4dBu @ 1kHz
- Insertion Loss: 21dB typical
- Inputs: 2
- Input Connectors: 1/4" TS (Tip Hot, Sleeve Ground)
- Input Type: Unbalanced, RF Filtered
- Input Impedance: 50 kOhm
- Outputs: 2
- Output Connectors: Male XLR, Balanced, Pin 2 hot
- Output Impedance: 600 Ohms
- Noise Level: -104dBu (22Hz -22kHz, Input Shorted) THD+N (10Hz-22kHz) 0.23% typical @ +4dBu @ 1kHz
- Insertion Loss: 21dB typical
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 0.99 lbs
- Shipping Dimensions: 5 x 3 x 2 in
- Manufacturer Part Number (MPN): DJDI
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 844-776-4899
Web: https://www.dbxpro.com/en/support
Phone: 844-776-4899
Web: https://www.dbxpro.com/en/support
New
$75.00
