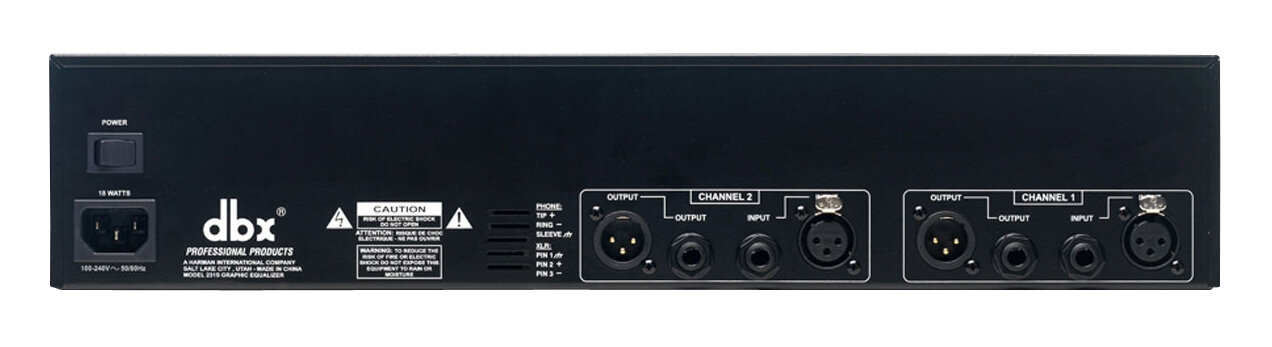

Input:- Connectors: 1/4 inch TRS, female XLR (pin 2 hot)
- Type: Electronically balanced/unbalanced, RF filtered
- Impedance: Balanced 40k ohm, unbalanced 20k ohm
- Max Input Level: >+21dBu balanced or unbalanced
- CMRR: >40dB, typically >55dB at 1kHz
Outputs:- Connectors: 1/4 inch TRS, male XLR (pin 2 hot)
- Type: Impedance-balanaced/unbalanced, RF filtered
- Impedance: Balanced 100 ohm, unbalanced 50 ohm
System Performance:- Bandwidth: 20Hz to 20kHz, +0.5/-1dB
- Frequency Response: <10Hz to >50kHz, +0.5/-3dB
- Dynamic Range: Typicall >112dB
- Signal-to-Noise: Typically >95dB
- THD+Noise: <0.003%
- Interchannel Crosstalk: <-90dB, 20Hz to 20kHz
Function Switches:- EQ Bypass: Bypasses the graphic equalizer section in the signal path
- Low Cut: Activates the 50Hz 12dB/octave high-pass filter
- Range: Selects either +/- 6dB or +/- 12dB slider boost/cut range
Power Supply:- Operating Voltage: 100VAC-240VAC 50/60Hz
- Power consumption: 15W
- Mains Connection: IEC receptacle
Physical:- Weight: 6.2 lbs.(2.81 kg)
- Dimensions(HxDxW): 3.5 x 6 x 19 inches (8.9x15.24x48.26cm)
- Dimensions and Weight in Packaging
- Base Item
-
Shipping Weight: 8 lbs
-
Shipping Dimensions: 22 x 11 x 5 in
-
Manufacturer Part Number (MPN): DBX231SV
