Cioks DC10 Link Pedal Power Supply

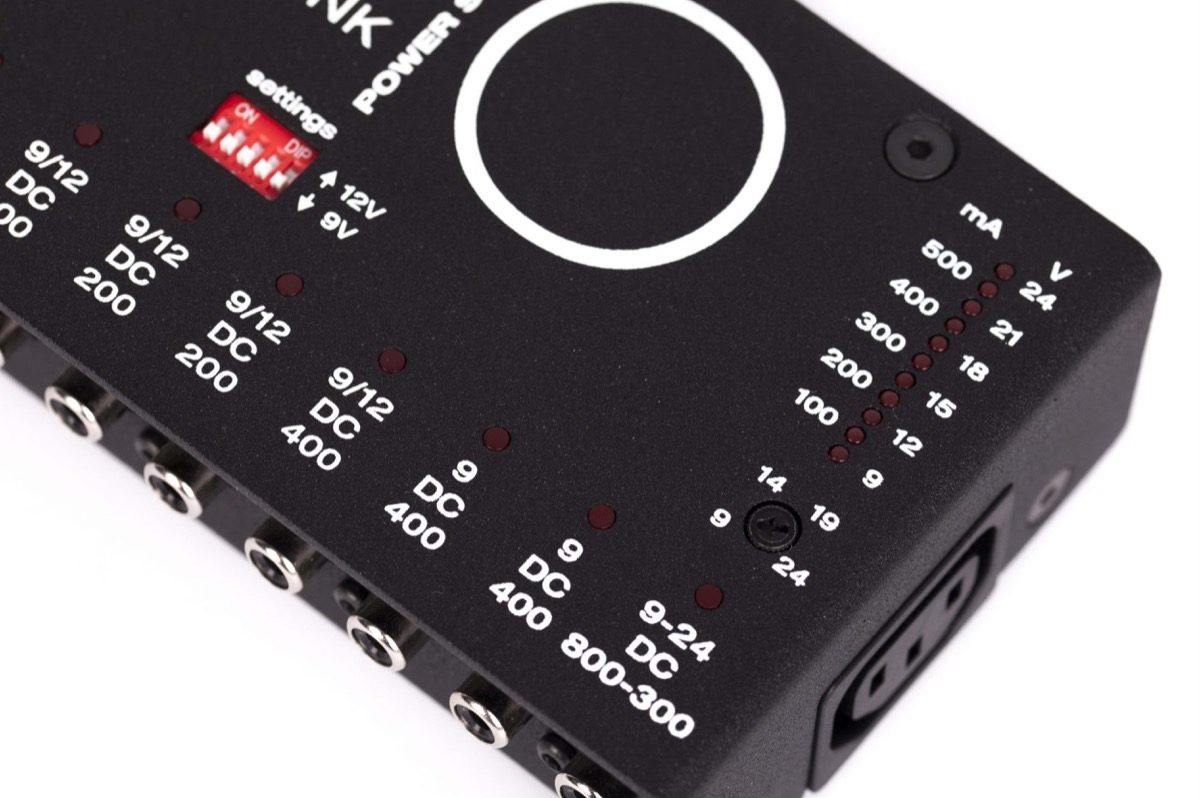

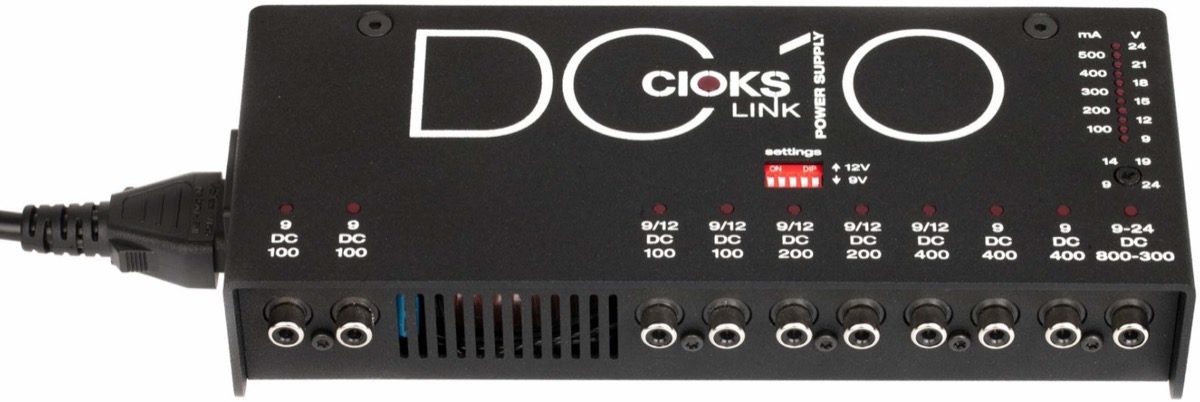

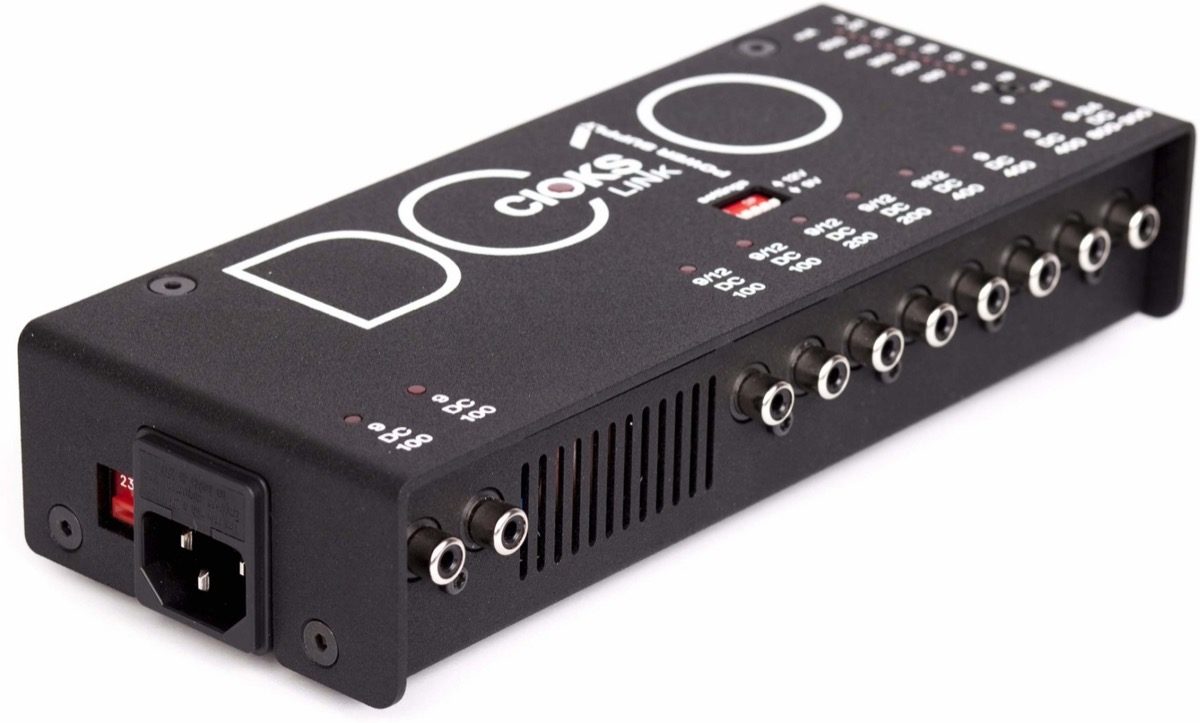

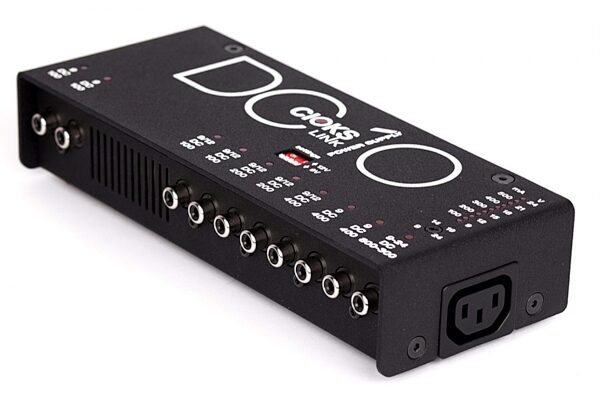

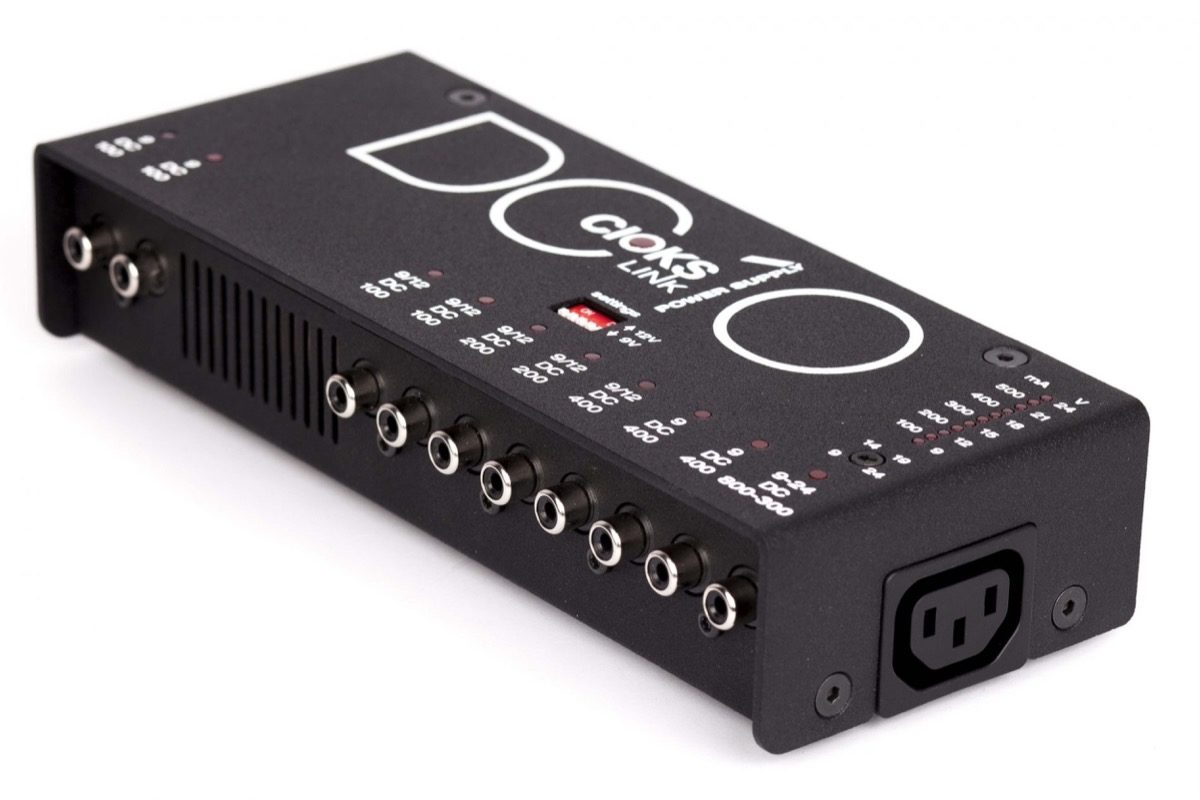

The Cioks DC10 is a state-of-the-art professional power supply for effect pedals. It delivers 2,800mA of clean power from its 10 isolated outlets, with both 9V and 12V available. Besides being one of the most powerful power supplies for effect pedals on the market, it also offers some advanced features. The adjustable outlet (outlet 10) will power pedals with non-standard voltages like Tonebones at 15V, Blackstar dirt pedals at 22V, GLAB GSC-4 controller at 24V, all high current 18V pedals from Hiwatt, a few vintage EHX and many others. Due to its very high 800mA current capability at 9 or 12V you can with this single outlet power a big unit like Line 6's M9 or M13, VOX ToneLab or some older BOSS GT-XX processors. The mA-meter allows you to measure all your pedals' current draw so you can use the correct outlet for each unit without "wasting" power by connecting a 160mA pedal to a 400mA outlet instead of using a 200mA outlet. Also you can power three pedals using our 3-way daisy chain, by checking their total mA figure, and matching them to an outlet with sufficient power. Should you need more outlets, even more power, or some AC, you can add another Cioks Link power supply.

Features:

- 10 isolated and well filtered outlets
- Total output current of 2,800 ma
- Toroidal transformer with additional electromagnetic shield

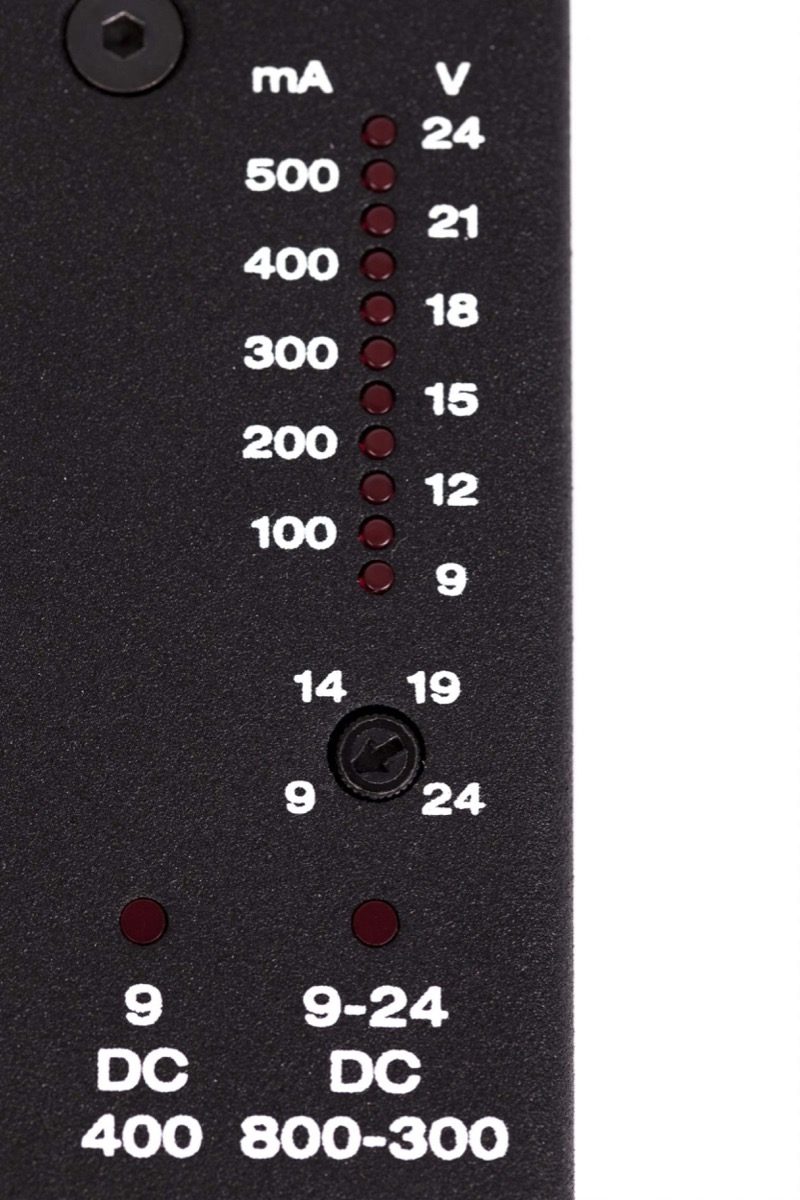

- Adjustable 9-24V DC outlet with ma-meter and very high current capability
- Three high current outlets each 400 ma
- Two medium current outlets each 200… read more ma
- Four 100ma outlets for standard pedals
- Short circuit protection of all outlets
- Advanced LED monitoring of each outlet

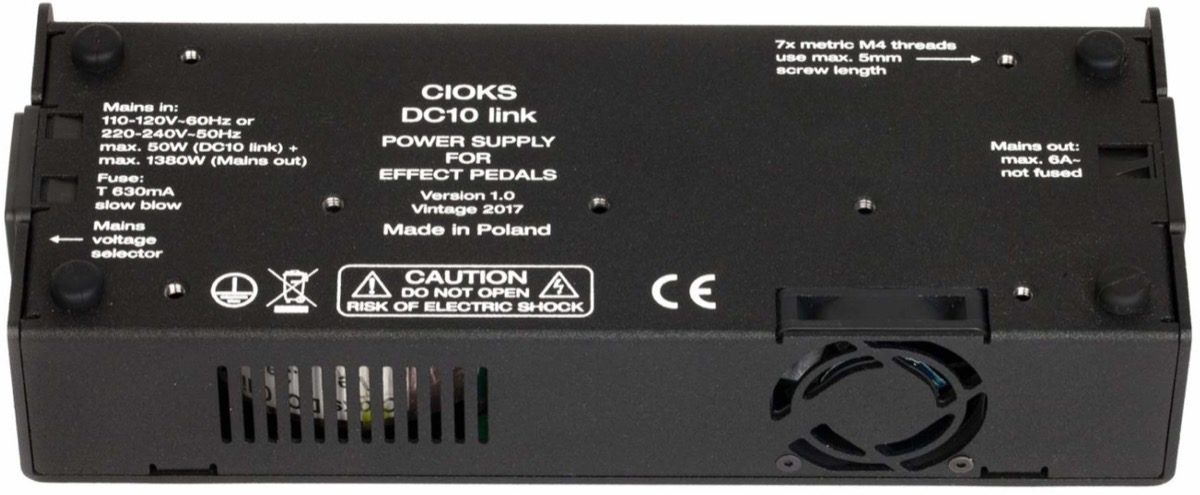

- 120 or 230V mains voltage operation
- Courtesy AC mains outlet
- CIOKS unique mains link feature
- Total of 17 Flex cables included
- Compatible with Pedaltrain and Temple Audio pedalboards
- All pedalboard mounting hardware included read less
