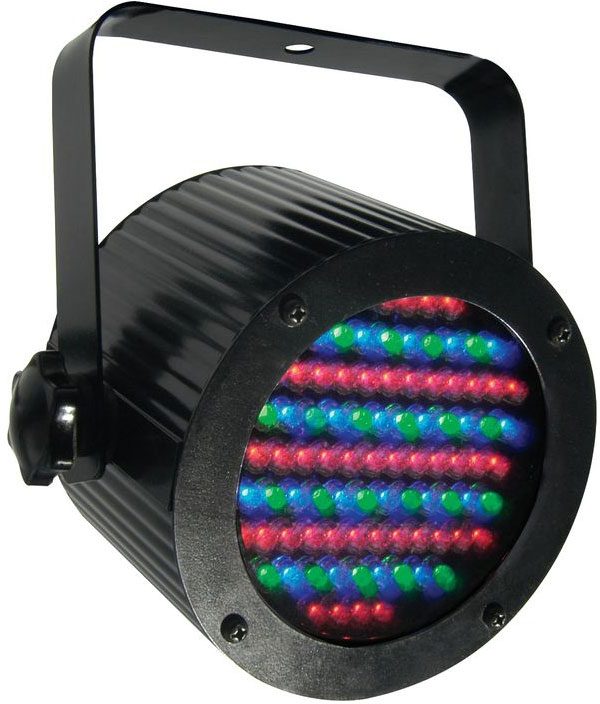

Chauvet LEDsplash 86B Wash Light, Main
Chauvet LEDsplash 86B Wash Light, FX1
Chauvet LEDsplash 86B Wash Light, FX2
Chauvet LEDsplash 86B Wash Light, FX3
Chauvet LEDsplash 86B Wash Light, FX4
Chauvet LEDsplash 86B Wash Light, FX5
Chauvet LEDsplash 86B Wash Light, FX6

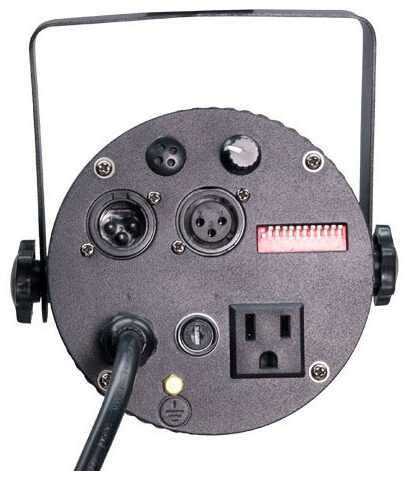

Chauvet LEDsplash 86B Wash Light, Rear
Chauvet LEDsplash 86B Wash Light, Main Chauvet LEDsplash 86B Wash Light, FX1 Chauvet LEDsplash 86B Wash Light, FX2 Chauvet LEDsplash 86B Wash Light, FX3 Chauvet LEDsplash 86B Wash Light, FX4 Chauvet LEDsplash 86B Wash Light, FX5 Chauvet LEDsplash 86B Wash Light, FX6 Chauvet LEDsplash 86B Wash Light, Rear
zZounds Gear Experts Say...
Built in sound activated and automated programs, static color and mixing, and 3 or 7 channel DMX control allow you ultimate command over your light show.

The Chauvet LEDsplash 86B is a red, green and blue LED wash fixture with 3 or 7 channels of DMX control. This compact, lightweight fixture is powered by 86 RGB LEDs. It features static colors and color mixing, built-in automated and sound-activated programs with or without DMX.

Features
- 3 or 7-channel DMX512 LED wash

- Operating modes:
-- 3-channel: RGB control
-- 7-channel: RGB, macros, run/strobe speed, automatic/sound, dimmer

- Static colors and RGB color mixing with or without DMX controller

- Built-in automated programs via master/slave or DMX with variable speed

- Built-in sound activated programs via master/slave or DMX

- Pulse effect with adjustable speed

- Additional power output: maximum 37 units at 120V (see manual for details)

Beam angle: 19*

Field angle: 36*

Lux: 530 at 1m

Light Source: 86 (44 red, 21 green, 21 blue) LEDs

Power and current: 120V, 60Hz: 9W, 0.2A operating, 0.2A inrush

Power and current: 230V, 50Hz: 5W, 0.1A operating, 0.1A inrush

AC power: Autoswitching 100V-240V 50/60Hz

Weight: 1.8lbs (0.8kg)

Size: 4.9 x 6 x 6.2 inches / 124mm x 153mm x 157mm

For support or warranty questions, please contact the manufacturer:
Phone: 800-762-1084
