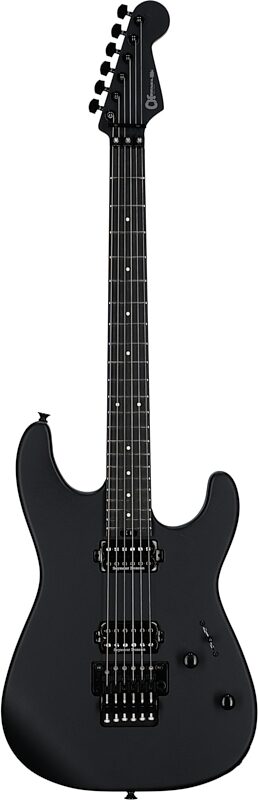

Charvel Pro Mod San Dimas SD1 HH FR Electric Guitar, with Ebony Fingerboard

Built for mind-bending speed, this Charvel San Dimas Style 1 features an ash body and graphite-reinforced neck for scorching sound and mean aesthetics.

What's special about this item?

Feature: What it does:
Ash body Strong, snappy responsive tone
Black ebony fretboard Smooth and fast playing, bright tone
Compound radius fretboard Even, flatter feel moving up neck towards bridge
Full Shred and Jazz Passive pickups Dynamic and strong, punchy tone

The Pro-Mod series continues upon Charvel's storied legacy of innovative excellence in high-performance guitar design, offering the latest technology and top-notch features that modern players need.

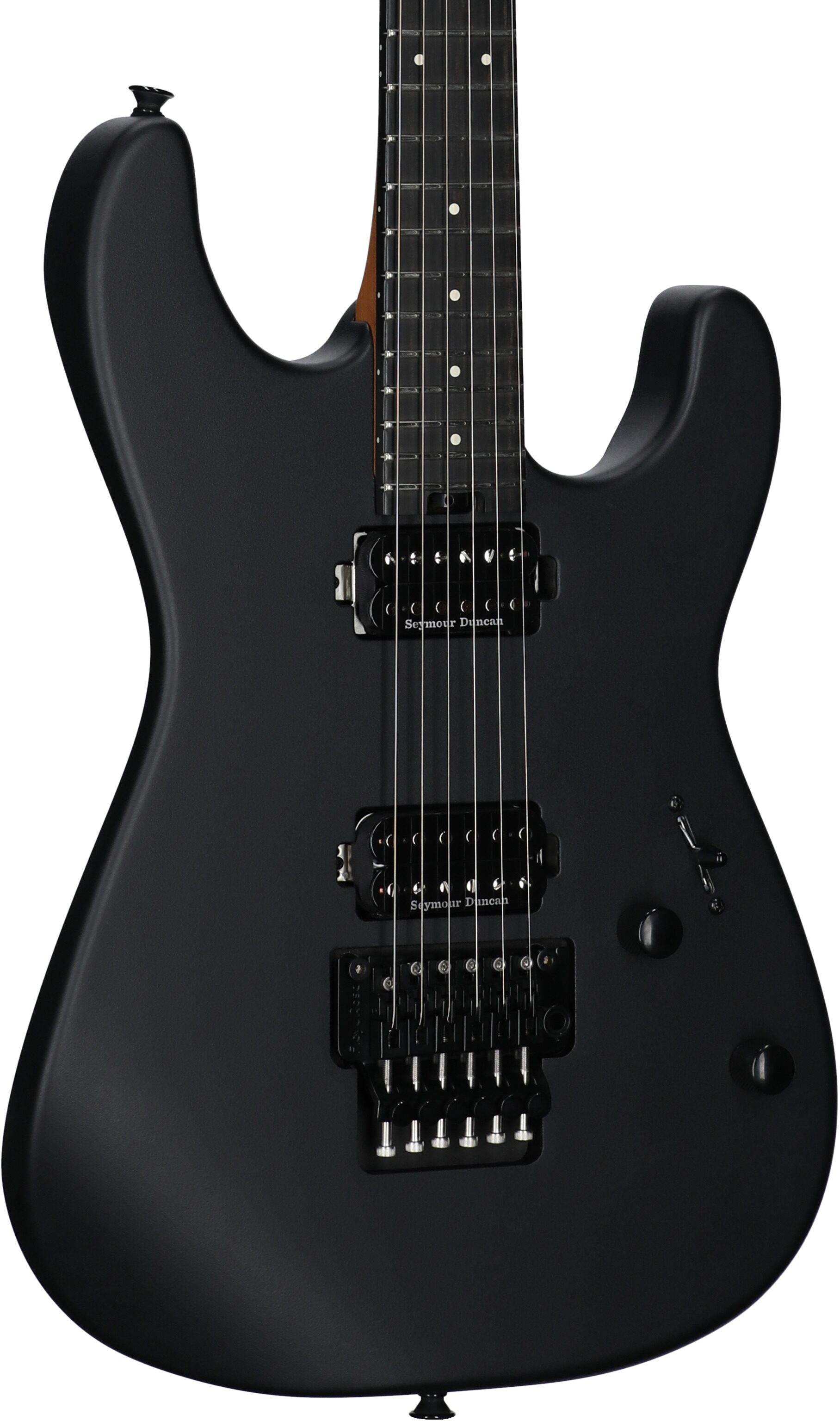

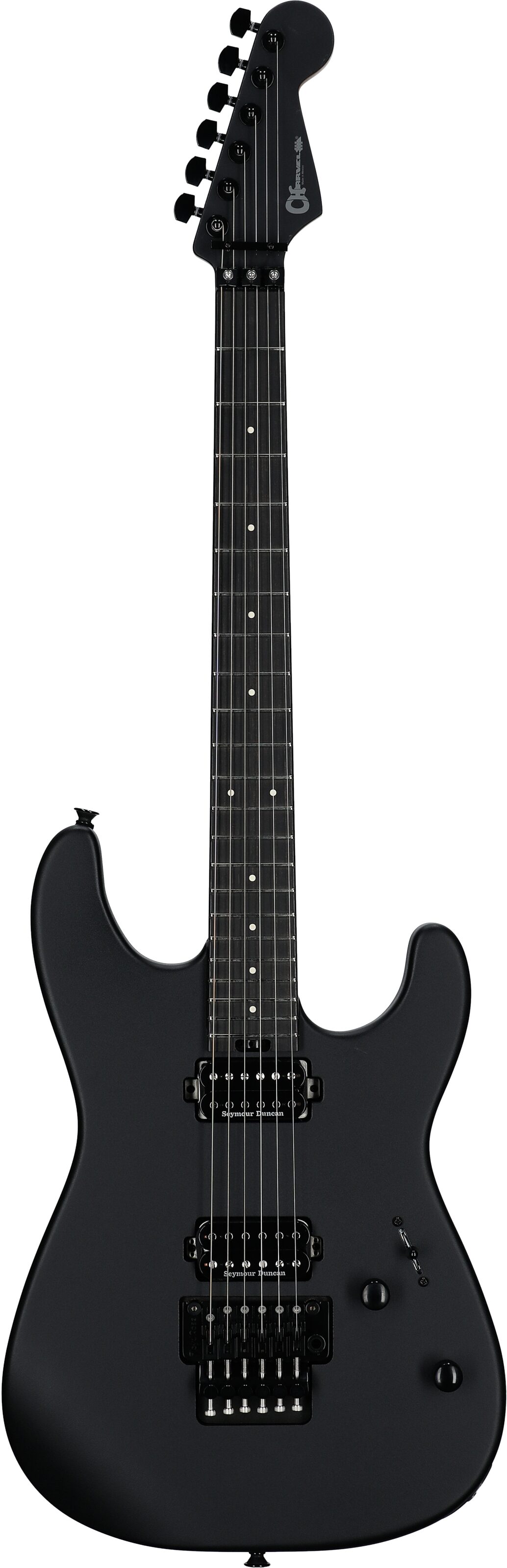

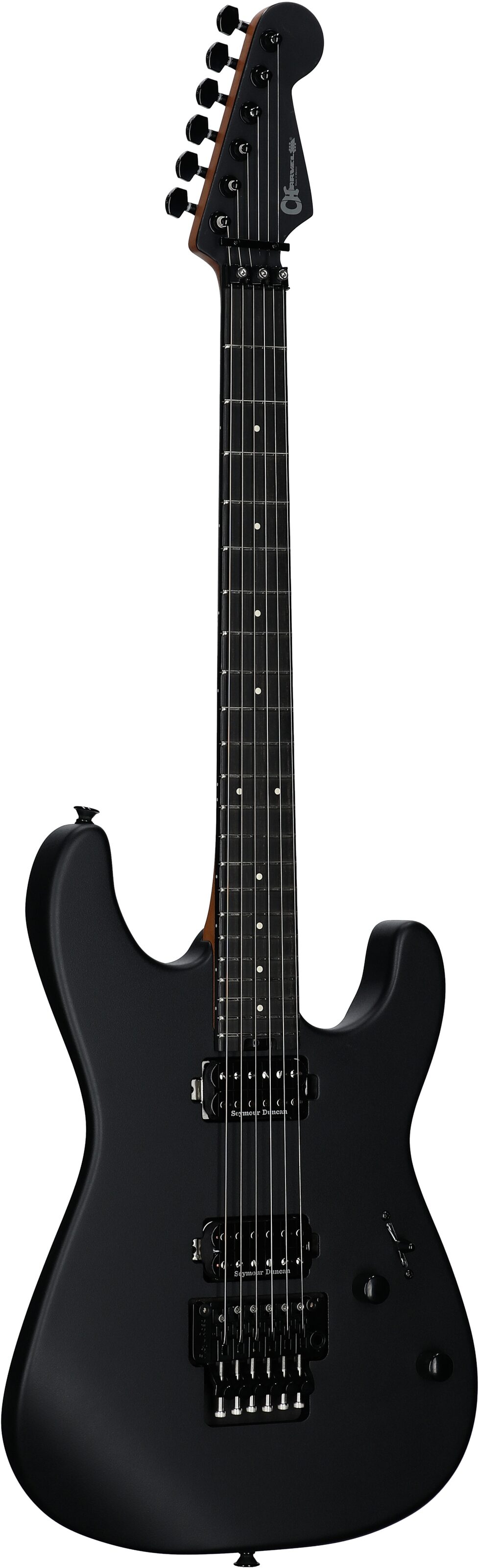

An ideal instrument for dazzling high-speed playing, the Charvel San Dimas Style 1 HH FR E Ash boasts scorching sound, stunning style and grin-inducing playing feel and performance. Its body is crafted from ash and is coupled with a bolt-on maple neck with a pair of graphite reinforcement rods to resist bending and warping under environmental stresses. The speed neck profile is designed for lightning fast playing and completely unhindered position shifts while the comfortably rolled fingerboard edges provide the broken-in feel of an instrument with plenty of playing miles on it, and plenty more to go. This axe also features an aged ebony fingerboard with 22 jumbo frets and white dot inlays, as well as a heel-mounted truss rod wheel for quick and convenient neck tweaks.

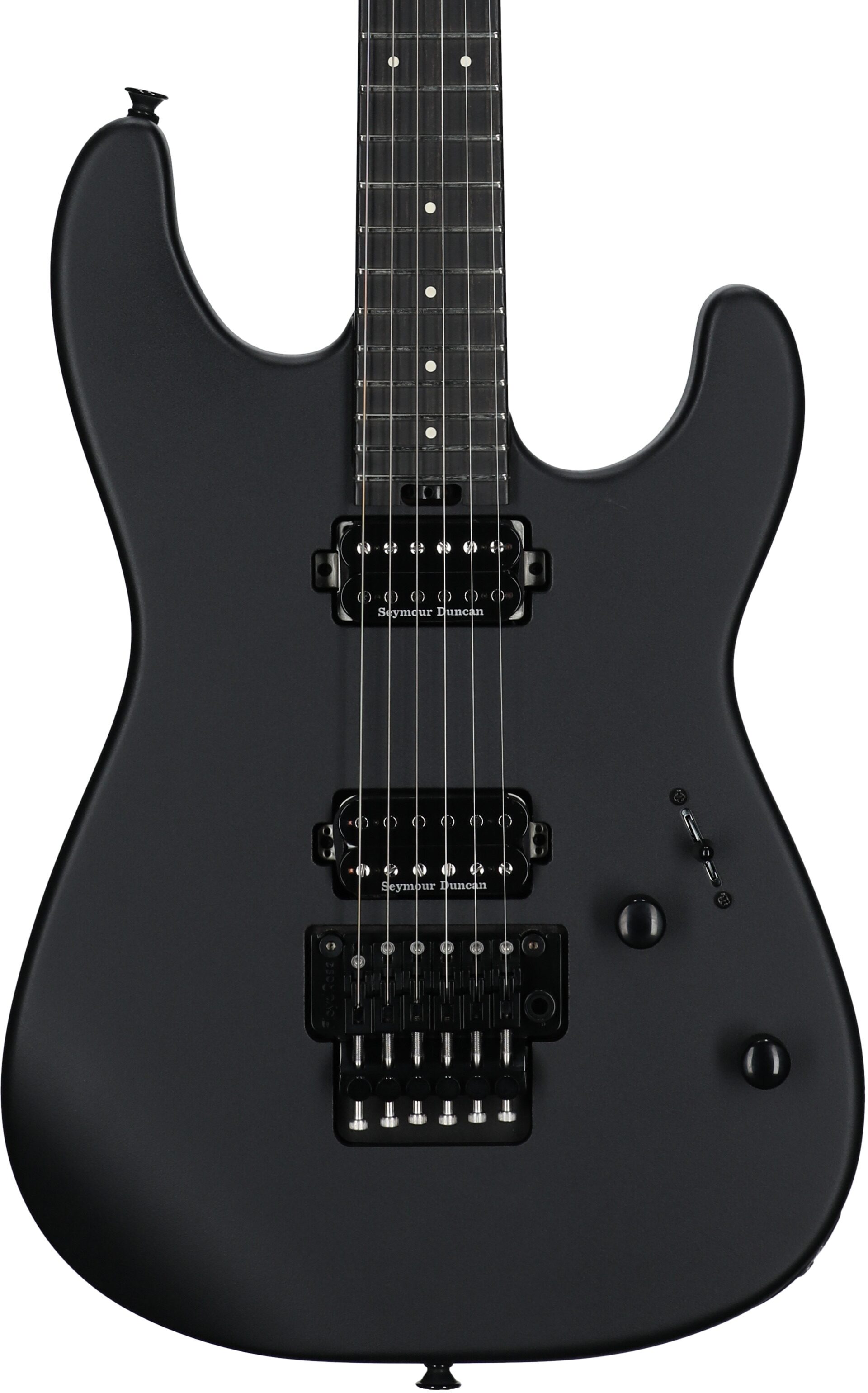

High-output Seymour Duncan JB and Seymour Duncan '59 humbucking pickups are directly mounted to the body, cranking out high octane rock 'n' roll tone with plenty of sweet overtones. The volume control conceals a push/pull coil split to have even more tonal variations on tap while the No-Load tone control operates like a standard tone control from positions one through nine, removing itself from the circuit at position ten for transparent sound, letting the full natural voice of the guitar shine through. Dive to rumbling read more depths or add a well-placed rising harmonic without sacrificing your tuning with the Floyd Rose 1000 series double-locking recessed tremolo bridge system.
read less

- Model Name: Pro-Mod San Dimas Style 1 HH FR E Ash, Aged Ebony Fingerboard
- Series: Pro-Mod Style 1

- Body Shape: San Dimas

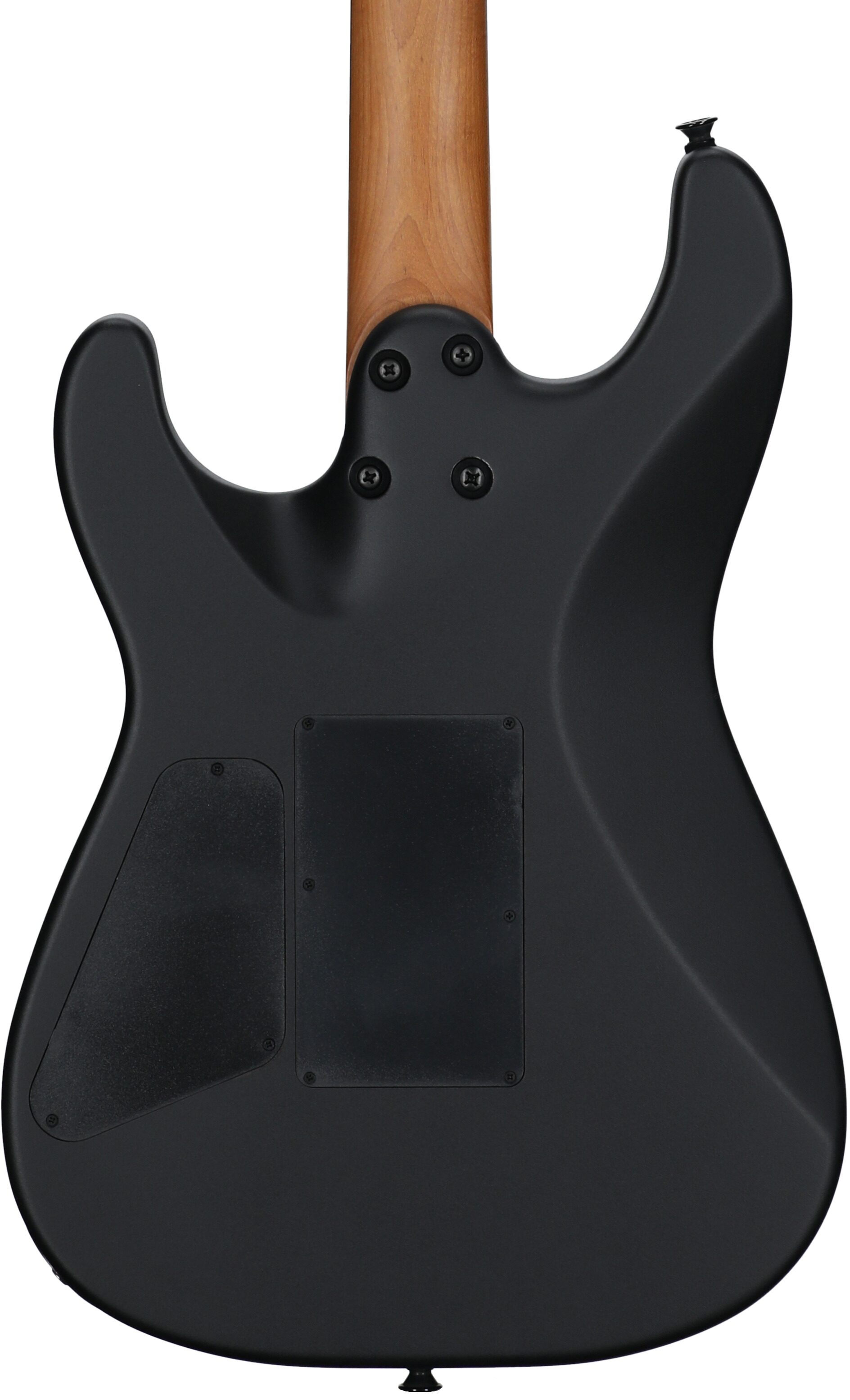

- Body Material: Ash
- Body Finish: Satin

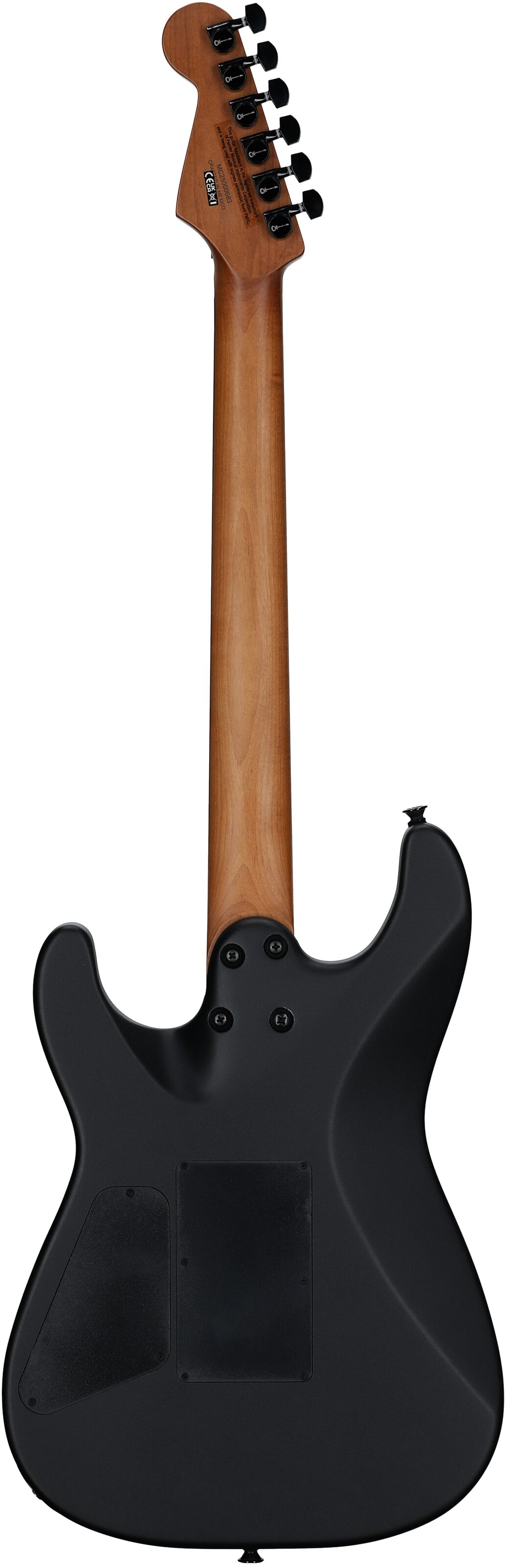

- Neck Material: Maple neck with graphite reinforcement
- Neck Shape: Speed Neck with Rolled Fingerboard Edges
- Scale Length: 25.5" (648 mm)
- Fingerboard Radius: 12" to 16" Compound Radius (304.8 mm to 406.4 mm)
- Number of Frets: 22
- Fret Size: Jumbo
- String Nut: Floyd Rose FRT 02000 Locking
- Nut Width: 1.6875" (42.86 mm)
- Truss Rod Nut: Heel-Mounted Spoke Wheel Adjustment
- Neck Plate: Charvel
- Neck Finish: Hand-Rubbed Urethane Gel
- Fingerboard: Aged Ebony
- Position Inlays: White Dots

- Bridge Pickup: Seymour Duncan JB TB4 Humbucking
- Neck Pickup: Seymour Duncan '59 SH1N Humbucking
- Controls: Volume (Push-Pull Coil Split), Tone
- Pickup Switching: 3-Position Blade: Position 1. Bridge Pickup, Position 2. Both Inner Coils, Position 3. Neck Pickup - (Split Engaged) - Position 1. Bridge Outer Coil, Position 2. Both Outer Coils, Position 3. Neck Outer Coil
- Pickup Configuration: HH

- Bridge: Floyd Rose FRT-O2000 Double-Locking Tremolo (Recessed)

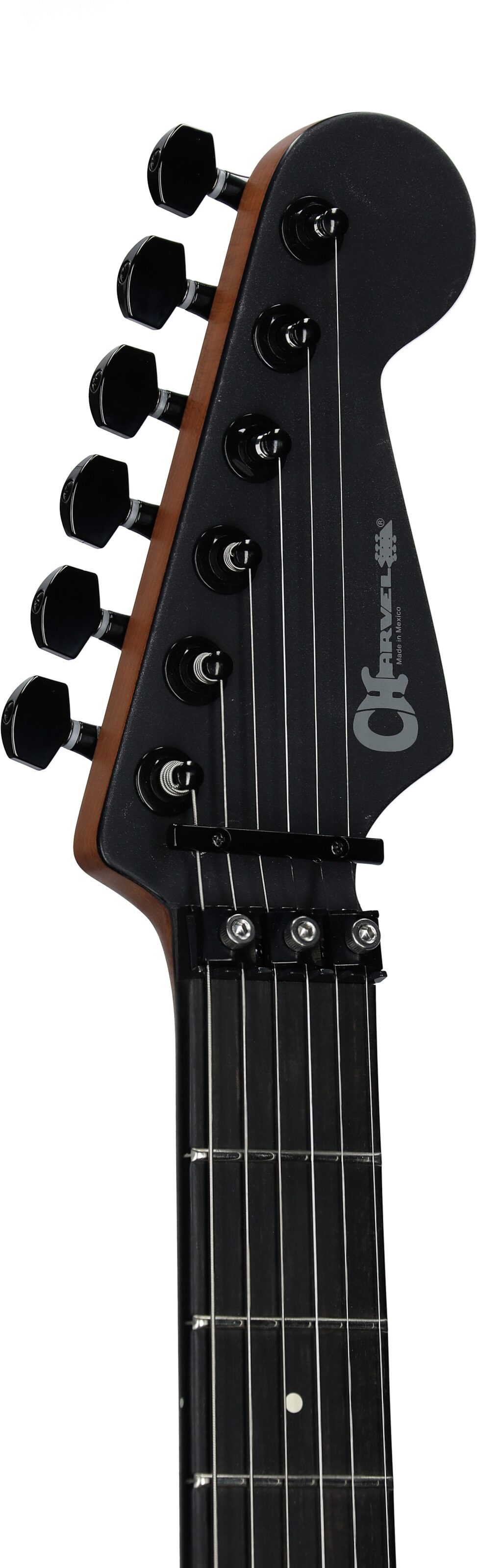

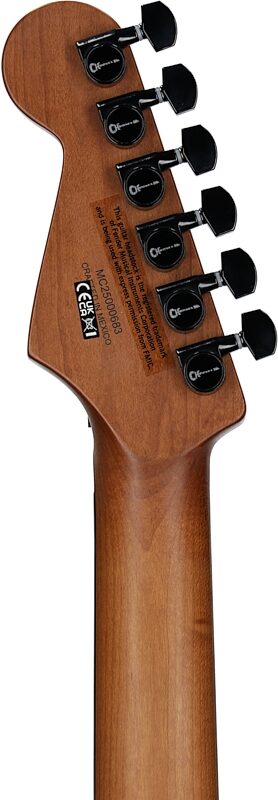

- Tuning Machines: Charvel Branded Die-Cast
- Orientation: Right-Hand
- Pickguard: None
- Control Knobs: Knurled Flat-Top

- Strings: NPS, .009-.042 Gauges
Dimensions and Weight in Packaging
Warehouse Resealed, Gloss Black, USED
Shipping Weight: 12.25 lbs
Shipping Dimensions: 42 x 15 x 5 in
Manufacturer Part Number (MPN): 2965801503

For support or warranty questions, please contact the manufacturer:
Phone: 800-488-1818

Reviewers gave this product an overall rating of 5 out of 5 stars. (2 ratings)
Submitted September 30, 2019 by Michael F in Philadelphia, PA


Overall: 5 out of 5 stars
(see rating details)
Verified Customer zZounds has verified that this reviewer made a purchase from us.
Love this guitar, fingerboard is awesome...Fast play. Sounds great and couldn't say anything bad about this guitar. One of my favorites

Musical Style:

4 of 4 people (100%) people found this review helpful. Did you?
Thanks for your opinion!

Gloss Black, USED, Warehouse Resealed
