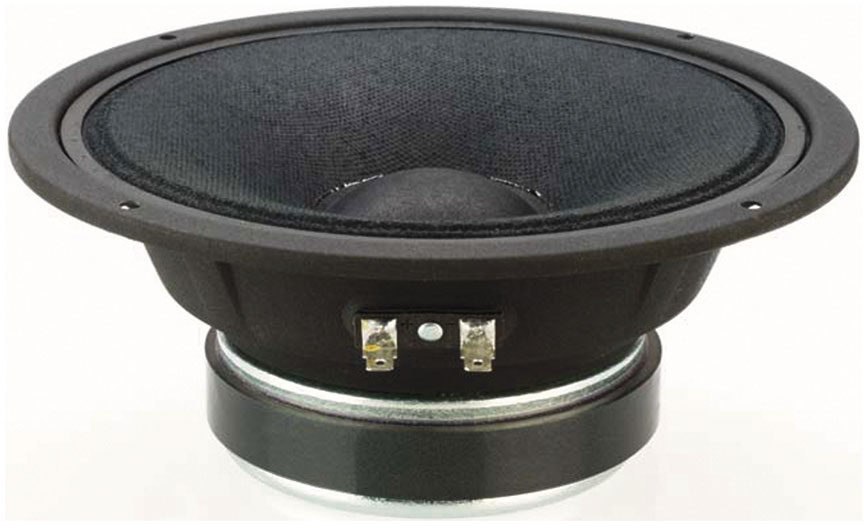

Celestion TF0615MR Replacement PA Speaker (50 Watts)

Replace your damaged or old PA midrange driver with this 50-watt speaker from Celestion -- with Kevlar-impregnated cones for sound clarity and durability.

The Celestion TF is a closed-back mid-range design to provide system builders with a dependable, comprehensive range of conventional, pressed steel, Ferrite magnet drivers.

Celestion TF drivers employ Kevlar-impregnated cones with sealed surround and damping for reduced distortion, and double roll surrounds for greater excursion control. Rigid chassis designs ensure maximum energy transfer.


- 6 inch mid-range driver providing 97dB sensitivity and 50Wrms (AES standard)power handling
- 1.5 inch high temperature copper voice coil wound on polyimide former for increasedreliability
- Very compact model suitable for use in 3-way systems
- Optimised to deliver detailed reproduction of mid-range frequencies
- Closed back chassis simplifies cabinet manufacture, eliminating need for separate mid-range enclosure
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- General:
- Nominal diameter: 152mm/6in
- Power rating: 50Wrms
- Nominal impedance: 8 Ohms
- Sensitivity: 97dB
- Frequency range: 500-5000Hz/dd>
- Voice coil diameter: 38mm/1.5in
- Chassis type: Pressed steel
- Magnet type: Ferrite
- Magnet weight: 0.48kg/17oz
- Coil material: Round copper
- Former material: Polymide
- Cone material: Kevlar loaded paper
- Surround material: Treated paper
- Suspension: Single
- Mounting Information:
- Overall diameter: 178mm/7.01in
- Overall depth: 74mm/2.91in
- Cut-out diameter: 147mm/5.79in
- Mounting slot dimensions: 4.3mm/0.17in
- Number of mounting slots: 4
- Mounting PCD range: 168.5mm/6.63in
- Unit weight: 1.4kg/3.1lb
- Packed Dimensions & Weight:
- Single pack size W x D x H: 7.5 x 7.9 x 3.5 in. (190mm x 200mm x 90mm)
- Single pack weight: 2kg/4.4lb
Dimensions and Weight in Packaging
6 inch, 8 Ohms
Shipping Weight: 3.5 lbs
Shipping Dimensions: 8 x 8 x 4 in
Manufacturer Part Number (MPN): T5308
