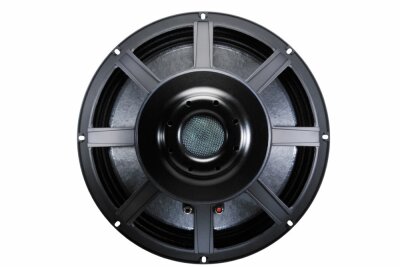

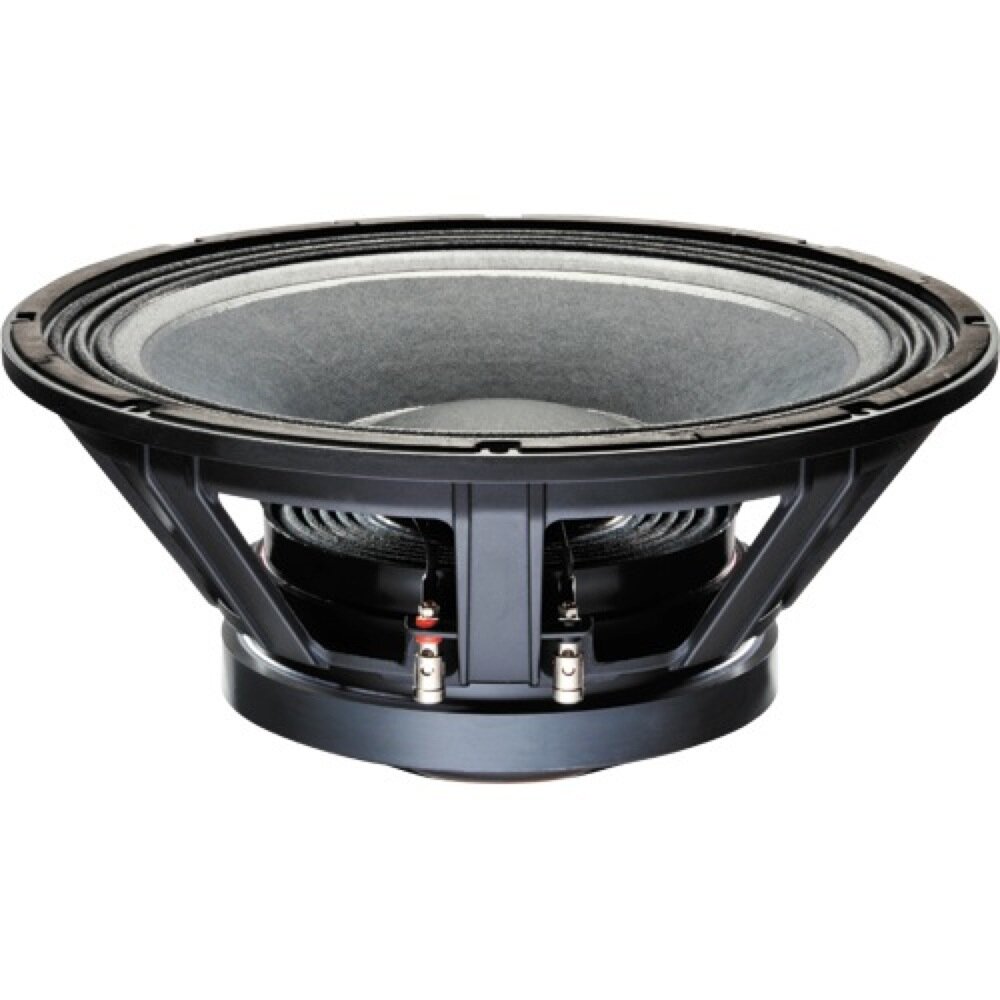

Celestion FTR18-4080HDX Pro Audio LF Speaker (1000 Watts, 18")

With a frequency response that reaches down to 30 Hz, the Celestion FTR-4080HDX 18" driver is the ideal replacement speaker for your subwoofer cabinets.

The Celestion FTR18-4080HDX replacement speaker provides incredible power handling, minimal distortion, and a fantastic punch. The perfect replacement for your low frequency subwoofer, the Celestion FTR18 4080HDX speaker will outperform anything you have in your cab right now.


- 18-inch ferrite subwoofer provides 1000Wrms (AES standard) power handling and a frequency response of 30Hz-2500Hz
- Four-inch high temperature Inside/Outside voice coil efficiently dissipates heat, preventing sensitivity loss through thermal compression
- Double suspension and a multi-roll surround provide exceptional linearity at extremes of cone excursion
- Intelligent heat management in both chassis and magnet assembly design further minimizes distortion
- Less than 10kg -- very low weight for this product class
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- Nominal diameter: 457mm/18in
- Power rating: 1000Wrms
- Nominal impedance: 8 ohms
- Sensitivity: 95 dB
- Frequency range: 30-2500 Hz
- Voice coil diameter: 100 mm/4in
- Chassis type: Cast aluminum
- Magnet type: Ferrite
- Magnet weight: 3.1kg/110oz
- Coil material: Round copper
- Former material: Glass Fiber
- Cone material: Glass loaded paper with weather-resistant impregnation
- Surround material: Cloth-sealed
- Suspension: Double
- Xmax: 8mm/0.33in
- Gap depth: 9.5mm/0.37in
- Voice coil winding width: 25mm/0.99in

Mounting Information:
- Diameter: 462mm/18.19in
- Overall depth: 205mm/8.07in
- Cut-out diameter: 416mm/16.38in
- Mounting slot dimensions: 10mm x 7mm/0.4in x 0.27in
- Number of mounting slots: 8
- Mounting PCD range: 429-440mm/16.89-17.32in
- Weight: 9.8kg/21.6lb
Dimensions and Weight in Packaging
8 Ohms
Shipping Weight: 27.25 lbs
Shipping Dimensions: 20 x 20 x 10 in
Manufacturer Part Number (MPN): FTR18-4080HDX

For support or warranty questions, please contact the manufacturer:
Phone: 800-996-8637
Web: https://celestion.com/about-us/contact-us/

8 Ohms
