Celestion CF18VJD Replacement Speaker (1600 Watts, 18")

No longer available at zZounds

zZounds Gear Experts Say...

Upgrade your 18" subwoofers or woofers with the Celestion CF18VDJ speaker driver. This powerful, efficient replacement speaker cone handles 1600 watts RMS.

Overview

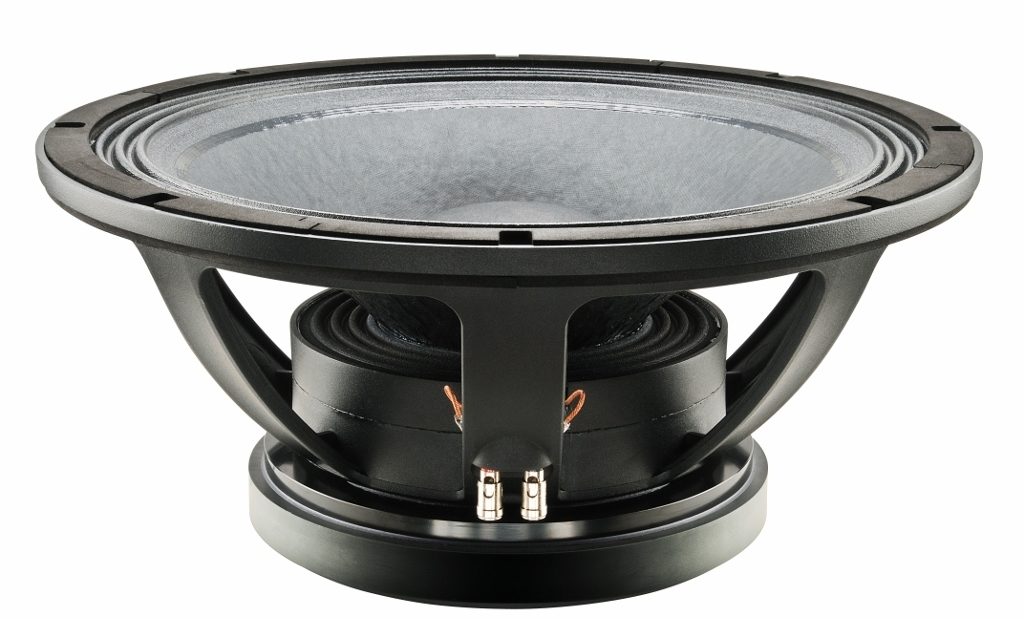

The Celestion CF18VJD Replacement Speaker is a ferrite magnet, cast aluminum chassis low frequency driver that delivers remarkable power. 1600Wrms power handling and 97dB sensitivity make it a perfect choice for high powered applications.

Features:

- 18 inch ferrite magnet, cast aluminium chassis LF driver delivering 1600Wrms (AES Standard) power handling and 97dB sensitivity
- 5 inch high temperature, dual layer, Inside/Outside voice coil for higher efficiency, preventing sensitivity loss through thermal compression
- FEA optimized magnet assembly delivers highly symmetrical cone - movement, leading to exceptionally low harmonic distortion
- Vented front plate increases airflow to provide enhanced cooling
- Twin demodulation rings reduce flux modulation, minimizing electromagnetic distortion
- Double suspension and "multi-roll" surround provide exceptional linearity at extremes of cone excursion

Specs

- Nominal diameter: 460 mm/18"
- Power rating: 1600 Wrms
- Nominal impedance: 8O
- Sensitivity: 297 dB
- Frequency range: 25 Hz-1500 Hz
- Voice coil diameter: 125 mm/5"
- Chassis type: Cast aluminium
- Magnet type: Ferrite
- Coil material: Round copper
- Former material: Glass fibre
- Cone material: Carbon and Kevlar loaded paper
- Surround material: Cloth sealed
- Suspension: Double
- Xmax: 39 mm/0.35"
- Gap depth: 12 mm/0.47"
- Voice coil winding width: 30 mm/1.18"
- Diameter: 462 mm/18.19"
- Overall depth: 233 mm/9.17"
- Cut-out diameter: 416 mm/16.38"
- Dimensions: 11 x 7 mm/0.43" x 0.28"
- Number of mounting slots: 8
- Mounting PCD range: 432-441 mm/17.0-17.36"
- Weight: 23 kg/50.6 lbs.
