Blue Cat Audio DP Meter Pro Audio Plug-in

Keep a close eye on your levels and dynamic range with DPMP's customizable multichannel metering -- plus advanced tools for sidechaining, ducking, and more.

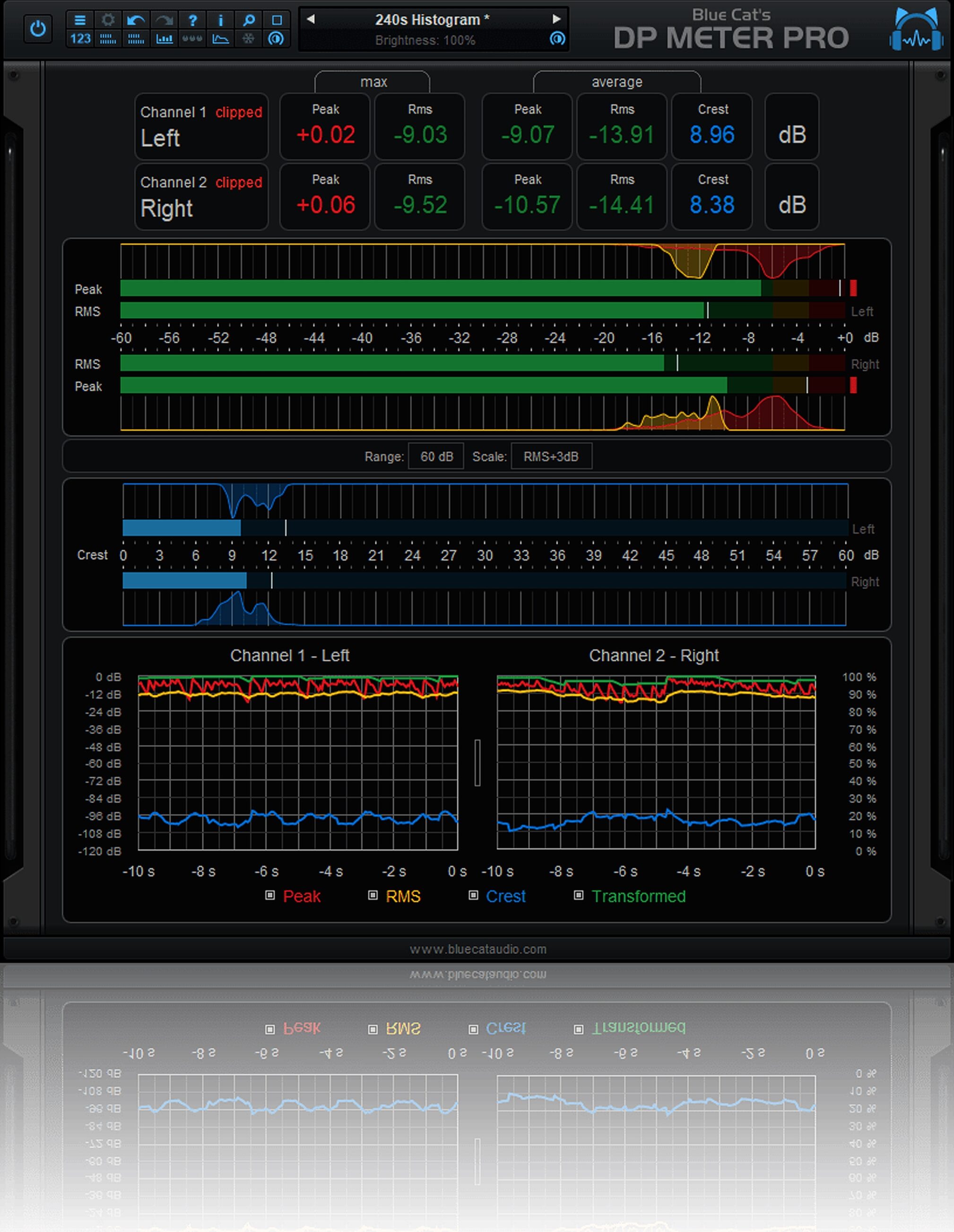

Blue Cat's DP Meter Pro (DPMP) is a unique audio analysis tool that combines very flexible and customizable audio meters with advanced side chaining control capabilities thanks to its MIDI and automation outputs.

The metering capabilities of the DPMP plug-in let you control and monitor audio signals exactly the way you want: almost every aspect of the peak, RMS, and crest factor meters can be customized. It proposes five different scales by default, including Bob Katz's popular K-System scales (K-12, K-14, K-20), and you can create your own.

Large colored statistics displays following your own scales are included for an overview of a track, while histograms give you a precise measurement of the dynamic range of the track. The graphs show the evolution of the audio envelopes over time, and the mid-side switch lets you verify mono compatibility problems and check the "stereoness" of your audio sources very easily. Whether you are working with mono, stereo, or surround tracks, this plug-in will fit into your workflow.

All envelopes (peak, RMS, crest factor...) can be reused for additional monitoring or side chaining purposes: combined together, reversed, modified, and recorded as automation curves or sent as MIDI CC messages, they can control other effects in real-time.

The DP Meter Pro Tutorials explain how to use these unique capabilities in your favorite host. Possibilities are endless, from voice-over and ducking to side chain compression, multiple tracks monitoring, or read more dynamic stereo enhancement. It is also possible to control external MIDI hardware (such synths, MIDI effects), video effects, or lighting systems with an audio signal.


- Multichannel peak, RMS & crest factor meter.
- True dynamic range measurement with levels histograms.
- Instant, average, and maximum audio levels.
- Modular user interface to fit into your workflow, with multiple screen sizes.
- Total control over the metering characteristics, including attack/release shape.
- Bob Katz's K-System scales support (K-12 / K-14 / K-20 and custom)
- Mono, stereo, mid-side or surround analysis.
- Record measurements (peak, RMS, crest factor, clip, etc.) as automation curves.
- Control in real time any MIDI-compatible plug-in or external MIDI device with the generated envelopes thanks to the plugin's MIDI CC output. See the Tutorials section for more examples.
- Manage the shape of the output envelope: record reversed envelope, change the amount of signal, and offset the generated envelope. This lets you use the plug-in for side chain ducking, compression, and much more.
- Easy 'stereoness' and phase cancelation measurement.
- Available in most plug-in formats for Mac and Windows.
- Full MIDI control and automation support, MIDI Learn.
- No CPU load on idle: processing shuts down when fed with silence (optimal CPU usage).
- Customizable user interface with transparency & zoom.
- Automation and MIDI output: record output parameters as automation curves or send MIDI CC messages to other plug-ins for powerful side chain effects.
- Smooth Bypass: noiseless plug-in activation / deactivation.
- Undo/Redo.
- Full featured integrated presets manager.
- Copy/paste the state of the plug-in between instances.
- Any sample rate supported.

- Operating System: mac
- Supported Plugins: VST-2, VST-3, AU, AAX
- Operating System: windows
- Supported Plugins: VST-2, VST-3, AAX
