Audio-Technica BP898 Subminiature Cardioid Condenser Lavalier Microphone



zZounds Gear Experts Say...
Clip on this tiny mic to record and reinforce vocals on stage or on camera. The BP898's cardioid pattern offers a pronounced proximity effect at close range.
Overview
The BP898 is a low-profile lavalier cardioid condenser available with terminations for wired or wireless use. The microphone's wide dynamic range and tolerance for high sound pressure levels ensures intelligible, natural-sounding audio that's ideal for use by stage and television talent, lecturers, and worship leaders.
The directionality of the BP898 cardioid element has a pronounced proximity effect when used at close range, enhancing the user's voice. This low-frequency enhancement drops off when the microphone is used at a distance. If the mic needs to be used at a greater distance or a less focused pickup is desired, the BP899 with an omnidirectional capsule is recommended.

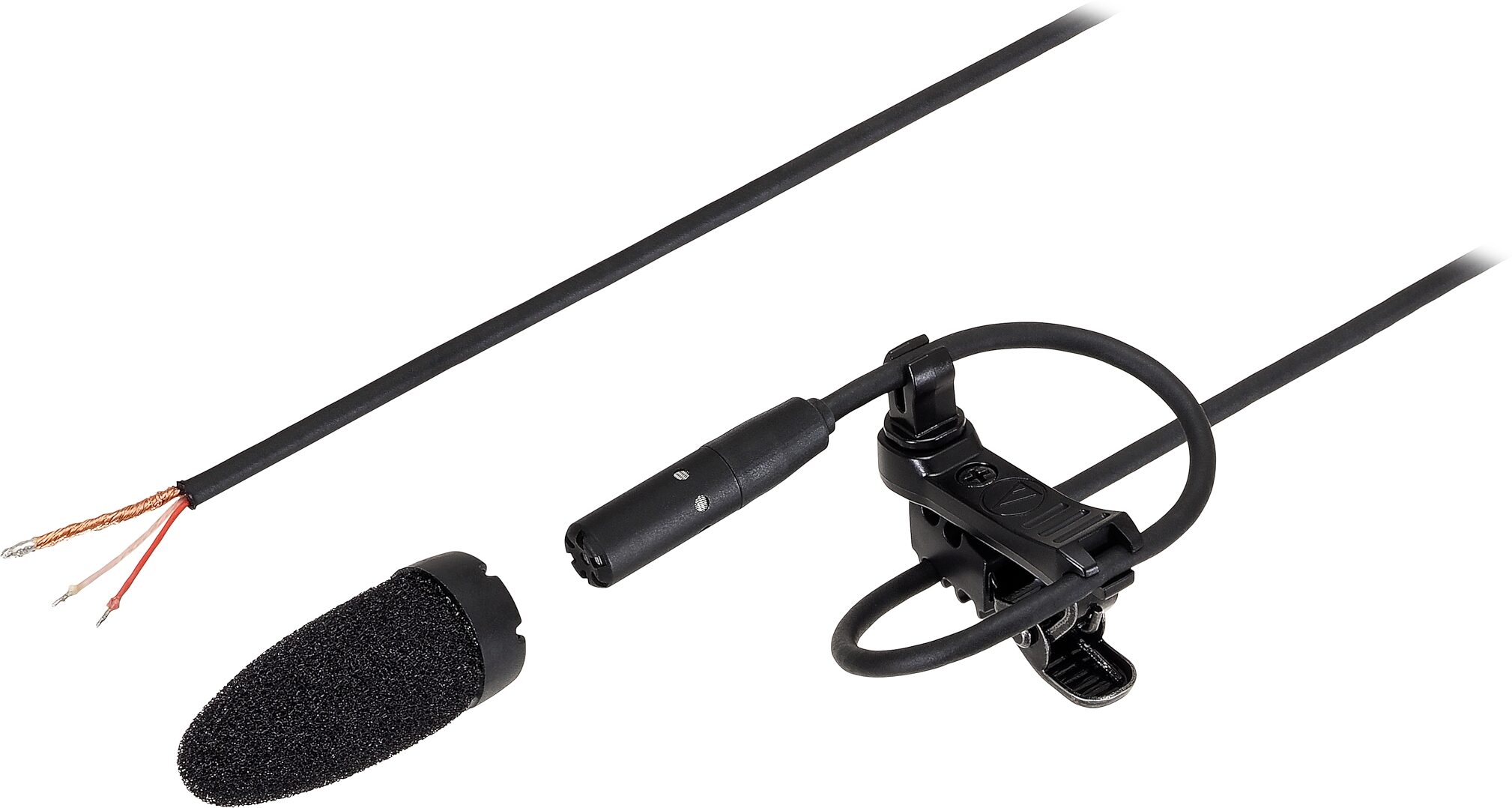

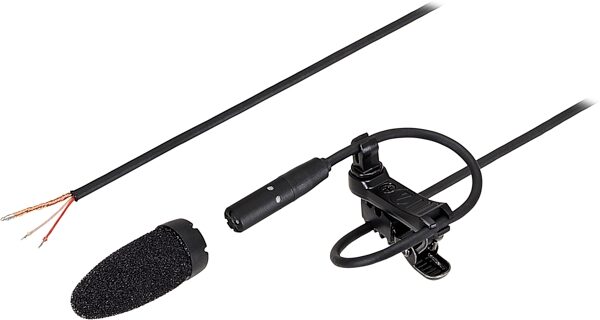

The mic's cable is made of a robust urethane elastomer that provides ultimate flexibility and strength, while resisting abrasion and moisture. The mic comes with a clothing clip that features two strain-relief points that isolate the mic from mechanical noise transferred over the cable. Two included windscreens each feature a clasp that secures the windscreen to the mic, preventing it from blowing off in critical situations, such as at sporting events.
Available wired and wireless models:
BP898 - 55" (1.4 m) permanently attached cable terminated with a cH-style screw-down 4-pin connector; AT8545 power module (with 80 Hz high-pass filter) for phantom power.

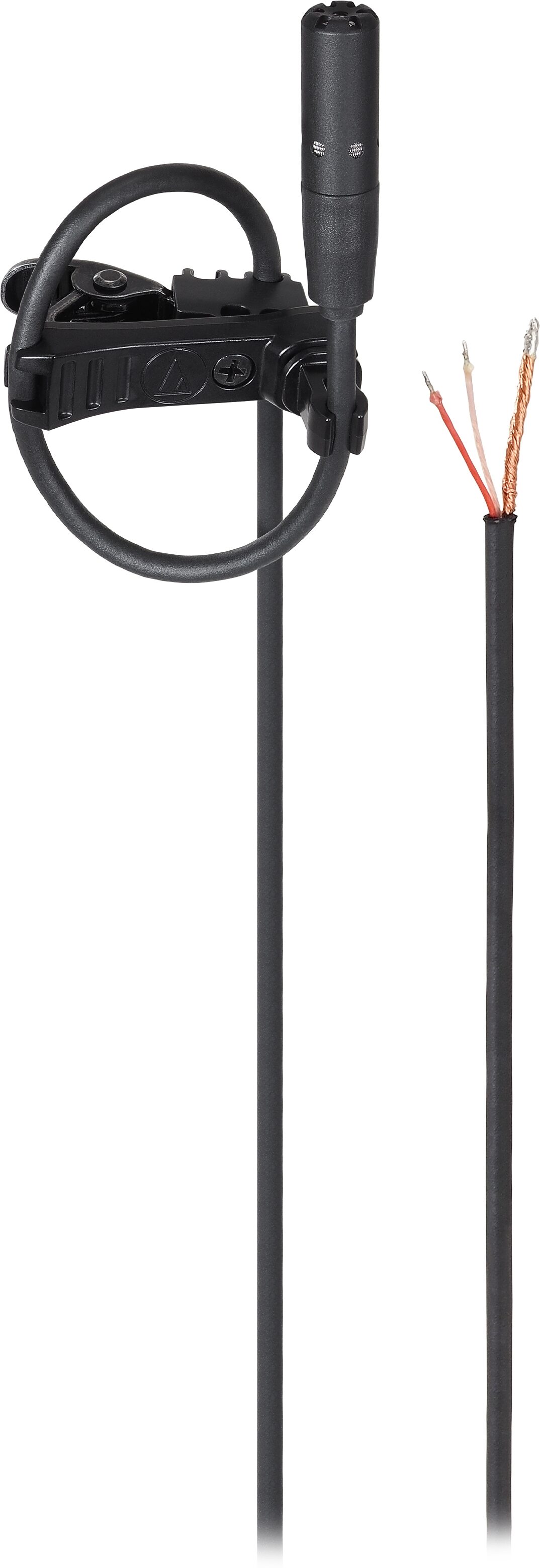

BP898c - 55" (1.4 m) permanently attached cable (unterminated); no power module.
BP898cH - 55" (1.4 m) permanently attached cable terminated with… read more a screw-down 4-pin connector for use with Audio-Technica cH-style body-pack wireless transmitters; no power module.
BP898cW - 55" (1.4 m) permanently attached cable terminated with a locking 4-pin connector for use with Audio-Technica cW-style body-pack wireless transmitters; no power module.
BP898cT4 - 55" (1.4 m) permanently attached cable terminated with TA4F-type connector for use with Shure wireless systems; no power module.
- Cardioid capsule provides directional pickup with pronounced proximity effect at close range that enhances the user's voice
- Low-profile design (a mere 5.3 mm in diameter) is ideal for applications requiring minimum visibility
- Urethane elastomer cable with a double-spiral shield wire provides ultimate flexibility, strength, and resistance to abrasion and moisture
- RoHS compliant - free from all substances specified in the EU directive on hazardous substances
- The microphone capsule is housed in a rugged metal structure to shield the electronic circuitry from external electromagnetic noise
- The signal line of the cable is made of a high-durability CuSn (copper and tin) alloy that greatly enhances corrosion resistance and increases longevity
- Two included windscreens each feature a plastic structure that keeps the windscreen secured to the microphone
- Clothing clip includes 16 distinct angle adjustments over 360* and two strain-relief clips for easy cable routing
read less
The directionality of the BP898 cardioid element has a pronounced proximity effect when used at close range, enhancing the user's voice. This low-frequency enhancement drops off when the microphone is used at a distance. If the mic needs to be used at a greater distance or a less focused pickup is desired, the BP899 with an omnidirectional capsule is recommended.
The mic's cable is made of a robust urethane elastomer that provides ultimate flexibility and strength, while resisting abrasion and moisture. The mic comes with a clothing clip that features two strain-relief points that isolate the mic from mechanical noise transferred over the cable. Two included windscreens each feature a clasp that secures the windscreen to the mic, preventing it from blowing off in critical situations, such as at sporting events.
Available wired and wireless models:
BP898 - 55" (1.4 m) permanently attached cable terminated with a cH-style screw-down 4-pin connector; AT8545 power module (with 80 Hz high-pass filter) for phantom power.
BP898c - 55" (1.4 m) permanently attached cable (unterminated); no power module.
BP898cH - 55" (1.4 m) permanently attached cable terminated with… read more a screw-down 4-pin connector for use with Audio-Technica cH-style body-pack wireless transmitters; no power module.
BP898cW - 55" (1.4 m) permanently attached cable terminated with a locking 4-pin connector for use with Audio-Technica cW-style body-pack wireless transmitters; no power module.
BP898cT4 - 55" (1.4 m) permanently attached cable terminated with TA4F-type connector for use with Shure wireless systems; no power module.
Features:
- Maximum intelligibility and clean, accurate reproduction for vocalists, lecturers, stage and television talent, and worship leaders- Cardioid capsule provides directional pickup with pronounced proximity effect at close range that enhances the user's voice
- Low-profile design (a mere 5.3 mm in diameter) is ideal for applications requiring minimum visibility
- Urethane elastomer cable with a double-spiral shield wire provides ultimate flexibility, strength, and resistance to abrasion and moisture
- RoHS compliant - free from all substances specified in the EU directive on hazardous substances
- The microphone capsule is housed in a rugged metal structure to shield the electronic circuitry from external electromagnetic noise
- The signal line of the cable is made of a high-durability CuSn (copper and tin) alloy that greatly enhances corrosion resistance and increases longevity
- Two included windscreens each feature a plastic structure that keeps the windscreen secured to the microphone
- Clothing clip includes 16 distinct angle adjustments over 360* and two strain-relief clips for easy cable routing
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
Specs
-Element: Fixed-charge back plate, permanently polarized condenser
-Polar Pattern: Cardioid
-Frequency Response: 270-17,000 Hz (50 cm (1.64')), 60-17,000 Hz (10 cm (0.33'))
-Low Cut*: 80 Hz, 18 dB/octave
-Open Circuit Sensitivity: -42 dB (7.9 mV) (0 dB=1 V/Pa, 1 kHz)
-Impedance*: 250 ohms
-Maximum Input Sound Level: 140 dB SPL (1 kHz at 1% THD)
-Noise: 28 dB SPL (A-weighted)
-Dynamic Range: 112 dB (1 kHz at Max SPL)
-Signal-To-Noise Ratio: 66 dB (1 kHz at 1 Pa, A-weighted)
-Phantom Power Requirements*: 11V-52V DC, 2 mA
-Switches*: Low cut: on/off
-Weight: 1.6 g (0.06 oz) (Microphone body)
-Dimensions: 22.3 mm (0.88") long, 5.3 mm (0.21") diameter (Microphone body)
-Cable: 1.4 m (4.6')
-Output Connector:
- Terminated with cW-style locking 4-pin connector
- Terminated with cH-style screw-down 4-pin connector
- Unterminated
-Accessories Included:
- Clothing clip base (AT8461a, AT8461a-TH)
- Windscreens (AT8151a, AT8151a-TH)
- Case
*Products with power modules
1 Pascal = 10 dynes/cm2 = 10 microbars = 94 dB SPL
For product improvement, the product is subject to modification without notice.
-Polar Pattern: Cardioid
-Frequency Response: 270-17,000 Hz (50 cm (1.64')), 60-17,000 Hz (10 cm (0.33'))
-Low Cut*: 80 Hz, 18 dB/octave
-Open Circuit Sensitivity: -42 dB (7.9 mV) (0 dB=1 V/Pa, 1 kHz)
-Impedance*: 250 ohms
-Maximum Input Sound Level: 140 dB SPL (1 kHz at 1% THD)
-Noise: 28 dB SPL (A-weighted)
-Dynamic Range: 112 dB (1 kHz at Max SPL)
-Signal-To-Noise Ratio: 66 dB (1 kHz at 1 Pa, A-weighted)
-Phantom Power Requirements*: 11V-52V DC, 2 mA
-Switches*: Low cut: on/off
-Weight: 1.6 g (0.06 oz) (Microphone body)
-Dimensions: 22.3 mm (0.88") long, 5.3 mm (0.21") diameter (Microphone body)
-Cable: 1.4 m (4.6')
-Output Connector:
- Terminated with cW-style locking 4-pin connector
- Terminated with cH-style screw-down 4-pin connector
- Unterminated
-Accessories Included:
- Clothing clip base (AT8461a, AT8461a-TH)
- Windscreens (AT8151a, AT8151a-TH)
- Case
*Products with power modules
1 Pascal = 10 dynes/cm2 = 10 microbars = 94 dB SPL
For product improvement, the product is subject to modification without notice.
- Dimensions and Weight in Packaging
- BP898c, Unterminated
- Shipping Weight: 0.4 lbs
- Shipping Dimensions: 6 x 4 x 2 in
- Manufacturer Part Number (MPN): BP898c
- BP898cW, for Wireless with cW Connector
- Shipping Weight: 0.4 lbs
- Shipping Dimensions: 6 x 4 x 2 in
- Manufacturer Part Number (MPN): BP898cW
- Open Box (Like New), BP898cW, for Wireless with cW Connector, USED
- Shipping Weight: 0.4 lbs
- Shipping Dimensions: 6 x 4 x 2 in
- Manufacturer Part Number (MPN): BP898cW
- BP898cH, for Wireless with cH Connector
- Shipping Weight: 0.5 lbs
- Shipping Dimensions: 6 x 4 x 2 in
- Manufacturer Part Number (MPN): BP898cH
- BP898cT4, for Wireless with TA4F Connector
- Shipping Weight: 0.41 lbs
- Shipping Dimensions: 6 x 4 x 2 in
- Manufacturer Part Number (MPN): BP898cT4
- BP898, with cH Connector and XLR AT8545 Power Module
- Shipping Weight: 0.6 lbs
- Shipping Dimensions: 6 x 4 x 2 in
- Manufacturer Part Number (MPN): BP898
