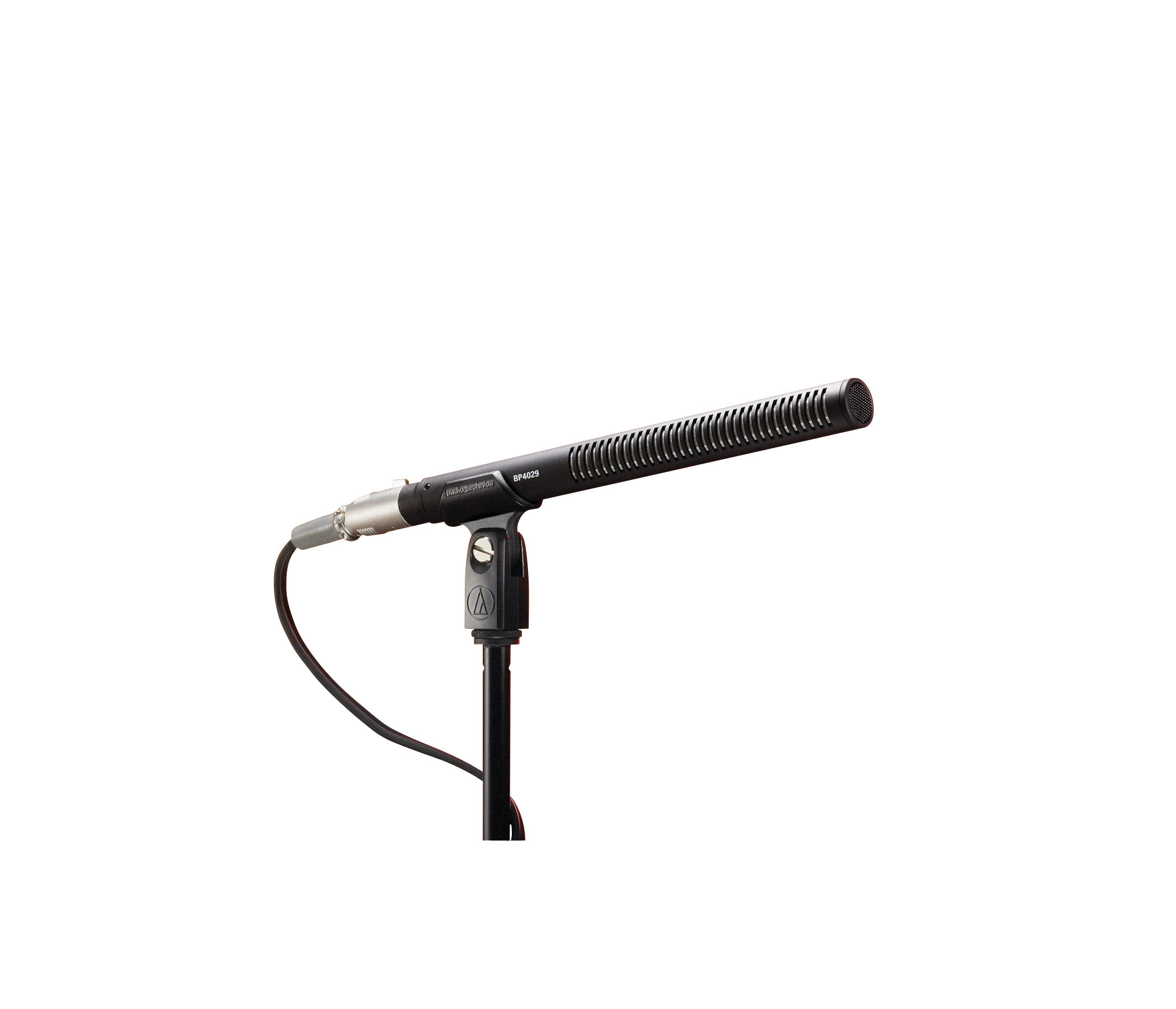

Audio-Technica BP4029 Stereo Shotgun Microphone

Add some flexibility to your studio with Audio-Technica's BP4029, a shotgun-style mic based on models developed for broadcast of the Sydney Games in 2000.
Based on models originally developed for use in the broadcast of the Sydney Games in 2000, the Audio-Technica BP4029 (9.29" long) Stereo Shotgun model is engineered for high-end broadcast and production use. This microphone features independent line-cardioid and figure-of-eight elements configured in an MS (Mid-Side) arrangement with switch-selectable internal matrixing. These innovative microphones allow sound recordists the choice of selecting a left-right stereo output (wide or narrow) via the microphone's internal matrixing system or choosing discrete Mid-Side signals for later manipulation, a flexibility not available from any other manufacturer.

A switchable low frequency roll-off filter helps minimize the pickup of unwanted low frequency noise. These phantom-powered models feature a rugged lightweight design and sleek black color scheme, perfect for on-camera use.

Features

- Designed for broadcasters, videographers and sound recordists
- Compact, lightweight design is perfect for camera-mount use
- Independent Line-cardioid and Figure-of-eight condenser elements
- Switchable low-frequency roll-off
- Switch selection of non-matrixed M-S mode and two internally-matrixed left/right stereo modes
- Includes a 0.61 m (24") cable (5-pin XLRF to two standard 3-pin XLRM connectors)
- RoHS compliant--free from all substances specified in the EU directive on hazardous substances
Elements: Fixed-Charge Back Plate, Permanently Polarized Condenser

Polar Patterns: Line-Cardioid, Figure-Of-Eight

Frequency Response: 40-20,000 Hz

Low Frequency Roll-Off: 80 Hz, 12 Db/Octave

Open Circuit Sensitivity: Mid: -30 Db (31.6 Mv) Re 1v At 1 Pa;

Side: -34 Db (19.9 Mv) Re 1v At 1 Pa;

Lr Stereo: -36 Db (15.8 Mv) Re 1v At 1 Pa

Impedance: 200 Ohms

Maximum Input Sound Level: Mid: 123 Db Spl, 1 Khz At 1% T.H.D.;

Side: 127 Db Spl, 1 Khz At 1% T.H.D.;

Lr Stereo: 126 Db Spl, 1 Khz At 1% T.H.D.

Dynamic Range (Typical): Mid: 101 Db, 1 Khz At Max Spl;

Side: 101 Db, 1 Khz At Max Spl;

Lr Stereo: 102 Db, 1 Khz At Max Spl

Signal-To-Noise Ratio: Mid: 72 Db Spl, 1 Khz At 1 Pa;

Side: 68 Db Spl, 1 Khz At 1 Pa;

Lr Stereo: 70 Db Spl, 1 Khz At 1 Pa

Phantom Power Requirements: 11-52v Dc, 4 Ma Typical At 48v, Each Channel

Switches: M-S, Lr Stereo-Wide (Lr-W), Lr Stereo-Narrow (Lr-N);
Flat, Roll-Off

Weight: 103 G (3.6 Oz)

Dimensions: 236.0 Mm (9.29") Long, 21.0 Mm (0.83") Diameter

Output Connector: Integral Xlr5m-Type

Cable: Dual 0.61 M (24") Shielded Two-Conductor, Terminated In Two Xlr3m-Type Connectors

Accessories Furnished: At8405a Stand Clamp For 5/8"-27 Threaded Stands; AT8134 Foam Windscreen; 5/8"-27 To 3/8"-16 Threaded Adapter; Protective Carrying Case
Audio-Technica Case Style: Sg2
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 1.75 lbs
Shipping Dimensions: 20 x 5 x 3 in
Manufacturer Part Number (MPN): BP4029
If you have additional warranty questions, please contact the manufacturer at 330-686-2600
